レーザ安全保護用布


  • Withstands High Laser Energy According to EN 12254: 2010(E) Certification
  • 1.0 m, 3.05 m, or 10.0 m Lengths of Laser Rated Fabric
  • Can Be Cut to Custom Sizes
  • Flame Retardant

This fabric may be cut into custom sizes to meet specific experimental needs.

LPCM1

1.6 m x 1.0 m

LPCM10

1.6 m x 10.0 m

Related Items


Please Wait
Laser Safety Fabric Certifications
WavelengthCertificationa
180 nm to 315 nmD AB10
I AB5
R AB4
M AB4
315 nm to 1050 nmD AB7
315 nm to 1400 nmR AB6
I AB8
M AB8
1050 nm to 1400 nmD AB5
1400 nm to 10.6 µmD AB4
I AB5
R AB2
  • この認証レベルはEN 12254: 2010(E)に準拠しています。詳細については上記の「規格認証」タブをご覧ください。

Click to Enlarge

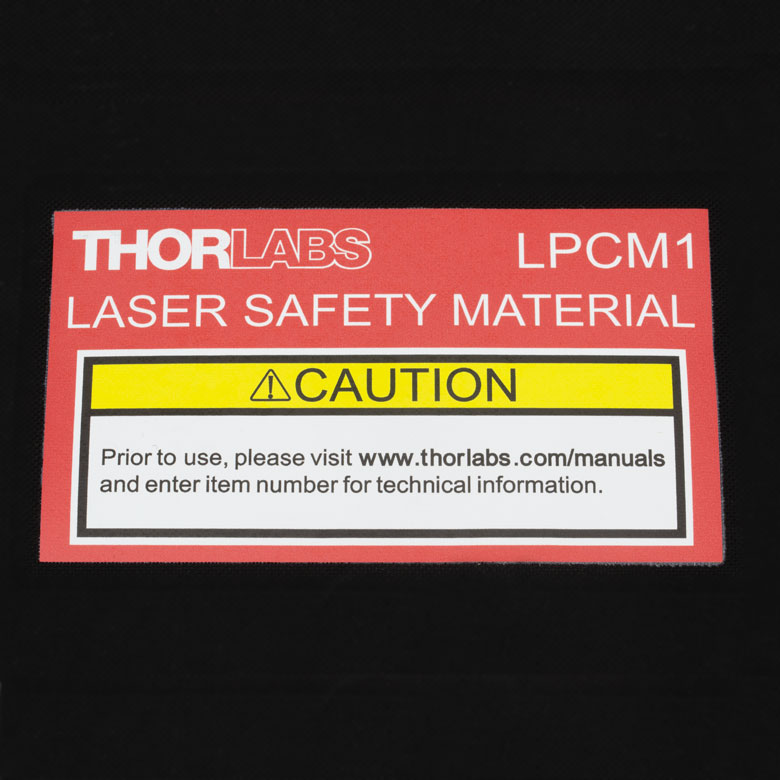

レーザ安全ラベルが長さ1.0 mならびに3.05 mの布に貼付されています。

特長

  • EN 12254:2010(E)*認証済み
  • 幅1.6 m、長さは1.0 m、3.05 m、10.0 mでご用意
  • 厚さ1.65 mm
  • カスタムサイズに裁断可能
  • 難燃性
  • ご希望の長さでご提供可能(当社までお問い合わせください)

当社のレーザ保護用布はEN 12254:2010(E)認証に準拠したレーザ出力に耐える設計で、実験ニーズに適したサイズに裁断できます。ゴム化合物の布地で、当社のレーザ安全保護カーテンシステムに使用されているものと同じ素材です。右表の認証レベルの詳細は上の「 規格認証」タブでご覧いただけます。大きさや形状を自由に決められるため、窓のカバーのほか、実験エリアや光学システム用にカスタマイズした覆いを構築するのに便利です。裁断部分がほつれないよう、必ず刃の鋭い裁断具をご使用ください。赤いレーザ安全ラベルが(右写真参照)は、長さ1.0 mならびに3.05 mの布に貼付されています。

LPCM10については使用前に端を切断する必要がある場合があります。ただし、使用可能な布の長さ部分は最低でも10.0 m確保されます。なおLPCM10は60 kgを超える木枠の梱包で発送されるため、運搬にはフォークリフトが必要です。布自体は約30 kgありますので1人で持ち上げないことをお勧めいたします。

*免責事項
レーザ保護用布は、EN規格に基づいて第三者機関によって試験が行われています。詳細については上の「規格認証」タブをご覧ください。ただし、製造バラツキ、機械的摩耗、およびレーザによる損傷によって生じたレーザ保護用布地の機能不良に関しては、当社では責任を負いかねます。布地が用途に適した製品であるかどうかについては、ご発注前に必ずお客様側でレーザ安全管理者にご相談いただくようお願いいたします。リスクを最小限に抑えるために、製品使用前に毎回必ず布地の状態をご確認ください。

免責事項

レーザ安全保護用布は、EN規格に基づいて第三者機関によって試験が行われています。ただし、製造バラツキ、機械的摩耗、およびレーザによる損傷によって生じたレーザ保護用布地の機能不良に関しては、当社では責任を負いかねます。布地が用途に適した製品であるかどうかについては、ご発注前に必ずお客様側でレーザ安全管理者にご相談いただくようお願いいたします。リスクを最小限に抑えるために、製品使用前に毎回必ず布地の状態をご確認ください。

EN Certificationa
Certification RequirementsTest ParametersDamage ThresholdMaximum Spectral
Transmittance Ratio
Certification Levela
EN 12254: 2010 (E), 180 - 315 nm Range266 nm, 3 ns Pulses (FWHM), 50 kHz1 x 107 W/m21 x 10-10D AB10
EN 12254: 2010 (E), 180 - 315 nm Range266 nm, 240 ms Pulses (FWHM), 10 Hz3 x 106 J/m21 x 10-5I AB5
EN 12254: 2010 (E), 180 - 315 nm Range266 nm, 5 ns Pulses (FWHM), 10 Hz3 x 105 J/m21 x 10-4R AB4
EN 12254: 2010 (E), 180 - 315 nm Range266 nm, 800 ps Pulses (FWHM), 20 Hz3 x 1014 J/m21 x 10-4M AB4
EN 12254: 2010 (E), 315 - 1050 nm Range532 nm (CW)1 x 107 W/m21 x 10-7D AB7
EN 12254: 2010 (E), 315 - 1400 nm Range 1064 nm / 532 nm, 10 ns Pulses (Square), 5 Hz5 x 103 J/m21 x 10-6R AB6
EN 12254: 2010 (E), 315 - 1400 nm Range1064 nm, 300 µs Pulses (Square), 20 Hz5 x 105 J/m21 x 10-8I AB8
EN 12254: 2010 (E), 315 - 1400 nm Range1064 nm / 532 nm, 500 ps / 400 ps Pulses (Square), 20 Hz1.5 x 104 J/m21 x 10-8M AB8
EN 12254: 2010 (E), 1050 - 1400 nm Range1070 nm (CW)2.5 x 106 W/m21 x 10-5D AB5
EN 12254: 2010 (E), 1400 - 10 600 nm Range10.6 µm (CW)1 x 107 W/m21 x 10-4D AB4
EN 12254: 2010 (E), 1400 - 10 600 nm Range10.6 µm, 100 ms Pulses (Square), 10 Hz1 x 107 J/m21 x 10-5I AB5
EN 12254: 2010 (E), 1400 - 10 600 nm Range10.6 µm, 100 ns Pulses (Square), 1 Hz1 x 104 J/m21 x 10-2R AB2
  • この認証レベルはEN 12254: 2010(E)に準拠しています。
Other EN Certificationsa
Certification TypeTest WavelengthPulsewidth (FWHM)Comments
Mechanical StrengthN/AN/AUV-Exposed Protected Fabric. All samples meet requirement.
Resistance to IgnitionN/AN/AFlame does not reach the test mark with the burner in position, and self-extinguishes after removal of the burner.
Material does not continue to glow for more than one second after removal of the burner.
Spectral Transmittance200 nm - 50 000 nmN/ASamples do not exhibit transmission windows from 200 nm to 50 000 nm.
Stability to TemperatureVariousVariousNo degradation was observed in any AB level for any sample.
Stability to UV RadiationAll10 ns - 20 nsSamples do not exhibit any cracking, peeling, or degradation. For laser wavelengths, samples do not exceed maximum
spectral transmission for scale number. Samples maintained optical density using both laser and spectrophotometer.
  • この認証レベルはEN 12254: 2010(E)に準拠しています。
Additional Certifications
Certification RequirementsComments
Boston Fire Department Classification Fire Test:
BFD IX-1
After flame does exceed two seconds; flame propogation and after flame does not extend beyond six inches from the bottom edge. Propagating afterglow does not exceed forty seconds; non-propogating afterglow in the charred area does not exceed eighty seconds.
California Administrative Code Title 19:
Public Safety, Section 1237
The char length did not exceed 6.0 inches, and the average afterflame time did not exceed 4.0 seconds in length or width directions.
NFPA No. 701 Standard Methods of Fire Test for Flame Propogation of Textiles and Films, 2019 Edition, (Test 1)aThe average percent weight loss does not exceed 40% and the average residual flame does not exceed 2.0 seconds.
NYC Cal. No. 294-40-SR No flashing occured at any time, and the average continuation of flaming did not exceed three seconds. The average continuation of glow at the edge of the charred area did not exceed twenty seconds after the cessation of flaming.
  • こちらの文書には布を72時間浸漬した後の試験結果が記載されています。浸漬前の試験結果についてはこちらをクリックしてください。

Laser Safety and Classification

Safe practices and proper usage of safety equipment should be taken into consideration when operating lasers. The eye is susceptible to injury, even from very low levels of laser light. Thorlabs offers a range of laser safety accessories that can be used to reduce the risk of accidents or injuries. Laser emission in the visible and near infrared spectral ranges has the greatest potential for retinal injury, as the cornea and lens are transparent to those wavelengths, and the lens can focus the laser energy onto the retina.

Laser GlassesLaser CurtainsBlackout Materials
Enclosure SystemsLaser Viewing CardsAlignment Tools
Shutter and ControllersLaser Safety Signs

Safe Practices and Light Safety Accessories

  • Laser safety eyewear must be worn whenever working with Class 3 or 4 lasers.
  • Thorlabs recommends the use of laser safety eyewear whenever working with laser beams with non-negligible powers (i.e., < Class 2) since metallic tools such as screwdrivers can accidentally redirect a beam.
  • Laser goggles designed for specific wavelengths should be clearly available near laser setups to protect the wearer from unintentional laser reflections.
  • Goggles are marked with the wavelength range over which protection is afforded and the minimum optical density within that range.
  • Laser Safety Curtains and Laser Safety Fabric shield other parts of the lab from high energy lasers.
  • Blackout Materials can prevent direct or reflected light from leaving the experimental setup area.
  • Thorlabs' Enclosure Systems can be used to contain optical setups to isolate or minimize laser hazards.
  • A fiber-pigtailed laser should always be turned off before connecting it to or disconnecting it from another fiber, especially when the laser is at power levels above 10 mW.
  • All beams should be terminated at the edge of the table, and laboratory doors should be closed whenever a laser is in use.
  • Do not place laser beams at eye level.
  • Carry out experiments on an optical table such that all laser beams travel horizontally.
  • Remove unnecessary reflective items such as reflective jewelry (e.g., rings, watches, etc.) while working near the beam path.
  • Be aware that lenses and other optical devices may reflect a portion of the incident beam from the front or rear surface.
  • Operate a laser at the minimum power necessary for any operation.
  • If possible, reduce the output power of a laser during alignment procedures.
  • Use beam shutters and filters to reduce the beam power.
  • Post appropriate warning signs or labels near laser setups or rooms.
  • Use a laser sign with a lightbox if operating Class 3R or 4 lasers (i.e., lasers requiring the use of a safety interlock).
  • Do not use Laser Viewing Cards in place of a proper Beam Trap.



Laser Classification

Lasers are categorized into different classes according to their ability to cause eye and other damage. The International Electrotechnical Commission (IEC) is a global organization that prepares and publishes international standards for all electrical, electronic, and related technologies. The IEC document 60825-1 outlines the safety of laser products. A description of each class of laser is given below:

ClassDescriptionWarning Label
1This class of laser is safe under all conditions of normal use, including use with optical instruments for intrabeam viewing. Lasers in this class do not emit radiation at levels that may cause injury during normal operation, and therefore the maximum permissible exposure (MPE) cannot be exceeded. Class 1 lasers can also include enclosed, high-power lasers where exposure to the radiation is not possible without opening or shutting down the laser. Class 1
1MClass 1M lasers are safe except when used in conjunction with optical components such as telescopes and microscopes. Lasers belonging to this class emit large-diameter or divergent beams, and the MPE cannot normally be exceeded unless focusing or imaging optics are used to narrow the beam. However, if the beam is refocused, the hazard may be increased and the class may be changed accordingly. Class 1M
2Class 2 lasers, which are limited to 1 mW of visible continuous-wave radiation, are safe because the blink reflex will limit the exposure in the eye to 0.25 seconds. This category only applies to visible radiation (400 - 700 nm). Class 2
2MBecause of the blink reflex, this class of laser is classified as safe as long as the beam is not viewed through optical instruments. This laser class also applies to larger-diameter or diverging laser beams. Class 2M
3RClass 3R lasers produce visible and invisible light that is hazardous under direct and specular-reflection viewing conditions. Eye injuries may occur if you directly view the beam, especially when using optical instruments. Lasers in this class are considered safe as long as they are handled with restricted beam viewing. The MPE can be exceeded with this class of laser; however, this presents a low risk level to injury. Visible, continuous-wave lasers in this class are limited to 5 mW of output power. Class 3R
3BClass 3B lasers are hazardous to the eye if exposed directly. Diffuse reflections are usually not harmful, but may be when using higher-power Class 3B lasers. Safe handling of devices in this class includes wearing protective eyewear where direct viewing of the laser beam may occur. Lasers of this class must be equipped with a key switch and a safety interlock; moreover, laser safety signs should be used, such that the laser cannot be used without the safety light turning on. Laser products with power output near the upper range of Class 3B may also cause skin burns. Class 3B
4This class of laser may cause damage to the skin, and also to the eye, even from the viewing of diffuse reflections. These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently matte surfaces. Great care must be taken when handling these lasers. They also represent a fire risk, because they may ignite combustible material. Class 4 lasers must be equipped with a key switch and a safety interlock. Class 4
All class 2 lasers (and higher) must display, in addition to the corresponding sign above, this triangular warning sign. Warning Symbol
