静電防止/ESD製品


  • 2′ x 4′ ESD Table Mat
  • Two ESD Wrist Strap Options

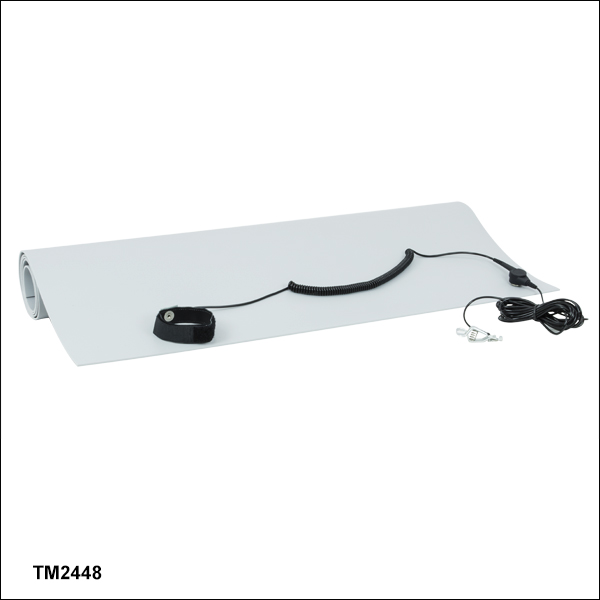

TM2448

Shown with Included Grounding Wire and ESD Wrist Strap

WS02

WS01

Related Items


Please Wait

静電防止/ESD製品は、半導体レーザ光ディテクタ,など、静電気に敏感なデバイスを取り扱う際の保護を目的とした製品です。静電気の放電からデバイスを保護するESDテーブルマット1種類、およびESDテーブルマットと併せてお使いいただけるESDリストストラップ2種類をラインナップしています。


Posted Comments:
zhuoli Ding  (posted 2022-09-14 15:40:25.55)
TM2448附带的附带的鳄鱼夹和接地线根本连接不上,缺发锁定的螺母,Thorlabs产品质量越来越差了
Ali Gokmen  (posted 2020-06-26 11:02:08.593)
We have purchased a fluorescence measurement cage cube system DFM1/M, LD source, PL450B, LD source KLD101, a camera CS165MU all installed on a breadboard MB2020/M. We have a static control table mat, TM2448, wrist strap, WS01 for safe handling of LD. I needed information how to ground TM2448 to mains (?), connecting it to KLD101 ground and safe handling of LD. I would appreciate any demo or related information.
YLohia  (posted 2020-06-26 09:17:58.0)
Hello Ali, thank you for contacting Thorlabs. I have reached out to you directly with this information.
jjurado  (posted 2011-05-16 11:38:00.0)
Response from Javier at Thorlabs to bruno.viaris: Thank you very much for contacting us. We currently do not have information regarding the heat resistance of this mat, so we really cannot comment on whether it will reasonably withstand solder drops. However, if you are willing to try it, we can send you a sample free of charge. Regarding the static decay spec, the correct value is 50 ms. We will correct the information on the spec sheet shortly.
bruno.viaris  (posted 2011-05-12 10:39:49.0)
Im not sure if it is the right place to ask for technical details on this product... Question: in the "datasheet" (http://www.thorlabs.de/Thorcat/0900/0963.S01.pdf) I cant find any information about heat resistance. Can this "Heavy duty" table mat reasonably cope with liquid solder drops accidentally falling from the iron or will that make a hole through it ? By the way, the Static charge decay defers between the description (50ms) and the pdf datasheet (<2s) Best regards.
Back to Top

静電防止テーブルマット

  • 610 mm × 1219 mmのテーブルマット
  • 静電気減衰:<2 s
  • 接地ワイヤやリストストラップが付属

当社の610 mm×1219 mmの静電防止用テーブルマットは、静電気放電によるダメージから電子部品を保護するために静電気拡散性の表面を有しています。このマットの静電気減衰時間は2秒未満で、極端な条件下においても確実に保護することができます。接地ワイヤと接地用リストストラップが付属しています。接地ワイヤは静電防止マットにスナップオンで取り付けられ、付属のワニ口クリップで接地することができます。接地用のリストストラップはバナナコネクタで接地ワイヤに接続するか、付属のワニ口クリップで接地が可能です。

当社ではほかにも静電防止テーブルマットに対応する接地用リストストラップをご用意しております(下記参照)。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
TM2448 Support Documentation
TM2448ESDテーブルマット、610 mm×1219 mm
¥15,407
Today
Back to Top

静電防止リストストラップ

  • WS01: 3.6 m接地ワイヤ付き伸縮金属ストラップ
  • WS02: 1.8 m接地ワイヤ付き布製ストラップ
  • 静電気に敏感なデバイスの取り扱い時に静電気を除去

当社の接地用リストストラップは、半導体レーザ、増幅フォトディテクタのほか静電気に敏感なデバイスを取り扱う際に、静電気を安全に除去します。接地ワイヤには、使用者の安全のため1 MΩ抵抗が内蔵されており、また静電気放電から保護するために静電防止テーブルマット(上記参照)に接続できます。リストストラップには付属のワニ口クリップに接続できるバナナコネクタが付いています。高品質な伸縮金属バンドWS01は、柔軟性、耐性、かつ快適性のあるバンドで、長期間使用することができます。接地コードの長さは3.6 mで、リストバンドの周囲長は伸ばさない普通の状態で15 cm です。布製ストラップWS02には1.8 mのコイルコードが付属しています。なお、製造ロットによりコードやリストストラップの色が異なる場合がありますのでご注意ください。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
WS01 Support Documentation
WS01金属製接地用リストストラップ、周囲長15 cm、3.6 m巻コード
¥6,603
Today
WS02 Support Documentation
WS02布製接地用リストストラップ、周囲長調整可能、1.8 m巻コード
¥2,247
Today
