顕微鏡用スライド型パワーセンサーヘッド


  • Measure Power at the Sample
  • Large-Area Sensor to Collect Light from High NA Objectives (up to 1.45)
  • Compatible with Dry, Water Immersion, and Oil Immersion Objectives
  • Low- and High-Power Versions Available

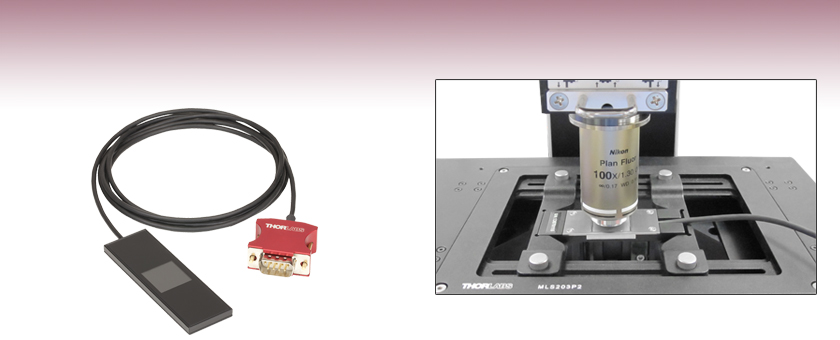

S170C Microscope Slide Power Meter Sensor used with a 1.30 NA Objective and Shown on an MLS203-1 Motorized Scanning Stage Equipped
with an MLS203P2 Slide Holder

S175C

High-Power Microscope Slide Power Sensor for UV, Visible, and IR

Related Items


Please Wait
Engraving on Back of Housing
Click to Enlarge

顕微鏡用スライドセンサの筐体の背面には、センサの仕様とビームをセンサ中心に合わせるのに便利なグリッドや十字線が刻印されています。写真はS170Cの背面です。S171Cにも同様の刻印があります。センサS175Cの背面は下の製品紹介の写真でご覧いただけます。
Microscope Beam Alignment
Click for Details
センサ筐体の背面に刻印されたアライメントターゲットを利用してステージの位置を決めれば、センサを反転させたときにビームをセンサの中心に入射させることができます。写真のセンサはS170Cです。

特長

  • 標準の正立および倒立顕微鏡に使用可能
  • 試料面での光パワーの計測用に設計
  • 18 mm x 18 mmの大きな受光面
  • 低光パワー測定用フォトダイオードセンサ
    • 波長範囲:350 nm~1100 nm (型番170C)または400 nm~1100 nm (型番S171C)
    • 光パワー測定範囲:10 nW~150 mW (型番170C)または1 nW~15 mW (型番S171C)
  • 高光パワー測定用サーマルセンサ(型番 S175C)
    • 波長範囲:300 nm~10.6 μm
    • 光パワー測定範囲:100 µW~2 W
  • センサの筐体の大きさは一般的な顕微鏡用スライドと同じ76.0 mm x 25.2 mm
  • 高NAの対物レンズに対応する新光学設計(「光学設計」タブをご覧ください)
  • コネクタに以下の情報を保存
    • 当社パワーメーターコンソール使用時(別売り)に有効な自動校正用センサーデータ
    • NISTまたはPTBにトレーサブルな校正データ
  • 再校正サービスをご提供

用途

顕微鏡用スライドセンサーヘッドを用いると、顕微鏡システム内の試料面における光パワーを測定することができます。センサーヘッドの外形寸法(76.0 mm x 25.2 mm)は標準の顕微鏡用スライドと同じで、センサの受光面は18 mm x 18 mmと大きく、多くの標準的な正立および倒立顕微鏡にお使いいただけます。

低光パワー用の製品にはシリコンフォトダイオードセンサ、高光パワー用の製品にはサーマルセンサが用いられています。フォトダイオードセンサSC170Cは波長範囲350 nm~1100 nmに感度を有し、10 nW~150 mWの光パワーを分解能1 nWで測定できます。フォトダイオードセンサSC171Cは波長範囲400 nm~1100 nmに感度を有し、1 nW~15 mWの光パワーを0.5 pWの分解能で測定できます。これらのセンサは応答時間白色光源などによる広帯域の照明光の測定にも適しています。サーマルセンサS175Cは波長範囲300 nm~10.6 µmに感度を有し、100 µW~2 Wの光パワーを測定できます。このセンサは、仕様の波長範囲で平坦な吸収特性を有するため、LEDや白色光源などによる広帯域な照明光の測定に適しています。詳細は「仕様」タブをご覧ください。

S170C with the PM200 Power Meter Console
Click to Enlarge

タッチパネル式パワーメーターコンソールPM400(別売り)に接続されたS175C

使用法について
このセンサは最大NA 1.45までの対物レンズに対する光パワー測定をサポートしており、空気中で水や油の液浸媒体を用いた場合でも使用可能です(詳細は「 光学設計」タブをご覧ください)。右上の写真でご覧いただけるように、センサの背面には気体(< 0.95)、水浸(< 1.30)、油浸(< 1.45)と、各条件で推奨する対物レンズのNAが刻印されています。受光面はガラスカバーで保護されています。ガラスカバーは、圧縮空気、またはアセトンやメタノールで湿らせたレンズ用ティッシュで簡単にクリーニングできます。

上の写真でご覧いただけるように、センサの背面にはアライメント用のグリッドがレーザ刻印されています。これは受光面の位置を表しており、ビームのアライメントや集光の際に役立ちます。標準的な正立顕微鏡に使用する場合は、筐体をその刻印面が顕微鏡の対物レンズに対面する向きにして光路に挿入します。パワーセンサの中心が対物レンズの真下にくるように調整したのち、パワー測定ができるようにスライドを反転させてディテクタの受光面をビームに向けます。倒立顕微鏡に使用する場合は、受光面が対物レンズに向くようにディテクタをスライドホルダにセットし、透過照明用ランプの電源を入れます。ビームの位置を刻印されたターゲットの中心に一致させることで、受光面を光路の中心に一致させることができます。

センサの損傷させないために、ビームが集光されない位置にセンサを配置することをお勧めします。ビームのスポットサイズ内のどの位置においても、最大平均パワー密度(Max Average Power Density、「仕様」タブ参照)を超えないことが重要です。

対応するパワーメーターコンソールとインターフェイス
これらのパワーセンサーヘッドは、パワーメーターコンソールのPM100DPM100APM400PM5020、およびセンサとPCなどの外部制御ユニットを接続するためのCシリーズパワー&エネルギーメーターインターフェイスに対応します。下記のコンソールPM100A、PM100D、PM400についての製品紹介で、表示画面や操作スイッチも含めてご覧いただけます。左の写真でご覧いただけるように、センサーヘッドの横に1.5 mのケーブルが付いており、その先には9ピンのオス型Dサブコネクタが付いています。自動校正を行うために、センサ仕様とNISTまたはPTBにトレーサブルな校正データがセンサーコネクタ内の不揮発性メモリに保存されており、当社の対応するパワーメーターコンソールで読み出すことができます。

再校正サービス
当社ではパワーセンサとパワーメーターコンソールの再校正サービスを提供しています。センサとコンソールはセットで再校正されることをお勧めしますが、それぞれを単体で再校正することも可能です。詳細は当社 までお問い合わせください。

Specifications
Item #S170CS171CS175C
Detector TypeSilicon PhotodiodeThermal Absorber
Wavelength Range350 - 1100 nm400 - 1100 nm300 nm - 10.6 µm
Optical Power Working Range10 nW - 150 mW1 nW - 15 mW100 µW - 2 W
Max Average Power Density20 W/cm210 W/cm2200 W/cm2
Max Pulse Energy Density--0.1 J/cm² (1 µs Pulse)
1 J/cm² (1 ms Pulse)
Linearity±0.5%
Resolution1 nWa0.5 pWb10 µWc
Measurement Uncertaintyd±3% (440 - 980 nm)
±5% (350 - 439 nm)
±7% (981 - 1100 nm)
±3% (440 - 980 nm)e
±5% (400 - 439 nm)e
±7% (981 - 1100 nm)e
±3% (1064 nm)
±5% (300 nm - 10.6 µm)

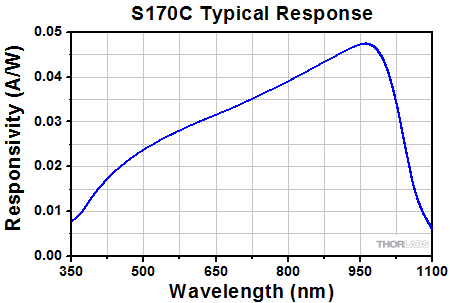

Responsivity (Click for Plot)Typical Responsivity
Raw Data
Typical Responsivity
Raw Data
-

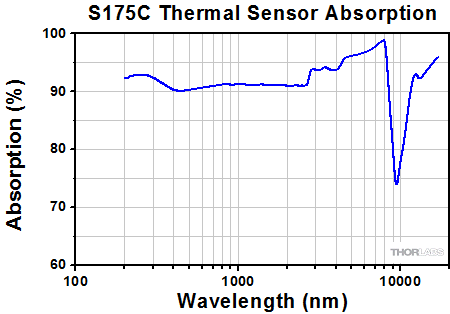

Absorption (Click for Plot)--Typical Absorption
Raw Data
Typical ApplicationLight Measurement on the Microscope Objective Plane
Neutral Density FilterReflective (OD 1.5)Absorptive (OD 0.4)N/A
CoolingConvection
Compatible ConsolesfPM100D, PM100A, PM400, and PM5020
Compatible InterfacesfPM101, PM101A, PM101R, PM101U, PM103, PM103A, PM103EPM103U, and PM100USBPM101, PM101A, PM101R, PM101U, PM102, PM102A, PM102U, and PM100USB
Response Time< 1 µs< 2 s
Overall Dimensions76 mm x 25.2 mm x 5 mm
(2.99" x 0.99" x 0.20")
76 mm x 25.2 mm x 4.80 mm
(2.99" x 0.99" x 0.19")
Active Detector Area18 mm x 18 mm
Input Aperture20 mm x 20 mm18 mm x 18 mm
Cable Length1.5 m
ConnectorSub-D 9 Pin Male
Weight0.07 kg (0.15 lbs)0.05 kg (0.11 lbs)
Post Mounting8-32 (M4) ThreadN/A
  • 狭帯域幅に設定されたコンソールPM100Dで測定
  • 狭帯域幅に設定されたコンソールPM5020で測定
  • コンソールPM200(旧製品)で測定
  • ビーム径> 1 mm
  • 24 ± 2 °Cで有効
  • センサS17xCは当社で現在ご提供している全てのフォトダイオードパワーメーターコンソールとインターフェイス、および旧製品のPM200とPM320Eに対応しておりますが、それら以外の当社の旧製品のパワーメーターコンソールには対応しておりません。

Sensor Connector

D-type Male

DB9 Male

Pin Connections
PinS170C and S171CS175C
1Not Used
2EEPROM Data
3Photodiode Anode GroundSensor Ground
4Photodiode CathodeNot Used
5Not Used
6EEPROM Ground
7Not UsedNot Used
8Not UsedSensor Signal
9Not Used

クリーニング方法
顕微鏡用スライド型パワーメータ-センサーヘッドの筐体をクリーニングする際は、湿らせた柔らかいクロスを使用してください。S170CとS171CのNDフィルタは、市販のエアブローでやさしく埃を落としてください。表面のクリーニングには、アセトンやメタノールで湿らせたレンズ用ティッシュで優しく拭き取っていただくことも可能です。S175Cのガラス製センサーカバーは、イソプロパノールなどの適切な溶剤でクリーニングすることができます。

校正
センサは過度の光パワーに曝されない限り1年以上は安定しているため、その間は校正データも使用可能です。精度と性能を確保するために定期的な再校正をお勧めします。校正頻度は用途にもよりますが、通常1年程度です。当社では再校正サービスを提供しております。詳細は当社までお問い合わせください。

Effects of Index Matching Gel
上図は、高NAの対物レンズを通過した後の光が、顕微鏡用パワーセンサーヘッドS170C(左側)と通常のフォトダイオードセンサ(右側)に入った後に、どのように振る舞うかを示しています。対物レンズのNAが1.0より大きく、隙間に屈折率マッチングジェルを使用していない場合、NDフィルタと空気の界面で光の一部は内部全反射します。これによって、センサに到達する前に光の一部は損失することになります(注:液浸油などの液浸媒体は、S170CとS171C以外の当社のフォトダイオードディテクタのNDフィルタには直接つけないでください。S170C以外のフォトダイオードディテクタは、この用途向けには設計されていないため、フィルタ表面をクリーニングすることができません)。

大きな検出部と屈折率マッチングジェル

顕微鏡用スライドセンサーヘッドS170C、S171CならびにS175Cは、大きな検出部を持つディテクタで設計されており、高NAの対物レンズに対応します。またS170CとS171CはNDフィルタとセンサの間の隙間に屈折率マッチングジェルを使用しており、空気とガラスの界面での内部反射による損失を最小限に抑えております。S175Cは、ガラス製の保護カバーを使用することによりS170Cよりも隙間が狭く(0.15 mm対1.5 mm)、屈折率マッチングジェルを使用しないことにより、高速なセンサ応答時間を維持しています。

右の概略図は、高NAの対物レンズを通過した光が、顕微鏡用スライドセンサーヘッドS170C(左側)と通常のフォトダイオードセンサ(右側)に入った後どのように振る舞うかを示すことによって、大きな検出部を持つS170Cのような製品が、通常のフォトディテクタに比べて優位性があることを示しています。図に示されている通常のフォトダイオードセンサは、当社の薄型フォトダイオードセンサS130標準型フォトダイオードセンサS120と同様で、NDフィルタaとセンサの隙間は空気で満たされており、検出部はØ9.5 mmです。高NAの対物レンズからの光がNDフィルタと空気の界面に到達すると、屈折し、センサの中心から外れていきます。光の一部は、フォトダイオードの小さな検出部から外れてしまい、誤った光パワー測定につながります。

顕微鏡用スライドセンサーヘッドS170CとS171Cでは、NDフィルタとセンサの隙間は屈折率マッチングジェルで埋められています。通常のセンサーヘッドのNDフィルタと空気の界面と比較して、ジェルはNDフィルタとジェルの界面での反射光を最小限に抑えてセンサに到達する光量を増やし、NDフィルタからの出射光の屈折も防ぎます。これにより、大面積のディテクタが対物レンズからのより多くの光を捉えます。なお、この設計は、非常に高いNAを持つ油浸対物レンズにおいては一定の波長で完全に効果を補うものではありませんのでご注意ください。

S175Cをほかのサーマルセンサと比較した場合にも同様の結果が期待されます。ガラス製の保護プレートとサーマルセンサの間の0.15 mmの小さな隙間は、センサの中心から屈折する光を最小限に抑え、18 mm x 18 mmの大きな検出部が入力信号を更に捉えることになります。また、S175Cには、センサにダメージを与えることなく液浸媒体を対物レンズに使用するためのガラス製の保護カバープレートが付いています (注: 当社のほかのサーマルセンサに液浸媒体を使用しないでください。センサーヘッドにダメージを与える可能性があります)。

  1. こちらの顕微鏡スライドパワーセンサは、このような用途に特化して設計されています。これ以外の当社のフォトダイオードセンサのNDフィルタの場合は、液浸材を直接つけるとフィルタ表面の油が取り除けなくなりますので、そのような使用方法は避けてください。ここに示している例は、S170Cの光学設計の優位性を示すことだけを意図したものです。

Posted Comments:
Vanessa Carlos  (posted 2023-04-28 15:02:03.27)
Hello, I would like to know if this power sensor can be completely immersed in water. Or if you have any other photodiode sensors where that is possible. I would need it for measuring power at the sample, on light sheet microscopes, using water immersion objectives, with low NA. Thank you!
dpossin  (posted 2023-05-02 04:33:31.0)
Dear Vanessa, Thank you for your feedback. The S170C is desgined for usage in immersion media. You can see the basic working principle here: https://www.thorlabs.de/newgrouppage9.cfm?objectgroup_id=2191&tabname=optical%20design. I am reaching out to you in order to discuss this further.
Jolanda van Iperen  (posted 2023-01-09 16:35:59.607)
I am looking for a mini laser intensity power meter that fits under the objectives of a u-Raman microscope (till 100x objective WD 0,17 and can focus with that working distance. It should be able to set laser at 532 nm and 785 nm in order to measure at these wavelength the power of the laser through the objectives, preferable reading the power outside the enclosure, which can be opened a little bit. I came to S170C, but cannot find if this is set to a particular wavelength or gives a spectrum. It would be nice to have both options - also for the LED light of the microscope- , but if not in the first place we prefer the first option to measure intensity of laser 532 and 785 nm.
hkarpenko  (posted 2023-01-10 08:45:30.0)
Dear Jolanda, thank you for your feedback. Our sensors won´t be able to show the spectrum of the sensor, but only the power. S175C might be a more suitable sensor if you are measuring both, monochromatic and broadband lightsources. I contact you directly to discuss this in more detail with you.
user  (posted 2021-11-09 06:01:57.003)
What is the typical ambient-stabilization time between you take it in your hand, place it where you want to measure, and until you can actually measure? In our temp controlled lab, I've seen that this can go up to 10-15 minutes. Is that normal?
dpossin  (posted 2021-11-16 06:02:54.0)
Dear Carlos, Thank you for your feedback. The stabilization time depends on the power level you would like to measure. In general thermal power sensors are very sensitive to external heat. Since convection is quite a slow process a settle time of 10 to 15 minutes is nothing to worry about. I am reaching out to you to discuss this further.
Holger Knaut  (posted 2021-07-29 10:12:16.853)
Hi, is the S170C compatible with laser light illumination such as a confocal or spinning disk scope? Thanks
soswald  (posted 2021-08-02 03:11:26.0)
Dear Holger, thank you for your feedback. The S170C can be used to measure laser light as long as the maximum power of 150 mW and the maximum power density of 20 W/cm² are not exceeded. Please contact your local tech support team with more details on your light source, expected power and power density to discuss your application further.
user  (posted 2019-07-03 16:32:40.697)
We are looking for a power meter similar to this but maybe one that is a cylinder as we are wanting to characterize an assembly that is illuminated from six points located around the circumference. Please contact me.
MKiess  (posted 2019-07-05 10:20:23.0)
This is a response from Michael at Thorlabs. Thank you for your inquiry. I have contacted you directly to discuss further details on custom possibilities and applications for this sensor.
g.makey  (posted 2016-05-12 03:50:55.7)
Hi, Can S170C be used in reflective mode microscope while imaging?
shallwig  (posted 2016-05-12 05:05:39.0)
This is a response from Stefan at Thorlabs. Thank you for your inquiry. I have contacted you directly to discuss how the S170C can be used in your setup.
donovan.harris.civ  (posted 2015-12-10 15:28:18.217)
Couldn't find compatible meter for the S175C. Using Zeiss compatible collimated LED sources at full power.
shallwig  (posted 2015-12-11 06:41:50.0)
This is a response from Stefan at Thorlabs. Thank you very much for your inquiry. The S175C sensor is compatible with any of our currently available consoles PM100D, PM100A, PM100USB, PM200, PM320E. I will contact you directly to discuss your application in more detail.
cuhrich  (posted 2014-01-21 16:09:02.123)
I just noticed that my comment is the same as one posted here. We need this device built with a stronger ND filter as we will have powers closer to 1W down on the sample. Seems like a reasonable option to offer a high power version.
tschalk  (posted 2014-01-23 04:56:30.0)
This is a response from Thomas at Thorlabs. Thank you very much for your inquiry. At the moment we are not able to equip the sensor with a stronger ND-filter because these does not meet our specifications. 1W is far away from the current specification and we hope to increase the maximum power level up to 300mW in the future. I will contact you directly to discuss your application.
flickingerd  (posted 2013-11-01 08:24:21.293)
A model with Pmax 500 mW would be nice (powers like this are normal for narrow bandwidth 2P microscopy).
tschalk  (posted 2013-11-06 03:19:31.0)
This is a response from Thomas at Thorlabs. Thank you very much for your inquiry. At the moment we can not provide a sensor with a higher power range because of the optical filter that is used. I will contact you directly to discuss your application and find a suitable solution.
cbrideau  (posted 2013-08-01 16:38:44.763)
Looking good, but how do you deal with the NA narrowing imposed by the Si detector's high index of refraction (>3)?
Back to Top

顕微鏡用スライド型光パワーセンサーヘッド、低光パワー用

Item #aS170CS171C
Wavelength Range350 - 1100 nm400 - 1100 nm
Optical Power Working Range10 nW - 150 mW1 nW - 15 mW
Max Average Power Density20 W/cm210 W/cm2
Resolution1 nWb0.5 pWc
  • 仕様の詳細は「仕様」タブをご覧ください。
  • 狭帯域幅に設定されたコンソールPM100Dで測定
  • 狭帯域幅に設定されたコンソールPM5020で測定
S170C Post Mounting
Click to Enlarge

S170Cは、筐体側面にあるM4タップ穴を使用してポストに取り付けることができます。
  • 18 mm x 18 mmの大きな受光面
  • 高NA対物レンズからの光の測定や光路上の任意の位置での光測定に便利
  • 当社では再校正サービスを提供しております。詳細は当社までお問い合わせください。
  • M4タップ穴を利用してポストに取付け可能

顕微鏡用のスライド型パワーメータフォトダイオードセンサーヘッドS170Cおよび S171Cは、標準的な正立および倒立顕微鏡のスライドホルダに適合するように設計されており、これらを用いて試料面における光パワーを測定することができます。受光面は密封された筐体に納められており、その前面には光学濃度(OD)1.5 (型番S170C)または0.4 (型番S171C)のNDフィルタが付いています。NDフィルタ上の20 mm x 20 mmのくぼみには、カバースリップや液浸材を入れられます。液浸材(水、グリセロール、油など)はこの中(NDフィルタの上)に直接つけることができます。または、クリーニングを容易にするために、最初にカバースリップを挿入することもできます。S170CとS171CのNDフィルタとセンサの間の隙間には屈折率マッチングジェルが入っており、空気とガラスの境界面での内部反射による損失は最小限に抑えられています。これらの物理的特性については、「光学設計」タブにその概要が記載されています。

このフォトダイオードセンサS170Cは、1 µsの高速応答時間、10 nWの最小検出光パワー、1 nWの分解能といった特性を有し、低パワーの照明の光パワーを高分解能で測定するのに適しています。また当社では、最小検出光パワーが1 nW、分解能が0.5 pWのセンサS171Cもご用意しております。水浸対物レンズを用いるときは、水により特に近赤外域において透過光の一部が吸収されます。そのため、水が無いときの光パワーの読取値は、水が有るときの読取値よりも高くなります。

スライドの背面にはセンサの仕様とビームアライメント用のグリッドが刻印されています。センサを対物レンズに向けるだけでパワーの測定を行うことができます。倒立顕微鏡では、透過照明用ランプをグリッドの中心に置くことで、センサがビームの中心にあることを確認できます。

センサS170CとS171Cは、定期的な再校正をお勧めしています。校正頻度は用途にもよりますが、通常1年程度です。当社では再校正サービスを提供しております。詳細は当社までお問い合わせください。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
S170C Support Documentation
S170CCustomer Inspired! 顕微鏡用スライド型パワーセンサ、350~1100 nm、10 nW~150 mW
¥181,461
Today
S171C Support Documentation
S171CCustomer Inspired! 顕微鏡用スライド型パワーセンサ、400~1100 nm、1 nW~15 mW
¥181,461
7-10 Days
Back to Top

顕微鏡用スライド型光パワーセンサーヘッド、高パワー用

Microscope Thermal Sensor
Click to Enlarge

S175Cの筐体の背面には、センサの仕様とビームをセンサの中央に入射させるためのターゲットが刻印されています。
  • 高パワー用サーマルセンサ:波長範囲300 nm~10.6 µm
  • 100 µW~2 Wの光パワー測定用
  • 18 mm x 18 mmの大きな検出部
  • 高NA対物レンズからの光や光路に沿ったあらゆる位置の光測定に便利
  • 当社では再校正サービスを提供しております。詳細は当社までお問い合わせください。

顕微鏡用スライド型光パワーメーターヘッドS175Cは、標準的な正立および倒立顕微鏡のスライドホルダに適合するように設計されており、試料面での光パワーを測定することができます。18 mm x 18 mmの大きな検出部を持つセンサはガラスプレートで保護されており、センサ部にも液浸材を塗布することができます。2秒未満の応答時間、100 µW~2 Wの光パワー範囲、そして10 µWの分解能により、この光パワーセンサはLEDや白色照明など高出力の広帯域光源の測定に適しています。水浸対物レンズを用いるときは、水により特に近赤外域において透過光の一部が吸収されます。そのため、水が無いときの光パワーの読取値は、水が有るときの読取値よりも高くなります。

スライドの背面には右の写真のようにセンサの仕様とビームアライメント時のターゲットマークが刻印されています。センサ面を対物レンズに向けるだけでパワーの測定を行うことができます。倒立顕微鏡では、センサの中央に確実にビームが来るように透過照明でグリッドの中央を照らすことができます。

なお、この製品はサーマルセンサなので、通気穴や周囲温度の大きな変化に敏感であることをご配慮ください。センサが一旦周囲温度になってから測定をしてください。

センサS175Cは定期的な再校正をお勧めしています。校正頻度は用途にもよりますが、通常1年程度です。当社では再校正サービスを提供しております。詳細については当社までお問い合わせください。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
S175C Support Documentation
S175CCustomer Inspired! 顕微鏡用スライド型パワーセンサ、300 nm~10.6 µm、100 µW~2W
¥181,461
Today
Back to Top

パワーメーターコンソール

こちらでは当社で人気の高いパワーメーターコンソールをご紹介しています。デジタルパワーメーターコンソールPM100DはLEDバックライトのスクリーンを採用しており、1 GBの外付けSDメモリカードが付属しています。タッチパネル式パワーメーターコンソールPM400は、PM100Dと同じ機能を有するうえに、パワー測定値を保存するための4 GBの内蔵メモリ、温度・湿度センサ用の外部入力端子、プログラム可能なGPIOポート、マルチタッチジェスチャーでユニットを操作できる静電容量方式タッチパネルディルプレイなども備えています。またPM400では、光パワー測定データ、温度記録、スペクトル補正曲線、減衰補正データなどを保存し、それらをコンソールと外部機器間で転送してさらに分析することができます。これらの機能は、試料面における光パワーを継続的に観察し、その一貫性をモニタするのに大変便利です。詳細は表内の型番をクリックして各パワーメーターコンソールの製品紹介ページをご覧ください。

また、センサS170C、S171CおよびS175Cは、コンソールPM5020および旧製品のPM200とPM320Eにも対応します。これら3種類の全センサは、センサとPCなどの外部制御ユニットを接続するために、PM100シリーズPM100USBといったインターフェイスも使用可能です。またパワーセンサS170CおよびS171CはPM103 シリーズのインターフェイス、S175CはPM102 シリーズのインターフェイスにも対応します。

Item #PM100APM100DPM400
Console Image
(Click the Image to Enlarge)
PM100APM100DPM400 Power Meter Console
DisplayMechanical Needle and
LCD Display with Digital Readout
320 x 240 Pixel Backlit
Graphical LCD Display
Projected Capacitive Touchscreen
with Color Display
OutputAnalog Needle or Digital Numeric ReadoutNumerical, Bar Graph, Statistics,
Simulated Analog Needle
Numerical with Bar Graph,
Trend Graph (Power or Energy
and Temperature),
Statistics, Simulated Analog Needle
Calibration FunctionsWavelength CorrectionaWavelength CorrectionaWavelength Correctiona;
Also Accepts User-Input
Source Spectra and
Attenuation Correction Data
Data Storage and TransferUSB 2.0 Interface1 GB External SD Memory Card,
USB 2.0 Interface
4 GB Internal Memory
Mini B USB 2.0 Interface
Dimensions7.24" x 4.29" x 1.61"
(184 mm x 109 mm x 41 mm)
7.09" x 4.13" x 1.50"
(180 mm x 105 mm x 38 mm)
5.35" x 3.78" x 1.16"
(136.0 mm x 96.0 mm x 29.5 mm)
Display Dimensions1.9" x 0.5" (48.2 mm x 13.2 mm)
Digital Display and
3.54" x 1.65" (90.0 mm x 42.0 mm) Analog Display
3.17" x 2.36"
(81.4 mm x 61.0 mm)
3.7" x 2.1"
(95 mm x 54 mm)
  • センサに依存します。
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
PM100A Support Documentation
PM100A小型パワーメーターコンソール、アナログ表示&グラフィックLCディスプレイ
¥152,743
Today
PM100D Support Documentation
PM100D小型パワー&エネルギーメーターコンソール、デジタル4インチLCD
¥174,043
Today
PM400 Support Documentation
PM400タッチパネル式パワー&エネルギーメーターコンソール、マルチタッチ対応
¥216,919
Today
Back to Top

Recalibration Service for Microscope Slide Power Sensors

※パワーセンサ校正について - 当社のパワーセンサ校正は自動で行われており、測定と同時にセンサ内のメモリにある補正データを書き換えます(出力されるデータは校正前の感度と校正後の感度になります)。また、センサ面(NDフィルタ)が汚れ等で正常に感度測定ができないと判断された場合には、フィルタ交換(無償)してから校正される場合がございますので、ご了承ください。この場合は校正前の感度は測定できません。測定と校正を別々に実施する場合には、事前のご連絡が必要です。また、校正のみの場合とは金額および期間が異なりますのでご注意ください。

Calibration Service
Item #
Compatible Microscope
Slide Power Sensor
CAL-PDS170C and S171C
CAL-THPYS175C

Thorlabs offers recalibration services for our microsope slide power sensors. To ensure accurate measurements, we recommend recalibrating the sensors annually. Recalibration of a single-channel power and/or energy meter console or interface is included with the recalibration of a sensor at no additional cost. If you wish to calibrate one or more sensors with a dual-channel console, each sensor and console calibration service will need to be purchased individually.

Refer to the table to the right for the appropriate calibration service Item # that corresponds to your microscope slide power sensor.

Requesting a Calibration
Thorlabs provides two options for requesting a calibration:

  1. Complete the Returns Material Authorization (RMA) form. When completing the RMA form, please enter your name, contact information, the Part #, and the Serial # of the item being returned for calibration; in the Reason for Return field, select "I would like an item to be calibrated." All other fields are optional. Once the form has been submitted, a member of our RMA team will reach out to provide an RMA Number, return instructions, and to verify billing and payment information.
  2. Select the appropriate sensor calibration Item # below, enter the Part # and Serial # of the sensor that requires recalibration, and then Add to Cart. If you would like a console calibrated with your sensor, repeat this process for Item # CAL-PM1 or CAL-PM2 below, entering the console Item # and Serial #. A member of our RMA team will reach out to coordinate the return of the item(s) for calibration. Note that each console calibration Item # represents the cost of calibrating a console alone; if requesting a single-channel console calibration with a sensor calibration, the appropriate discount will be applied when your request is processed. Should you have other items in your cart, note that the calibration request will be split off from your order for RMA processing.

Please Note: To ensure your item being returned for calibration is routed appropriately once it arrives at our facility, please do not ship it prior to being provided an RMA Number and return instructions by a member of our team.

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
CAL-PD Support Documentation
CAL-PD Recalibration Service for Single-Power-Range Silicon Photodiode Power Sensors
Part Number:  Serial Number:
Request
Lead Time
CAL-THPY Support Documentation
CAL-THPYRecalibration Service for Thermal Power and Pyroelectric Energy Sensors at 1064 nm
Part Number:  Serial Number:
Request
Lead Time
Back to Top

Recalibration of Power & Energy Meter Electronics

※パワーセンサ校正について - 当社のパワーセンサ校正は自動で行われており、測定と同時にセンサ内のメモリにある補正データを書き換えます(出力されるデータは校正前の感度と校正後の感度になります)。また、センサ面(NDフィルタ)が汚れ等で正常に感度測定ができないと判断された場合には、フィルタ交換(無償)してから校正される場合がございますので、ご了承ください。この場合は校正前の感度は測定できません。測定と校正を別々に実施する場合には、事前のご連絡が必要です。また、校正のみの場合とは金額および期間が異なりますのでご注意ください。

Calibration Service Item #Compatible Consoles & Interfaces
Single-Channel
CAL-PM1PM100D, PM100A, PM400, PM100USB,
PM101 Series, PM102 Series, PM103 Series
Dual-Channel
CAL-PM2PM5020, Previous-Generation PM320E

These recalibration services are for the power and/or energy meter electronics of our consoles and interfaces. To ensure accurate measurements, we recommend recalibrating annually. Recalibration of a single-channel console or interface is included with these sensor recalibration services at no additional cost. If you wish to calibrate one or more sensors with a dual-channel console, each sensor and console calibration service will need to be purchased individually. For more details on these recalibration services, please click the Documents () icons below.

The table to the upper right lists the power and/or energy meter consoles and interfaces that can be calibrated using the CAL-PM1 and CAL-PM2 recalibration services.

Requesting a Calibration
Thorlabs provides two options for requesting a calibration:

  1. Complete the Returns Material Authorization (RMA) form. When completing the RMA form, please enter your name, contact information, the Part #, and the Serial # of each item being returned for calibration; in the Reason for Return field, select "I would like an item to be calibrated." All other fields are optional. Once the form has been submitted, a member of our RMA team will reach out to provide an RMA Number, return instructions, and to verify billing and payment information.
  2. Select the appropriate Item # below, enter the Part # and Serial # of the item that requires recalibration, and then Add to Cart. If you would like to calibrate one or more sensors with your console, repeat this process for the appropriate sensor recalibration service above, entering the console Item # and Serial #. A member of our RMA team will reach out to coordinate return of the item(s) for calibration. Note that each console calibration Item # represents the cost of calibrating a console alone; if requesting a single-channel console calibration with a sensor calibration, the appropriate discount will be applied when your request is processed. Should you have other items in your cart, note that the calibration request will be split off from your order for RMA processing.

Please Note: To ensure your item being returned for calibration is routed appropriately once it arrives at our facility, please do not ship it prior to being provided an RMA Number and return instructions by a member of our team.

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
CAL-PM1 Support Documentation
CAL-PM1Recalibration of Single-Channel Power and/or Energy Meter Electronics
Part Number:  Serial Number:
Request
Lead Time
CAL-PM2 Support Documentation
CAL-PM2Recalibration of Dual-Channel Power and Energy Meter Electronics
Part Number:  Serial Number:
Request
Lead Time
Last Edited: Sep 12, 2013 Author: Tina Aragona
