長方形光学素子用ケージキューブ


  • Holds a Rectangular Optic up to 3 mm Thick at 45° AOI
  • 30 mm Cage System and Ø1" Lens Tube Compatible
  • Secure a Dichroic, Beamsplitter, Mirror, Polarizing Bandpass Filter, or Another Optic

CM1-DCH

Integrated Filter Mount

Related Items


Please Wait

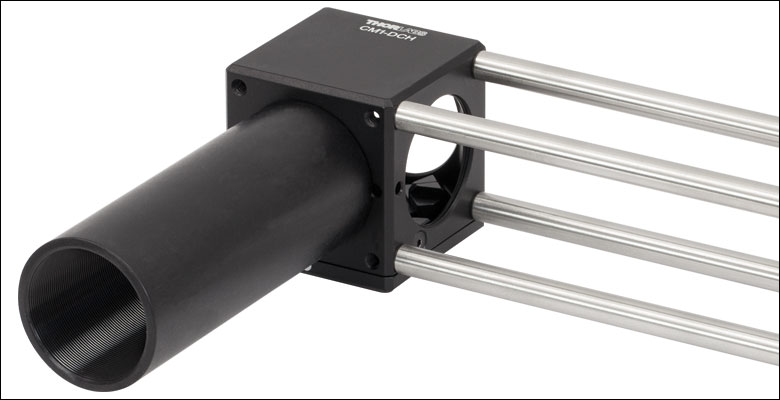

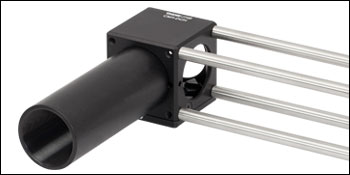

CM1-DCH with Lens Tube and Cage System
Click to Enlarge

CM1-DCH(/M)は30 mmケージとSM1レンズチューブに対応

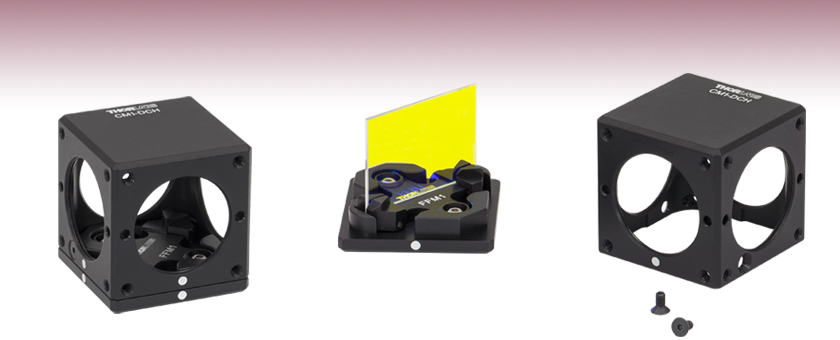

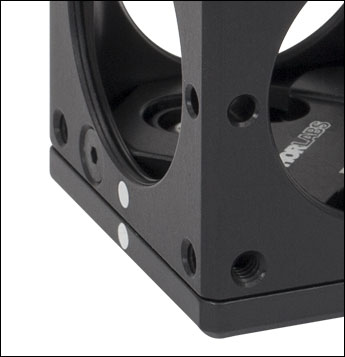

CM1-DCH Flat Head Screw for Cover Removal and Filter Replacement
Click to Enlarge

2つの六角皿ネジは、キューブのカバー取外し用で、フィルタを取り替える際に使用します

特長

  • 厚さ3 mmまでの長方形ダイクロイックミラーやフィルタなどの光学素子をマウント
  • SM1シリーズの4つのネジ切り加工されたスルーポートで発光フィルタと励起フィルタが取付け可能
  • 30 mmケージシステムに取付け対応
  • ケージキューブコネクタCM1-CCで2つのケージキューブを接続

ダイクロイックフィルタ用キューブCM1-DCH/Mは、長方形のダイクロイックミラービームスプリッタ銀ミラー、偏光バンドパスフィルタなどの長方形の光学素子で、幅36 mm 、高さ26 mm、厚さ3 mmまでの寸法の光学素子を、内部のクランプを用いて固定します。他のフィルタ用キューブに比べてコンパクトなため、ケージ部品同士の距離が近くなります。キューブの底面には、2つの六角皿ネジがあり、このネジを1.5 mmの六角レンチで緩めると底面がキューブ型の筺体からはずれて、内部のクランプを動かすことができるようになります(右下写真参照)。

また発光フィルタや励起フィルタを短いレンズチューブにマウントし、SM1シリーズのネジ切り加工が施されたポートに取り付ければ、蛍光イメージングフィルタのセットアップが完成します(「用途」タブ参照)。キューブCM1-DCH/Mでは、全ての面に4つの#4-40のネジ切り加工付きの穴があるので30 mmのケージシステムに取付けることができて、M4のタップ穴を使うとポストにも取り付けられます。このキューブは、下記掲載のケージキューブコネクタCM1-CCを使うと、つなげて使用できます。ケージキューブはロッドアダプタERSCBによってケージロッドとの接続が可能です。

注:この製品の底部には、このキューブに合わせて加工されたフィルターホルダーマウントFFM1が付いていますが、CM1-DCH/Mに対して、標準品のFFM1はご使用になれません。追加のCM1-DCH/M用ベースは特注にてご提供可能です。詳細は当社までお問い合わせください。

当社で取り揃えているキューブマウント付き光学素子製品については「マウント付き光学素子ガイド」タブをご覧ください。

蛍光フィルタセットでの使用例

CM1-DCH/Mでは、2つのレンズチューブSM1L03が使用可能で、ケージシステム内にイメージングフィルタのセットを組み込むことができます。発光フィルタと励起フィルタは、ケージキューブに取り付けられた長さ7.6 mmのレンズチューブにマウントできます。マウスを使って、画面上の写真にポインタを持っていくと、右側の表中にある部品に対応する箇所に色が付きます。

Dichroic Cage CubeImaging FiltersDichroic CubeRodRodRodRodRodRodRodRodRodRodRodRodImaging FilterLens Tube
Product DescriptionQty.Photo
(Click to Enlarge)
CM1-DCH Dichroic Cube1Dichroic Cage Cube
SM1L03 0.3" Long Lens Tube20.3 inch Lens Tube

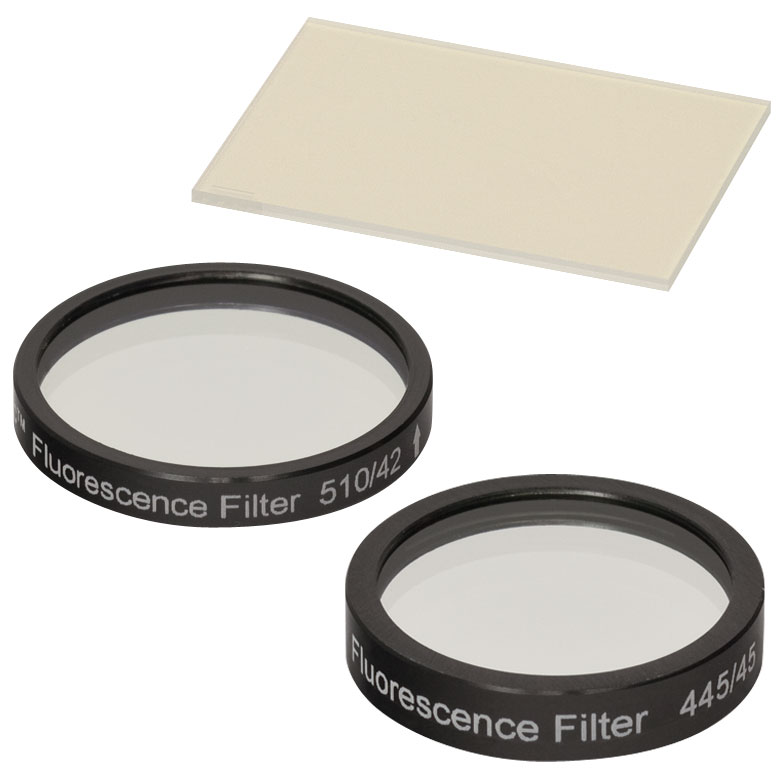

Fluorescence Filter Set1Fluorescence Filter Set
ER Cage Rods12ER Cage Rod

30 mmケージキューブ付き光学素子のセレクションガイド

下の表には当社の30 mmケージキューブ付き光学素子全製品のリンクがございます。16 mmケージキューブ付き光学素子については16 mmケージシステムガイドをご覧ください。

Non-Polarizing BeamsplittersPolarizing BeamsplittersHigh Power Polarizing Beamsplitters
Non-Polarizing Beamsplitter CubePolarizing Beamsplitter CubeHigh-Power Polarizing Beamsplitter Cube
Pellicle BeamsplitterLaser Line Polarizing BeamsplittersCircular Polarizer
Pellicle BeamsplittersLaser Line Polarizing Beamsplitter CubeCircular / Variable Polarizers
Penta PrismsTurning MirrorsVariable Beamsplitters/Attenuators
Penta PrismsTurning MirrorsVariable Beamsplitters / Attenuators

光学素子なしの30 mmケージキューブセレクションガイド

Dichroic Mirror HolderEmpty Compact Cage Cube
Rectangular Dichroic Mirrors and FiltersEmpty Compact 30 mm Cage Cube

Posted Comments:
Vitaly Pavlenko  (posted 2023-01-25 17:41:26.22)
For example, for CCM1-BS01X the spec for Reflected Beam Deviation is 90° ± 20 arcmin, Defined with respect to the mechanical housing. My guess is that I should expect worse than that from CM1-DCH, considering that the filter is held only along one side and thus it could sway some. Can you provide an estimate? Also, any tips on filter installation that would minimize the deviation inaccuracy in question?
cdolbashian  (posted 2023-01-27 05:03:22.0)
Thank you for reaching out to us Vitaly. One reason for the way we spec these components is that one of them comes with a cemented-in-place optic which we can test and validate before selling, while the other requires a user-supplied optic, and depending on the optic chosen, the angular deviation will vary.
Fabian Mainzer  (posted 2022-11-10 17:08:42.073)
The cube for 45° mirror is good in itself, however, for me there are a few aspects that could be improved. I use the cube in combination with three 30mm cage plates. Due to the fact that the edge length of the cube is smaller than that of the cage plates, they have to be machined (chamfer milled) so that they can be pushed directly to the central filter cube. Furthermore, the two screws for fastening the base plate with mirror carrier and cube cage are no longer accessible due to this arrangement. These should be placed on the underside of the base plate for me. In addition, the mechanical fit between the base plate and mirror should be better solved, so that opening the cube makes an adjustment obsolete. I am happy if my suggestions contribute to the improvement of the system.
ksosnowski  (posted 2022-11-19 12:45:37.0)
Hello Fabian, thanks for reaching out to Thorlabs. We appreciate your feedback and I am adding these ideas to our internal forum for development. From current catalogue items, the DFM1 cube may be an alternative option for some setups, though it is larger this is also what allows standard cageplate sizes to flush-mount from all sides. I have reached out directly to discuss your application in further detail.
user  (posted 2022-05-04 19:49:24.793)
We bought a few of these. Here I list the issues with this CM1-DCH design: 1) The spring loaded clamping mechanism is too tight. It leads to fringes on the reflected light due to strain on the dichroic. I had to remedy this by adding some padding between the dichroic and mount. 2) The screws that are used to bolt the cuboid to the base plate strips super easily and completely wastes the mount. Until these issues are fixed, I won't be buying these anymore and will actively discourage my colleagues from procuring these parts. Given how expensive these parts are, one should've noticed these issues.
jdelia  (posted 2022-05-12 09:06:58.0)
Thank you for contacting Thorlabs, and we apologize for the issues you are experiencing. Regarding the first issue, I have reached out to you directly to discuss alternative options with weaker springs. For the second issue, while this is not something we have heard of before, we can certainly look into ensuring this does not happen in the future. Thank you again for the valuable feedback.
user  (posted 2021-11-25 11:04:58.663)
Dear Thorlabs team, The two M2.5 flat head screws which hold the bottom plate with the rest of the cube are easily destroyable by screwing and unscrewing several time. The allen key doesn't fit well in the hex hole. As well, it would be great to have a way to orient the FFM1 inside the bottom plate (similarly to the 2 dots you have on the bottom plate and on the rest of the cube). Thank's
cdolbashian  (posted 2021-12-27 03:46:57.0)
Thank you for contacting us here at Thorlabs with this good feedback. We have heard a similar type of feedback in the past with regards to the size of the hex hole in the securing screws. I have logged your excellent suggestion regarding the alignment dots to our product development forum. This would indeed create a nice and easy way to ensure a nominal angle, rather than having to carefully adjust it. Thank you again for the feedback. This only helps us to improve our products!
Xindong Song  (posted 2021-04-02 02:39:54.41)
Hi Thorlabs. Could you make the same thing for the 60mm cage system? Many thanks.
YLohia  (posted 2021-04-05 02:11:07.0)
Hello, thank you for your feedback. We will consider offering a 60 mm version of this exact cage cube in the future. In the meantime, we do offer the DFM2 for such applications.
user  (posted 2020-09-17 03:01:56.77)
Hi, Is this product for the right turning of light beam? Can I use it as a left-turning mount? Thanks.
YLohia  (posted 2020-09-17 01:34:00.0)
Hello, thank you for contacting Thorlabs. This can be used in either scenario -- the direction of the reflection will depend on the orientation of the FFM1 in the cube mount.
Sami Arja  (posted 2019-11-12 20:14:11.947)
Dear Thorlabs, Is it possible to use the CM1 with BS013 by purchasing the bottom part separately? I am interested to know if I can have a cage mount that is compatible with both DCH/M and BS013. Your advice is highly appreciated. Sami
YLohia  (posted 2019-11-13 10:43:59.0)
Hello Sami, thank you for contacting Thorlabs. The CM1 cannot be used with the BS013 as we don't not offer suitable plates to adapt cubed optics to the CM1 system. We do, however, offer the CCM1-4ER, which would be a good fit for your application.
Gregor Jotzu  (posted 2019-10-18 09:19:58.903)
Dear Thorlabs Team, it would be great to be able to purchase only the part that holds the filter separately. I have a setup where we use the filter cube in a cage construction and it is possible to remove the filter. It would be great if one can replace the filter. I am aware of the DFM1, but there are parts of our seput where we prefer the CM1-DCH. Sincerely, Gregor Jotzu
llamb  (posted 2019-10-22 11:21:40.0)
Hello Gregor, thank you for your feedback. We can certainly offer the bottom assembly of the CM1-DCH as a custom product for now, and I have posted this idea in our internal engineering forum for further review as its own product release. I have reached out to you directly to discuss quoting the bottom assembly as a custom product for the time being.
Craig Prater  (posted 2019-07-31 19:13:05.797)
I just bought one of this and I'm not loving this product. I had been considering using it in an OEM application, but the filter mount does not seem very stable. I can apply slight pressure to the edge of a dichroic installed in this unit filter rock between two positions. I'd like this product if the mounting of the filter in this mount could be more stable and secure for example more like the DFM1. I just don't 'need the kinematic mounting feature (or extra size and cost) of the DFM1.
YLohia  (posted 2019-08-01 10:50:07.0)
Hello, thank you for your feedback. We are always looking for different ways of improving our products. I have posted your comments on our internal engineering forum for further consideration.
schnell  (posted 2017-05-18 14:33:18.503)
How well do these cage cubes hold the rectangular plate beamsplitters from your catalog? I wonder if they provide a stable enough mount to serve as a beamsplitter for interferometry. Also, will the cube hold the plate beamsplitter well enough when mounted vertically, e.g. the output port is facing down? Thank you!
nbayconich  (posted 2017-05-25 05:57:11.0)
Thank you for contacting Thorlabs. I will reach out to you directly regarding the CM1-DCH mounting capabilities. We also have the DFM1 cage cube or the B5C1 cage cube optic mount for Ø1" diameter optics as alternative mounting options.
lothar.schmid  (posted 2014-09-26 22:49:51.087)
The protrusions on the bottom plate partly block the 1'' holes, so that lens tubes cannot be screwed completely in. filing the protrusions down a bit solves the problem, but that's not what I expected from a thorlabs product.
cdaly  (posted 2014-10-11 04:47:06.0)
Response from Chris at Thorlabs: I will contact you directly to discuss this. There should not be an issue when attaching a standard 1" lens tube (SM1Lxx) to the cube as seen in the overview tab of this webpage.
sharrell  (posted 2012-09-13 08:43:00.0)
Response from Sean at Thorlabs: Thank you for sharing your feedback. Even though you were able to find the information you needed on the lens tube compatibility, we'll endeavor to make this information more obvious on the page through adding additional photos of the cube with an SM1 lens tube.
gir  (posted 2012-09-12 23:07:38.0)
I just realized my previous question is answered (in the affirmative) on the overview page. My apologies.
gir  (posted 2012-09-12 22:58:34.0)
Can I mate a SM1LXX lens tube into one of the ports?
Back to Top

ダイクロイックフィルタ用ケージキューブ

+1 数量 資料 型番 - インチ規格 定価(税抜) 出荷予定日
CM1-DCH Support Documentation
CM1-DCHCustomer Inspired! 30 mmケージキューブ、ダイクロイックフィルターマウント付き(インチ規格)
¥26,364
7-10 Days
+1 数量 資料 型番 - ミリ規格 定価(税抜) 出荷予定日
CM1-DCH/M Support Documentation
CM1-DCH/MCustomer Inspired! 30 mmケージキューブ、ダイクロイックフィルターマウント付き(ミリ規格)
¥26,364
Today
Back to Top

ケージキューブコネクタ

C4W-CC Application
Click to Enlarge

View Imperial Product List
型番数量Description
C4W130 mmケージシステムキューブ
C6W130 mmケージキューブ、Ø6 mm貫通穴付き
CCM1-4ER1プリズム/ミラー用小型4ポート30 mmケージキューブマウント、#8-32タップ穴(インチ規格)
C4W-CC130 mmケージキューブ用コネクタ、C4W&C6WRシリーズキューブ用
CM1-CC1ケージキューブコネクタ、小型30 mmケージキューブ用
View Metric Product List
型番数量Description
C4W130 mmケージシステムキューブ
C6W130 mmケージキューブ、Ø6 mm貫通穴付き
CCM1-4ER/M1プリズム/ミラー用小型4ポート30 mmケージキューブマウント、M4タップ穴(ミリ規格)
C4W-CC130 mmケージキューブ用コネクタ、C4W&C6WRシリーズキューブ用
CM1-CC1ケージキューブコネクタ、小型30 mmケージキューブ用
幅38.1 mm(1.5インチ)の小型ケージキューブCCM1-4ER(/M)に接続されたケージキューブC4WとC6W。それぞれキューブコネクタC4W-CCとCM1-CCを使用。
CM1-CC Application
Click to Enlarge

View Imperial Product List
型番数量Description
BA2T21調整機能付き取付けベース、2インチ x 3インチ x 3/8インチ(インチ規格)
CM1-CC2ケージキューブコネクタ、小型30 mmケージキューブ用
CCM1-BS014130 mmケージキューブ付き偏光無依存型ビームスプリッタ、700~1100 nm、#8-32タップ穴(インチ規格)
CCM1-PBS252130 mm Cage Cube-Mounted Polarizing Beamsplitter Cube, 620-1000 nm, 8-32 Tap
CCM1-4ER1プリズム/ミラー用小型4ポート30 mmケージキューブマウント、#8-32タップ穴(インチ規格)
PH21Ø1/2インチポストホルダ、バネ付き六角固定つまみネジ付き、長さ2インチ(インチ規格)
TR21Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ2インチ(インチ規格)
View Metric Product List
型番数量Description
BA2T2/M1調整機能付き取付けベース、50 mm x 75 mm x 10 mm(ミリ規格)
CM1-CC2ケージキューブコネクタ、小型30 mmケージキューブ用
CCM1-BS014130 mmケージキューブ付き偏光無依存型ビームスプリッタ、700~1100 nm、#8-32タップ穴(インチ規格)
CCM1-PBS252130 mm Cage Cube-Mounted Polarizing Beamsplitter Cube, 620-1000 nm, 8-32 Tap
CCM1-4ER/M1プリズム/ミラー用小型4ポート30 mmケージキューブマウント、M4タップ穴(ミリ規格)
PH50/M1Ø12 mm~Ø12.7 mmポストホルダ、バネ付き六角固定つまみネジ付き、長さ50 mm(ミリ規格)
TR50/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ50 mm(ミリ規格)
CM1-CCを使用して複数の38.1 mm角のケージキューブを接続。
  • 38.1 mm(1.5インチ)角のケージキューブを2つ隣接して接続
  • 38.1 mm(1.5インチ)角のケージキューブを50.8 mm(2インチ)角のケージキューブに接続
  • 全てのCM1またはCCM1シリーズのケージキューブに対応

ケージキューブコネクタCM1-CCによって、右図のように2つ以上のCM1またはCCM1シリーズのキューブが接続できます。このコネクタの使用可能なCM1およびCCM1シリーズのケージキューブには、小型ケージキューブダイクロイックフィルタ用キューブマウント付きビームスプリッターキューブマウント付きペンタプリズム、およびマウント付き直角プリズムミラーが含まれます。ケージキューブコネクタCM1-CCには4本の#4-40丸頭ネジ、2本の#4-40皿ネジ、4個のワッシャ、1本の1/16インチ六角レンチが付属します。

30 mmキューブマウント付き90°偏向プリズムミラーはキューブの2面にケージロッド用のØ6 mm穴がないため、CM1-CCを用いて2つを接続することはできません。

当社では、C4W-CCもご提供しておりますが、これは50.8 mm(2インチ)角の30 mmケージキューブを2つ接続する際に使用できます。ケージキューブコネクタC4W-CCおよびCM1-CCは、どちらもCCM1-4ER/Mのような幅38.1 mm(1.5インチ)の30 mmケージキューブと幅50.8 mm(2インチ)の30 mmケージキューブとの接続にも使用できます。

アライメント用ピン
このコネクタにはアライメント用位置決めピンがあるため、SM1ネジポートの間にあるキューブ面にはピン用の穴が必要となりますのでご留意ください。既にお持ちの旧バージョンのキューブからアライメント穴付きの新バージョンへ無料アップデートをご希望の際は、当社までお問い合わせください。また、アライメントピンは取付け穴内部に圧入されており、アライメント穴無しのキューブで使用する場合は、押し出すことができます。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
CM1-CC Support Documentation
CM1-CCケージキューブコネクタ、小型30 mmケージキューブ用
¥7,325
Today
