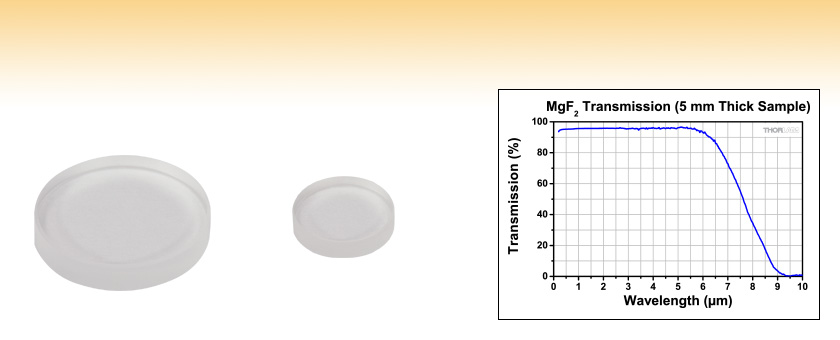

Products Homeフッ化マグネシウム(MgF2)ウィンドウ
- >50% Transmission at 120 nm
- Transmission ≥94% for λ = 200 nm - 6 µm
- Extremely Durable Ø1/2" and Ø1" Windows Available
- Suitable for Excimer Lasers and Other Deep UV Applications

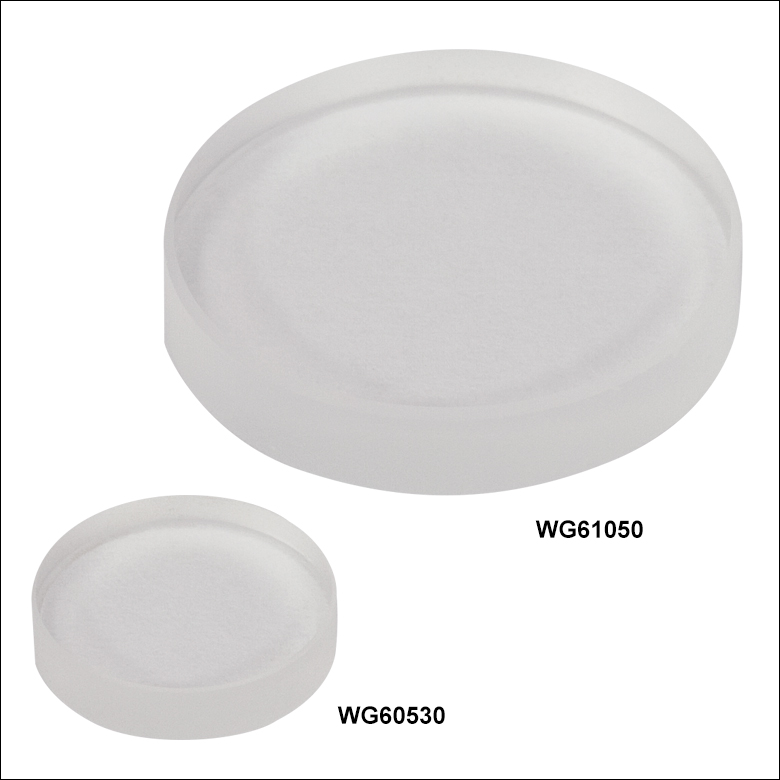

WG61050
Ø1"
WG60530
Ø1/2"
Please Wait
| Flat Window Selection Guide | |
|---|---|
| Wavelength Range | Substrate Material |
| 180 nm - 8.0 μm | Calcium Fluoride (CaF2) |
| 185 nm - 2.1 μm | UV Fused Silica |
| 200 nm - 5.0 μm | Sapphire |
| 200 nm - 6.0 μm | Magnesium Fluoride (MgF2) |
| 220 nm to >50 µm | CVD Diamond Windows |
| 230 nm - 1.1 µm | UV Fused Silica, Textured Antireflective Surface |
| 250 nm - 1.6 µm | UV Fused Silica, for 45° AOI |
| 250 nm - 26 µm | Potassium Bromide (KBr) |
| 300 nm - 3 µm | Infrasil® |
| 350 nm - 2.0 μm | N-BK7 |
| 600 nm - 16 µm | Zinc Selenide (ZnSe) |
| 1 - 1.7 µm | Infrasil®, Textured Antireflective Surface |
| 1.2 - 8.0 μm | Silicon (Si) |
| 1.9 - 16 μm | Germanium (Ge) |
| 2 - 5 μm | Barium Fluoride (BaF2) |
| V-Coated Laser Windows | |
特長
- λ = 200 nm～6 μmで透過率≥ 94%
- 波長120 nmにおいても、透過率＞50%
- Ø12.7 mm(Ø1/2インチ)およびØ25.4 mm(Ø1インチ)バージョンから選択可能
フッ化マグネシウム(MgF2)製のウィンドウはØ12.7 mm(Ø1/2インチ)、Ø25.4 mm(Ø1インチ)のサイズが用意されています。これらは、深紫外域から中赤外域で高い透過率を有しています。このウィンドウは非常に耐久性があり収差を最小に抑えることができます。フッ化マグネシウム(MgF2)ウィンドウは光軸が結晶のC軸に平行になるようにカットされており、複屈折が最小に抑えられています。
フッ化マグネシウム(MgF2) ウィンドウは真空UV域範囲を含む深紫外(UV)域にお使いいただけます。120 nmでも＞50%の透過率が得られるので、エキシマレーザ、また 121 nmで水素ライマンα線適用の製品とのご使用に適しています。UVA、UVB、可視域または赤外域(200～1000 nm)では、約94%の透過率、波長範囲1～6 µmでは約95%の透過率を示します。
| Posted Comments: | |
user
(posted 2024-08-29 10:44:48.903) Hi,
Looking at this product from profile, there seems to be two phases or material finishes.
It is supposed to be bulk uncoated material, so what is this ?
And is there a recommended side for incident light ?
Thanks,
Arnaud cdolbashian
(posted 2024-08-30 12:53:06.0) Thank you for reaching out to us with this inquiry Arnaud. These are cut and polished bulk material which are uncoated. I have contacted you do discuss any potential misunderstanding stemming from the presentation of these windows on our web page. Alexander Enders
(posted 2023-07-19 10:22:08.217) Hello,
I have a quick question: What is the orientation of the optical axis of your MgF2 windows? Perpendicular to the plane of the window to prevent birefringence?
Best
Alex jdelia
(posted 2023-07-19 01:59:53.0) Thank you for contacting Thorlabs. Thorlabs' MgF2 windows are cut with the optical axis parallel to the c-axis of the crystal to minimize birefringence. user
(posted 2021-07-16 04:31:57.333) Hi
i like a WG61050 - Ø1" MgF2 Broadband Precision Window, coated to 1064 HR
also with PL//R =100mm CC
thanks YLohia
(posted 2021-08-27 02:46:42.0) Hello, custom optics can be requested by emailing techsales@thorlabs.com. We will discuss the possibility of offering this directly. Enrique Vasco
(posted 2020-10-03 15:11:52.777) Please, could you provide me with data on MgF2 window damage thresholds for 10 ns-pulsed UV laser, as the product description specifies that it is suitable for excimer laser and deep UV applications? Thankx YLohia
(posted 2020-10-07 02:30:18.0) Thank you for contacting Thorlabs. Unfortunately, we don't test or specify LIDT for bulk optics. Based on your beam parameters (266 nm, 100 mJ, 8 ns, 10 Hz, 3mm) and the literature available online, we expect the WG60530 to not sustain damage, but we cannot provide any guarantees for this at the moment. |
| Window Selection Guide (Table Sorted by Wavelength) | |||||
|---|---|---|---|---|---|
| Substrate and Window Type | Wavelength Range | Available AR Coatings | Reflectance over AR Coating Rangea | Transmission Data | Reflectance Data |
| Calcium Fluoride (CaF2): Flat or Wedged | 180 nm - 8.0 μm | Uncoated | - |  Raw Data | - |
| -D Coating, 1.65 - 3.0 µm | Ravg < 1.0%; Rabs < 2.0% at 0° AOI |  Raw Data |  Raw Data | ||
| UV Fused Silica: Flat, Wedged, V-Coated Flat, or V-Coated Wedged | 185 nm - 2.1 μm | Uncoated (Flat or Wedged) | - |  Raw Data | - |
| -UV Coating, 245 - 400 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C3 Coating, 261 - 266 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C6 Coating, 350 - 450 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -A Coating, 350 - 700 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -B Coating, 650 - 1050 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C Coating, 1050 - 1700 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| Sapphire: Flat or Wedged | 200 nm - 5.0 μm | Uncoated | - |  Raw Data | - |
| -D Coating, 1.65 - 3.0 µm | Ravg < 1.0% at 0° AOI |  Raw Data |  Raw Data | ||
| -E1 Coating, 2.0 - 5.0 µm | Ravg < 1.50%, Rabs < 3.0% (per Surface, 2.0 - 5.0 µm); Ravg < 1.75% (per Surface, 2.0 - 4.0 µm) at 0° AOI |  Raw Data |  Raw Data | ||
| Magnesium Fluoride (MgF2): Flat or Wedged | 200 nm - 6.0 μm | Uncoated | - |  Raw Data | - |
| Barium Fluoride (BaF2): Flat or Wedged | 200 nm - 11 µm | Uncoated (Wedged Only) | - |  Raw Data | - |
| -E1 Coating, 2 - 5 µm | Ravg < 1.25%; Rabs < 2.5% at 0° AOI |  Raw Data |  Raw Data | ||
| UV Fused Silica, for 45° AOI: Flat or Wedged | 250 nm - 1.6 µm | Coating for 250 nm - 450 nm | Ravg < 1.0% at 45° AOI |  Raw Data | |
| Coating for 350 nm - 1100 nm | Ravg < 2.0% at 45° AOI |  Raw Data | |||
| Coating for 400 nm - 700 nm | Ravg < 1.0% at 45° AOI |  Raw Data | |||
| Coating for 600 nm - 1700 nm | Ravg < 1.5% at 45° AOI |  Raw Data | |||
| Coating for 700 nm - 1100 nm | Ravg < 1.0% at 45° AOI |  Raw Data | |||
| Coating for 1200 nm - 1600 nm | Ravg < 1.0% at 45° AOI |  Raw Data | |||
| Potassium Bromide (KBr): Flat | 250 nm - 26 µm | Uncoated | - |  | - |
| Infrasil®: Flat | 300 nm - 3 µm | Uncoated | - |  Raw Data | - |
| N-BK7: Flat, Wedged, V-Coated Flat, or V-Coated Wedged | 350 nm - 2.0 μm | Uncoated (Flat or Wedged) | - |  Raw Data | - |
| -A Coating, 350 - 700 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - | Raw Data | ||
| -C7 Coating, 400 - 700 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C10 Coating, 523 - 532 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C11 Coating, 610 - 860 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -B Coating, 650 - 1050 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - | Raw Data | ||
| -C13 Coating, 700 - 1100 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| C14 Coating, 1047 - 1064 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C15 Coating, 523 - 532 nm & 1047 - 1064 nm (V-Coated) | Ravg < 0.5% at 0° AOI | - |  Raw Data | ||
| -C Coating, 1050 - 1700 nm (Flat or Wedged) | Ravg < 0.5% at 0° AOI | - | Raw Data | ||
| Zinc Selenide (ZnSe): Flat or Wedged | 600 nm - 16 µm | Uncoated | - |  Raw Data | - |
| -D Coating, 1.65 - 3.0 µm | Ravg < 1.0%; Rabs < 2.0% at 0° AOI |  Raw Data |  Raw Data | ||
| -E4 Coating, 2 - 13 µm (Only Flat) | Ravg < 3.5%; Rabs < 6% at 0° AOI |  Raw Data |  Raw Data | ||
| -E2 Coating, 4.5 - 7.5 µm (Only Flat) | Ravg < 1.0%; Rabs < 2.0% at 0° AOI |  Raw Data |  Raw Data | ||
| -E3 Coating, 7 - 12 µm (Only Wedged) | Ravg < 1.0%; Rabs < 2.0% at 0° AOI |  Raw Data |  Raw Data | ||
| -G Coating, 7 - 12 µm (Only Flat) | Ravg < 1% at 0° AOI |  Raw Data |  Raw Data | ||
| Silicon (Si): Flat or Wedged | 1.2 - 8.0 μm | Uncoated | - |  Raw Data | - |
| -E1 Coating, 2 - 5 µm (Only Wedged) | Ravg < 1.25%; Rabs < 2.5% at 0° AOI |  Raw Data | Raw Data | ||
| -E Coating, 3 - 5 µm (Only Flat) | Ravg < 2% at 0° AOI |  Raw Data |  Raw Data | ||
| Germanium (Ge): Flat or Wedged | 1.9 - 16 μm | Uncoated, 2.0 - 16 μm | - |  Raw Data | - |
| -C9 Coating, 1.9 - 6 µm (Only Flat) | Ravg < 2% at 0° AOI |  Raw Data |  Raw Data | ||
| -E3 Coating, 7 - 12 µm | Ravg < 1.0%; Rabs < 2.0% at 0° AOI |  Raw Data | Raw Data | ||
ズーム| Item # | WG60530 | WG61050 |
|---|---|---|
| Diameter | 1/2" (12.7 mm) | 1" (25.4 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm | |
| Thickness | 3.0 mm | 5.0 mm |
| Thickness Tolerance | ±0.3 mm | |
| Clear Aperture | ＞90% Diameter | |
| Axis Orientation | ±0.5° | |
| Parallelism | ≤5 arcmin | |
| Surface Flatnessa | λ/8 over Clear Aperture | |
| Surface Quality | 20-10 Scratch-Dig | |
| Wavelength Range | 200 nm - 6.0 μm (Uncoated) | |
| Substrate | Magnesium Fluorideb | |
| Transmission Data | Raw Data | |
