エッセンシャルキット:ポスト&アクセサリー


  • Kit Contains 254 Pieces
  • Heavy-Duty, Welded Steel Cabinet Frame
  • Cabinet Frame Can Be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

Kit Components

See Contents Tab for All Items Included in the Kit

ESK16

9 Drawers, 254 Pieces

Related Items


Please Wait
Back Side of ESK Kit
Click to Enlarge

ケースの背面に壁掛け用スロット穴
ESK Kit in Rack System
Click to Enlarge

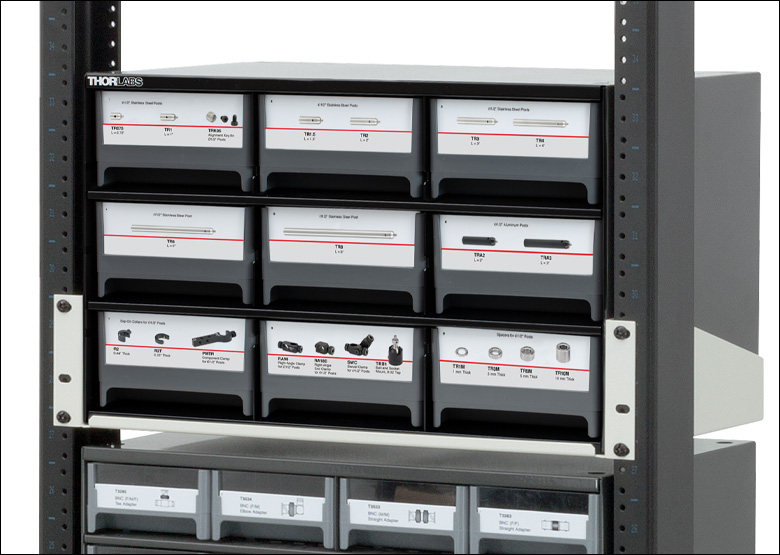

19インチラックRK3884に取り付けられたラックシェルフRK4102上のESK16(/M)

特長

  • ミリ規格とインチ規格に対応するキットをご用意
  • フレーム寸法(L×W×H):432 mm x 279 mm x 279 mm
  • 引き出し寸法(L×W×H):268 mm x 132 mm x 78 mm
  • 各引き出しには識別が容易なラベル付き
  • 個別に購入するよりもお得な価格

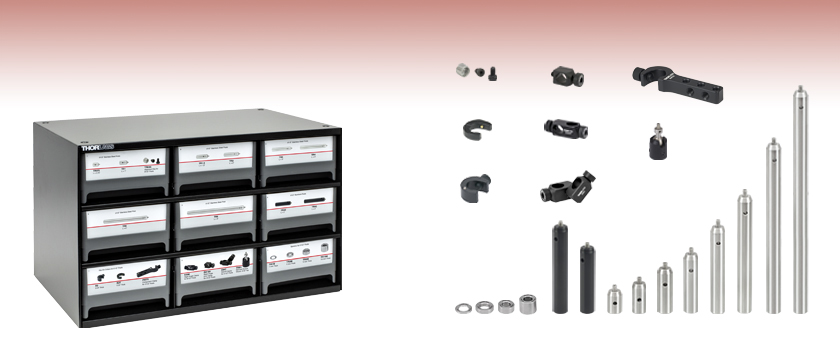

ESK16/MにはØ12.7 mmポスト、ポストスペーサ、コンストラクションアクセサリなどが含まれており、基本的なオプトメカニクスのセットアップのほか、様々なセットアップにもお使いいただけます。キットに含まれる部品の詳細は、「キット内容」のタブをご覧ください。こちらのキットはベース&ポストホルダーキットESK01/Mやクランプフォーク&ポストホルダーキットESK14/Mと併せてお使いいただくと便利です。

取付オプション
このキットは、取り出しやすいようにテーブルトップ上に置くことができますが、19インチラックRK3884に取り付けられるラックシェルフのRK4101またはRK4102の上に置くこともできます。右の写真には、19インチラックに置かれたキットESK16(/M)とカスタムラベル付きキャビネットST9です。エッセンシャルキットシリーズのキャビネットには、いずれもケースの背面に壁取付け用のスロット穴が付いており(右端の写真参照)、また安定に積み重ねられるように上部にくぼみ、下部に4本の脚が付いています。: 各キットの重量は19.1 kgです。取り付ける前に壁や壁取付け部の耐荷重をご確認ください。

キット内容

各キットには9個の引き出し付きキャビネットST9が含まれます。ミリ規格とインチ規格で型番が異なる場合、特記がない限り、ミリ規格の型番と寸法はカッコ内に記されています。

Posts
Item # and DescriptionPhoto
(Click to
Enlarge)
Quantity
TR075 (TR20/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 0.75" (20 mm),
1/4"-20 (M6) Tap
1" Stainless Steel Post
20
TR1 (TR30/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 1" (30 mm),
1/4"-20 (M6) Tap
1" Stainless Steel Post
20
TR1.5 (TR40/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 1.5" (40 mm),
1/4"-20 (M6) Tap
1.5" Stainless Steel Post
20
TR2 (TR50/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 2" (50 mm),
1/4"-20 (M6) Tap
2" Stainless Steel Post
20
TR3 (TR75/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 3" (75 mm),
1/4"-20 (M6) Tap
3" Stainless Steel Post
20
TR4 (TR100/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 4" (100 mm),
1/4"-20 (M6) Tap
4" Stainless Steel Post
20
TR6 (TR150/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 6" (150 mm),
1/4"-20 (M6) Tap
6" Stainless Steel Post
20
TR8 (TR200/M)
Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 8" (200 mm),
1/4"-20 (M6) Tap
8" Stainless Steel Post
10

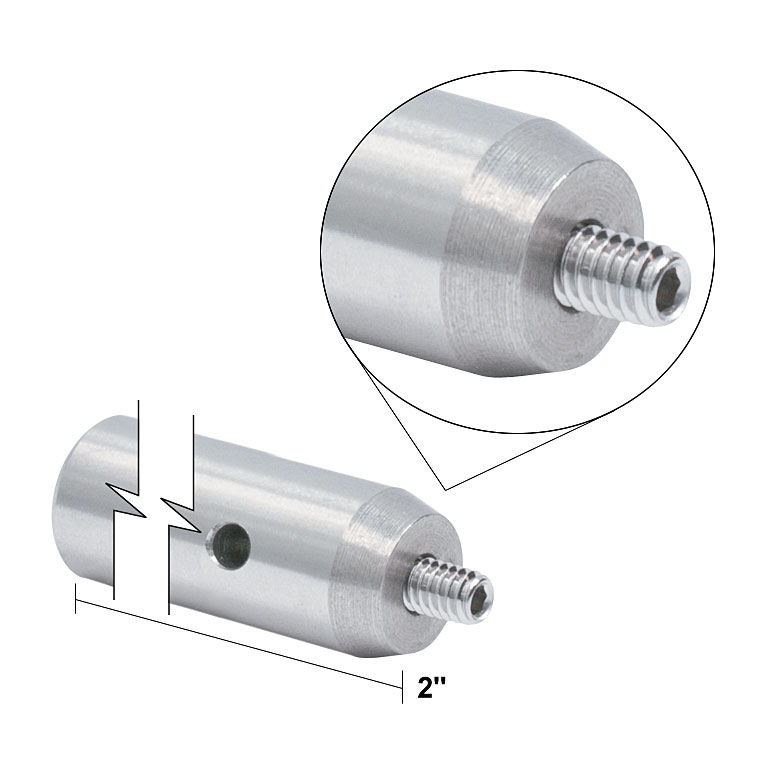

TRA2 (TRA50/M)
Ø1/2" Aluminum Post, 8-32 (M4) Setscrew, L = 2" (50 mm),
1/4"-20 (M6) Tap
1" Stainless Steel Post
20

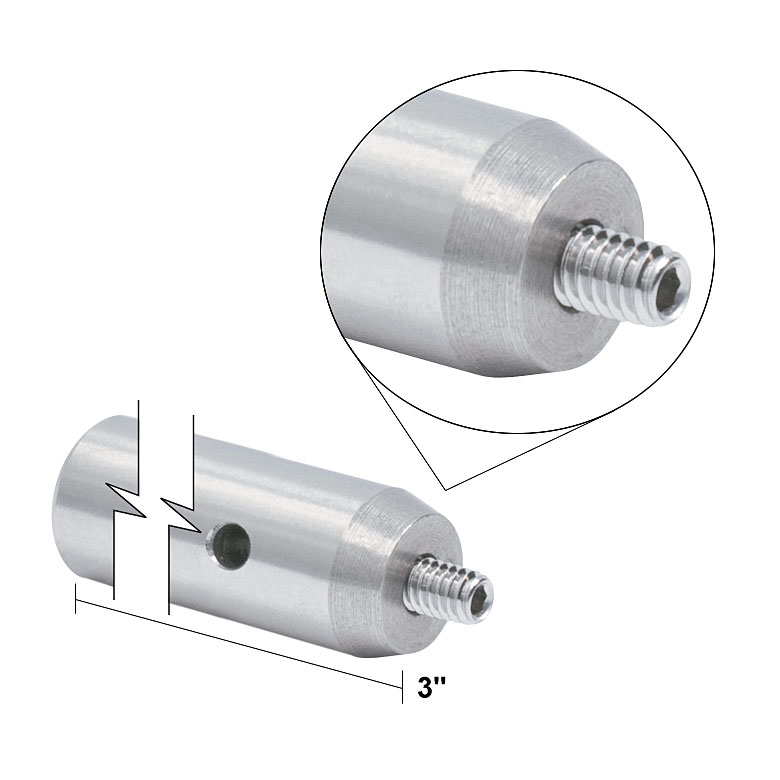

TRA3 (TRA75/M)
Ø1/2" Aluminum Post, 8-32 (M4) Setscrew, L = 3" (75 mm),
1/4"-20 (M6) Tap
1" Stainless Steel Post
20
Construction Accessories
Item # and DescriptionPhoto
(Click to
Enlarge)
Quantity

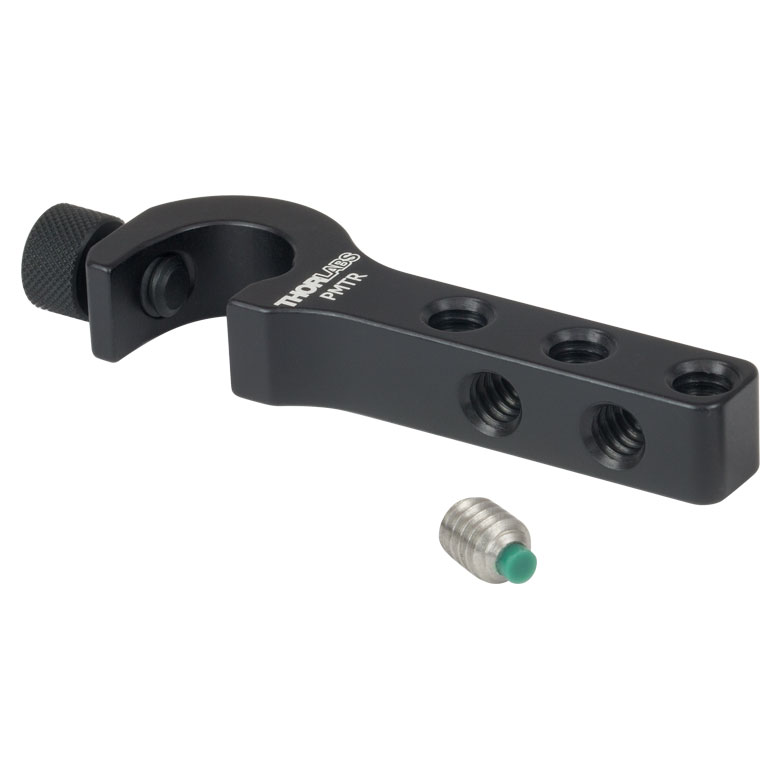

PMTR (PMTR/M)
Component Clamp for Ø1/2" Posts, 1/4"-20 (M6) Taps
1" Stainless Steel Post
3
R2 (R2/M)
Slip-On Post Collar for Ø1/2" Posts
R2
10

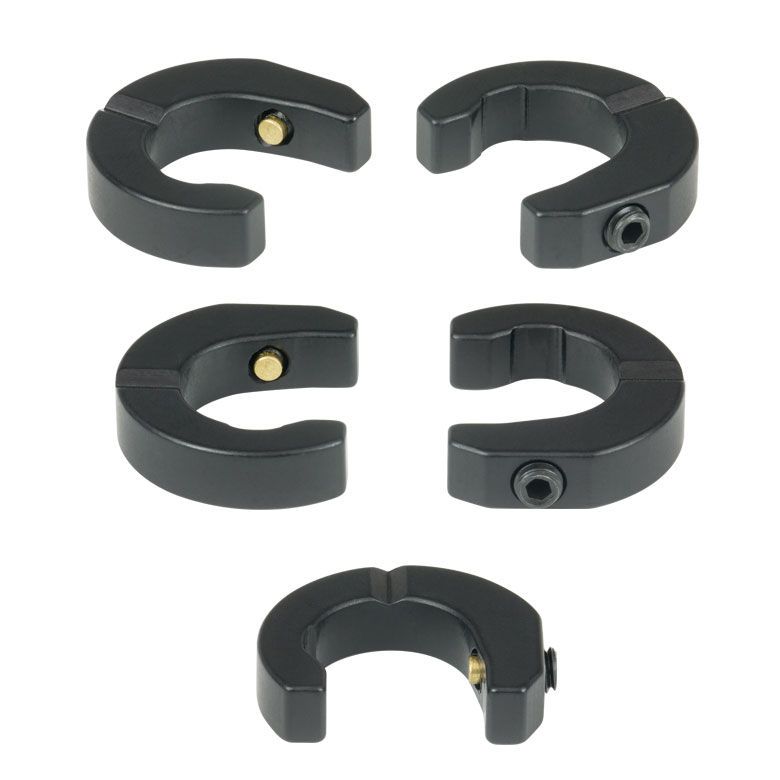

R2T
Thin Slip-On Post Collar for Ø1/2" Posts, 5 Pack
1" Stainless Steel Post
1
SWC (SWC/M)
Swivel Post Clamp, 360° Continuously Adjustable
Swivel Post Clamp
3
RA90 (RA90/M)
Right Angle Post Clamp, Fixed 90° Adapter
Right Angle Post Clamp
10
RA180 (RA180/M)
Right-Angle End Clamp for Ø1/2" Posts,
1/4"-20 (M6) Stud and 3/16" (5 mm) Hex
1" Stainless Steel Post
5
TRK05
Anti-Rotation Alignment Key for TR Series Posts
1" Stainless Steel Post
5
TRB1 (TRB1/M)
Locking Ball and Socket Mount, 8-32 (M4) Threaded
1" Stainless Steel Post
3
TR1M
Ø1/2" Post Spacer, 1 mm Thick, 5 Pack
1" Stainless Steel Post
1

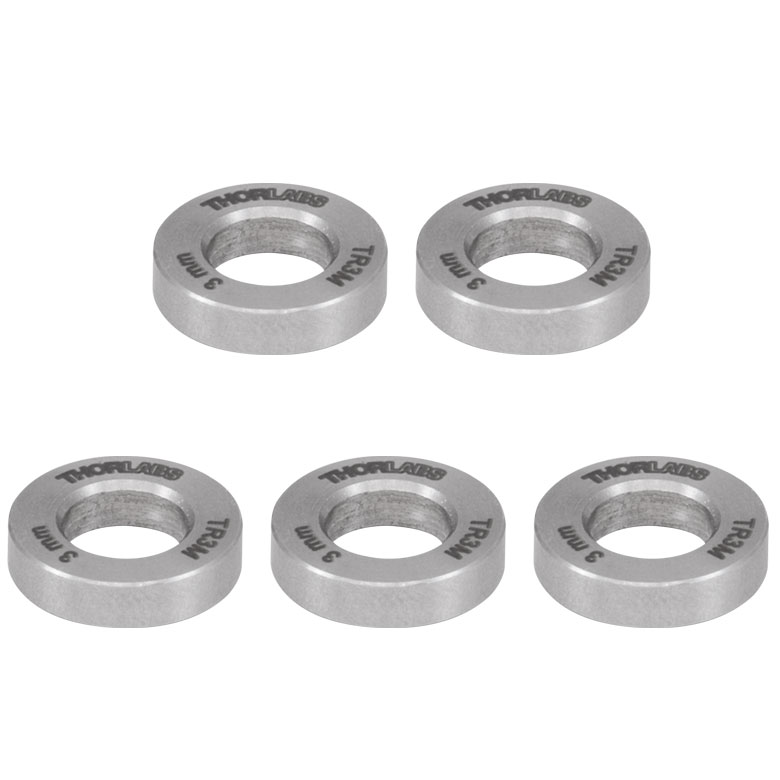

TR3M
Ø1/2" Post Spacer, 3 mm Thick, 5 Pack
1" Stainless Steel Post
1
TR5M
Ø1/2" Post Spacer, 5 mm Thick, 5 Pack
1" Stainless Steel Post
1
TR10M
Ø1/2" Post Spacer, 10 mm Thick, 5 Pack
1" Stainless Steel Post
1

Posted Comments:
Lior Golgher  (posted 2023-05-31 14:59:29.78)
Hi, I've purchased more than twenty different kits from Thorlabs and would like to feed their contents into my inventory spreadsheet. It will be really helpful if you could include a spreadsheet of the contents of each as a support document. I paste below the chatgpt conversation I used to overcome this hurdle. Bard and HuggingFace failed miserably. Thanks, Lior ________________________ Good morning Chat! I would like to feed the contents of the LSB08-B kit into my inventory Google sheet. Here is its description: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=1125&pn=LSB08-B Could you please convert its contents to a list, as follows: First list out all the part numbers, starting with AC254-030-B-ML Then list out all the item descriptions, e.g. f=30 mm, Ø1" Achromatic Doublet, SM1-Threaded Mount, ARC: 650-1050 nm Then provide with me a list of product URL, starting with https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=3647&pn=AC254-030-B-ML Finally, list the quantities of each item. If unspecified in the said url, just write 1. Thanks! ____ That's actually incorrect, but let's retry on a different case. Could you please do the same procedure for https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=1314&pn=ESK16/M ? _________ I see that you are facing some difficulties accessing the information from the said link, so I'll just paste here. Could you please reorder it as requested? __________ That's match better! We're almost there (: Now, please omit the imperial part numbers and only keep the metric part numbers. For instance, replace 'TRB1 (TRB1/M)' with 'TRB1/M'. Similarly, replace 'Ø1/2" Optical Post, SS, 8-32 (M4) Setscrew, L = 0.75" (20 mm), 1/4"-20 (M6) Tap, 1" Stainless Steel Post' with 'Ø1/2" Optical Post, SS, M4 Setscrew, L = 20 mm, M6 Tap, 1" Stainless Steel Post'. If the part is universal, please keep it. For instance, keep the TRK05 and its description.
cdolbashian  (posted 2023-06-01 04:45:20.0)
Thank you for reaching out to us with this request. This an interesting and creative way to use AI. I understand your frustration, and I have reached out internally in an attempt to provide such a spreadsheet document listing the included parts for these types of kits.
Alexander Tirira  (posted 2020-01-28 05:03:32.49)
Hello I am Alexander from Ecuador. I want to buy ESK16 - Posts & Accessories Essentials Kit, Imperial and Universal Components, 254. Please could you send me a quotation and include the shipping cost for sending to Guayaquil port in Ecuador? Regards, Alexander
YLohia  (posted 2020-01-28 08:37:40.0)
Hello Alexander, thank you for contacting Thorlabs. Quotes can be requested by emailing our Sales team at sales@thorlabs.com or by selecting the "Request Quote" button on your cart. We will reach out to you directly.
bdada  (posted 2012-01-23 08:49:00.0)
Response from Buki at Thorlabs.com Thank you for your feedback and your suggestions on how to modify the contents of our mechanics kits. We are glad to hear you find the kits useful and we will consider your suggestions on how to improve them.
bryn.parry  (posted 2012-01-19 18:20:07.0)
These kits are great, but why don't they include any post collars? These are the accessory I use most of. I would also include 20 mm posts, and maybe anti-rotation adapters, and relegate the V mounts to the 'optical mounts' kit.
Back to Top

ポスト&アクセサリーキット

+1 数量 資料 型番 - インチ規格 定価(税抜) 出荷予定日
ESK16 Support Documentation
ESK16ポスト&アクセサリーエッセンシャルキット、部品254個(インチ&ユニバーサル規格)
¥315,727
7-10 Days
+1 数量 資料 型番 - ミリ規格 定価(税抜) 出荷予定日
ESK16/M Support Documentation
ESK16/Mポスト&アクセサリーエッセンシャルキット、部品254個(ミリ&ユニバーサル規格)
¥315,727
Today
