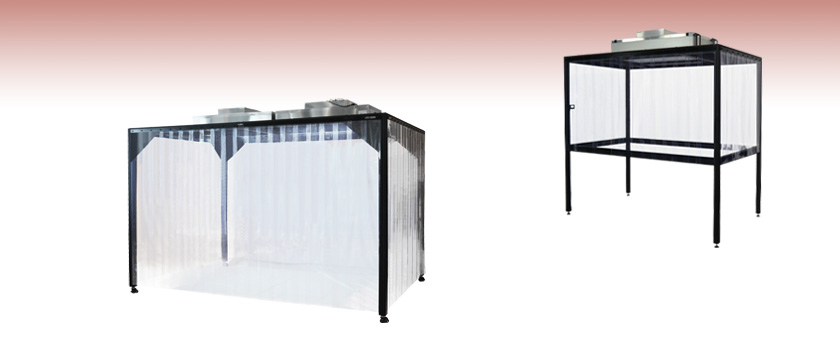

Laminar Flow Enclosure (日本では販売しておりません)


  • Free Standing Enclosure Frames for Nexus® Optical Tables
  • HEPA Filters and Enclosure Frame Create a Clean Environment
  • Laminar Flow from HEPA Filter Units

LFE1220-US

Wraparound Laminar Flow Enclosure

LFE1220W-US

Walkway Laminar Flow Enclosure

Related Items


Please Wait
Animation Showing Assembly of Wraparound Laminar Flow Enclosures

Features

  • Free Standing Enclosure Frames
    • Wraparound Version Encloses Table Surface
    • Walkway Version Provides Space to Walk Around the Optical Table
  • Designed to Fit a 1.2 m x 2.0 m (4' x 6') Nexus® Optical Table
  • HEPA Fan Filter Units (FFU) Create a Clean Environment
  • Air Quality Monitor (AQM) Continuously Monitors the Enclosure's Air Quality

Thorlabs' Laminar Flow Enclosures are designed to create a clean environment around 1.2 m x 2.0 m (4' x 6') Nexus optical tables by providing an enclosed air volume and filtration system to help minimize contamination. Two varieties of enclosures are available: a wraparound enclosure that minimizes both installation space and the enclosed volume, and a walkway enclosure with a larger perimeter that allows the user to walk around the optical table inside the enclosure. Both systems incorporate an enclosure frame; soft wall transparent curtain sides; an enclosed ceiling; top-mounted HEPA Fan Filter Units (FFU); and an Air Quality Monitor (AQM) that continuously monitors the quality of the air inside the enclosure. The enclosure frames do not touch the enclosed optical tables in order to avoid the transmission of vibrations from the frame to the table.

We're All Ears!
Laminar Flow Enclosures are
designed in our UK office.

Interested in Custom Capabilities?

Thorlabs is in the process of expanding our offering of Laminar Flow Systems and accessories. If you are interested in features that you don't see here, please contact us to discuss custom requests.


Each enclosure frame includes an LED light strip, which can be added to the interior of the structure to help illuminate the optical table. Additionally, the wraparound enclosure includes an attachable curtain bar with brackets, allowing for the transparent curtain walls to be moved out of the way when working inside the enclosure. If a solid enclosure is desired, Thorlabs offers acrylic panels separately below, which can be used to replace up to three of the soft curtain walls. Furthermore, if more storage space is needed, a shelf unit for laminar flow enclosure frames is also available below. Finally, the enclosure frames are composed of rails that are compatible with our 50 mm & 75 mm construction rail accessories, including T-nuts and screws, mounting brackets and feet, rail joiners, and channel inserts, giving the potential for further customization.

Please note that these enclosures require assembly, a manual process that requires four people to work on at least one of the assembly steps. Each fully assembled enclosure is designed to enclose a Nexus optical table. Tables are not included and must be purchased separately. To view a list of compatible Nexus optical tables, please see the Compatible Tables tab. For full assembly instructions, please view the manual by clicking on the red docs icon (info icon) below. Steps involved in the assembly are depicted in the animation to the right.

An LED light strip is included with the enclosures. If additional light is needed, the PSY240E LED light strip can be used. It is a 850 mm (33.46") long LED light strip that comes with a 4.3 m extension cord for compatibility with these enclosures.

Compatible Nexus Optical Tables
Item # Dimensions Mounting Holes Additional Features
T46H 4' x 6' x 8.3" 1/4"-20 -
T46V 4' x 6' x 8.3" 1/4"-20 Sealed Holes
T46J 4' x 6' x 12.2" 1/4"-20 -
T46W 4' x 6' x 12.2" 1/4"-20 Sealed Holes
T46HHa 4' x 6' x 8.3" 1/4"-20 Two Through Ports
T46K 4' x 6' x 18.1" 1/4"-20 -
T46X 4' x 6' x 18.1" 1/4"-20 Sealed Holes
T1220C 1.2 m x 2.0 m x 210 mm M6 x 1.0 -
T1220Pb 1.2 m x 2.0 m x 210 mm M6 x 1.0 Sealed Holes
T1220D 1.2 m x 2.0 m x 310 mm M6 x 1.0 -
T1220CH 1.2 m x 2.0 m x 210 mm M6 x 1.0 Two Through Ports
T1220E 1.2 m x 2.0 m x 460 mm M6 x 1.0 -
T1220R 1.2 m x 2.0 m x 460 mm M6 x 1.0 Sealed Holes
T1220Q 1.2 m x 2.0 m x 310 mm M6 x 1.0 Sealed Holes
  • Also available bundled with 700 mm tall active isolator legs (Bundle Item # T46HK).
  • Also available bundled with 700 mm tall active isolator legs (Bundle Item # T1220CK).

Posted Comments:
Yu Duff  (posted 2023-06-30 21:10:45.597)
I would like to inquire regarding the laminar flow enclosures, LFE1220-EU and LFE1220W-EU. 1. Could I request the laminar flow enclosure without the 4 legs as well as the horizontal frames attaching the 4 legs? 2. Could I request the laminar flow enclosure without the enclosure frame? 3. If without the frame and legs, does the fan and filter unit need to be placed at the ceiling? Will the inflow and filtering of air be affected if the fan and filter unit placed at the ceiling? 4. How many people can the 1.2 m x 2.0 m table accommodate? 5. Are there any other sizes available for the laminar flow enclosures so that larger table can be put inside the enclosure? 6. For the LFE1220-EU, do the working staff stretch their hands only into the enclosure for usage?
do'neill  (posted 2023-07-03 06:47:33.0)
Response from Daniel at Thorlabs. We will reach out to you directly to discuss your questions and the possibility of custom options for your application.
user  (posted 2022-06-20 15:16:36.6)
Hi I have a Nexus 6x4' table with a PTA280 free-standing shelf. I want to know if the laminar flow enclosure (LFE1220-US) will work with the table+shelf system that I have?
cwright  (posted 2022-06-22 05:20:37.0)
Response from Charles at Thorlabs: Thank you for your query. The width of the shelves is 2150 mm while the internal dimensions of the laninar flow enclosure is 2100mm so these would not fit. The top shelf would also be about 20mm from the filter and would block the flow of air.
Back to Top

Wraparound Laminar Flow Enclosures

General Specifications
Maximum Additional Loada,b 400 kg
Maximum Load per
Construction Rail
100 kg
Total Weight of Enclosure 150 kg
Foot Height Adjustment ±11.5 mm
HEPA Filter Efficiency 99.95%
Internal Dimensions 1230 mm x 2100 mm x 1132.5 mmc
Frame Dimensionsd 2.20 m x 1.33 m x 2.36 m
Crate Dimensions 2.29 m x 0.75 m x 0.79 m
  • To prevent the frame toppling, any attached load which acts outside the perimeter of the frame should not create a moment load >800 Nm about an axis between any two of the feet.
  • The maximum load per roof panel is a 40 kg distributed load.
  • Height is measured from the base of the soft wall transparent curtains.
  • 300 mm clearance is needed above the HEPA filter.
  • Wraparound Design Encloses the Surface of a Table
  • Designed to Fit a 1.2 m x 2.0 m (4' x 6') Nexus Optical Table
  • HEPA Fan Filter Unit (FFU) Creates a Clean Environment
  • Air Quality Monitor (AQM) Continuously Monitors the Enclosure's Air Quality

The Laminar Flow Enclosures provide an enclosed air volume and filtration system to help minimize contamination for setups built on our Nexus optical tables. The system is enclosed by a frame; soft wall transparent curtain sides; a ceiling; and a top-mounted HEPA Fan Filter Unit (FFU). The enclosure frame does not touch the table in order to avoid the transmission of vibrations from the frame to the table. An Air Quality Monitor (AQM) is included and continuously monitors the quality of the air inside the enclosure. An LED light strip is also included with the enclosures. If a solid enclosure is desired, up to three of the transparent curtain sides can be replaced with the acrylic plastic panels sold in kits below. Furthermore, if additional light is needed, the PSY240E LED light strip can be used (sold below).

The HEPA filter units shipped with the enclosures require a voltage of 115 V (-US enclosures) or 230 V (-EU and -UK enclosures). Please note that cables are not provided with the HEPA filter. Assembly and wiring of the filter should be carried out as per local regulations. For more information, please refer to the HEPA manual shipped with each enclosure.

+1 数量 資料 型番 - インチ規格 定価(税抜) 出荷予定日
LFE1220-US Support Documentation
LFE1220-USLaminar Flow Enclosure for 4' x 6' Table, 115 V Fan Unit, US Plugs (日本では販売しておりません)
Request
In Stock Overseas
+1 数量 資料 型番 - ミリ規格 定価(税抜) 出荷予定日
LFE1220-EU Support Documentation
LFE1220-EULaminar Flow Enclosure for 1.2 m x 2.0 m Table, 230 V Fan Unit, EU Plugs (日本では販売しておりません)
Request
Lead Time
LFE1220-UK Support Documentation
LFE1220-UKLaminar Flow Enclosure for 1.2 m x 2.0 m Table, 230 V Fan Unit, UK Plugs (日本では販売しておりません)
Request
In Stock Overseas
Back to Top

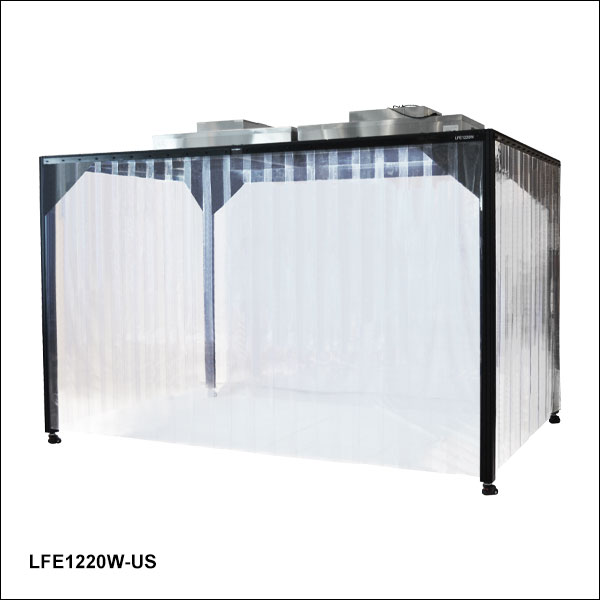

Walkway Laminar Flow Enclosures

General Specifications
Maximum Additional Loada,b,c 300 kg
Maximum Load per
Construction Rail
100 kg
Total Weight of Enclosure 270 kg
Foot Height Adjustment -0, +10 mm
HEPA Filter Efficiency 99.95%
Internal Dimensions 2100 mm x 3140 mm x 1920 mmd
Frame Dimensionse 3.29 m x 2.25 m x 2.40 m
Crate Dimensions 3.25 m x 0.90 m x 0.85 m
  • To prevent the frame toppling, any attached load which acts outside the perimeter of the frame should not create a moment load >1600 Nm about an axis between any two of the feet.
  • Please do not put heavy objects on the roof panels.
  • Maximum load rating applies only when the frame is stationary and is resting on the rubber feet of the casters. When the rubber feet are raised and the frame rests on the caster wheels (i.e. when moving the frame), ensure that no additional loads are attached to the LFE frame.
  • Height is measured from the base of the soft wall transparent curtains.
  • 300 mm clearance is needed above the HEPA filters.
  • Walkway Design Provides Space to Walk Around the Optical Table
  • Designed to Fit a 1.2 m x 2.0 m (4' x 6') Nexus Optical Table
  • Two HEPA Fan Filter Units (FFU) Create a Clean Environment
  • Air Quality Monitor (AQM) Continuously Monitors the Enclosure's Air Quality

The Walkway Laminar Flow Enclosures provide an enclosed air volume and filtration system to help minimize contamination for setups built around our Nexus optical tables. While these enclosures can be used with any table that fits inside, they are specifically designed to work with a 1.2 m x 2.0 m (4' x 6') Nexus Optical Table: the enclosure will encompass 625 mm and 525 mm of walkway space on the short and long sides, respectively, of a 1.2 m x 2.0 m table (see drawing to the lower left).

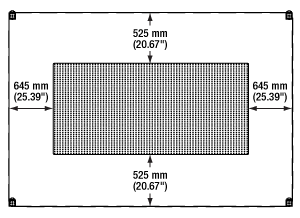

Click to Enlarge

Walkway Space Around a 1.2 m x 2.0 m
Optical Table Inside the Enclosure

The system is enclosed by a frame; soft wall transparent curtain sides; a ceiling; and two top-mounted HEPA Fan Filter Units (FFU). The enclosure frame does not touch the table in order to avoid the transmission of vibrations from the frame to the table. Castors are located at bottom of each leg of the enclosure and provide freedom of movement. Lowering the feet of the enclosure allows it to remain stationary. An Air Quality Monitor (AQM) is included and continuously monitors the quality of the air inside the enclosure. An LED light strip is also included with the enclosures. If additional light is needed, the PSY240E LED light strip can be used (sold below).

The HEPA filter units shipped with the enclosures require a voltage of 115 V (-US enclosures) or 230 V (-EU and -UK enclosures). Please note that cables are not provided with the HEPA filter. Assembly and wiring of the filter should be carried out as per local regulations. For more information, please refer to the HEPA manual shipped with each enclosure.

+1 数量 資料 型番 - インチ規格 定価(税抜) 出荷予定日
LFE1220W-US Support Documentation
LFE1220W-USWalkway Laminar Flow Enclosure for 4' x 6' Table, 115 V Fan Unit, US Plugs (日本では販売しておりません)
Request
Lead Time
+1 数量 資料 型番 - ミリ規格 定価(税抜) 出荷予定日
LFE1220W-EU Support Documentation
LFE1220W-EUWalkway Laminar Flow Enclosure for 1.2 m x 2.0 m Table, 230 V Fan Unit, EU Plugs (日本では販売しておりません)
Request
In Stock Overseas
LFE1220W-UK Support Documentation
LFE1220W-UKWalkway Laminar Flow Enclosure for 1.2 m x 2.0 m Table, 230 V Fan Unit, UK Plugs (日本では販売しておりません)
Request
In Stock Overseas
Back to Top

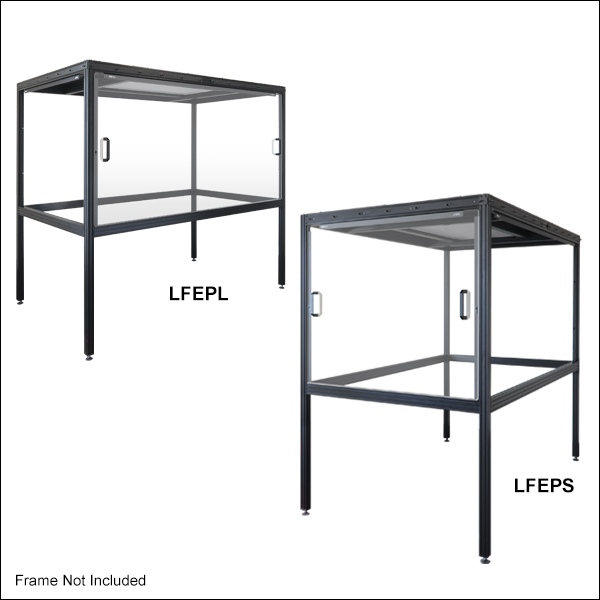

アクリルパネル、エンクロージャーフレームLFE1220用

Item #Panel Dimensions
(W x L)
Compatible
Frame
WeightaPanel
Material
LFEPS1220.0 mm x 1067.0 mm
(48.03" x 42.01")
LFE1220,
Short Side
5 kg
(11.0 lbs)
Acrylic Plastic
(PPMA)
LFEPL2090.0 mm x 1067.0 mm
(82.28" x 42.01")
LFE1220,
Long Side
10 kg
(22.0 lbs)
  • パネル、ハンドル、および取付け用ハードウェアを含む
  • LFE1220周りに壁を構築
    • 3面を壁で囲う場合にはLFEPSが2個、LFEPLが1個必要
    • エンクロージャーフレーム用透明カーテンと併せてご使用可能
  • 頑丈なアクリルパネルは重量がガラスパネルの半分で、高い摩耗耐性を有しています。
  • 各キットには1枚のパネルと取付け用ハードウェアが含まれます。

アクリルパネルキットLFEPSおよびLFEPLにより、エンクロージャーフレームLFE1220に壁を作ることが可能です。各キットには1枚のアクリルパネルと、取り付けに必要なすべての部品が含まれています。パネルを設置する際の配置に役立つハンドルも2個付属します。パネルは、同じサイズのガラスパネルと比較して重量が半分で、かつ摩耗耐性が高いため、様々なワークステーションの囲いとしてご使用いただけます。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
LFEPS Support Documentation
LFEPSアクリルパネルキット、フレームLFE1220の短辺用、パネル1.2 m x 1.1 m
¥126,217
In Stock Overseas
LFEPL Support Documentation
LFEPLアクリルパネルキット、フレームLFE1220の長辺用、パネル2.1 m x 1.1 m
¥175,815
In Stock Overseas
Back to Top

ハンギングシェルフ、エンクロージャーフレーム用


Click to Enlarge

複数枚設置したハンギングシェルフLFES1
General Specifications
Maximum Loada70.0 kg (154.0 lbs)
Shelf Dimensions
(W x L)
350.0 mm x 1175.0 mm
(13.78" x 46.26")
Shelf Weightb6.74 kg (14.83 lbs)
Shelf Hanging Heightc403.0 mm (15.87")
  • ハンギングシェルフの最大荷重です。上記のエンクロージャの最大荷重も超えないようご注意ください。
  • ハンギングバーと取付け具を含みます。
  • ハンギングバーも含みます。
  • エンクロージャーフレームLFE1220とLFE1220W用の追加の収納棚
  • 複数の棚を設置可能

ハンギングシェルフLFES1は、エンクロージャーフレームLFE1220とLFE1220W内の追加の収納棚です。棚のパネルは空気が流れやすいよう多数のスロット穴(網状)があります。棚を取り付けるには、付属の取付け具を使用してハンギングフレームの上部のバーを、エンクロージャーフレーム天井を支えるレールのTスロット(隣り合う2箇所)に接続します。棚の縦のスペースは403.0 mm(棚面からクロスバーの上部まで)で、付属の縦のハンギングバーを長さの異なる25 mmレールに交換することで高さの変更は可能です。収納スペースを追加したい場合には、右の写真のように複数の棚を設置することができます。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
LFES1 Support Documentation
LFES1ハンギングシェルフ、エンクロージャーフレーム用、取り付け具付属
¥119,139
In Stock Overseas
Back to Top

LEDストリップライト

Specifications
Brightness1530 Lumens
# of LEDs51
Powera15.3 W
Voltage12 VDC (Power Supply Included)
Dimensions850 mm x 17.4 mm x 8.2 mmb
(33.46" x 0.69" x 0.32")
  • LED1個あたりの電力消費量は0.3 Wです。
  • 4.3 mのエクステンションケーブルも付属
  • 長さ850 mm
  • 4.3 mの延長ケーブル
  • 頑丈なアルミニウム製のベースが反りを防止
  • 艶消し加工のプラスチックのカバーにより均一な光の広がりを実現
  • バネクリップ3個、Tナット3個、M6ネジ3個、4.3 m延長ケーブル、電源が付属

こちらのLEDストリップライトは850 mmの長さでご用意しております。4.3 mの延長ケーブルが付属し、3個のバネクリップで固定します。 当社の光学テーブル用自立型シェルフNexusテーブルフレーム付きオーバーヘッドシェルフなどのラックや棚にも取り付けられます。このストリップライトは、当社以外の一般的な研究用実験ベンチ上で使用することも可能です。

(*国内販売品に付属するACアダプタは左上の写真とは形状が異なります)

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
PSY240E Support Documentation
PSY240ELEDストリップライト、850 mm、4.3 mの延長ケーブル付き
¥31,301
In Stock Overseas
