Ø25.0 mmおよびØ1インチ台座付きピラーポスト(ペデスタルポスト)

- Solid Stainless Steel Construction
- 8-32 (M4) or 1/4"-20 (M6) Taps on Both Ends of Posts
8-32 (M4) Tapped Holes
On Both Ends
RS4P8E
RS2P8E
RS05P8E
RS3P
RS1.5P
RS1P
CF125
Steel
Clamping
Forks
1/4"-20 (M6) Tapped Holes
On Both Ends
RS1LM
Peelable Shims
Post Spacers
Clearance Hole or Threaded Bore
RS016
RS7M
RS039
RS01M

Please Wait
特長
- ポストの高さは12.5 mm~155 mm
- ミリ規格はM4またはM6 タップ穴で連結可能
- 当社のØ25.0 mmまたはØ1インチピラーポストで高さを追加することが可能
- 台座付きベース(ペデスタルベース)はクランプフォークに対応
- ステンレススチール製で、Ø25.0 mmおよびØ1インチに精密機械加工
- Ø25.0 mmポスト用ポストスペーサ、貫通ネジ穴付き
この単体構造の非磁性ステンレススチール製台座付きポスト(ペデスタルポスト)は、優れた強度と剛性を有しています。ミリ規格ポストは、両端にM4またはM6タップ穴が開いているタイプをご用意しています。タップ穴のまわりは広くリリーフカット(逃げ加工)が施されていて、当社の光学マウントや光学テーブルに安定して固定することができます。台座付きポストは12.5 mm~155 mmのさまざまな高さでご用意しています。ポストスペーサを使用して、高さを追加することができます。単体でご購入いただけますが、ポストスペーサ&止めネジキット(下記掲載)にも含まれています。
台座付きベースは下記のスチール製クランプフォークで固定ができ、光学テーブルへの取付けの柔軟な位置決めが可能です。設置スペースが限られている場合、光学テーブルへのポストの取り付けには省スペース型のポストクランプCL8、CF038-P5およびCF038C/M-P5をお使いいただけます。当社のネジ-位置決めピン変換アダプタ(下記参照)を使用すると、ポストを固定する前に、取り付け面のタップ穴の上に自由に回転させて位置合わせすることができます。
Posted Comments: | |
user
 (posted 2023-11-10 13:33:46.013) Hello!
Which type of stainless steel are the posts made of? Can you use them in UHV?
Best regards. jdelia
 (posted 2023-11-13 08:54:43.0) Thank you for contacting Thorlabs. These posts are constructed from 303 stainless steel. I have contacted you directly to discuss your application further. Thomas Kessler
 (posted 2023-03-23 16:53:02.11) It would be great if you had 1" post spacers with 8-32 taps. jdelia
 (posted 2023-03-24 01:57:14.0) Thank you for contacting Thorlabs and for providing this valuable feedback. While this is not something we currently offer, I have forwarded your request over to our design engineers for future consideration as a stock product via our internal suggestion forum. Adam Wyatt
 (posted 2022-09-16 09:27:03.937) Do you offer the RSxP/M and RSxP4M pedestal posts in custom lengths. Specifically I need to centre the Polaris 2" mounts at a 150mm beam height (requiring 110mm pedestal posts). I would like to use a single post rather than post + spacer. Fabian Brunner
 (posted 2020-05-23 06:02:39.877) It would be very useful to if spacers of the kind RS1M to RS10M could be sold in e.g. 5-packs and without the metric and imperial grubs that come with it. We are frequently using the spacers but the imperial and metric grubs are piling up in the lab to such amounts that we started to just through them away - which is pity. Also, this way packaging material could be saved to reduce waste and save time for unpacking. Lastly, the spaces could maybe be offered at a more reasonable price then. YLohia
 (posted 2020-05-26 09:43:31.0) Hello Fabian, thank you very much for your feedback. We will consider adding these options to our catalog. user
 (posted 2019-06-23 16:25:52.69) This product would be useful to me if it had ten 0.1 mm slices instead of fourteen 0.075 mm slices.
My use cases result from having to align imperial and metric measure differences of any single digit integer decimillimeters. I can only obtain .3, .6, and .9 mm with this product, not the .1, .2, .4, .5, .7, and .8 mm I commonly need, and I can't think of an example when I might need the .075, .15, .225, .375, .45, .525, .675, .750, or .825 mm provided by the product.
For example, aligning SCL03/M and SCL60C/M, both "metric" products, requires compensating for the 1.4 mm height difference between the centers of these items when they are fully inserted in post holders. This would be easy to do with one RS1M and 4 slices of a decimillimetric version of the RS1LM. llamb
 (posted 2019-06-24 02:02:46.0) Thank you for your feedback. I have added this idea to our internal product forum for further review and reached out to you directly to discuss your application further. fabian.stutzki
 (posted 2016-03-02 08:01:37.617) Hi,
it would be nice to have a post that perfectly fits to mount a Polaris mirror on 40 mm beam height. The post would have to have a height of about 15mm.
Best regards
Fabian Stutzki besembeson
 (posted 2016-03-02 01:47:04.0) Response from Bweh at Thorlabs USA: You may achieve this at the moment using the RS05P/M with a suitable spacer such as the RS3M. roger.ding
 (posted 2015-08-07 00:32:01.357) A Ø1" Pedestal Pillar Post, 8-32 Taps, L = 2.5" (i.e. 1 in pedestal pillar post with a length of 2.5 inches). I'm currently getting the 2.5 in posts from Newport (item #9955) because Thorlabs doesn't offer this height. besembeson
 (posted 2015-08-19 03:32:01.0) Response from Bweh at Thorlabs USA: Thanks for your feedback. Although you can use the RS1.5P8E and the PLS-P1 with an AP8E25E, we will look into expanding our 1" posts product line to include solid 2.5" length as stock item. bdada
 (posted 2012-03-07 12:20:00.0) Response from Buki at Thorlabs:
Thank you for your feedback on the variation you have experienced with the tolerance of our posts. We will look into this issue. We do not have your contact information, so please contact us so we can keep you updated on our findings and replace any posts that do not meet our tolerance specification. user
 (posted 2012-03-05 17:34:52.0) All these posts seem to vary in length more than i'd expect, can you look at the tolerance and perhaps tighten it up. This simple change would make these post more useful. Same would apply to your other post series. bdada
 (posted 2011-10-20 12:45:00.0) Response from Buki at Thorlabs:
Thank you for your suggestion. Please consider using one of our extension posts to get a variety of lengths and introduce more flexibility into your system. For instance, to get an RS2.5P/M (62.5mm height), you could combine the RS2P/M (50mm height) with the RS12/M extension post (12.5mm height) shown on the page linked below:
http://www.thorlabs.de/NewGroupPage9.cfm?ObjectGroup_ID=241
If you do not want to use the extension post, please contact TechSupport@thorlabs.com regarding a custom length post. umit79
 (posted 2011-10-20 13:39:53.0) I would like to also see RS2.5P/M in the product list. Laurie
 (posted 2009-03-19 13:18:15.0) Response from Laurie at Thorlabs to hbabcock: Thank you for your interest in our posts and for your valuable feedback. For customers desiring a 1/4"-20 thread, we do offer a series of "P Posts," which have a 1.5" diameter. However, you are definitely correct that we need to provide links and text specifically guiding you towards the thread adapter that can convert these RS posts to 1/4"-20 threading. We will make that addition very shortly. Once again, thank you for taking the time to provide valuable feedback that will help others in the future! hbabcock
 (posted 2009-03-19 10:23:18.0) Id also like to see a 1/4-20 threaded version of these. I naively assumed that these would be directly compatible with the 1" post extensions. You might also consider listing the adapter as a related item. I discovered that it existed by reading the feedback for this product. Laurie
 (posted 2008-10-15 12:17:31.0) Response from Laurie at Thorlabs to acable: Currently we do offer an 8-32 to 1/4-20 adapter (Item# AP8E25E), which would allow you to connect our post extensions to our pedestal posts. However, I understand that youd like the larger thread throughout for stability. Thorlabs does have an internal forum for product ideas, and I will be sure to enter your suggestion into that forum for consideration. In the interim, if you contact our technical support staff, theyd be able to provide you with a custom quote for tapping our pedestal posts with a 1/4-20 thread. acable
 (posted 2008-10-13 09:20:37.0) The Post Extensions are tapped 1/4-20 (M6-1.0) both ends, however the Pedestal Posts have an #8-32 (M4-0.7) tap, would it be possible to change the Pedestal Post to a 1/4-20 (M6). Using the larger thread size would allow an assembly of Posts to be tightened with sufficent torque to provide assurance that the assembly would not vibrate loose. Then in order for the Pedestal Posts to accept Opto-Mech with #8 (M4)mounting feature inclusion of one of the following thread adapter could be included with each post:
AE8E25E - Thread Adapter, Internal to External Stud, #8-32 to 1/4"-20
AE4M6M - Thread Adapter, Internal to External Stud, M4 to M6 technicalmarketing
 (posted 2008-02-22 08:33:50.0) Thank you for suggesting a new product. We always like to hear from our customers about ways that we can better serve you. I will pass this information on to our engineers in mechanics for discussion. If adopted, this item would join our growing list of customer inspired products. Thanks again for your input! zilong.chen
 (posted 2008-02-21 17:02:45.0) Hi,
Would Thorlabs consider manufacturing shorter clamping forks for use in small spaces? A 1.5"-2" short fork can be very useful in constrained spaces.
Thanks,
Zilong |

- ステンレススチール製
- Ø25 mm(ミリ規格)およびØ1インチ(インチ規格)に精密機械加工
- 両端のM4(または#8-32)タップ穴で連結可能
- CFシリーズのクランプフォークで固定できる台座付きベース

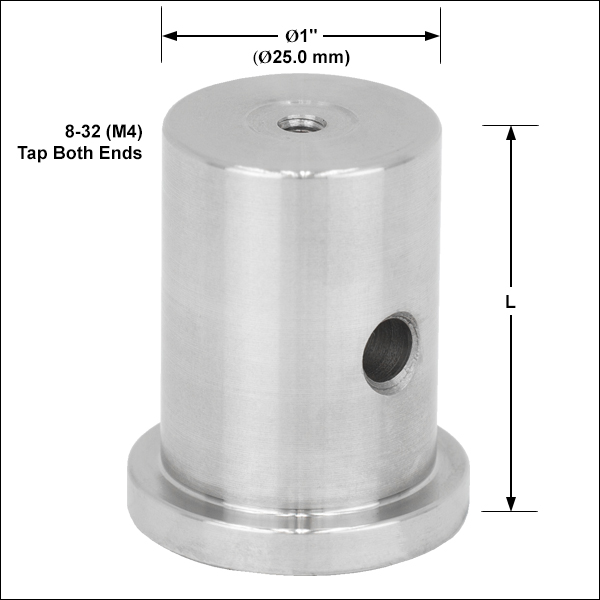

この SUS303ステンレススチール製台座付きピラーポストは、ミリ規格はØ25 mmで両端にM4タップ穴が付いており、豊富な高さの製品が揃っています。M4タップ穴は、当社のキネマティックマウントなど、多くのオプトメカニクスデバイスに対応します。各ポストの側面には6 mmの貫通横穴があり(RS05P4MとRS05P8Eを除く)、5 mmボールドライバを通したり、スパナレンチ SPW501の適用が可能になります。このポストにはM6タップ穴のバージョンもございます。詳しくは下記をご覧ください。

- ステンレススチール製
- Ø25 mm(ミリ規格)およびØ1インチ(インチ規格)に精密機械加工
- 両端にM6(または1/4”-20)ネジ穴あり(※ 変換アダプタは同梱しておりません)
- クランプフォーク(CFシリーズ)で固定できる台座付きベース
このSUS303ステンレススチール製台座付きピラーポストは、さまざまな高さの製品をご用意しています。ミリ規格は直径がØ25.0 mmで、両端にM6タップ穴が付いています。M6ネジによって、Ø25 mmポストやスペーサなどと簡単に連結可能です。各ポストの側面には6 mmの横穴があり(RS05P/Mを除く)、5 mmボールドライバを通したり、スパナレンチSPW501を差し込むことができます。
M6外ネジとM4内ネジが付いた変換アダプタAE4M6M(別売り)を使うと、M6タップをM4タップに変換できます。1/4”-20外ネジと#8-32内ネジが付いた変換アダプタAE8E25E(別売り)を使うと、1/4”-20タップを#8-32タップに変換できます。


Click to Enlarge
スパナレンチSPW501を使用してポストスペーサをポストに締め付け
- ステンレススチール製
- M6タップ穴
- 上部と底部の大径リリーフカットにより安定性を向上
- スパナレンチ用スロット
こちらの長さの短いポストスペーサは構造の剛性を損なうことなく、標準品には無い長さのØ25 mmポストを構築するために設計されています。中央のM6ネジ貫通穴により、止めネジを用いて上ならびに下に接続する部品のタップ穴と接続することができます。長さ8 mmまでのスペーサの側面にはスロットが2つあり、スパナレンチSPW501(下記参照)を使用して右の写真のようにポストに締め付けられます。長さ9 mm以上のスペーサには2つのスロットの代わりに貫通穴が1つ付いています。この貫通穴には3 mmドライバやスパナレンチSPW501をご使用いただけます。


微調整用ポストスペーサを使用してポストの高さを5 mm上げています。
- ステンレススチール製
- M6ネジを通すことが可能な貫通穴
- 厚さ1 mm以上のスペーサは、上部と底部に大径リリーフカット付きで取付け時の安定性が向上
こちらのスペーサは、構造の剛性を損なうことなく、標準品には無い長さのØ25 mmポストを構築するために設計されています。中心のM6貫通穴にネジを通して、スペーサの反対側の部品のタップ穴にねじ込みます。例えばトータルで205 mmのポスト高を得たい場合には、スペーサRS5M(厚さ5 mm)1個を2本のポストRS100/M(長さ100 mm)の間に挿入するだけで実現できます。
なお、0.9 mm以下のスペーサの側面には製造工程により窪みがついています。これは外観上窪みが付いているだけで、スペーサの機能に影響するものではありません。


RS-KIT Post Spacer and Setscrew Kit | |||
---|---|---|---|
Item | Qty. | Item | Qty. |
Ø25 mm Post Spacer, 1 mm Thick (RS1M) | 5 | Ø25 mm Post Spacer, 7 mm Thick (RS7M) | 1 |
Ø25 mm Post Spacer, 2 mm Thick (RS2M) | 5 | Ø25 mm Post Spacer, 8 mm Thick (RS8M) | 1 |
Ø25 mm Post Spacer, 3 mm Thick (RS3M) | 5 | Ø25 mm Post Spacer, 9 mm Thick (RS9M) | 1 |
Ø25 mm Post Spacer, 4 mm Thick (RS4M) | 5 | Ø25 mm Post Spacer, 10 mm Thick (RS10M) | 5 |
Ø25 mm Post Spacer, 5 mm Thick (RS5M) | 5 | 1/4"-20 Setscrew, 7/8" Long | 25 |
Ø25 mm Post Spacer, 6 mm Thick (RS6M) | 1 | 1/4"-20 Setscrew, 1" Long (SS25S10) | 25 |
RS-KIT/M Post Spacer and Setscrew Kit | |||
---|---|---|---|
Item | Qty. | Item | Qty. |
Ø25 mm Post Spacer, 1 mm Thick (RS1M) | 5 | Ø25 mm Post Spacer, 7 mm Thick (RS7M) | 1 |
Ø25 mm Post Spacer, 2 mm Thick (RS2M) | 5 | Ø25 mm Post Spacer, 8 mm Thick (RS8M) | 1 |
Ø25 mm Post Spacer, 3 mm Thick (RS3M) | 5 | Ø25 mm Post Spacer, 9 mm Thick (RS9M) | 1 |
Ø25 mm Post Spacer, 4 mm Thick (RS4M) | 5 | Ø25 mm Post Spacer, 10 mm Thick (RS10M) | 5 |
Ø25 mm Post Spacer, 5 mm Thick (RS5M) | 5 | M6 x 1.0 mm Setscrew, 20 mm Long (SS6MS20) | 25 |
Ø25 mm Post Spacer, 6 mm Thick (RS6M) | 1 | M6 x 1.0 mm Setscrew, 25 mm Long (SS6MS25) | 25 |


ナイフエッジがスペーサに対して45°の角度となるようにします
- 層を1枚ずつ剥離することにより高さ調整
- ステンレススチール製
- タブ付きで剥離が簡単
- 5個入りで販売
これはØ25 mmの剥離可能なラミネート加工のポストスペーサで、当社のØ25 mmのポスト使用時に精密な高さ調整ができます。厚さが1.0 mm ±10%のスペーサは、5個入りで販売しており、剥離層は14層で、各層の厚さは0.075 mmです。M6ネジがおさまるように貫通穴付きとなっています。
製品によっては、仕上がり外観が変色しているように見える場合がありますが、これは不良ではなく、製造工程に依るものです。この外観は、製品の形状、嵌め合わせや機能には影響がありません。外観上の相違点です。
剥離するには、エッジの鋭利なカッターナイフを、右図のように本スペーサのタブに対して45°の角度で入れてください。ラミネートされた層が剥離し始めるまで、ナイフを軽く上方向に押し上げてください。通常は、ナイフを5回ほど入れることで、ラミネート層が剥離します。端から剥離できない場合は、ラミネートが剥離するまでテーブル上でタブの角を軽くタップしてください。
端面が浮き上がったことが確認できれば、刃を剥離層間に挿入しながら親指と刃で剥離層を挟み、その後手首を動かしてラミネート層がはがしてください(左上の写真を参照)。剥離層の一部が十分にめくりあがった状態になれば、親指と人差し指でつまんで、最後まではがすことができます。必要な分のラミネート層がはがれるまで、この作業を繰り返してください。剥離されたラミネート部分は破棄してください。


Click to Enlarge
SPW501はトルクスロットや穴の付いたØ25 mmポストを締め付けます。
スパナレンチSPW501は右の写真のようなトルクスロット付きのØ25 mmポストを締め付けたり、緩めたりするのに使用します。SPW501は貫通穴が付いたØ12 mm~Ø12.7 mm(Ø1/2インチポスト)ならびにØ25 mm~Ø25.4 mm(Ø1インチ)ポストにも使用できます。レンチはスロットや貫通穴にはまる設計で、ポストを直接タップ穴に取り付ける際、締め付けや緩みの力点となります。過度の締め付けにより固着する恐れがありますので、ご注意ください。


Click to Enlarge
CF038C(/M)-P5、CF125C(/M)、CF175C(/M)にはキャップスクリュが付属します。

Click to Enlarge
スロットの長さは数種類
- クランプフォークが台座付きポストをブレッドボードや光学テーブルに固定
- 3種類のクランプフォーク(M6キャップスクリュで固定)
- 10.2 mmのザグリ穴付き(CF038C/M-P5とCF038-P5)
- 31.5 mmのザグリ穴付き(CF125とCF125C/M)
- 44.4 mmのザグリ穴付き(CF175とCF175C/M)
- スイベル式フォークで360°動かすことができるため、使いやすい取付け穴が選択可能
- CF038C/M-P5、CF125C/MならびCF175C/MはM6取付けネジ付き
- 5個入りパックもご用意(CF038-P5とCF038C/M-P5は5個入りパックのみ)
これらのクランプフォークは、台座付きØ12 mm~Ø12.7 mm(Ø1/2インチ)ポストホルダまたはØ25 mm台座付きポストに使用した場合、クランプ力を増加させる設計となっております。 これらのクランプフォークはSUS303ステンレススチール製で、高安定な3点接触によりテーブルに固定されます。
またCF038-P5とCF038C/M-P5には長さ10.2 mmのザグリ穴、CF125およびCF125C/Mには長さ31.5 mmのザグリ穴、CF175とCF175C/Mは長さ44.4 mmのザグリ穴が付いており、ポストのアセンブリの位置決めに柔軟性をもたらします。CF038-P5、CF125、CF175のザグリ穴は、お手持ちのM6ネジ付きキャップスクリュに対応します。さらにCF038C/M-P5、CF125C/MおよびCF175C/MにはM6のキャップスクリュが付属します。 クランプフォークの過度の締め付けは、光学テーブルの表面を変形させ、部品のミスアライメントならびに安定性の低下につながりますのでご注意ください。
当社のクランプフォークは5個入りのセットでもお買い求めいただけます(クランプフォークCF038C/M-P5は5個入りパックのみご提供しております)。


Click to Enlarge
Ø25.4 mm(Ø1インチ)台座付きピラーポストRS4P8Eを固定するクランプCL8

Click to Enlarge
CL8の横断面図
- Ø25 mm~Ø25.4 mm(Ø1インチ)&Ø38 mm(Ø1.5インチ)のポストに使用可能
- 台座付きポスト周囲を2点でクランプする構造
- テーブルとは直線で接するのでクランプ強度が増大

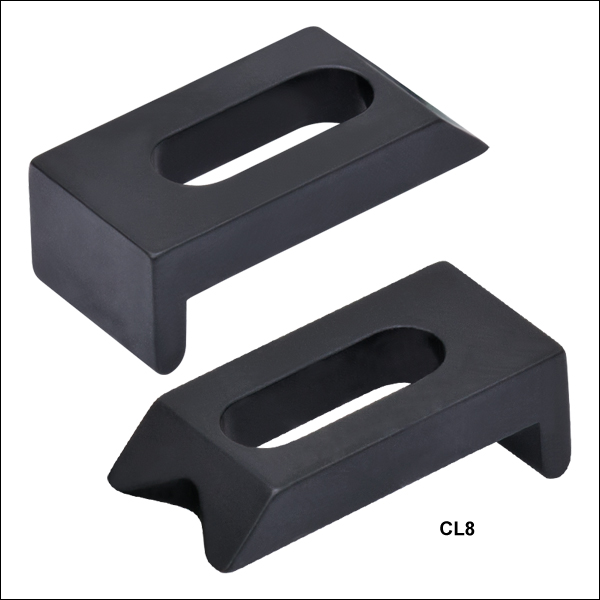

当社の台座付きポストクランプCL8を使用すると、Ø25 mm~Ø25.4 mm(Ø1インチ)、Ø38 mm(Ø1.5インチ)の台座付きポストを光学テーブルやブレッドボードに固定できます。先端がV字型形状になっているので、台座の周囲で2点接触ができます。また端部が丸みを帯びた形状であるため、光学テーブルとの接触面積が広くなります。


Click to Enlarge
位置決めピン-ネジ変換アダプタを組み込んだØ25.0 mm台座付きピラーポストに、ミラーマウントKM100CPを取り付ければ、ミラーを光学テーブルの穴の中央に配置することができます。位置決めピン-ネジ変換アダプタにより、光学テーブルの穴に位置決めをしながら自由に回転させることができます。
Item # | Thread (External) | Dowel Pin |
---|---|---|
Imperial Thread Adapters | ||
PTDA8E-P5 | 8-32 | Ø0.193"a |
PTDA25E-P5 | 1/4"-20 | |
Metric Thread Adapters | ||
PTDA4M-P5 | M4 x 0.7 | Ø4.83 mmb |
PTDA6M-P5 | M6 x 1.0 |
- M4 x 0.7、M6 x 1.0タップ穴付きのオプトメカニクス部品に組み込み可能
- ステージ、光学テーブル、ブレッドボードなどの取付面のM6 x 1.0穴に差し込み可能
- 自由に回転しながらコンポーネントをタップ穴位置にアライメント可能
- コンポーネントを何度も再現性よく光路に挿入可能
- 5個入り
位置決めピン-ネジ変換アダプタは、移動ステージ、光学テーブル、ブレッドボードなどのM6 x 1.0タップ穴にオプトメカニクスを直接アライメントするためにご使用頂けます。簡単かつ素早くアライメントするためには、このアダプタを対応するポスト(例:Ø25 mmピラーポストまたはØ25 mm台座付きポスト)aにねじ込み、位置決めピンを取付面のM6 x 1.0タップ穴に差し込みます。位置決めピンは、穴に対してのアライメントを保ちながらポスト軸を中心に自由に回転します。詳細は「用途」タブをご覧ください。
こちらのアダプタを用いると、回転の自由度を保ちつつ、位置決めが可能なため、アイリスやアライメントツールなど一時的に使用するコンポーネントを光路に簡単に挿入できます。回転位置が決まったら、クランプフォークなどを追加してポストやポストホルダを光学テーブルまたはブレッドボードに恒久的に設置することをお勧めいたします。
アダプタの位置決めピンには取付け・取外し用に2.0 mm六角が付いています。識別のため、ミリ規格のアダプタには、位置決めピン周りに刻印付きのリングが付いています。M6 x 1.0の外ネジ付きアダプタには、ネジ山間の遊びによる動きを防止し、アダプタが部品に挿入され過ぎるのを防ぐためのOリングが付属しています。

- 光学システム内でØ25 mm~Ø25.4 mm(Ø1インチ)およびØ38 mm(Ø1.5インチ)ポストの位置の保持
- 2つの接触点によってアライメントを再現
- 3つ目の接触点を利用して角型の部品のアライメントを再現
- スイベル式のヘッドによって200°の回転が可能

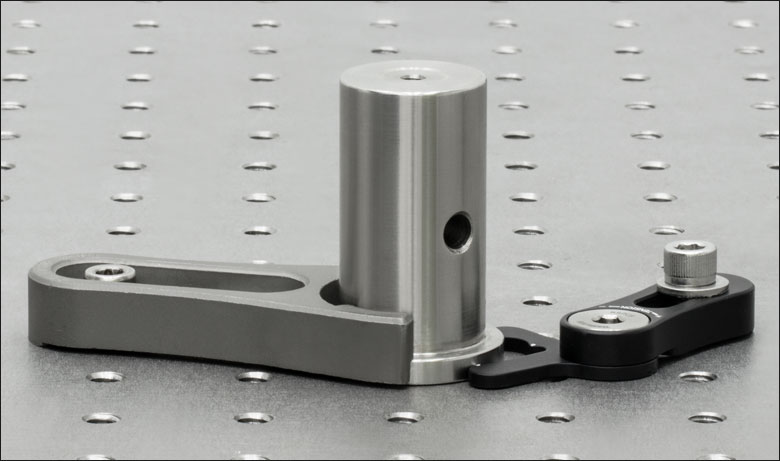

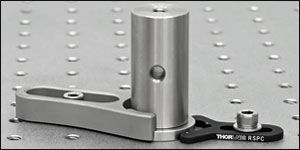

こちらの位置決めプレートを用いることで、光学システムから一旦取り外したポストのアライメントを再現することができます。この製品は、光学系からポストを取り外す際に、ブレッドボードや光学テーブル上の目印としてお使いいただけます。アームの先端にある2つの白い点がポストと接触する位置を示します。V字型の溝部分にある3つ目の点は、四角のベースや角型部品の位置を保持する際に使用します。この位置決めプレートを角型部品に使用する方法についての詳細はこちらをご参照ください。
固定式の位置決めプレートPSPCは、Ø25 mm~Ø25.4 mm(Ø1インチ)およびØ38 mm(Ø1.5インチ)ポストにお使いいただけるコンパクトな位置決めプレートです。ポストはRSPCをアライメントする前に固定しておく必要があります。位置決めプレートを固定した後は、ポストを光学系から取り外しても、再度同じ位置に戻すことが可能です。
スイベル式位置決めプレートRSPCS/Mには、200°の回転調整ができるスイベル式ヘッドが付いています。このヘッドによって、ブレッドボード上のより多くの取付け穴にアクセスすることができます。 ポストはRSPCS/Mをアライメントする前に固定しておく必要があります。テンションアジャスターネジをやや緩めてから、位置決めプレートをポストに接触させたままブレッドボードのタップ穴に取り付け、最後にテンションアジャスターネジを締め付けます。その後はポストを光学系から取り外しても、再度同じ位置に戻すことが可能です。
