Ø25 mmポスト用クランプ、タップ穴付き取付け面


  • Modular Vertical Mounting Surface
  • Clamps Securely to Our Ø1" (Ø25 mm) Posts
  • Generous Distribution of Tapped Holes and Counterbores
  • Adjustable Height Collar Also Available

C1011

2"

2"

Front View

Back View

C1045

3.50"

3.50"

Back View

Front View

RSHA

Adjustable Height Collar

C10QR

Quick-Release Handle

Related Items


Please Wait
Ø1" (Ø25.0 mm) Post Accessories
Construction Accessories
Vertical Mounting Clamps
Horizontal Mounting Bracket
Fixed Lens Mounts
Click for Details
C1011/MおよびC1045/Mの前面のプレートは脱着可能です。

特長

  • RSシリーズØ25 mmポスト用クランプ
  • 前面プレートのサイズは2種類
    • 50.8 mm x 50.8 mm(型番C1011/M)
    • 87.5 mm x 87.5 mm(型番C1045/M)
  • 前面プレートは3 mmのボール(六角)ドライバまたは六角レンチで取外し可能
  • 取付け用タップ穴:M6 x 1.0およびM4 x 0.7
  • ザグリ穴:M6およびM4
  • クランプの取付け位置を容易に変更できる簡単脱着ハンドル
  • 微細な高さ調整が可能な高さ調整カラー(別売り、下記参照)

Ø25 mmポスト取付け用クランプC1011/MおよびC1045/Mは、当社のØ25 mmポストアセンブリには不可欠な部品で、高剛性の汎用性の高い取付け面が付いています。これらの取付けクランプには、ブレッドボードに取り付けるのとほぼ同様に、当社の多様な光学マウントを取り付けることができます。また、当社では水平取付け面付きブラケットもご用意しております。

このクランプ機構は、当社のRSシリーズØ25 mmポストに直接取付けられます。垂直方向の取付け位置は、背面のクランプ部をØ25 mmポストに沿ってスライドさせて調整します。 垂直方向の位置が決まったら、付属の簡単脱着ハンドルを回し、クランプ機構で固定します。ラチェットタイプの機構により、ハンドルの回転位置はクランプを締めたり緩めたりせずに調整することができます。ハンドルを外側に引いて係合を外し、ご希望の位置まで回転してください。簡単脱着ハンドルは、交換用として単体でもご用意しております(下記参照)。

高さ調整カラーRSHA/M(別売り、下記参照)は、垂直方向に最大5.1 mmの調整が行えるアジャスタです。高さ調整リングの1回転あたりの移動量は0.64 mmで、Ø25.0 mmポストに取付けることができます。


Posted Comments:
Michal Šmíd  (posted 2021-03-29 11:42:37.947)
Hi, could I ask, is it possible to deliver this one (or something similar) with unanodized surfaces, i.e. to be vacuum-compatible? Cheers, Michal
YLohia  (posted 2021-03-30 10:51:37.0)
Hello Michal, custom items can be requested by contacting your local Thorlabs Tech Support team (in your case, europe@thorlabs.com) or by using the "Request Quote" button above. We will discuss the possibility of offering this directly.
user  (posted 2020-10-23 09:18:24.837)
Is it possible for Thorlabs to offer just detachable plate of C1045/M?
YLohia  (posted 2020-10-23 03:15:29.0)
Thank you for contacting Thorlabs. Custom and component-level items are quoted by emailing your local Thorlabs Tech Support team (in your case, techsupport.se@thorlabs.com) or by clicking the red "Request Quote" button above.
Andrey Kuznetsov  (posted 2019-12-06 19:04:14.12)
Would RM1B clamp fit under C1001 and allow C1001 to rotate freely on top of the clamp? Wondering if the clamp would interfere with the plate or the quick release handle.
llamb  (posted 2019-12-09 01:36:01.0)
Thank you for your feedback. No, the RM1B clamp would not allow the C1001 to rotate freely on top of it. When the RM1B is mounted flush underneath the Ø1" post clamp of the C1001, there can be about <30° of rotational freedom before the extended mounting plate of the C1001 interferes with the RM1B.
user  (posted 2013-11-22 23:51:44.85)
I had to build systems with this part (C1001), and the problem is, it would be great if some of the holes in the matrix were counterbore. Because it would allow ultra-rigid locking of optical mounts like the KC1-T without any intermediate pillar or plate, without the random angle that you have with a headless screw. Basically, when I had to use this part, I machined a custom matrix plate with couterbore holes myself!
cdaly  (posted 2013-12-04 03:04:55.0)
Response from Chris at Thorlabs: Thank you for your inquiry. I'm not sure how useful it would be though to have couterbores on the C1001. You would need to remove the front plate to mount anything, and would need to have it at the correct angle before putting it back on the post mounted back piece. If you are mounting only one item with an 8-32 tap, perhaps it would be more useful to use something like the RM1A or RM1C, each found here. The RM1A has a counterbore for an 8-32 cap screw. The RM1C has a rotating 8-32 threaded piece to allow for adjustment while mounted. http://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=2012
cbrideau  (posted 2013-08-16 12:25:03.733)
Instead of the mounting plate with all the holes, would an angle bracket like the AP90 be possible for this mount? I could see it being useful for mounting small instrument shelves for low-weight applications.
cdaly  (posted 2013-08-22 10:30:00.0)
Response From Chris at Thorlabs: Thank you for your feedback. At this time, there is no way to mount an angle bracket like the AP90 to the C1001. The slot size is too wide for the current mounting holes, so a new bracket would need to be introduced. I will see if we can add this to our product line, but in the meantime, if you would be able to use the 1.5" posts series, the C1505 seems to match your description pretty well.
tcohen  (posted 2012-04-02 09:44:00.0)
Response from Tim at Thorlabs: Thank you for your feedback! In much the same way a breadboard provides a general mounting surface, the C1001 provides this feature utilizing our 1" diameter posts. They were designed, with a large array of ¼”-20 and 8-32 tapped mounting holes, to allow versatility to adapt to the user's mounting needs.
levic.chomin  (posted 2012-03-31 18:13:23.0)
What is this used for?
Back to Top

Ø25 mmポスト用クランプ、50.8 mm x 50.8 mm取付けプレート

Fixed Lens Mounts
Click for Details

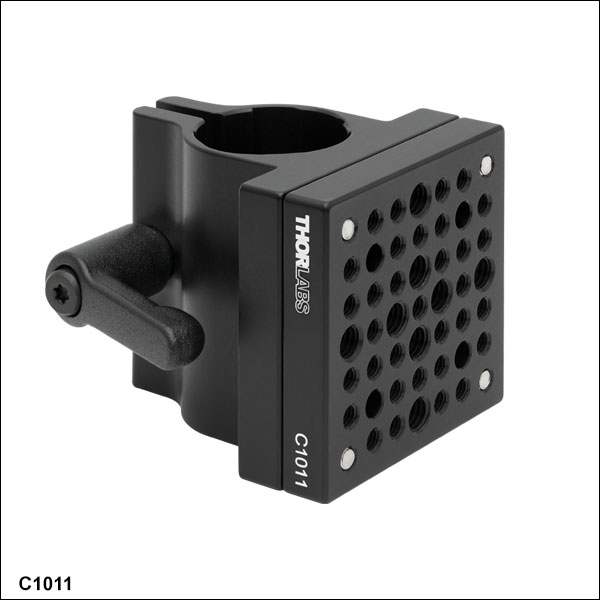

前面プレートC1011(/M)。寸法とネジ穴はミリ規格とインチ規格で異なりますのでご注意ください。ミリ規格製品の寸法は下記の赤いアイコンをクリックしてご覧ください。
  • 取付けプレート:50.8 mm x 50.8 mm
  • 簡単脱着ハンドル付属

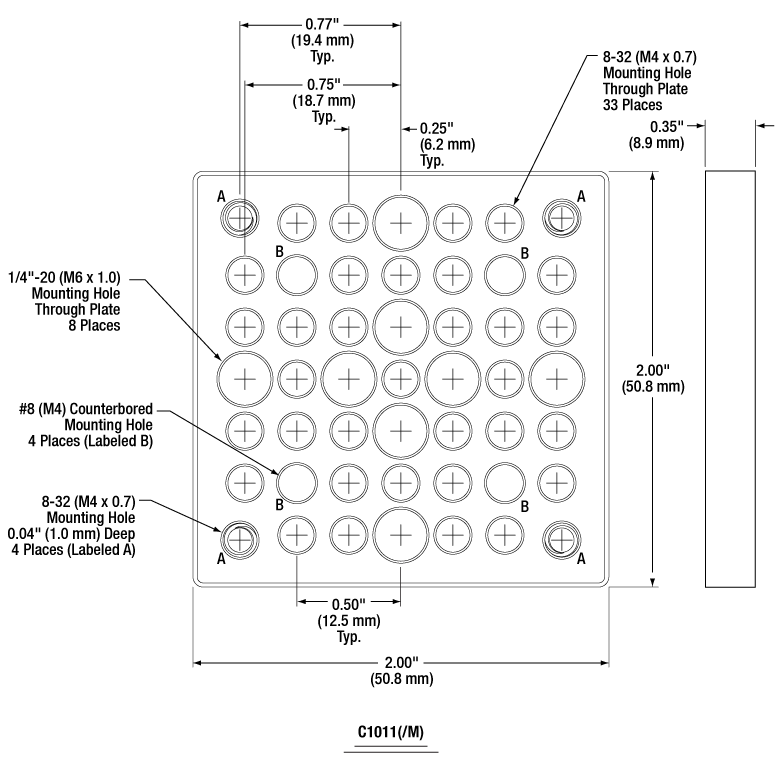

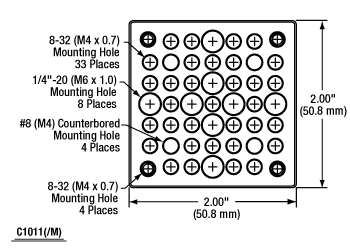

ポスト取付け用クランプC1011/Mには取外し可能な50.8 mm x 50.8 mmの前面プレートが付いており、プレートには様々なタップ穴とザグリ穴が開いています(右図参照)。

付属の長さ36.5 mmの簡単脱着ハンドルを用いて、クランプを簡単に Ø25 mmポストに固定することができます。M6 x 1.0のネジ付きスタッドと係合したハンドルを回転することで、クランプ機構を操作できます。内部のラチェットタイプの機構により、ハンドルの回転位置はクランプを動かさずに調整できます。追加の簡単脱着ハンドルは、別売りでご用意しております(下記参照)。

+1 数量 資料 型番 - インチ規格 定価(税抜) 出荷予定日
C1011 Support Documentation
C1011Customer Inspired! Ø1インチポスト取付け用クランプ、2.00 x 2.00インチ取付けプレート(インチ規格)
¥12,571
Today
+1 数量 資料 型番 - ミリ規格 定価(税抜) 出荷予定日
C1011/M Support Documentation
C1011/MCustomer Inspired! Ø25 mmポスト用クランプ、50.8 mm x 50.8 mm取付けプレート(ミリ規格)
¥12,571
Today
Back to Top

Ø25 mmポスト用クランプ、87.5 mm x 87.5 mm取付けプレート

Fixed Lens Mounts
Click for Details
前面プレートC1045(/M)。寸法とネジ穴はミリ規格とインチ規格で異なりますのでご注意ください。ミリ規格製品の寸法は下記の赤いアイコンをクリックしてご覧ください。
  • 取付けプレート:87.5 mm x 87.5 mm
  • 簡単脱着ハンドル付属

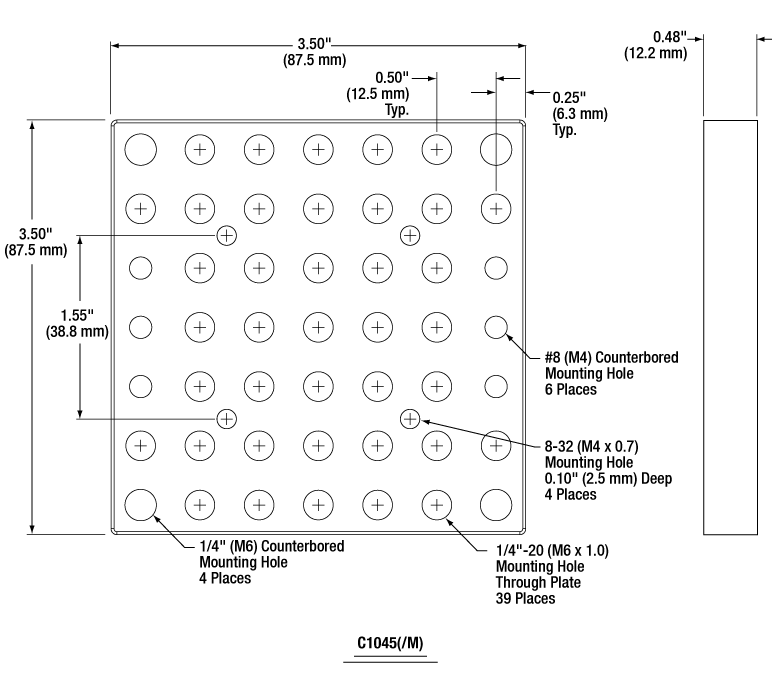

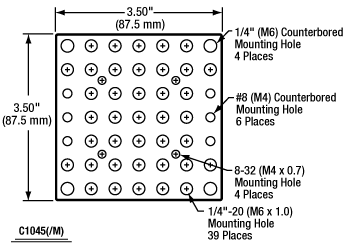

ポスト取付け用クランプC1045/Mには取外し可能な87.5 mm x 87.5 mmの前面プレートが付いており、プレートには様々なタップ穴とザグリ穴が開いています(右図参照)。
