N-BK7反射型拡散板、保護膜付き銀コーティング


  • Highly Diffusive Over Broadband Range from 450 nm to 20 µm
  • Polished for Greater Uniformity than Sand Blasting
  • Offered in 120, 220, 600, or 1500 Grit Polishes

DG10-120-P01

120 Grit

DG10-220-P01

220 Grit

DG10-600-P01

600 Grit

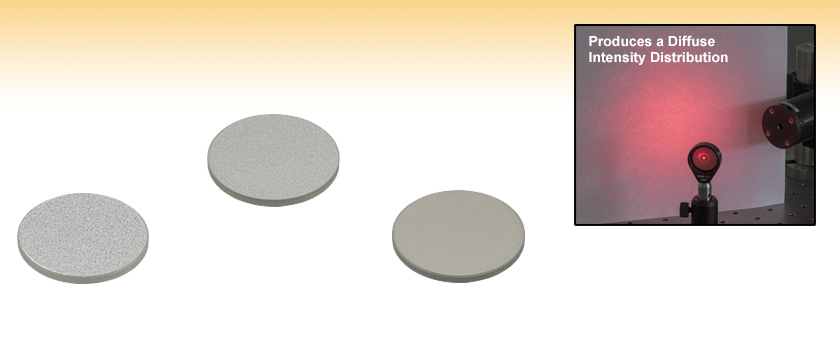

DG10-1500-P01 Reflecting
Collimated Light from a HNL050LB HeNe Laser

Related Items


Please Wait
Diffuser Selection Guide
Ground Glass Diffusers
Standard DiffusersN-BK7 SubstrateUnmounted, Uncoated350 nm to 2.0 µm
Unmounted, AR Coated350 nm - 700 nm
650 nm - 1050 nm
Mounted, Uncoated350 nm - 2.0 µm
UVFS SubstrateUnmounted, Uncoated185 nm - 2.0 µm
Diffuse ReflectorsN-BK7 SubstrateUnmounted, UV-Enhanced Aluminum Coated250 nm - 450 nm
Unmounted, Protected Silver Coated450 nm - 20 µm
Unmounted, Protected Gold Coated800 nm - 20 µm
Alignment Disks
Engineered Diffusers
Diffuser Kits
Optical Coatings and Substrates

特長

  • Ø25.4 mm(Ø1インチ)反射型拡散板
  • コーティング面の粒度は120、220、600、1500
  • 波長範囲450 nm~20 µm対応の保護膜付き高反射(HR)銀コーティング
  • 開口: 直径の>90%
  • 小さい入射角(AOI)では、ガウス型に似た強度分布(下のグラフ参照)
  • 基板:N-BK7

当社の反射型拡散板は、拡散強度分布が必要な用途のソリューションです。 反射型拡散板は、N-BK7基板のすりガラス側に保護膜付き銀コーティングが施されています。すりガラスの粒度は120、220、600、1500の研磨剤で研磨されています。保護膜は銀が変色するのを防ぐ役割を果たしますが、湿度の高い環境でのご使用は避けてください。

研磨された拡散板は、格段に高い表面均一性を持っているため、サンドブラスト拡散板より優れています。 様々な研磨剤が、反射される強度分布の範囲を決めます。 荒い研磨(粒度120など)では拡散のパターンが広くなり、細かい研磨(粒度1500など)では局所的になります。 各拡散板の反射光(AOI = 0°)の分布を下のグラフに示しました。 AOIが15°、30°および45°の場合の分布の変化については、「グラフ」タブをご参照ください。

こちらの反射型拡散板の厚さは2.0 mmなので当社の標準的なミラーマウントに取付けることはできません。拡散板のマウント用にØ25 mm~Ø25.4 mm(Ø1インチ)光学素子用固定式レンズマウントLMR1/MØ25 mm~Ø25.4 mm(Ø1インチ)レンズチューブ、ネジ付きキネマティックマウントKM100Tなどを取り揃えております。反射型拡散板をマウントLMR1/Mに取り付ける際には、右下の写真のようにすりガラス側とコーティング面をマウントのフチに配置し、固定リングでコーティングの無い面をしっかりと固定する必要があります。もし拡散板リフレクタが逆向きに取り付けられた場合、反射面はマウントの奥まった場所に配置され、筐体が拡散反射光の一部を遮ってしまいます。


Click to Enlarge

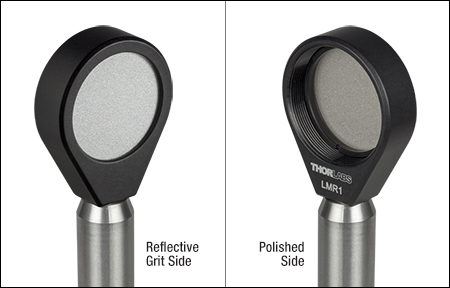

反射ビームの妨げを防ぐために、拡散板リフレクタの入力面をLMR1(/M)の後ろの方に向けて取付け。

Click to Enlarge

生データはこちらからダウンロードいただけます。
このデータは入射角0°の光線の反射強度分布です。 これらの曲線は、ピーク度や平坦度などの拡散板間の強度の分布の違いを際立たせるため、粒度が1500の反射型拡散板のピーク値で規格化されています。
Common Specifications
Coating on Grit SideProtected Silver
Average Reflectance of Coating
(AOI = 0 to 45°)
> 97% (450 nm to 2 µm)
> 95% (2 µm to 20 µm)
SubstrateN-BK7
Diameter1" (25.4 mm)
Diameter Tolerance+0.00/-0.25 mm (+0.00"/-0.01")

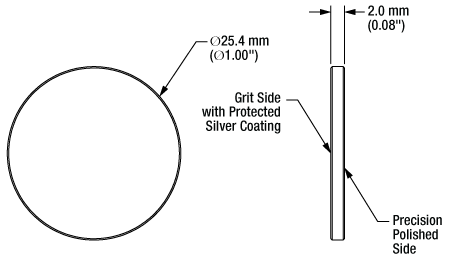

Thickness2.0 mm (0.079")
Thickness Tolerance±0.2 mm (0.008")
Clear Aperture> 90% Diameter
Parallelism< 3 arcmin
Item #Grit
DG10-120-P01120
DG10-220-P01220
DG10-600-P01600
DG10-1500-P011500

下のグラフはS偏光、P偏光、および無偏光の保護膜付き銀コーティングの反射率曲線を示しています。 青色の網掛け部分は、この反射型拡散板の推奨波長範囲を示しています。 グラフの下のリンクをクリックいただくと生データのダウンロードが可能です。

Reflectance of 120 Grit Diffusers
Click to Enlarge

生データはこちらからダウンロードいただけます。



下のグラフは各掲載製品についての反射光の強度分布データ(4種類の入射角)です。 光源をコリメート後、0°、15°、30°、45°の入射角で測定しました。 各曲線の欠落部分は光源の入射角に対応します。 強度計測は、0° AOIの光源を用いて取得したDG10-1500-P01のピーク値が1となるように規格化されています。

Intensity Distributions for 120 Grit Diffusers
Click to Enlarge

生データはこちらからダウンロードいただけます。
Intensity Distributions for 220 Grit Diffusers
Click to Enlarge

生データはこちらからダウンロードいただけます。
Intensity Distributions for 600 Grit Diffusers
Click to Enlarge

生データはこちらからダウンロードいただけます。
Intensity Distributions for 1500 Grit Diffusers
Click to Enlarge

生データはこちらからダウンロードいただけます。

Posted Comments:
Jonathan Cohen  (posted 2024-03-19 07:16:32.93)
Would you please tell me the thickness of the Ag coating on the DG10-600-P01 ground glass diffusers. We would like to etch a pattern on the surface and need to know the thickness. thanks, jc
jdelia  (posted 2024-03-19 01:15:59.0)
Thank you for contacting Thorlabs. We unfortunately cannot share this information as our coating thicknesses are proprietary. We apologize for the inconvenience. I have contacted you directly to discuss your application.
user  (posted 2024-02-09 10:49:16.46)
Is the damage threshold comparable to a similarly coated mirror or better/worse?
cdolbashian  (posted 2024-02-16 03:27:38.0)
Thank you for reaching out to us with this inquiry. We would expect the damage threshold to be lower, due to the fact that these surfaces are not polished for optimum reflection. There could be localized heating due to surface/sputtering imperfections. I have contacted you directly to address these concerns.
Christopher Reilly  (posted 2022-01-05 07:54:45.21)
Dear Thorlabs, Is it your expectation that the angular spread produced by the diffusers should scale (in the small angle limit) in inverse proportion with the wavelength? We are using a 600-grit diffuser for a 3.3um beam and we are not observing the diffusion expected from the graph on the product page. Best, Chris
cdolbashian  (posted 2022-01-31 05:00:44.0)
Thank you for reaching out to us Chris! We would indeed expect that behavior from the diffuse reflector, though we do not have any test data at the moment to support this. I have reached out to you directly for additional information and data.
Kevin Cognee  (posted 2021-08-16 17:19:15.413)
Can you explain to me why a higher grit value leads to a smaller divergence of the beam after reflection? A higher grit being equivalent to finer details, the support of the Fourier transform of the field should be wider, and therefore I expect the beam to be more and more divergent with an increased grit. Thank you, Kévin Cognée
cdolbashian  (posted 2021-08-27 10:15:05.0)
Thank you for reaching out to us at Thorlabs. I have reached out to you directly to discuss some of the theory behind these diffusers. We have determined that the angle of divergence of the reflected beam is dependent on both the RMS surface roughness AND the grit size of the diffuser chosen, leading to smaller grit diffusers having smaller divergence angles. We have data to show this in our "Graphs" tab.
cbrideau  (posted 2013-04-01 13:20:04.197)
I am working on an application where I need good diffuse reflection of 400 to 700nm. I notice the silver coating rolls off at ~450, but could you do this with aluminum or UV-enhanced aluminum? If you could this would be perfect for my application.
jlow  (posted 2013-04-01 15:34:00.0)
Response from Jeremy at Thorlabs: We could do this with UV-enhanced aluminum. I will get in contact with you regarding the quote for this.
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
DG10-120-P01 Support Documentation
DG10-120-P01Customer Inspired! Ø1" Prot. Silver Reflective Ground Glass Diffuser, 120 Grit
¥7,364
Today
DG10-220-P01 Support Documentation
DG10-220-P01Customer Inspired! Ø1" Prot. Silver Reflective Ground Glass Diffuser, 220 Grit
¥7,364
Today
DG10-600-P01 Support Documentation
DG10-600-P01Customer Inspired! Ø1" Prot. Silver Reflective Ground Glass Diffuser, 600 Grit
¥7,364
Today
DG10-1500-P01 Support Documentation
DG10-1500-P01Customer Inspired! Ø1" Prot. Silver Reflective Ground Glass Diffuser, 1500 Grit
¥7,364
Today
