Engineered Diffuser™(トップハット型ビーム出力拡散板)


  • Square, Circular, and Line Scatter Shapes
  • Transmission Spectrum: 380 - 1100 nm
  • Transmission: 90%
  • Unmounted and Mounted Ø1" Available

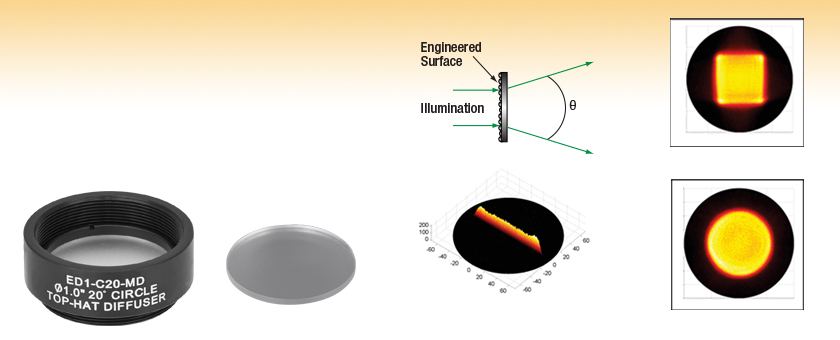

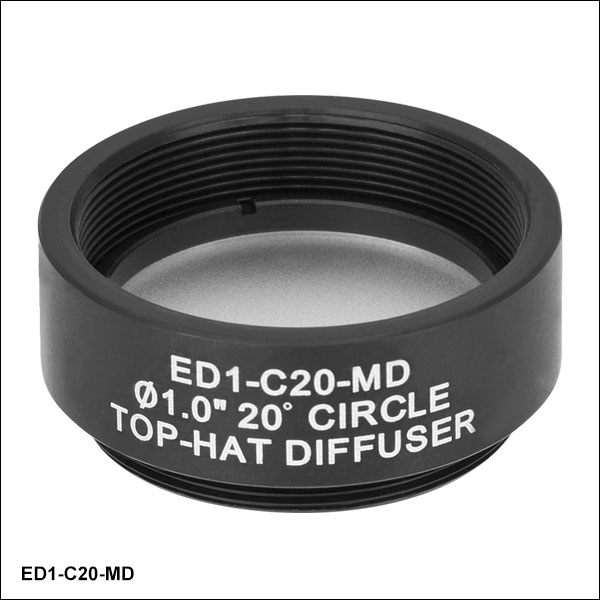

ED1-C20-MD

ED1-C20

Line Pattern

Square Pattern

Circle Pattern

Related Items


Please Wait
Diffuser Selection Guide
Ground Glass Diffusers
Standard DiffusersN-BK7 SubstrateUnmounted, Uncoated350 nm to 2.0 µm
Unmounted, AR Coated350 nm - 700 nm
650 nm - 1050 nm
Mounted, Uncoated350 nm - 2.0 µm
UVFS SubstrateUnmounted, Uncoated185 nm - 2.0 µm
Diffuse ReflectorsN-BK7 SubstrateUnmounted, UV-Enhanced Aluminum Coated250 nm - 450 nm
Unmounted, Protected Silver Coated450 nm - 20 µm
Unmounted, Protected Gold Coated800 nm - 20 µm
Alignment Disks
Engineered Diffusers

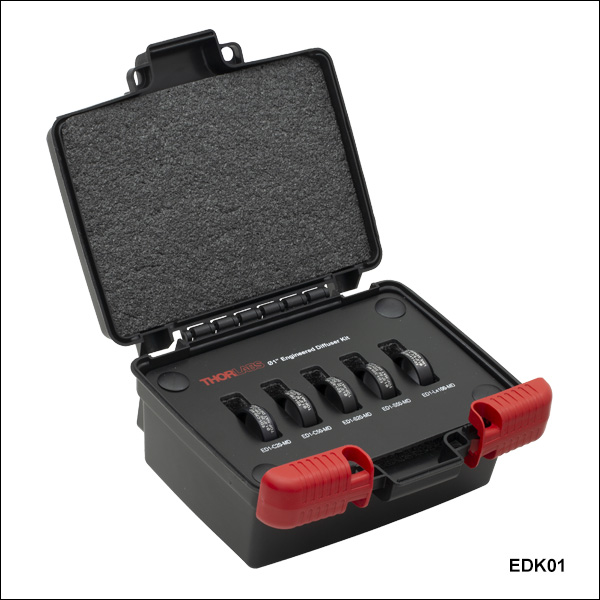

Diffuser Kits

特長

  • Ø25.4 mm(Ø1インチ)の拡散板
  • 入力光の均質化
  • 円形、正方形、線形パターン
  • 高い透過効率
  • アクロマティックな性能
  • マウント無しバージョンとマウント付きバージョンから選択可能
  • 低出力の用途に適した製品

当社では、従来の拡散板にない多数の利点を備えるRPC Photonics社製のEngineered Diffuser™を販売しています。Engineered Diffuserは、さまざまなパターンの非ガウシアン強度分布を提供します。透過効率90 %の正方形、円形、ライン分布トップハット型の拡散板をご用意しています。正方形および円形バージョンには拡がり角20°と50°のオプションがあります。ライン分布バージョンの拡がりは0.4° x 100°です。すりガラス拡散板のような他の拡散板では、このように高度な光制御は不可能です。このEngineered DiffuserはØ0.5 mm以上のビームとのご使用いただけるよう設計されています。これよりも小さなビームは拡散板の前に拡大していただく必要があります。

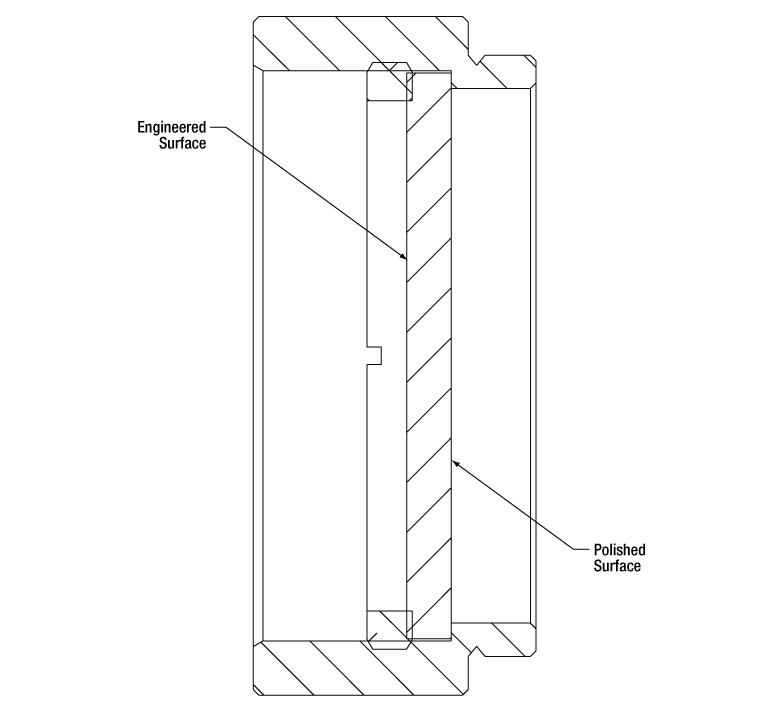

Engineered Diffuserは、マウント無しとマウント付きバージョンからお選びいただけます。マウント付きØ25.4 mm拡散板は、刻印付きSM1ネジマウントに取り付けられています(ページ上部参照)。マウントは識別が簡単で拡散板を指紋や他の汚れから保護します。SM1ネジは特にØ25 mm~Ø25.4 mm(Ø1インチ)レンズチューブ30 mmケージシステムの構築に便利です。これらのマウント付き拡散板は、単品またはお得な5枚セットでお買い求めいただけます。

Engineered Diffuserの詳細は、「テクノロジ」タブをご覧ください。

Engineered Diffuser Surface 2
Click to Enlarge

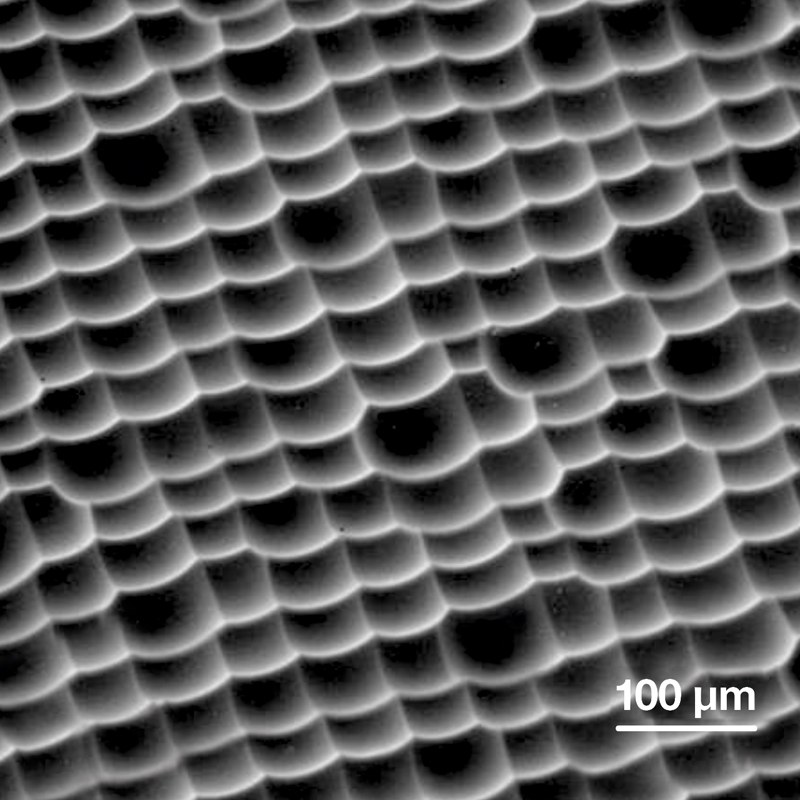

Engineered DiffuserのSEM像(拡大)
Engineered Diffuser Surface 1
Click to Enlarge

Engineered DiffuserのSEM像

Engineered Diffuser テクノロジ
当社とRPC社のEngineered Diffuser™は、ビームプロファイルがしっかりと制御され、リソグラフィーシステムや、アウトドア照明、ディスプレイ、バックライト、ディスプレイ輝度の強化、プロジェクタースクリーンなどの幅広い用途で使用できます。

すりガラス、乳白ガラス、ホログラフィック素子などの(照明が)均一な拡散板は、開口全体に渡って連続して均一的な表面パターンが構成されているので、照明部の形ならびに強度プロファイルに関しては限定的な制御しかできず、入射光の利用効率が大きくできません。 また、ホログラフィック拡散板は、通常コヒーレント光を用いた単色用途に限られています。 一方、Engineered Diffuserは、個々に異なった形状で形成されたマイクロレンズユニットによって構成されているので、広帯域に対応し、光分布ならびにビームプロファイルを制御することが可能です。

拡散板を形成する各マイクロレンズユニットは、その表面プロファイルならびにアレイ中の位置を規定されます。 同時に、拡散板が入射ビームの強度プロファイルに変化があっても安定して拡散し、そして可視域ならびに赤外域でも確実に使用できるように、マイクロレンズ分布は、所望のビームを形成するための確率分布関数に従いランダム化されています。 マイクロレンズの分布はまた、出射光のゼロオーダの輝点ならびに回折によるアーティファクトを取り除くように設計されます。 このようにして、Engineered Diffuserは、ランダムかつ確定的な性質を持つことができるのです。

Engineered Diffuser Fabrication
Click to Enlarge

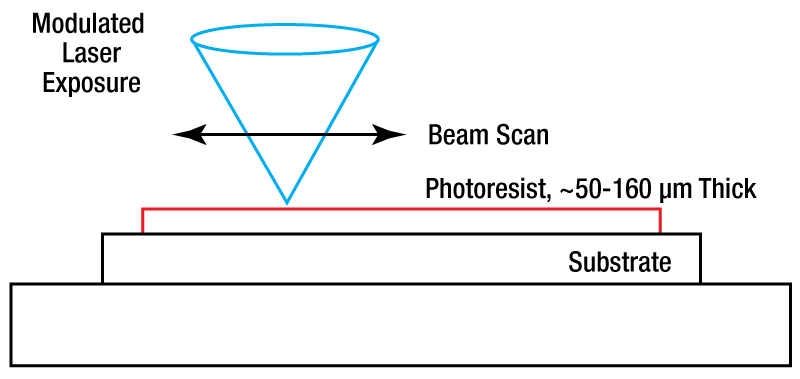

マスタ製造過程の略図

製造
マイクロレンズアレイのマスタはRPC Photonics社が開発したレーザ書込みシステムによって製造されます。 左図のように、この書込みシステムは、ラスタースキャンモードでpoint-by-pointに厚い層のフォトレジストを露光します。 レーザービームの強度を走査中に変調すると、フォトレジストへの露光度も変化します。 結果、上の2つのSEM像でみられるような深さのある表面が作り上げられました。

他の拡散板テクノロジとの比較
一般的に使われる拡散板にはプリズムガラスの集積バー、すりガラス、乳白ガラス、ホログラフィック拡散板、そして回折拡散板などがあります。 プリズムガラスの集積バーは、時々高性能なシステムに使用されることがありますが、高価でスペースを占領してしまう大きさとなっております。 すりガラスならびに乳白ガラスは、すべての方向において光を均等に散乱しますが、光制御の性能は限定的です。 また、このようなシンプルな拡散板における透過効率は一般的に低くなっております。 ホログラフィック拡散板は、これらの拡散板よりも優れた性能を持ちますが、ガウシアンと同様の強度プロファイルと円形または楕円形のパターンしか作ることができません。 一般的なビーム形成の性能としては、回折素子が入射ビームを任意の形に形成することができます。 しかし、狭い拡散角に限定され、波長には非常に敏感で、入射ビームと同一線上にあるゼロオーダの輝点を失くすことができません。

対照的に、Engineered Diffuserは、高い透過効率に加え、拡散光の発散角、空間分布、ならびに強度プロファイルを制御することができるのです。

Specifications
MaterialInjection Molded ZEONORa
Index of Refraction1.53
Design Wavelength400 - 700 nm (Achromatic)
Transmission Spectrum380 - 1100 nm
SizeØ1" (Ø25.4 mm)
Optic Thickness1.5 mm
Mount Thickness12.7 mm
Incident Beam Size≥0.5 mm
Clear Aperture95% of Ø1"
Item #PatternDivergenceaTransmission Efficiency
Flat Intensity Regionb50% of Max Intensityc10% of Max Intensityd
ED1-S20(-MD)Square20°27°36°90%
ED1-S50(-MD)Square50°60°70°90%
ED1-C20(-MD)Circle20°27°36°90%
ED1-C50(-MD)Circle50°60°70°90%
ED1-L4100(-MD)Line100°105°115°90%
  • 角度は633 nmの入射光で定義されています。実際の角度は、他の波長やコリメーションの角度によって公称値と異なる場合があります(「グラフ」タブをご覧ください)。
  • 相対強度のもっとも平坦な領域で定義(「グラフ」タブをご覧ください)
  • 相対強度が50%まで落ちる角度
  • 相対強度が10%まで落ちる角度

はじめに
Engineered Diffuserは入射面から円形または正方形のビームプロファイルで拡散する、非ガウシアン強度分布の光を生成するよう設計されています。下の左側のグラフは、633 nmのコリメート光をEngineered Diffuserに照射したときの、拡散ビーム中心部の強度分布の理論近似曲線を示しています。右側のグラフは488 nm、637 nm、785 nmならびに1064 nmのレーザ波長で試験したときのデータで、波長による出射プロファイルの変化を示しています。このタブの最後では、これらのデータや結論を得るために用いられたセットアップと手順を説明しています。

円形パターンEngineered Diffuserの透過光強度プロット図

diffuser, tophat transmitted intensity profileClick to Enlarge

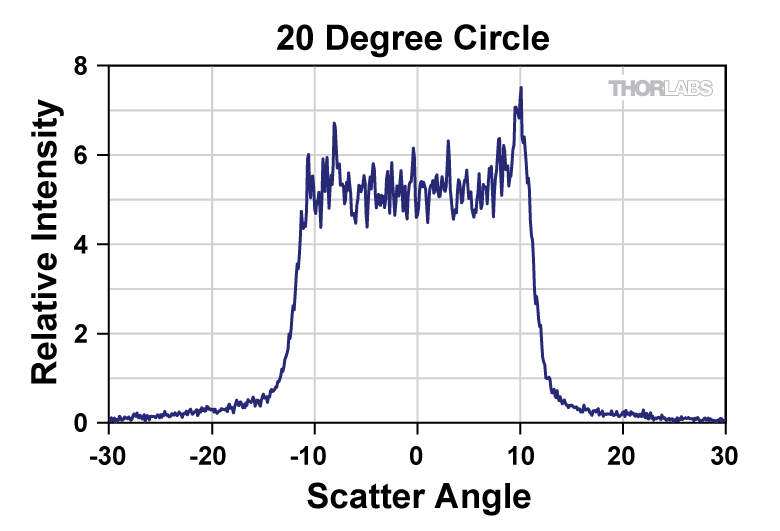

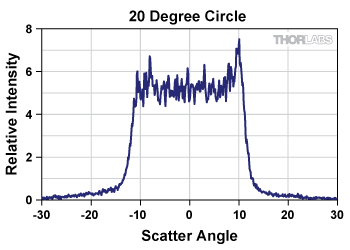

ED1-C20の理論近似曲線



diffuser, top hat transmission intensityClick to Enlarge

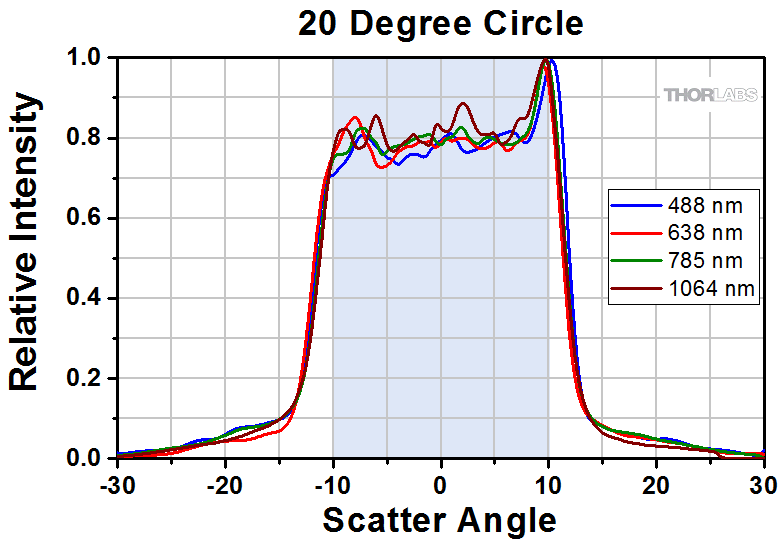

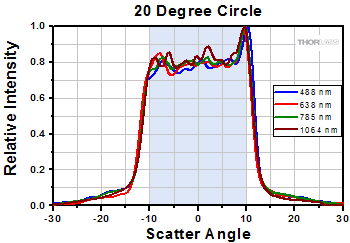

ED1-C20の試験データ
生データ
diffuser, transmission, tophat intensity distributionClick to Enlarge

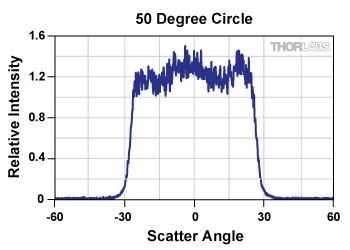

ED1-C50の理論近似曲線


diffuser, top hat transmission intensityClick to Enlarge

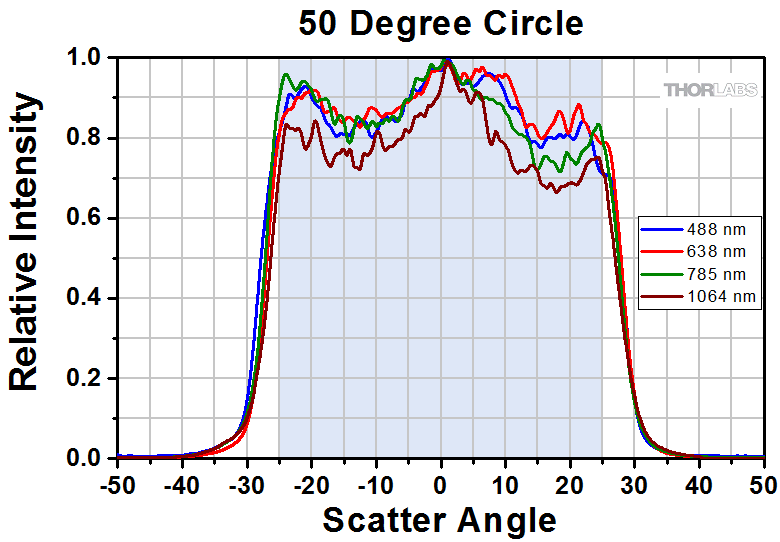

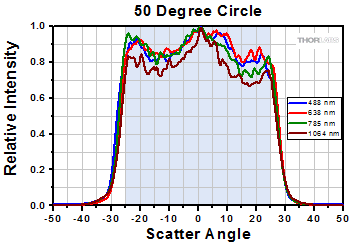

ED1-C50の試験データ
生データ

正方形パターンEngineered Diffuserの透過光強度プロット図

diffuser, tophat, transmission intensityClick to Enlarge

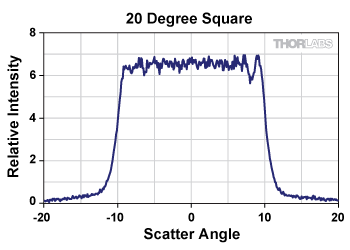

ED1-S20の理論近似曲線


diffuser, top hat transmission intensityClick to Enlarge

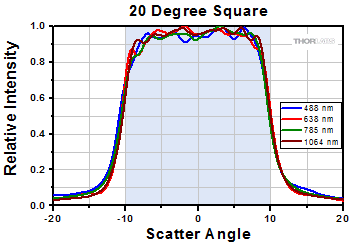

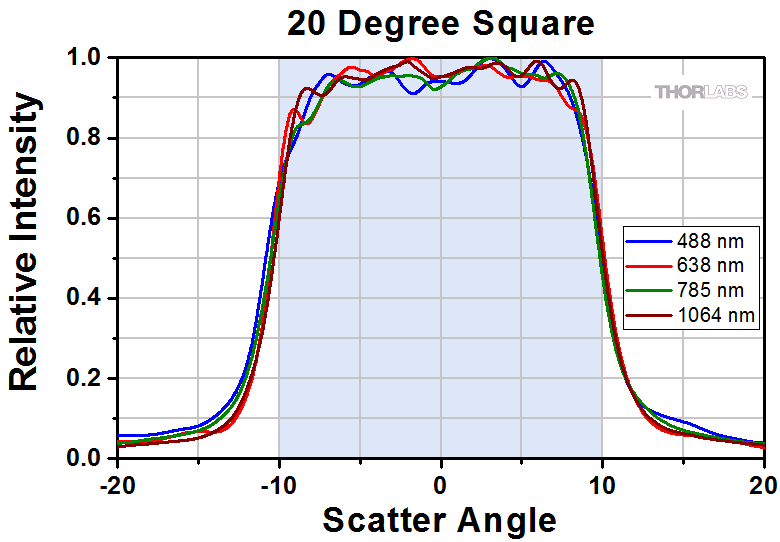

ED1-S20の試験データ
生データ

diffuser, top hat transmission intensityClick to Enlarge

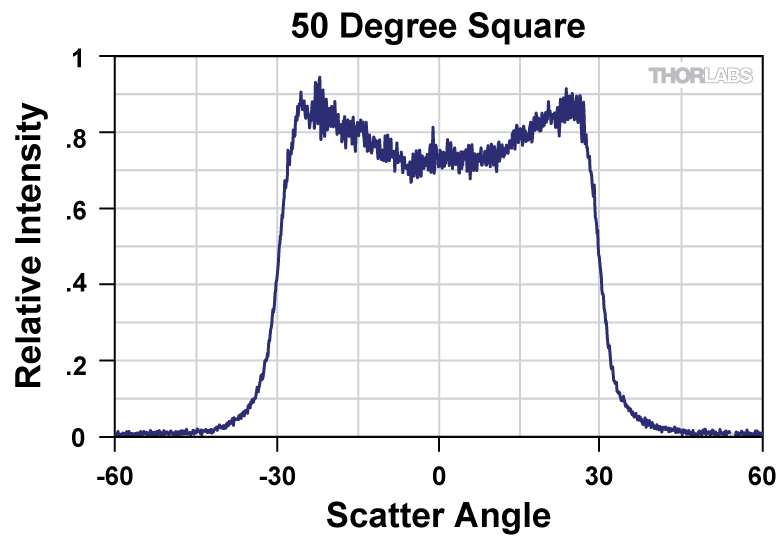

ED1-S50の理論近似曲線


diffuser, top hat transmission intensityClick to Enlarge
ED1-S50の試験データ
生データ

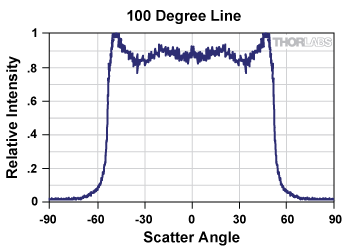

ラインパターンEngineered Diffuserの透過光強度プロット図

diffuser, tophat transmission line profile
Click to Enlarge

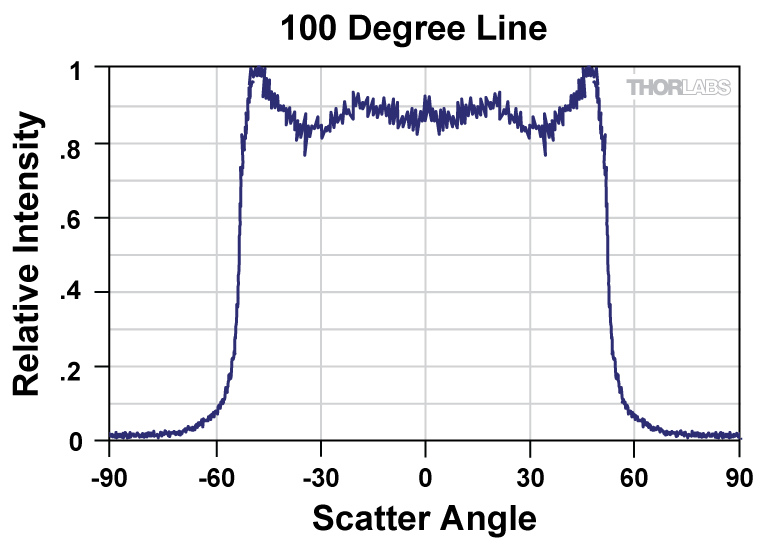

ED1-L4100の理論近似曲線

試験のセットアップ
Click to Enlarge
View Imperial Product List
型番数量Description
Sources and Heat Sinks
LP488-SF201SMピグテールファイバ付き半導体レーザ、488nm、20mW、ピンコードB、FC/PCコネクタ
LP637-SF701SMピグテールファイバ付き半導体レーザ、637nm、70mW、ピンコードG、FC/PCコネクタ
LP785-SF1001SMピグテールファイバ付半導体レーザ、785nm、100mW、ピンコードH、FC/PCコネクタ
DBR1064S11064 nm, 20 mW, Butterfly DBR Laser, SM Fiber, FC/APC, Internal Isolator
LDM9LP1LD/TEC Mount for Thorlabs Fiber-Pigtailed Laser Diodes
LM14S2114ピンバタフライパッケージ半導体レーザーマウント
Collimators and Associated Mounts
TC06FC-5431543 nm, f=5.96 mm, NA=0.28, FC/PC Triplet Collimator
TC06FC-6331633 nm, f=6.01 mm, NA=0.28, FC/PC Triplet Collimator
TC06APC-7801780 nm, f=6.06 mm, NA=0.28, FC/APC Triplet Collimator
TC06APC-106411060 nm, f=6.12 mm, NA=0.28, FC/APC Triplet Collimator
KAD12F1SM1キネマティックピッチ・ヨーアダプタ、Ø12 mm円筒形部品用
LMR11Ø1インチ光学素子用レンズマウント、固定リング1個付属、#8-32タップ穴 (インチ規格)
TR31Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ3インチ(インチ規格)
PH31Ø1/2インチポストホルダ、バネ付き六角固定つまみネジ付き、長さ3インチ (インチ規格)
R21スリップオン式カラー、Ø1/2インチポスト用 (インチ規格)
Engineered Diffusers and Associated Mounts
ED1-C201Engineered Diffuser、Ø25.4mm、20°、円形パターン
ED1-C501Engineered Diffuser、Ø25.4mm、50°、円形パターン
ED1-S201Engineered Diffuser、Ø25.4mm、20°、正方形パターン
ED1-S501Engineered Diffuser、Ø25.4mm、50°、正方形パターン
CP021SM1ネジ付き30 mmケージプレート、厚さ0.35インチ、固定リング2個付属、#8-32タップ穴付き(インチ規格)
TR31Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ3インチ(インチ規格)
PH21Ø1/2インチポストホルダ、バネ付き六角固定つまみネジ付き、長さ2インチ(インチ規格)
R21スリップオン式カラー、Ø1/2インチポスト用 (インチ規格)
CR11連続回転ステージ (インチ規格)
CR1A1回転ステージCR1用アダプタープレート (インチ規格)
Collection Lens and Associated Mounts
LA1304-ML1Ø1/2" N-BK7 Plano-Convex Lens, SM05-Threaded Mount, f = 40.0 mm, Uncoated
SM05L201SM05レンズチューブ、長さ50.8mm(2インチ)、固定リング1個付属
SM05RC1SM05レンズチューブ用スリップリング、#8-32タップ穴(インチ規格)
TR31Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ3インチ(インチ規格)
PH61Ø1/2インチポストホルダ、バネ付き六角固定つまみネジ付き、長さ6インチ (インチ規格)
Detector and Associated Mounts
SM05PD1A1大面積Siフォトダイオード、マウント付き、350~1100 nm、カソード接地
SMR051Ø1/2インチレンズチューブ用マウント、SM05内ネジ付き(突き当てなし)(インチ規格)
SM05D5D1リング作動アイリス (Ø0.7~Ø5 mm)、SM05ネジ付き
TR22Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ2インチ(インチ規格)
MFF1011電動フィルターフリップマウント、Ø1インチ光学素子用ホルダ、#8-32タップ穴 (インチ規格)
LMR052Ø1/2インチ光学素子用レンズマウント、固定リング1個付属 (インチ規格)
TR31Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ3インチ(インチ規格)
RA902直角ポストクランプ、Ø1/2インチポスト用、3/16”六角穴(インチ規格)
PH41Ø1/2インチポストホルダ、バネ付き六角固定つまみネジ付き、長さ4インチ (インチ規格)
TR61Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ6インチ(インチ規格)
Stages and General Parts
PBG3648F1UltraLight Breadboard, 36" x 48" x 0.98", 1/4"-20 Taps
MP1001高剛性スタンド、プラットフォーム付き、高さ調整:148.1~208.5 mm
NR360S1NanoRotator 回転ステージ、SM2ネジ付き中心穴 (インチ規格)
XT34-500134 mmコンストラクションレール、長さ500 mm
XT34D2-306長さ30 mm、XT34シリーズ取付用プラットフォーム、M6ザグリ穴1つ
XT34C2634 mmレール用 両面アリ溝式クランプ、長さ30 mm
FSR11光ファイバ収納リール、Ø900 µm光ファイバーケーブル用
T743-1.01高性能黒色マスキングテープ、25 mm x 55 mロール
Controllers and Drivers
TED200C1ベンチトップ型TECコントローラ、±2A、12W
LDC205C1ベンチトップ型LD電流コントローラ、±500 mA HV、ケーブル1本付属(長さ1.5 m)
BSC20111軸aptTM卓上型ステッピングモーターコントローラ
View Metric Product List
型番数量Description
Sources and Heat Sinks
LP488-SF201SMピグテールファイバ付き半導体レーザ、488nm、20mW、ピンコードB、FC/PCコネクタ
LP637-SF701SMピグテールファイバ付き半導体レーザ、637nm、70mW、ピンコードG、FC/PCコネクタ
LP785-SF1001SMピグテールファイバ付半導体レーザ、785nm、100mW、ピンコードH、FC/PCコネクタ
DBR1064S11064 nm, 20 mW, Butterfly DBR Laser, SM Fiber, FC/APC, Internal Isolator
LDM9LP1LD/TEC Mount for Thorlabs Fiber-Pigtailed Laser Diodes
LM14S2114ピンバタフライパッケージ半導体レーザーマウント
Collimators and Associated Mounts
TC06FC-5431543 nm, f=5.96 mm, NA=0.28, FC/PC Triplet Collimator
TC06FC-6331633 nm, f=6.01 mm, NA=0.28, FC/PC Triplet Collimator
TC06APC-7801780 nm, f=6.06 mm, NA=0.28, FC/APC Triplet Collimator
TC06APC-106411060 nm, f=6.12 mm, NA=0.28, FC/APC Triplet Collimator
KAD12F1SM1キネマティックピッチ・ヨーアダプタ、Ø12 mm円筒形部品用
LMR1/M1Ø25 mm~Ø25.4 mm光学素子用レンズマウント、固定リング1個付属、M4タップ穴 (ミリ規格)
TR75/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ75 mm(ミリ規格)
PH75/M1Ø12 mm~Ø12.7 mm ポストホルダ、バネ付き六角固定つまみネジ付き、長さ75 mm (ミリ規格)
R2/M1スリップオン式カラー、Ø12 mm~Ø12.7 mmポスト用 (ミリ規格)
Engineered Diffusers and Associated Mounts
ED1-C201Engineered Diffuser、Ø25.4mm、20°、円形パターン
ED1-C501Engineered Diffuser、Ø25.4mm、50°、円形パターン
ED1-S201Engineered Diffuser、Ø25.4mm、20°、正方形パターン
ED1-S501Engineered Diffuser、Ø25.4mm、50°、正方形パターン
CP02/M1SM1ネジ付き30 mmケージプレート、厚さ8.9 mm、固定リング2個付属、M4タップ穴付き(ミリ規格)
TR75/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ75 mm(ミリ規格)
PH50/M1Ø12 mm~Ø12.7 mmポストホルダ、バネ付き六角固定つまみネジ付き、長さ50 mm(ミリ規格)
CR1/M1連続回転ステージ (ミリ規格)
CR1A/M1回転ステージCR1/M用アダプタープレート (ミリ規格)
R2/M1スリップオン式カラー、Ø12 mm~Ø12.7 mmポスト用 (ミリ規格)
Collection Lens and Associated Mounts
LA1304-ML1Ø1/2" N-BK7 Plano-Convex Lens, SM05-Threaded Mount, f = 40.0 mm, Uncoated
SM05L201SM05レンズチューブ、長さ50.8mm(2インチ)、固定リング1個付属
SM05RC/M1SM05レンズチューブ用スリップリング、M4タップ穴(ミリ規格)
TR75/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ75 mm(ミリ規格)
PH150/M1Ø12 mm~Ø12.7 mm ポストホルダ、バネ付き六角固定つまみネジ付き、長さ150 mm (ミリ規格)
Detector and Associated Mounts
SM05PD1A1大面積Siフォトダイオード、マウント付き、350~1100 nm、カソード接地
SMR05/M1Ø12 mm~Ø12.7 mmレンズチューブ用マウント、SM05内ネジ付き(突き当てなし)(ミリ規格)
SM05D5D1リング作動アイリス (Ø0.7~Ø5 mm)、SM05ネジ付き
TR50/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ50 mm(ミリ規格)
MFF101/M1電動フィルターフリップマウント、Ø25 mm~Ø25.4 mm光学素子用ホルダ、M4タップ穴 (ミリ規格)
LMR05/M2Ø12 mm~Ø12.7 mm光学素子用レンズマウント、固定リング1個付属 (ミリ規格)
TR75/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ75 mm(ミリ規格)
RA90/M2直角ポストクランプ、Ø12.7 mmポスト用、5 mm六角穴(ミリ規格)
PH100/M1Ø12 mm~Ø12.7 mm ポストホルダ、バネ付き六角固定つまみネジ付き、長さ100 mm (ミリ規格)
TR150/M1Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ150 mm(ミリ規格)
Stages and General Parts
PBG515141UltraLightブレッドボード、900 x 1500 x 25 mm、M6タップ穴(ミリ規格)
MP1001高剛性スタンド、プラットフォーム付き、高さ調整:148.1~208.5 mm
XT34-500134 mmコンストラクションレール、長さ500 mm
XT34D2-306長さ30 mm、XT34シリーズ取付用プラットフォーム、M6ザグリ穴1つ
XT34C2634 mmレール用 両面アリ溝式クランプ、長さ30 mm
T743-1.01高性能黒色マスキングテープ、25 mm x 55 mロール
FSR11光ファイバ収納リール、Ø900 µm光ファイバーケーブル用
NR360S1NanoRotator 回転ステージ、SM2ネジ付き中心穴 (インチ規格)
Controllers and Drivers
TED200C1ベンチトップ型TECコントローラ、±2A、12W
LDC205C1ベンチトップ型LD電流コントローラ、±500 mA HV、ケーブル1本付属(長さ1.5 m)
BSC20111軸aptTM卓上型ステッピングモーターコントローラ
注:高性能黒色マスキングテープを使用して、レーザ光を反射する可能性のある金属を覆っています。ここではLMR05(/M)を取付けた電動式フリップマウントMFF101(/M)は使用していません。
Light Preparation
Wavelength (nm)4886377851064
SourceLP488-SF20LP637-SF70LP785-SF100DBR1064S
Heat SinkLDM9LPLM14S2
Collimator TC06FC-543TC06FC-633TC06APC-780TC06APC-1064

手順
試験には488 nm、637 nm、785 nmならびに1064 nmの4波長を選びました。データの取得には右の試験装置を用いました(写真の下のリンクからこのセットアップのすべての部品がご覧いただけます)。 光路はブレッドボード表面から約35 cmの高さに設定し、ファイバ出力光源からの光は、その光源波長にできるだけ近い設計波長のトリプレットコリメータでコリメートしました。自由空間においてビームを1種類のEngineered Diffuserに入射します。Engineered Diffuserから出射された拡散プロファイルの光は、レンズチューブSM05L20取り付けられた平凸レンズLA1304で分離され、集光されます。信号はフォトダイオードSM05PD1Aにより0.5°毎にサンプリングされます。このアセンブリはレールXT34-500の端に取り付けられています。レールの反対側は回転ステージNR360Sに取り付けられ、その回転ステージの中心は試験対象のEngineered Diffuserに一致するように配置されています。そのためディテクタとレンズアセンブリは右下の図のようにビームプロファイルの中心を掃引し、出射角に対して規格化された強度をプロットできます。Engineered Diffuserとディテクタ間の距離は約43 cmです。出射角はEngineered Diffuserが光路に設置されていないときの光軸に対して定義しています。周辺光の影響を軽減するために、半導体レーザの駆動電流を1 kHzの正弦波で変調し、信号はロックインアップを用いて検出しています。セットアップの制御とデータ取得には、LabVIEWでプログラムを作成して使用しました。

試験についての制約
型番毎に1つの製品のみを試験していますa。試験は除振装置のないブレッドボードPBG11113b上で行なったため、安定性に影響がでた可能性があります。拡散形状の中心部のみを計測したため、正方形プロファイルの隅などを含め、中心部以外の場所では一致しない場合があります。

結果
拡散ビームプロファイルの波長による不一致は、プロファイルの中心部では僅かであることが判明しました。上記左側のグラフは、生成されるビームプロファイルを理論的に推定したものです。右側では理論モデルを検証するために様々な波長で試験したデータをまとめています。

  • ED1-L4100の試験は行っておりません。
  • こちらは旧製品です。後継品についてはPBG3648Fをご参照ください。
Item #TheoreticalExperimentalRaw Data
Circular PaternsED1-C20Click Here
ED1-C50Click Here
Square PatternsED1-S20Click Here
ED1-S50Click Here
Line PatternED1-L4100Not AvalibleNot Avalible

Posted Comments:
Sakees Chidambaram  (posted 2019-10-21 13:40:23.337)
Hi! Would you suggest 'Engineered Diffusers' to convert a white light source of near-Gaussian profile to flat-top profile? If not, is there any particular model you would suggest for the same? (we could use Apodizing reflective ND filters, but the output profile to be converted may not be an ideal Gaussian profile. Or will this do the job regardless of the above fact?) thanks!
YLohia  (posted 2019-10-21 12:15:22.0)
Hello, thank you for contacting Thorlabs. The engineered diffusers can be used with broadband sources such as LEDs. Please note that it is very important to have a well collimated input beam, otherwise the divergence from the source will completely wash out the effects of the diffuser.
HK Jung  (posted 2019-09-27 15:48:39.383)
Hi! I have twe questions about line pattern diffuser. 1. How can I align the diffused line pattern with my sample? 2. Is it effective to use two diffusers for more wider and uniform pattern?
nbayconich  (posted 2019-09-27 03:06:02.0)
Thank you for contacting Thorlabs. The alignment procedure can be very application dependent, I would recommend possibly using a rotation mount to hold this diffuser so you can control the angle of the line pattern. In terms of using a second diffuser this wouldn't necessarily improve your pattern uniformity. If needed you can collimate the pattern by placing a lens after the diffuser. I will reach out to you directly to discuss your application.
Antonin Delas  (posted 2019-09-25 04:25:41.563)
Hi! We plan to use these diffusers with a collimated (2W 830nm) laser diode. Do you know their damage threshold? We can adjust a bit the beam diameter, but we are not able to change it a lot. The documentation and the feedbacks talk about "low-power applications", without specified limit. Could you precise a bit more? (in terms of power density for example) Thanks a lot.
YLohia  (posted 2019-09-25 10:01:36.0)
Hello, our engineered diffusers have not been formally tested for laser damage. However, distortion from heat occurs at ~ 99°C. These are not intended to be used with high power lasers. If you're looking to convert a Gaussian intensity profile to a flat-top profile, our apodizing filters such as the NDY10B could be something to look into. Unfortunately, we have not yet performed intensive damage threshold testing on these optics. That being said, these were designed for low-power applications so it would be best if you are able to use the maximum possible beam diameter for a lower power density.
Jun Hyuk Lee  (posted 2019-09-06 14:34:44.1)
I have a inquiry for these products (engineered diffusers). If polarized laser pass through this diffuser, the polarization state preserves? Or become unpolarzed light? I look forward to your answer. Thank you. Best regards
nbayconich  (posted 2019-09-06 09:06:29.0)
Thank you for contacting Thorlabs. These diffusers should not rotate your polarization state and there will be no polarization scrambling caused from these engineered diffusers. There may be increased Fresnel reflection loss depending on the input polarization and orientation. A Techsupport representative will reach out to you directly to discuss your application.
user  (posted 2019-07-09 09:24:49.267)
I've noticed inhomogenetity in the way ED1-S20 affects my polarization. There is one spot on the diffuser which rotates the polarization from horizontal to vertical (the diffused square is oriented horizontally too, not diamond). Is this inhomogenetity expected or is it a defect? (if I buy another one, am I likely to have the same problem?)
nbayconich  (posted 2019-08-26 10:03:35.0)
Thank you for contacting Thorlabs. These diffusers should not rotate your polarization state and there will be no polarization scrambling caused from these engineered diffusers. There may be increased Fresnel reflection loss depending on the input polarization and orientation. A Techsupport representative will reach out to you directly to discuss your application.
Joseph Donovan  (posted 2019-07-03 09:48:59.4)
Any plans to produce a 2 in version of these engineered diffusers? It would be great to have a larger version for one of our applications.
YLohia  (posted 2019-07-03 10:48:46.0)
Hello, thank you for your feedback. I have posted your request on our internal product engineering forum for further consideration.
fxperin  (posted 2019-01-24 14:07:57.67)
Good Evening, I have a question about these diffuser : if I use a collimated laser light (CW @1053nm), the output light will diverge with a known angle (20° or 50°): will we able to collimate the output beam with a lens?
nbayconich  (posted 2019-02-05 08:30:45.0)
Thank you for contacting Thorlabs. After your collimated source passes through the engineered diffuser, your source can no longer be considered a single point source therefore not possible to perfectly collimate. A lens can be used after the diffuser to help reduce the amount divergence created by the diffuser however the beam size will still diverge as a function of distance and the intensity distribution will not maintain a perfectly flat top profile. A high NA lens like a condenser asphere can be used for example.
leehc53  (posted 2019-01-23 11:53:09.92)
Hi, I am looking for homogenizer for pulsed 355nm beam having around 150mJ per pulse in 6.5 mm diameter. Is ED1-S20 suitable for my purpose? Or can you recommend another one? Thank you!
YLohia  (posted 2019-01-23 11:27:04.0)
Hello, our engineered diffusers have not been formally tested for laser damage. However, distortion from heat occurs at ~ 99°C. The specifics of the damage would depend on the peak power, pulse width, and rep rate of your source. These are not intended to be used with high power lasers. If you're looking to convert a Gaussian intensity profile to a flat-top profile, our apodizing filters such as the NDY10B could be something to look into.
werner.rauch  (posted 2018-09-27 10:52:30.447)
Hi; I would need engineered diffusors with a diameter of 2". Would that be possible? Thanks! BR Werner
YLohia  (posted 2018-10-05 02:51:10.0)
Hello BR, thank you for contacting Thorlabs. Quotes for custom items can be requested through techsupport@thorlabs.com. We will reach out to you directly to discuss the possibility of offering this.
m.e.siemons  (posted 2018-09-26 10:18:49.657)
Hi! What is the damage threshold on these diffusers? We're planning to use a 2W, 690 nm laser. Beam diameter can be tuned. Thanks, Marijn
YLohia  (posted 2018-10-01 09:15:17.0)
Hello Marjin, thank you for contacting Thorlabs. Unfortunately, we have not yet performed intensive damage threshold testing on these optics. That being said, these were designed for low-power applications so it would be best if you are able to use the maximum possible beam diameter for a lower power density.
leaf  (posted 2018-09-22 14:26:06.05)
What is the fringe visibility? Do you have a zoomed in image of the pattern? Will the diffuser work with a non-collimated beam?
nbayconich  (posted 2018-10-12 09:50:22.0)
Thank you for contacting Thorlabs. The fringe or speckle pattern will depend on the coherence length of the source being used, If the laser has good spatial coherence the speckle will be noticeable and the contrast will be high. The input beam does not need to be Gaussian or circular shape to produce a square output and a slightly diverging source can be used as well however to achieve the best results the source must be collimated to avoid sharp features appearing from the diffuser's output. I will reach out to you directly to discuss your application and show you a few examples of the square pattern engineered diffusers output image.
yayaoma2  (posted 2018-09-01 13:35:08.82)
Hi, I use ED1-C20-MD with 515nm picosecond with 10W/cm2. Input laser is collimated but due to long travel range speckles are serious. After passing the diffuser, many small grit-shaped circles appear. How to get better putput? Thank you Yayao
nbayconich  (posted 2018-10-12 10:32:29.0)
Thank you for contacting Thorlabs. If the laser source has good spatial coherence then the speckle will be noticeable and the contrast will be high. Users of diffusers must work out a method for speckle mitigation which would include aperture averaging or some other type of averaging such as motion over time with finite integration. One such example is to rotate the diffuser in use. Alternatively lower coherence sources such as LED or white light will show no speckle.
jin281  (posted 2018-06-08 11:39:37.66)
Hello, could you send me the transmission curve for this diffuser at 380-600 nm range? Also, I will use a 400KHz femto laser with thousands W/cm2, will this diffuser be suitable? Thanks.
YLohia  (posted 2018-06-14 09:32:45.0)
Hello, I have sent you the curve via email. We do not recommend this diffuser for such high power applications.
user  (posted 2018-05-18 09:40:14.25)
It would be helpful to know how the diffuser impacts the polarization of light. Typically ground glass diffusers scatter light with random polarization. These engineered diffusers probably don't change the polarization, but it would be useful for the customer to know the polarization performance.
YLohia  (posted 2018-05-23 11:22:12.0)
Although your light does stay polarized, the actual state of polarization will change based on the input polarization of the light, as well as the location of the beam on the optic. For example, the magnitude of this change will be less if the polarization state is in line with the corners of the square diffuser. If your original polarization state is parallel to either side of the square, however, you will see a large amount of circularization.
benjamin.caplins  (posted 2018-03-16 16:13:43.07)
Can you please provide the transmission curve for this diffuser from 350-650 nm. I would imagine the plastic will start to absorb somewhere in the UV, but it would be helpful to know where exactly that takes place.
YLohia  (posted 2018-03-30 12:15:55.0)
Response from Yashasvi at Thorlabs USA: Hello, thank you for contacting Thorlabs. You are correct, these will start absorbing light in the UV region, starting roughly ~320-350nm. Please note that we don't recommend using these for <400nm since there is some variation in the transmission below that wavelength from lot to lot. I will reach out to you directly with a typical transmission plot.
hoonyu99  (posted 2017-09-26 09:22:37.373)
Hello, My name is Hoon Yu and I'm very interested in your engineered diffuser. I have two questions. 1.Is there any polarization dependence in your diffuser? For example, transmission as polarization or beam shaping efficiency as polarization? 2. After the diffuser, is the laser polarization changed or maintained? Thank you for your consideration. Bests, Hoon.
nbayconich  (posted 2017-10-16 12:21:10.0)
Thank you for contacting Thorlabs. The transmission of this material has little polarization dependence. There may be increased Fresnel reflection loss depending on the input polarization and orientation. For optimum performance align P polarization with the large diffusion axis in this case. There will be no polarization scrambling caused from these engineered diffusers.
nagler  (posted 2017-07-21 07:10:03.393)
Why are there no tophat diffusers with scattering angles less than 20° available?
nbayconich  (posted 2017-07-27 03:09:24.0)
Thank you for contacting Thorlabs. We can offer diffusers with different scattering angles. I will contact you directly about our custom capabilities.
guy.whitworth  (posted 2017-05-25 15:24:08.873)
Does the output beam maintain a degree of coherence? Would it still diffract well if incident on a grating?
nbayconich  (posted 2017-06-08 09:46:08.0)
Thank you for contacting Thorlabs. Once your coherent source passes through these diffusers it will no longer be coherent. Diffusers scatter light at different angles essentially eliminating and coherence of your source. This will not allow distinct modes to be diffracted from a grating. A techsupport representative will reach out to you directly with more information.
guminkang  (posted 2017-03-23 10:12:17.16)
What is the damage threshold of "ED1-S20-MD" ? I am going to use 1W 532 nm laser (CW) with beam diameter of 2 mm. Thanks
tfrisch  (posted 2017-03-29 11:46:58.0)
Hello, thank you for contacting Thorlabs. These engineered diffusers are designed for low power applications. I will reach out to you directly about your source.
rnissim  (posted 2017-01-26 19:55:49.56)
The specs simply state that the transmission is 90%. Similarly the chromatic dependence is normalized per trace. Can you please send me more detailed information about the transmission as a function of wavelength? I would like to know, for example, when changing the source wavelength from 500 nm to 700 nm, how much light will be lost or gained? Similarly you could post the integrated power. The easiest way to measure this is to use an integrating sphere to capture the light after the diffuser, connect a calibrated power meter to the output port of the integrating sphere, and use a calibrated source to measure this information. I hope you could provide this information, it will be very helpful. Thanks very much and I look forward to hearing back from you, Ron
tfrisch  (posted 2017-02-17 01:25:20.0)
Hello, thank you for contacting Thorlabs. I will reach out to you directly about the data we have collected using an integrating sphere.
markus.degenhardt  (posted 2016-11-24 09:05:37.75)
Do you provide custom diameters? I need two diffusers of the 50° circular type with 7 mm diameter each.
tfrisch  (posted 2016-11-28 11:19:57.0)
Hello, I will reach out to you directly about this customization.
user  (posted 2016-07-28 08:38:49.233)
Hello, I would like to know if the output of the diffuser will still be circular when the incident laser beam is collimated but elliptical?
massimiliano.giulioni  (posted 2016-07-05 15:31:32.397)
I would like to use the square engineered diffuser with a white LED. Should I collimate the light beam before the diffuser? Which is the best configuration to use to have, after the diffuser a uniform light beam of about 2cm of diameter?
goldhl99  (posted 2016-06-22 01:09:04.11)
i want to know the transmission on 1500nm wavelength. i can only know transmission graph until 1100nm on your engineering diffuser(zeonor) spec. namely, can you notify me the transmission on 1500nm? thank you. goldhl99@gmail.com
besembeson  (posted 2016-06-22 11:31:48.0)
Response from Bweh at Thorlabs USA: Zeonor has good transmission up to 1100nm and we don't recommend using this at 1500nm. There are engineered diffusers made from other materials suitable for your wavelength. I will contact you.
CChang  (posted 2016-06-08 01:39:33.84)
Dear Thorlab I am curious and interested in the engineered diffusers (ED1-C20-MD). Do you have the transmission-type diffuser that is for 1590 nm and can provide homogeneous intensity. can you reply to me ASAP. Thank you very much. Best Chih-Hsuan Chang CChang@spectrasensors.com
besembeson  (posted 2016-06-08 09:53:42.0)
Response from Bweh at Thorlabs USA: We can provide this to you as a special for now. I will follow-up with you.
sara.vidal  (posted 2016-04-29 13:33:22.92)
Hello. I want to use a femto laser with much more than the 20W/cm2 you mentioned. Do you have any version of these diffusers for high densities?. Thanks
besembeson  (posted 2016-05-04 08:56:34.0)
Response from Bweh at Thorlabs USA: Depending on your laser characteristics and actual power density, these may still be suitable. I will contact you to get more details.
wt  (posted 2015-09-30 11:33:42.29)
I read that ED1-C20 can witstand 20W/cm2. Is that the true maximum? We may exceed it 2-4 times (with light from blue 450 nm laser diodes). Do you have a high-power version and what is the cost? WT
besembeson  (posted 2015-10-09 02:59:28.0)
Response from Bweh at Thorlabs USA: That is the most power density that we have tested without causing damage. It could withstand higher powers but for 2-4 times and at 450nm, it will be better to consider the high power version. I will contact you regarding quoting this please.
iliontos  (posted 2015-05-16 18:55:00.433)
Does it work with 355nm, 266nm (and possibly 213nm)? Will it endure picosecond-pulsed radiation?
besembeson  (posted 2015-07-15 11:32:45.0)
Response from Bweh at Thorlabs USA: These will not be suitable for that spectral range and these are for low power applications. We can however quote you a special version. I will follow up by email regarding quoting this.
alexandre.douaud.1  (posted 2015-02-17 17:39:24.96)
We are currently working with a beam shaper (pi-shaper) to have a non gaussian profile. Would it be the same with your engineered diffuser? Another question: does the diffuser eliminate interference fringes? Thanks.
besembeson  (posted 2015-02-26 04:39:54.0)
Response from Bweh at Thorlabs USA: The engineered diffusers will not work the same. Unlike the pi-shaper, the output from the engineered diffusers will not be collimated but will have a fixed divergence. Regarding the interference fringes, we have not tested this. However, what you would likely observe is a degraded fringe visibility.
dkahn  (posted 2015-01-27 11:52:01.513)
You specify an achromatic range of 400 to 700 nm and a transmission range up to 1100nm. I need to know the scattering behavior in the range 700 to 950 nm.
besembeson  (posted 2015-02-03 03:50:02.0)
Response from Bweh at Thorlabs USA: The intensity profile will be the same as we have under the "Graphs" tab at the following link: http://www.thorlabs.us/newgrouppage9.cfm?objectgroup_id=1660&pn=ED1-C50 The divergence angles will change slightly. For the ED1-C50, as a comparison, it will be +/-26.1deg and +/-24.5deg at 400nm and 950 nm respectively.
giuseppe.vitucci  (posted 2014-10-27 10:42:38.59)
Does this diffuser works only with collimated beam? What should I expect if i put this soon after a fiber whit a given angle of divergence?
besembeson  (posted 2014-10-30 04:07:38.0)
Response from Bweh at Thorlabs USA: The angular spread that is specified for the engineered diffusers assumes a collimated input which is what is recommended. You can use a divergent source but the output divergence will be increased by a factor dependent on the divergence of the source. As an example, for a 0.22 NA fiber (~25 deg divergence), with the ED1-S20, the output divergence will increase by a factor of about 2.25 the engineered divergence angle specification.
costantino.alessandra1992  (posted 2014-09-21 22:45:35.25)
Could i have some data or information about the transmitted intensity plots is the source is a LED and not a laser? (not collimated beam?)
jlow  (posted 2014-09-25 03:57:03.0)
Response from Jeremy at Thorlabs: We will have to measure this. I will contact directly to provide the result.
ysu  (posted 2014-08-19 15:20:36.063)
I would like to ask two technical questions. a. What is the damage threshold of these diffusers? Our laser is about 800mW. b. Will the polarization state be changed when a circular polarized light is incident? The wavelength of our laser is 532nm. Could you please reply me by email? Thank you!
besembeson  (posted 2014-08-21 03:07:57.0)
Response from Bweh at Thorlabs USA: Hello, We have used 20W/cm^2 on these units without any issues. We have not done tests yet regarding polarization properties but considering that this is a pseudo-randomly scattering optical component, I don't foresee this preserving the polarization.
buhlc  (posted 2014-03-08 16:23:24.41)
For a biomedical application, I intend to use 1 diffuser to simultaneously diffuse 3 904nm 10 mW lasers, each focused on a different point on the diffuser. Would this produce 3 distinct circles or homogenize them into 1 circle? Thanks.
besembeson  (posted 2014-03-13 01:28:39.0)
Response from Bweh E at Thorlabs: Thanks for contacting Thorlabs. If all three are focused on different points on the diffuser, each point sources will create its own diffused patterns. There will be regions of overlap (which may appear uniform) since the wavelength and power are the same but you should still see the pattern from each point source towards the edges when you use an IR viewer.
martin.clausen  (posted 2014-02-13 17:23:46.907)
Could you also supply the 40° x 5° EDR-40x5 Rectangular Diffuser from the same manufacturer? I would like to generate a light sheet, but the 100° angle is hard to collimate.
besembeson  (posted 2014-02-28 05:06:07.0)
Response from Bweh E. at Thorlabs: We do provide custom diffusers, rectangular shapes or other shapes with different divergence angles. I will send you separate email to follow-up on the quotation for you.
asherw  (posted 2013-11-07 11:48:00.85)
Do you have any new data regarding damage thresholds with these diffusers? I see the comment from 2010, but I wondered if perhaps testing had been done. With every other spec, they are perfect for my application, but I'm afraid my laser would be over-powered. Thanks.
tcohen  (posted 2013-11-07 03:49:14.0)
Response from Tim at Thorlabs: We haven’t spec’d damage thresholds but the Injection Molded Zeonor is ideal for lower power applications. If you have concerns for a higher power, we could offer as a special another substrate. I’ll contact you to discuss the details of your source.
user  (posted 2013-09-18 10:19:28.12)
Hi, I was wondering whether Thorlabs offers diffusers with other diffusion angles and diffusers larger than 100 X 100mm. Thanks.
jlow  (posted 2013-09-18 13:38:00.0)
Response from Jeremy at Thorlabs: We do not stock larger size engineered diffuser or engineered diffusers with different pattern. However, we are able to provide some custom option. Since you did not leave any contact information, please e-mail us at techsupport@thorlabs.com to discuss about your requirement.
wangyx75  (posted 2013-08-09 18:45:06.713)
Dear engineer! We are planing to use ED1-S20 on our experiments with focusing laser beam. The incident angle of laser is from 0degree to 6 degree. we only found a intensity curve on zero degree incident angle. Is there any performance curve of this diffuser on this range incident angle? Thank you very much! WANG Yuxing Shanghai Jiao Tong Unversity Shanghai China.
jlow  (posted 2013-08-16 11:30:00.0)
Response from Jeremy at Thorlabs: We do not have measured data for oblique incidence for this specific part. However, based on our experience with the line diffuser, we can say that there will be some distortion of the output (it will look like a trapezoidal shape instead of a square). I will contact you directly to discuss about this further.
jlow  (posted 2012-07-30 18:20:00.0)
Response from Jeremy at Thorlabs to Klaus. The transmission of engineered diffuser start dropping off around 370nm. I will contact you directly for a typical transmission curve for this.
postmaster  (posted 2012-07-24 12:33:07.0)
I would urgently need the transmission graphs of these engineered diffusors, as I plan on using them with UV LEDs in the 365/385/405nm range. The 20deg round and square ones would be most interesting, but I could change that if there are better UV transmitting ones. Thanks, Klaus
tcohen  (posted 2012-05-17 15:01:00.0)
Response from Tim at Thorlabs: Thank you for your feedback! I have contacted you to find out your source wavelengths and to send you some transmission data outside of the specified performance range.
trespidi  (posted 2012-05-17 09:19:39.0)
I need information on the spectral trasmissivity shape of such components. A graph showing the spectral trasmissivity of the diffuser at the different wavelengths would be useful. Besides also the transmission obtainable out of the specified spectral range could be of some interest. In my case for example I should work in a range larger than the one reported in the specifications and information on the behaviour in the out of range region would appreciated.
tcohen  (posted 2012-04-20 11:17:00.0)
Response from Tim at Thorlabs: Thank you for your feedback! As long as the incident beam size is = 0.5 mm, the microlens-array should produce similar distributions regardless of beam size.
A.Mencaglia  (posted 2012-04-20 09:22:46.0)
I wonder how much the spatial intensity distribution on the exit surface is affected by the input beam diameter (let's suppose it is well collimated)
tcohen  (posted 2012-04-05 10:07:00.0)
Response from Tim at Thorlabs: Thank you for using our feedback tool! We are looking into this and I will update you with the answer soon.
hammacks  (posted 2012-03-30 10:43:21.0)
How does the spatial coherence of the light source effect the output? More specifically, are interference patterns produce when using a laser that is highly spatially coherent, such as a Nd:YAG?
fuy4  (posted 2012-03-13 12:03:30.0)
Hi, I am wondering what the output beam phase is? does two same output beams will get interference? thanks.
jjurado  (posted 2011-06-15 10:27:00.0)
Response from Javier at Thorlabs to dspan: Thank you for your inquiry. If you input polarized light into the Engineered Diffusers, the output will still be polarized. Although your light does stay polarized, the actual state of polarization will change based on the input polarization of the light, as well as the location of the beam on the optic. Let’s take the square diffusers as an example. In general, you will get less of an effect if the polarization state is in line with the corners of the square. If your original polarization state is parallel to either side of the square, however, you will see a large amount of circularization (more circular than linear). I hope this helps. We will contact you directly for further support.
dspan  (posted 2011-06-07 13:36:55.0)
Hi Sir: Could you please comment that the engineered diffusers is affected by the polarization in the visible light (380nm-780nm)?
jjurado  (posted 2011-04-20 12:41:00.0)
Response from Javier at Thorlabs to edgar.cerda: Thank you very much for contacting us with your request. Since the output from the diffuser is not a point source, the quality of the collimation will most likely not be the best. However, you can use condenser lenses in order to collect the output from the diffuser and focus it onto your sample. I will contact you directly to discuss your application a bit further.
edgar.cerda  (posted 2011-04-20 10:25:42.0)
Hi, could you please comment on the possibility to collimate and then refocalise the difussed beam to have a small (50x50 um^2) top hat beam on the surface of a sample using common optics?
jjurado  (posted 2011-03-30 15:02:00.0)
Response from Javier at Thorlabs to kaccie.li: Thank you very much for contacting us with your request. We currently do not have information regarding the backscattering properties of our engineers diffusers. However, I do not think that our engineered diffusers will work for your application, since the transmission spectrum covers 380-1100 nm. I will contact you directly for further assistance.
kaccie.li  (posted 2011-03-30 18:10:58.0)
Can you comment on the reflective scattering of this element. Im looking for an optic that transmits green light fairly well, but back scatters, rather than simply reflect, infrared (840 nm) light.
Thorlabs  (posted 2010-09-20 16:24:47.0)
Response from Javier at Thorlabs to jyyu: our engineered diffusers have not been formallly tested for laser damage. However, distortion from heat occurs at ~ 99°C. We recommend that the material not be exposed with high energy fluences from a laser.
jyyu  (posted 2010-09-20 14:31:08.0)
Is there a damage threshold for the diffuser? I am trying to apply ~1W pulse laser on 0.25-cm^2 area, with pulse energy ~100uW.
xhu  (posted 2010-08-25 14:43:48.0)
Do you have Engineered Diffusers which has a circular pattern and another diffuser angle in between 20 and 50, say 35 degrees?
cgreenlee  (posted 2010-04-05 18:30:54.0)
Do these diffusers perform adequately at a wavelength of 1550nm? Thanks
apalmentieri  (posted 2010-01-13 16:05:19.0)
A response from Adam at Thorlabs to Thomas: It would be possible to offer a 40 x 0 line diffuser that is 1" in diameter. I will email you directly to discuss this option with you.
thomas.gehin  (posted 2010-01-13 13:16:15.0)
Hello, Would it be possible to have other line engineered diffuser (like a mounted 1" 40°x0° line diffuser) ? Thanks
klee  (posted 2009-11-09 15:03:41.0)
A response from Ken at Thorlabs to giovanni.miotto: Currently we do not have any plan to carry Ø2" diffusors. However, we can do this as a special. Please let us know that quantity that you need so that we can prepare a quotation for you.
giovanni.miotto  (posted 2009-11-08 18:42:40.0)
It would be very useful for me if it was in 2 inch format. Do you plan to introduce the 2 inch format in the near future? Please let me know
Laurie  (posted 2009-04-08 15:49:45.0)
Response from Laurie at Thorlabs to lee: Unfortunately, we do not current sell reflective diffusers. We could attempt to coat our group glass diffusers with a metallic coating, but this is not something that we have done in the past. If you would be interested in pursuing this route, please contact us with your quantity and wavelength range requirements.
lee  (posted 2009-04-08 13:25:45.0)
Hi, I was wondering if you guys have reflective diffusers as well. If so, could I get some information about them please? Thanks, Hanshin Lee
acable  (posted 2007-12-13 21:41:09.0)
It would be nice to have a photograph of the diffuser added to the main presentation area. Also please consider having the Grpund Glass Diffuser link in the Related Products area go to a diffuser selection guide, or have it go to the Visual navigation level that show the various families of diffusers offered.

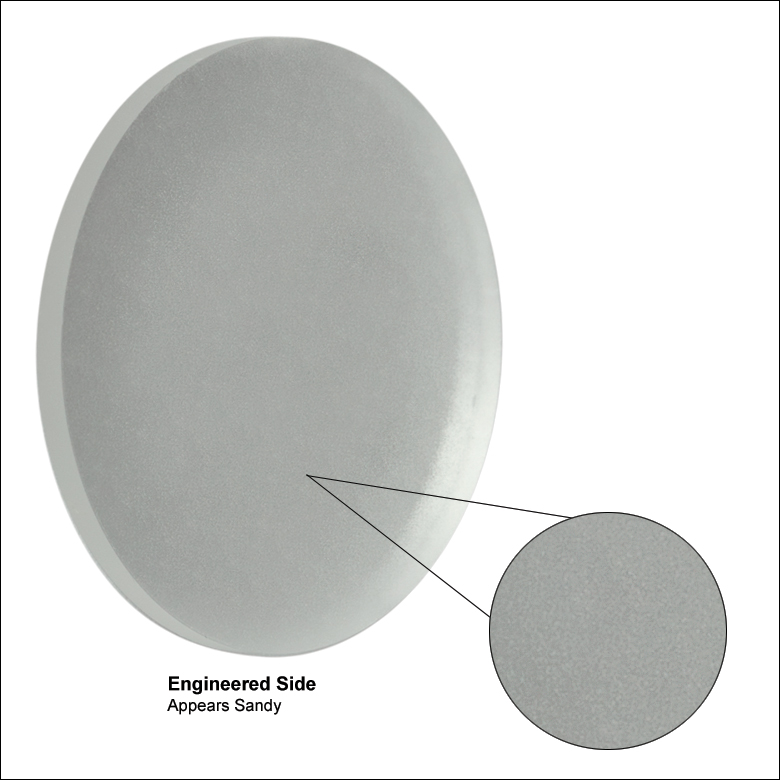

Engineered Diffuser、マウント無し

  • Ø25.4 mm(Ø1インチ)のEngineered Diffuser
  • 円形、正方形、ライン拡散パターン

マウントのない光学素子は、スペースが狭い場合や多様な取付けが必要な場合に適した製品です。当社のØ25.4 mm(Ø1インチ)のEngineered Diffuser(マウント無し)は、通常、SM1ネジ付きレンズチューブ内でご使用いただいています。光学素子は、入射光が加工面に当たるように配置いただく必要があります。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ED1-C20 Support Documentation
ED1-C20Ø1" 20° Circle Pattern Diffuser
¥16,881
Today
ED1-C50 Support Documentation

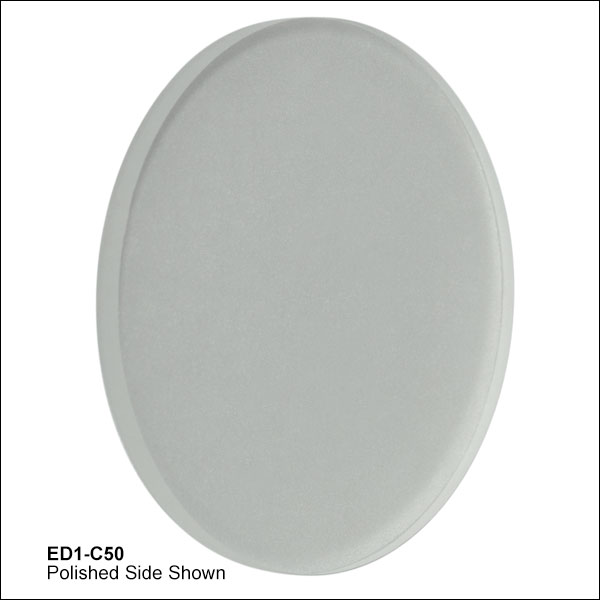

ED1-C50Ø1" 50° Circle Pattern Diffuser
¥16,881
Today
ED1-S20 Support Documentation
ED1-S20Ø1" 20° Square Pattern Diffuser
¥16,881
Today
ED1-S50 Support Documentation
ED1-S50Ø1" 50° Square Pattern Diffuser
¥16,881
Today
ED1-L4100 Support Documentation
ED1-L4100Ø1" 0.4° x 100° Line Diffuser
¥16,881
Today

Engineered Diffuser、マウント付き

  • Ø25.4 mm(Ø1インチ)のEngineered Diffuser、SM1ネジ付きマウント
  • 円形、正方形、ライン拡散パターン


当社のマウント付きEngineered Diffuserは、マウント無しバージョンと同じ製品でSM1対応の刻印付きマウントに取り付けられています。マウント付き光学素子は、マウント無しの光学素子よりも識別しやすく、またマウントに埋め込まれているので汚れにくいという利点があります。光学素子は、入射光が加工面に最初に当たるように配置いただく必要があります。マウント付き光学素子の場合、固定リングに最も近い面に該当します。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ED1-C20-MD Support Documentation
ED1-C20-MDSM1-Threaded Mount, Ø1" 20° Circle Tophat Engineered Diffuser
¥18,710
Today
ED1-C50-MD Support Documentation
ED1-C50-MDSM1-Threaded Mount, Ø1" 50° Circle Tophat Engineered Diffuser
¥18,710
Today
ED1-S20-MD Support Documentation
ED1-S20-MDSM1-Threaded Mount, Ø1" 20° Square Engineered Diffuser
¥18,710
Today
ED1-S50-MD Support Documentation
ED1-S50-MDSM1-Threaded Mount, Ø1" 50° Square Engineered Diffuser
¥18,710
Today
ED1-L4100-MD Support Documentation
ED1-L4100-MDSM1-Threaded Mount, Ø1" 0.4° x 100° Line Engineered Diffuser
¥18,710
3-5 Days

Engineered Diffuser キット、マウント付き

EDK01 Contents
Item #Description
ED1-C20-MDØ1", SM1-Mounted 20° Circle Tophat Engineered Diffuser
ED1-C50-MDØ1", SM1-Mounted 50° Circle Tophat Engineered Diffuser
ED1-S20-MDØ1", SM1-Mounted 20° Square Engineered Diffuser
ED1-S50-MDØ1", SM1-Mounted 50° Square Engineered Diffuser
ED1-L4100-MDØ1", SM1-Mounted 0.4° x 100° Line Engineered Diffuser

Engineered DiffuserキットEDK01には、Ø25.4 mm(Ø1インチ)のマウント付き拡散板5種類と金属製保管ボックスが含まれています。SM1対応マウントには、型番と簡単な説明が刻印されています。この拡散板キットの内容に関しては、右の表をご覧ください。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
EDK01 Support Documentation
EDK01Engineered Diffuserキット、Ø25.4 mm、マウント付き(5枚入)
¥94,253
3-5 Days
ログイン  |   マイアカウント  |   Contact Us  |   Careers  |   個人情報保護方針  |   ホーム  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Europe | Asia | China
Copyright 1999-2019 Thorlabs, Inc.
Sales: +81-3-6915-7701
Tech Supports: +81-3-6915-7701


High Quality Thorlabs Logo 1000px:Save this Image
