30 mmケージシステム用手動ダイクロイックフィルターホイール
- Mounts Five Rectangular Dichroic Filters
- Input and Output Ports at a 45° Angle to the Filter
- Removable Filter Wheel
- Light Tight
CDFW5
Shown with Cover Removed
CDFW5
Please Wait
特長
Click to Enlarge
CDFW5には、取外し可能なフィルターホルダが5個付属します。
- 厚さ1 mm以下の25.2 mm x 35.6 mmダイクロイックフィルタまたは25 mm x 36 mmダイクロイックミラーを5個取付け可能
- 30 mmケージシステムおよびSM1レンズチューブアセンブリに対応
- マグネット式フィルターホルダ
- フィルタへの圧迫を低減し、損傷を防ぐDelrin®*製のクランプ
- 遮光性フィルターホイール
手動フィルターホイールCDFW5は、蛍光観測や波長分離などに使用されるダイクロイックフィルタ用に設計されています。取付けブロックには4つの光学ポートが付いており、その全てはフィルタ面に対して45°の角度に設定されています。そのため透過光路と、それに直交する光路の両方を利用することができます。
フィルターホイールの各ポートに付いている4個の6 mm穴には30 mmケージシステム、SM1内ネジ付き穴にはSM1レンズチューブシステムをそれぞれ取り付けることができます。取付けブロックの底部にある2つのM4取付け穴は、ポストへの取付けに使用できます。
遮光性のフィルターホイールカバーは磁石で固定されているため、手で簡単に取外せます。取り外すと5つのフィルターホルダが露出します。磁石で固定されているフィルターホルダは、中央ハブから簡単に引っ張って取り外せます。そのためセットアップを分解したりせずに、フィルタの取外しや交換を容易に行うことができます。筐体前面の1本の1/4"-20肩付きネジを取り外し、筐体背面のつまみネジを緩めると、ホイール全体を固定しているケージシステムから取り外すことができます。
フィルタを交換すると、それぞれの位置にある窪みでホイールの位置が固定されます。また、このページ上の写真に示すように、筐体の小さな窓にその時のフィルタの位置が表示されます。
取付けサービス
CDFW5/Mと同時に当社の顕微鏡用フィルタをご注文いただいた場合は、追加費用無しでフィルタを取り付けてから発送いたします。このオプションをご希望の場合には、ご注文前に当社までご連絡ください。
*DelrinはDupont Polymers社の登録商標です。
Click to Enlarge

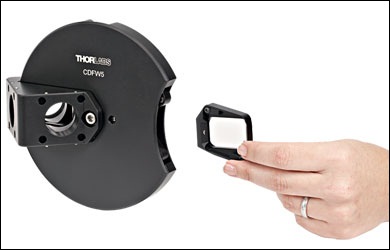

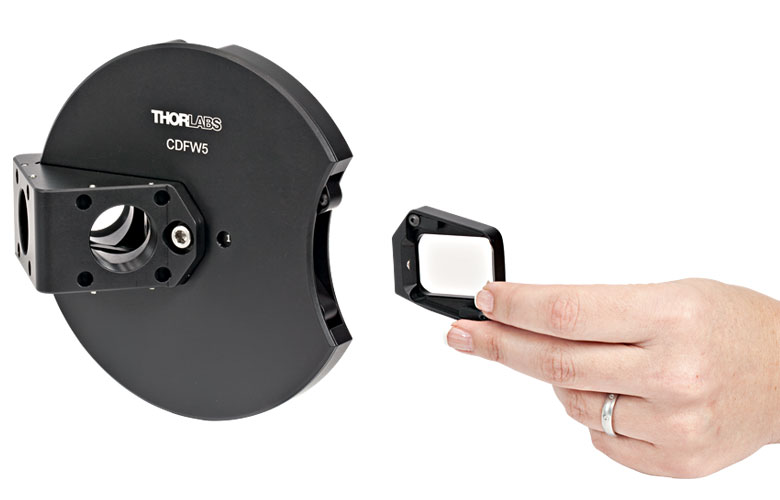

カバーを外すことなくフィルターインサートを取り外すことができます。
Click to Enlarge
CDFW5(/M)の入出射用ポートは、フィルタに対して45°の角度に設定されています。
