高電圧増幅器、EO変調器・ピエゾアクチュエーター用


  • Maximum of ±200 V Bipolar Output
  • −20X Voltage Gain
  • Up to 100 mA Continuous Output Current
  • 1 MHz Bandwidth

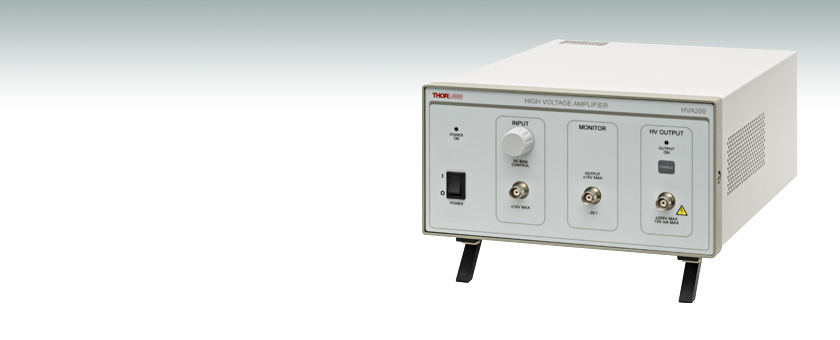

HVA200

High-Voltage Amplifier

Related Items


Please Wait

特長

  • 調整可能なバイアスでフルレンジのDCオフセット制御が可能
  • 低出力ノイズ:1.5 mV(RMS)
  • USB 2.0接続によりPCでのリモート操作が可能

高電圧増幅器HVA200は、当社のEO変調器せん断ピエゾアクチュエータピエゾ振動アクチュエータの駆動に適しています(互換性については下記をご覧ください)。最大出力電圧は±200 V、連続出力電流は100 mA、帯域幅は1 MHz、そして1.5 mV(RMS)の低ノイズという特長があります。入力電圧に対する電圧利得は-20倍で、当社の自由空間型EO変調器ならびにせん断ピエゾアクチュエータを駆動するのに必要な高電圧まで昇圧します。調整可能なバイアスにより-200 V~+200 Vの出力範囲で精密なDCオフセット制御が可能です。高電圧で広帯域、高スルーレートの出力アンプを使うことで必要な出力特性が得られています。

入力増幅器には加算点があり、調節可能なDCバイアスを入力変調信号に加算することができます。この合成された信号は、-20倍の固定電圧利得を有する出力アンプによって最大±200 Vまで増幅されます。例えば、HVA200が-200 V~+200 Vの間を掃引していて10 V DCのバイアスがかかっている場合、得られる出力は-190 V~+200 Vとなります(最大出力電圧に達しているので掃引がクリッピングします)。しかし、同じ10 V DCのバイアスを加えた状態で-100 Vから100 Vまで掃引すると、その出力は-90 Vから110 Vまで掃引されます。DCバイアス制御は、DCレベルを精密に制御するロータリーエンコーダで構成されています。このリアルタイムのモニタ出力は20:1でスケーリングされているため、ハイインピーダンスの計測器に接続したとき、200 Vの出力電圧に対するモニタ電圧は10 Vになります。仕様の詳細については、「仕様」タブをご参照ください。

増幅器HVA200はCE規格に準拠しています。安全性を高めるために、HV出力をBNC出力端子に接続するには、前面パネルのHV動作Enableボタンを押さなければならないようになっています。HVA200には、自由空間型EO変調器接続用SMA-BNCケーブル。リモート制御用のUSB 2.0ケーブル(タイプA-B)、および電源ケーブルが付属しています。

EO変調器とせん断ピエゾアクチュエータとの互換性について
増幅器は最大+200 Vの半波長電圧を出力するため、非共振型のEO位相変調器を駆動し、約900 nmまでの光信号を変調するのに適しています。HVA200をドライバとして使用する場合、変調器によっては動作波長範囲に制限が出ることがあります。詳細についてはEO変調器の製品ページをご覧ください。

当社のピエゾ振動アクチュエータせん断ピエゾアクチュエータへは、こちらの増幅器をお勧めします。多軸ポジショナPN5FC3に使用する場合、HVA200はアクチュエータを縦方向に駆動することができますが、HVA200の比較的低い電流とアクチュエータの高静電容量の組み合わせにより、最大の駆動電圧周波数が制限されます。また、アクチュエータの駆動電圧の制限値を超えないよう注意が必要です。PN5FC3に組み込まれた縦変位のアクチュエータにより良く対応するドライバには、開ループコントローラのMDT69xBKPZ101、ならびに閉ループコントローラのBPC301BPC303がございます。

Electrical Characteristics
Input Voltage Range-10 V to +10 V
Input Impedance1 kΩ
Output Voltage-200 V to +200 V
Output Impedance50 Ω
Slew Rate400 V/μs
Output Noise1.5 mV (RMS)
Voltage Gaina-20 ± 2%
DC Bias Adjust-200 V to +200 V
HV Monitor to Output Ratio
    With Input Impedance of 50 Ω40:1 (Vout / 40 ± 6%)
    With Input Impedance of >10 kΩ20:1 (Vout / 20 ± 6%)
AC Power115 V / 230 V, 50-60 Hz, 70 VA
  • 電圧利得は、出力アンプの高スルーレートを維持するために反比例します(つまり、-1 Vの入力は+20 Vの出力となります)。
Physical Features
Input ConnectorBNC
Output ConnectorBNC
HV Monitor ConnectorBNC
Bias AdjustmentDigital Encoder
Output EnableFront Panel Push Button
Output HV IndicatorBright LED
Power SwitchRocker Switch
Dimensions9" x 5" x 12.5"
(228.6 mm x 127 mm x 317.5 mm)
Weight11.6 lbs
OtherTilting Rubber-Padded Feet
Max Ratings
Max Output Current100 mA DC
Max Input Voltage Range-10 V to 10 V
Fuse Rating630 mA @ 115 VAC (5x20 mm SLO-BLO)
400 mA @ 230 VAC (5x20 mm SLO-BLO)

ソフトウェア

ファームウェアバージョン3.4(2023年6月6日)

HVA200用ファームウェアファイルとインストーラのダウンロード

Software Download

変調信号入力

BNCメス型

BNC Female

±10 V, 10 mA

HV出力モニタ

BNCメス型

BNC Female

±10 V、200 mA、最小負荷50 Ω

HV出力

BNCメス型

BNC Female

±200 V、100 mA


Posted Comments:
Vignesh Kannan  (posted 2022-03-21 06:08:01.897)
We have a problem with our amplifier. Over long time measurements, the high voltage amplification keeps turning off. The voltages are well below the maximum rating. We need help troubleshooting this problem. Thank you.
ksosnowski  (posted 2022-03-30 02:49:17.0)
Thanks for reaching out to us Vignesh. If the load on HVA200 causes max current draw for extended times, this can lead to the unit shutting off due to thermal protection. Large capacitive loads at higher frequency, or any short circuits like a resistor across the leads may overdraw the HVA200. The proper method to discharge an attached load is to set the HVA200 to 0 Volts before disconnecting it. Some piezos recommend shorting the terminals to discharge them however this should only be done when disconnected from the driving source. I have reached out directly to discuss your application further.
Han Liu  (posted 2022-02-20 20:36:13.55)
The USB communication seems not working properply. I opened the serial port and tried to apply commands like "enable=1" but the string I receive is exactly what I send ("enable=1" ). And the amplified is not being enabled. Please help us on this,
ksosnowski  (posted 2022-02-25 06:46:05.0)
Thanks for reaching out to us, the HVA200 manual page 8 mentions "Keyword = argument (CR)" where carriage return (CR) is either pressing the "enter" key or using sequence <\r>. This sequence will be necessary at the end of each command if issuing multiple commands in sequence.
Daniel Granados  (posted 2022-02-02 12:50:59.91)
Hi Our a ofier is not turning the amifier section on. Y push the on button but the green led is not turning on. Please let us know how to proceed. It is still under warranty. We use it to drive one of you EOM. Thank you Prof Granados.
ksosnowski  (posted 2022-02-15 05:38:55.0)
Thanks for reaching out to Thorlabs. Regarding your HVA200 amplifier, this is configured from the factory to operate on 115 V by default. The fuse and line switch will need to be changed for 230 V operation, and the fuse type is listed on page 12 of the HVA200 Manual.
