直角取付けアダプタ

Stably Mount Small or Large Optomechanics at 90°
Slotted, Counterbored, and Tapped Holes Enable
Virtually Any Configuration

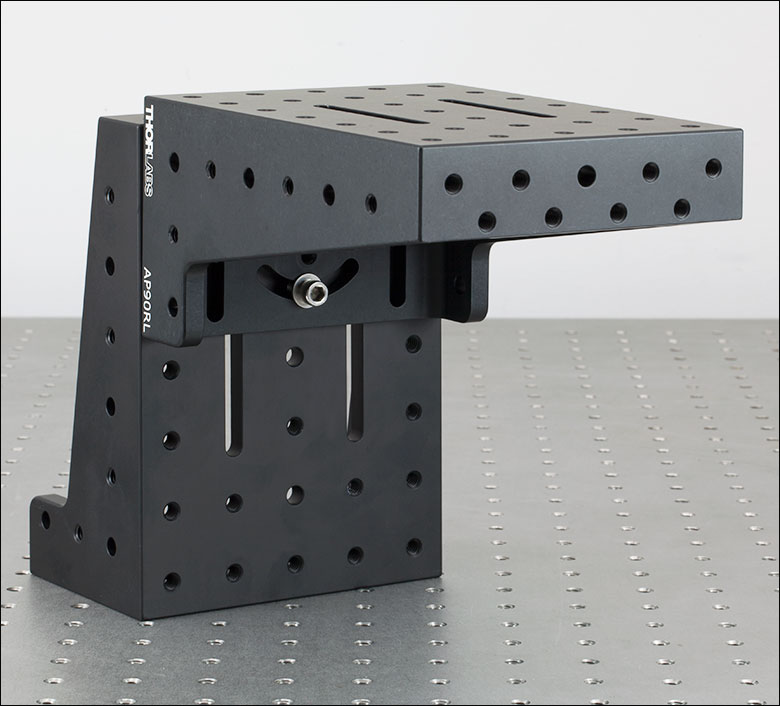

AP90L

Large Right-
Angle Plate

RM1F

1/4"-20 Tapped
Construction Cube

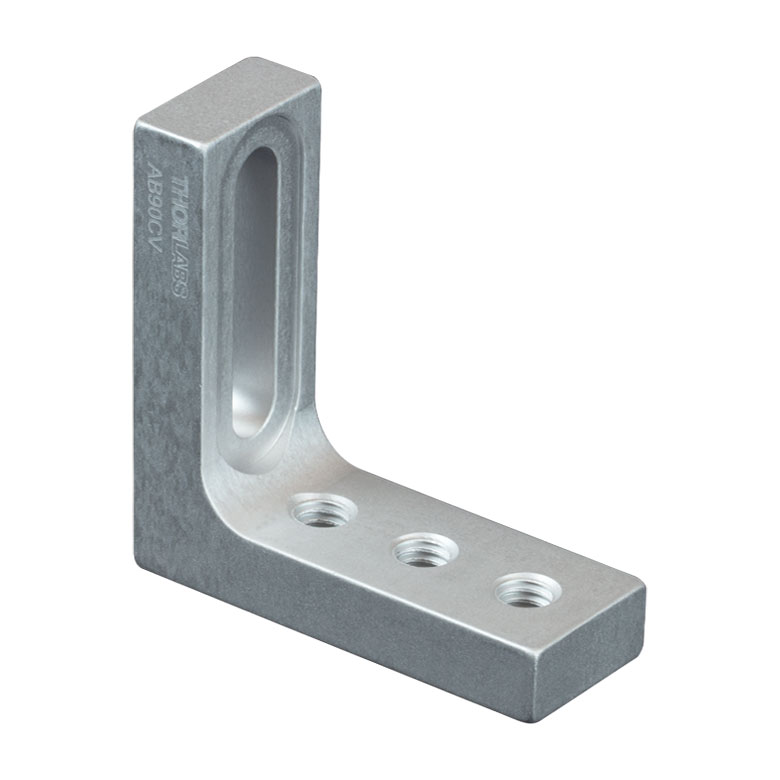

AB90CV

Vacuum-Compatible
Right-Angle Bracket with 1/4" (M6)
Counterbored Slot and 1/4"-20 Taps

AB90E

Right-Angle Bracket with 1/4" (M6)
Counterbored Slot and 8-32 Taps

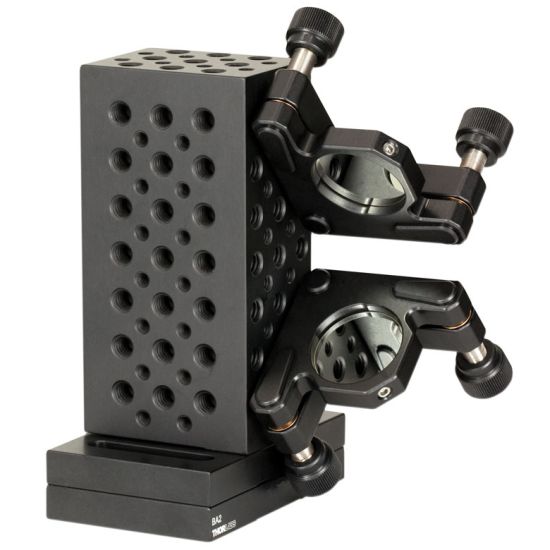

TS240

Tombstone Mounting Block

Application Idea

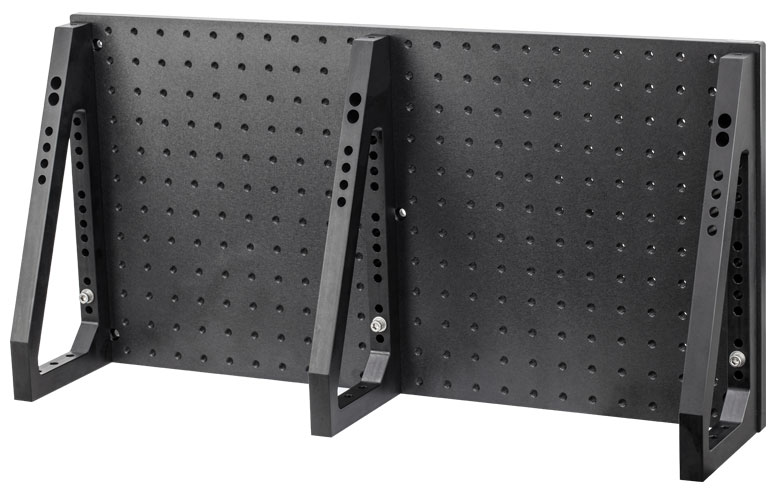

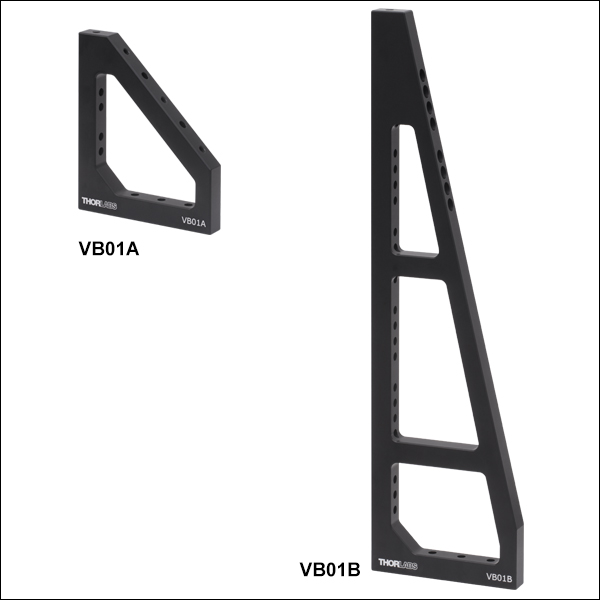

VB01 Brackets Hold Large
Breadboards at 90º

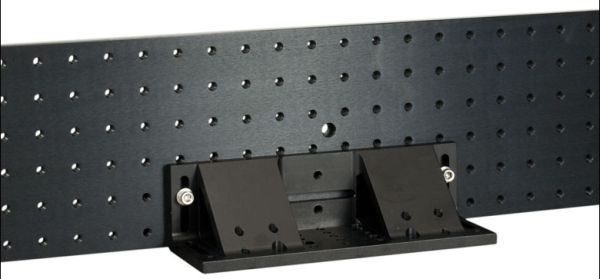

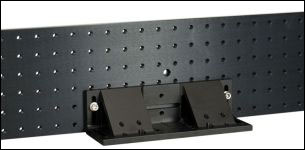

AP90

Right-Angle Plate

Please Wait

概要
Smart Pack
Feedback

Quick Links
General-Purpose Right-Angle Brackets	Right-Angle Plates
Right-Angle Brackets for Rails	Construction Cubes
Vertical Brackets	Large Right-Angle Brackets
Mounting Block	Low-Profile Screws

直角取付けアダプタは、頑丈な立体的光学系の構築をサポートし、また様々な大きさの光学系に適します。マウント済みオプトメカニクスに直接取付けられ、またより大型構造の支えとしてもお使いいただけます。こちらのページにあるすべての製品は単一アルミニウムブロックから機械加工され、精密さに優れ、剛性を備えています。また、真空対応タイプの直角ブラケット(M6キャップスクリュ対応)もございます。

当社では、そのほかにも様々な直角取付けを要する用途向けに角度調整プレート、開口部付き直角ブラケットや、30°、45°、60°の角度付き取付けプレートをご用意しています。また、Ø12 mm～Ø12.7 mm(Ø1/2インチ)ポスト用角度クランプ、Ø25 mm～Ø 25.4 mm(Ø 1インチ)ポスト用直角クランプもご用意しています。

Click to Enlarge

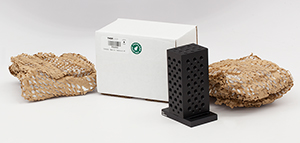

Figure 2.1 Updated TS240 Packaging

Smart Pack Goals

Reduce Weight of Packaging
Increase Usage of Recyclable Materials
Improve Packing Integrity
Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at minimizing waste while providing adequate protection for our products. By eliminating any unnecessary packaging, implementing design changes, and utilizing eco-friendly materials, this initiative seeks to reduce the environmental impact of our product packaging.

The updated TS240 and TS240/M packaging consists of recycled cardboard and weighs 6.7% and 14.7% less, respectively, than the original packaging. This weight change results in a respective 0.86 kg and 1.85 kg reduction in travel-based CO₂ emissions per year, based on typical product sales. The other products on this page have transitioned, or are in the process of transitioning to recycled paper packaging.

As we move through our product line, we will indicate re-engineered, eco-friendly packaging with our Smart Pack logo, which can be seen here.

Posted Comments:

Theo Nass (posted 2025-04-01 12:25:39.84)

The design of this right angle mount limiting, and working with it is particularly frustrating. I cannot use it to securely connect 2 metric breadboards together at a right angle. The short side has 3 holes with 25mm spacing, hence I can connect it with >=2 screws to my breadboard. However, the long side has no holes spaced appart by a multiple of 25mm, which means that I can only have 1 screw connecting the long side of the right angle mount to my breadboard. This is extremely limiting ! It means that the breadboard can freely rotate around the single ancrage point. Is this a manufacturing issue, or is this by design ? If it is by design I think this is a design flaw which should be adressed. If you have a solution to this issue I would appreciate you getting back to me. Best regards, Theo Nass

cdolbashian (posted 2025-04-03 03:55:18.0)

Thank you for reaching out to us with this concern. Thankfully, on each side there are holes which are spaced at integers-of-25mm. I have contacted you directly to show you which mounting holes would be best to use with your application.

jeff secor (posted 2024-10-28 22:11:37.377)

make metric to imperial adapter plates for hole spacing conversion. like a right angle bracket with 25 / 50 mm slot spacing on one side, and 1 inch slot spacing on the other arm. I want to mount a metric breadboard vertical on an imperial table. Also should make bread boards with interleaved metric / imperial and color code the holes with paint thanks

cdolbashian (posted 2024-10-30 04:19:59.0)

Thank you for reaching out to us with this feedback! For the smaller slotted right angle brackets, the slots are designed such that they could be used with imperial or metric spacing. For the larger brackets, as you mentioned, I think there is definitely some design space where a hybrid imperial-metric right angle bracket design could be advantageous. Regarding the imperial/metric breadboards, typically it is good practice to use all imperial, or all metric parts, to avoid stripping threaded holes and getting screws stuck or broken-off in threaded holes. I have reached out to you directly to discuss your suggestions.

Joseph Tokarski (posted 2024-10-01 16:27:48.737)

I would like to get a copy of the Specification Sheet for the AB90B/M, if one exists, for my records and BOM. Thank you.

jdelia (posted 2024-10-01 03:12:36.0)

Thank you for contacting Thorlabs. We unfortunately do not have a spec sheet for this item. All the specifications and support documentation such as CAD drawings can be found on the product family page: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=223&pn=AB90B/M

Jeff Secor (posted 2024-01-04 09:51:03.81)

Need vertical supports 300-500 mm tall. Your products do not have good structure when mounted on vertical rails

jpolaris (posted 2024-01-04 06:19:59.0)

Thank you for contacting Thorlabs. I have reached out to you directly to get clarification on the issue with structure of TS240 that you have found, as well as to work out a potential solution with you.

z lucky (posted 2023-01-31 18:37:15.27)

Why don't you just give simple dimension on the product like height and width. without having to go to all the other precedures.

jdelia (posted 2023-02-01 10:22:42.0)

Thank you for contacting Thorlabs. The length, width, and height of the AP90 bracket can be found readily available under the "Overview" section of our product family page.

David Moy (posted 2021-06-23 11:17:22.987)

We would like a version of this bracket where the 3 holes in the bottom (shortest) leg of the bracket are replaced with a single slot.

YLohia (posted 2021-06-28 11:18:44.0)

Hello, custom products can be requested by clicking on the "Request Quote" button above or by contacting your local Thorlabs Tech Support group. We will discuss the possibility of offering this directly.

Mark Vervest (posted 2020-07-29 15:39:26.213)

There is an inconsistency. The title/label of this item says "M6 Tapped Holes" but the technical PDF drawing says "M6X1.0-6H THRU".

llamb (posted 2020-07-31 02:42:51.0)

Thank you for your feedback on the AB90A/M. The holes are indeed tapped with an M6 x 1.0 thread, as opposed to smooth Ø6 mm holes, and they pass THRU the entire material's thickness, as opposed to being blind holes of a finite depth. We will consider clarifying these call-outs.

gergely.ercsey (posted 2016-07-07 13:08:34.17)

Dear Madam/Sir! The holes should be in exact distance from the bottom. For example the first hole's axis distance from the bottom should be in 20mm. Best Regards, Gergely Ercsey

tcohen (posted 2012-06-15 18:57:00.0)

Response from Tim at Thorlabs: Thank you for sharing this idea with us! We would like to send you some complementary pieces for your feedback. We will also update this page to indicate that they were customer inspired.

patrick.berry (posted 2012-06-15 15:15:36.0)

I see you now have added the brackets I designed to the catalog! I will definitely be buying many of these!

tcohen (posted 2012-04-26 18:00:00.0)

Update from Tim at Thorlabs to the customer who couldn’t consistently fit the washer onto the XE25A90: Your suggestion led to an updated design that solved this problem. Thank you for your feedback!

bdada (posted 2012-03-13 11:49:00.0)

Response from Buki at Thorlabs to lujun0260: Thank you for your feedback. It sounds like you want pricing for our products but we already include that information on our website. I have contacted you to learn more about what you require.

lujun0260 (posted 2012-03-10 06:21:00.0)

please price list

tcohen (posted 2012-02-28 09:22:00.0)

Response from Tim at Thorlabs: Thank you for your valuable feedback on the XE25A90. We do not have your email to contact you, but if you would like help or to further discuss the problem, please contact us at techsupport@thorlabs.com.

user (posted 2012-02-25 11:51:39.0)

Can't consistantly fit washer on XE25A90 - XE25-Series Right Angle Bracket.

Thorlabs (posted 2010-11-03 13:29:20.0)

Response from Javier at Thorlabs to Patrick. Thank you for your feedback. I will contact you directly to get details about your application. We can discuss the possibility of custom making this part and/or potentially adding it to our catalog.

patrick.berry (posted 2010-11-03 09:27:57.0)

It would be nice if you had some 90 degree brackets available which were the size of the AB90 but had 1/4-20 threaded holes on one or both sides. It would also be nice to have one that was half as wide, possibly with one counterbored 1/4-20 and one threaded on each side.

klee (posted 2009-09-14 17:15:44.0)

A response from Ken at Thorlabs to sabba_yoni: We do not have any angle bracket that is smaller than the AB90. However, we can custom make one if you can send us a sketch or drawing.

sabba_yoni (posted 2009-09-14 15:46:52.0)

i need a small "angle bracket" , like 1.5*1 inch did you have something like that?

直角ブラケット、M6キャップスクリュ用

Product Image (Click to Enlarge)

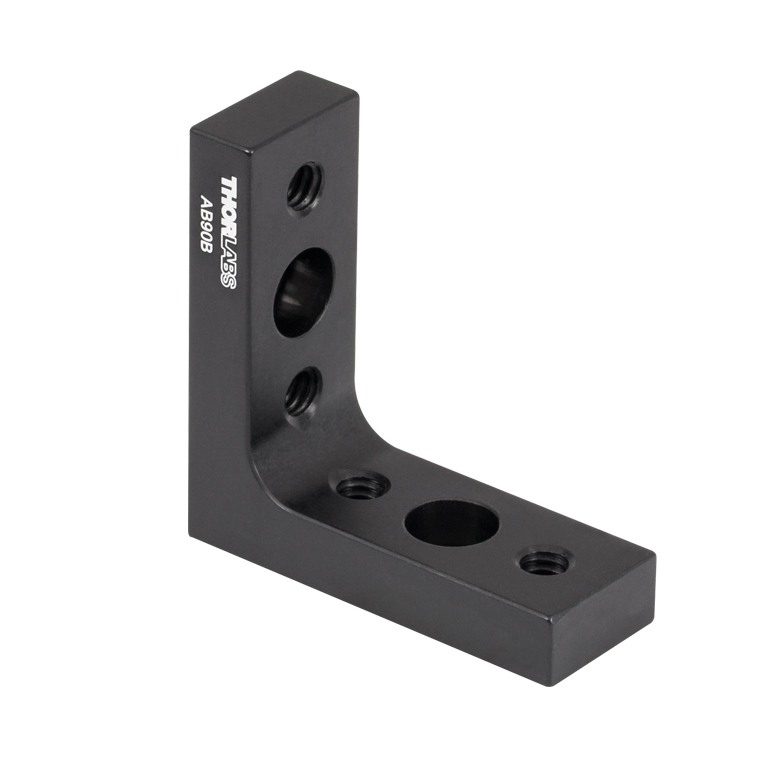

Item #	AB90	AB90H	AB90A(/M)	AB90B(/M)	AB90C(/M)
Counterbored Mounting Slots	Two 1/4" (M6) Slots			N/A	One 1/4" (M6) Slot
Counterbored Mounting Holes	N/A			Two 1/4" (M6) Holes	N/A
Tapped Holes	None		Six 1/4"-20 (M6) Holes per Side	Two 1/4"-20 (M6) Holes per Side	Three 1/4"-20 (M6) Holes on One Side

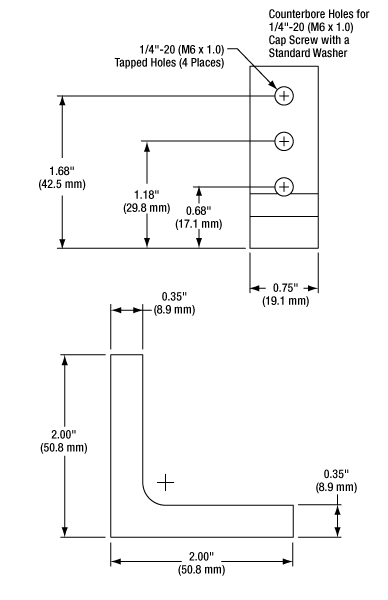

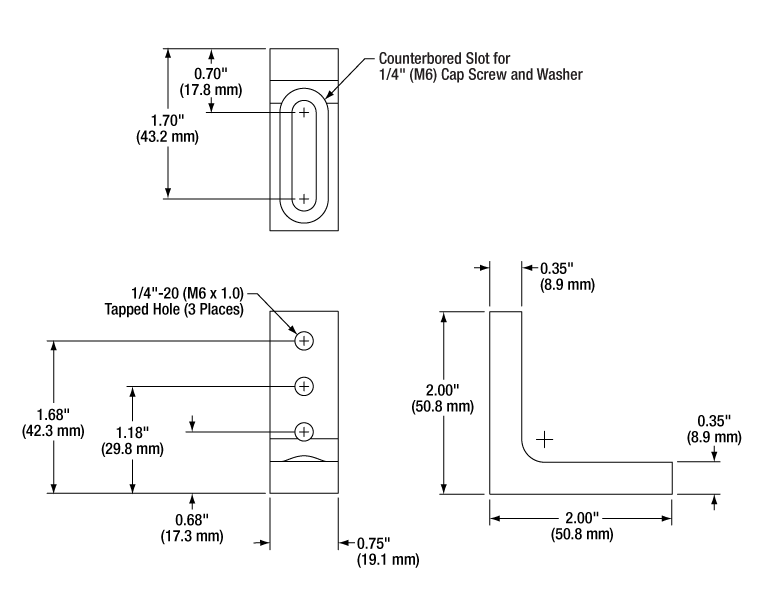

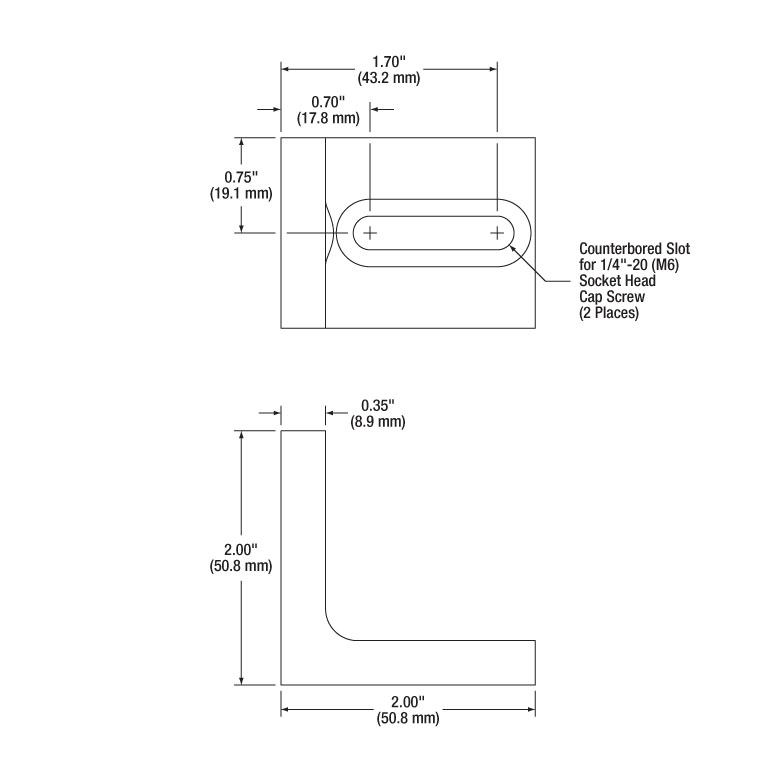

Dimensions (L x W x H) [Click for Mechanical Drawing]	2.00" x 1.50" x 2.00" (50.8 x 38.1 x 50.8 mm)	2.00" x 0.75" x 1.58" (50.8 x 19.1 x 40.0 mm)	2.00" x 1.50" x 2.00" (50.8 x 38.1 x 50.8 mm)	2.00" x 0.75" x 2.00" (50.8 x 19.1 x 50.8 mm)	2.00" x 0.75" x 2.00" (50.8 x 19.1 x 50.8 mm)

+1 数量資料 型番 - インチ規格 定価(税抜) 出荷予定日

AB90A Customer Inspired! 直角ブラケット、ザグリ溝＆1/4”-20タップ穴付き(インチ規格)

￥4,483

Product Image (Click to Enlarge)

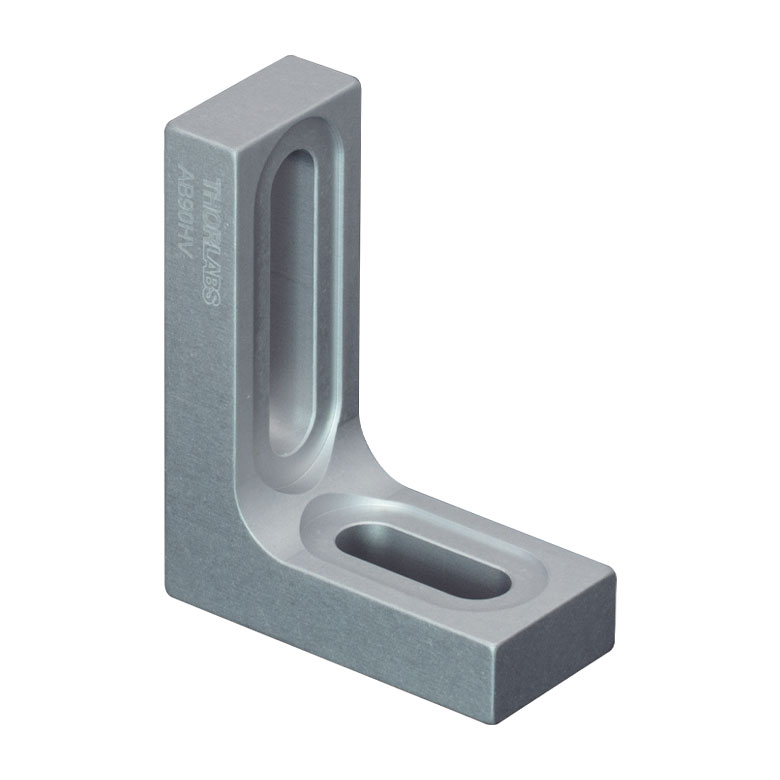

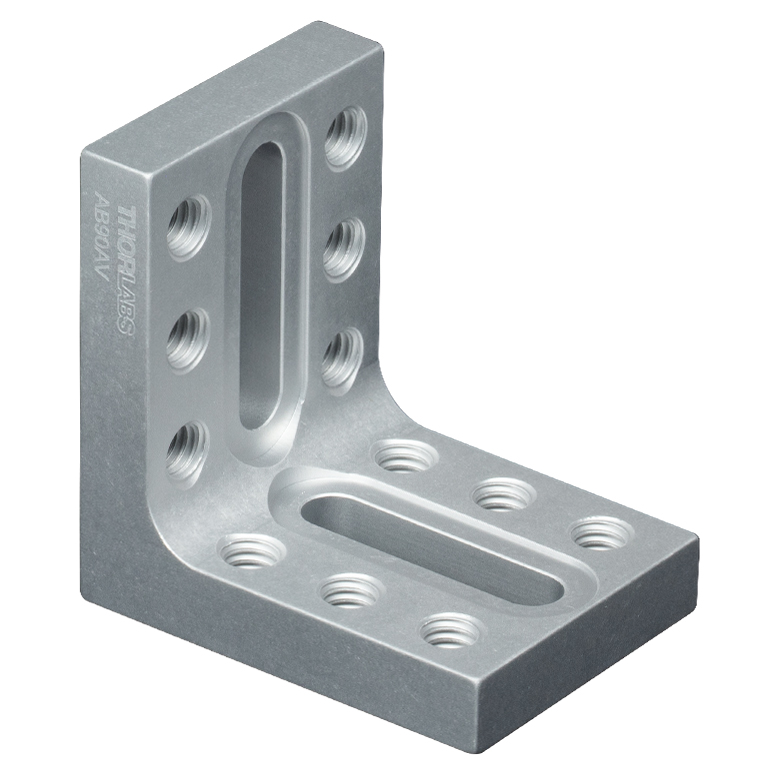

Item #	AB90V	AB90HV	AB90AV(/M)	AB90CV(/M)
Counterbored Mounting Slots	Two 1/4" (M6) Slots			One 1/4" (M6) Slot
Counterbored Mounting Holes	N/A
Tapped Holes	None		Six 1/4"-20 (M6) Holes per Side	Three 1/4"-20 (M6) Holes on One Side

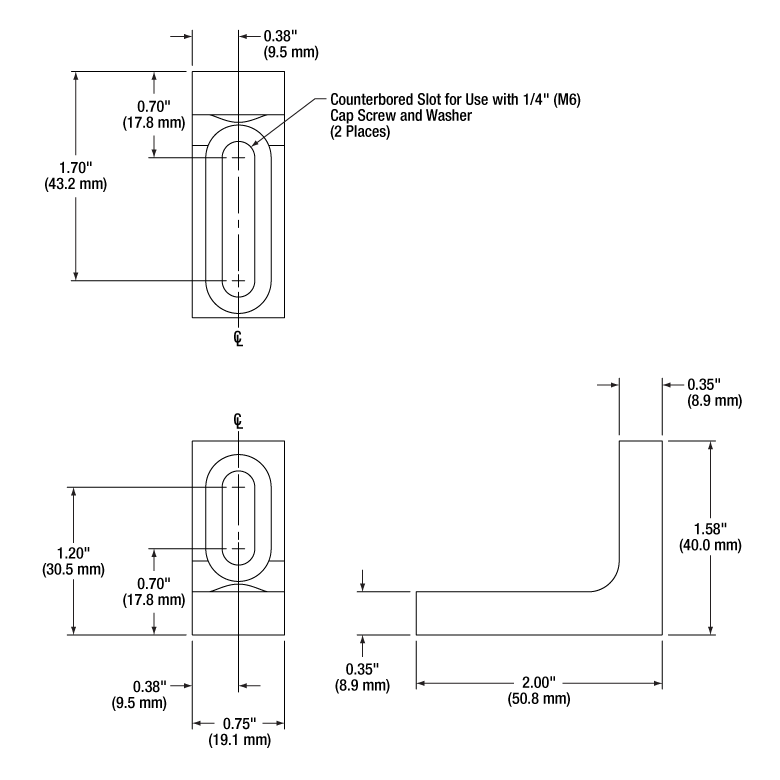

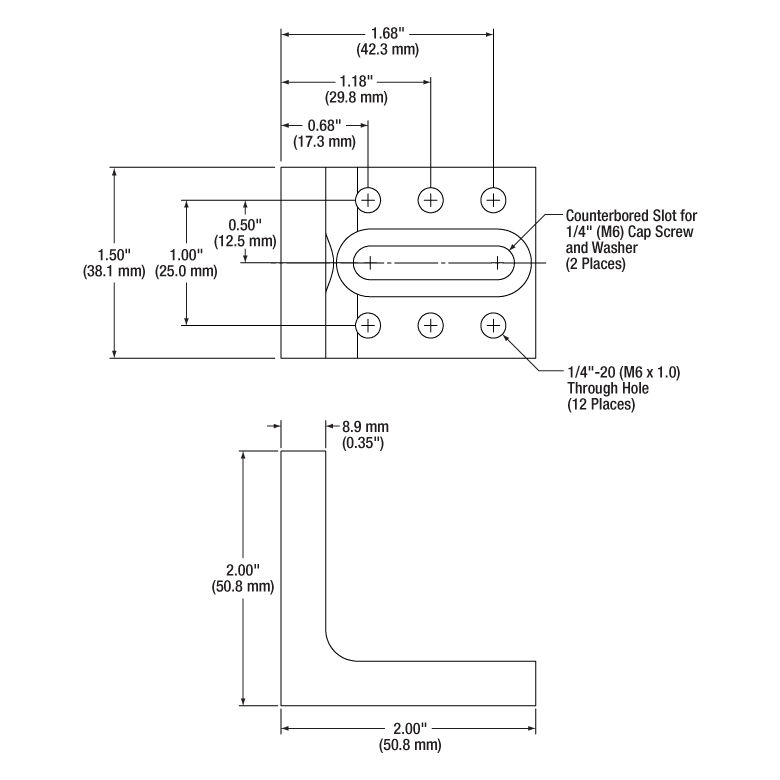

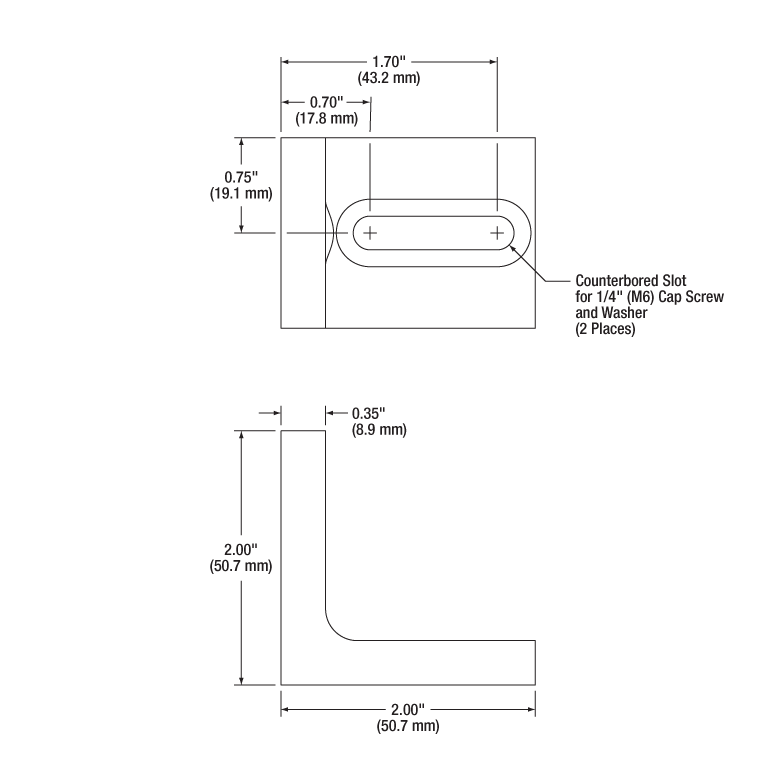

Dimensions (L x W x H) [Click for Mechanical Drawing]	2.00" x 1.50" x 2.00" (50.8 x 38.1 x 50.8 mm)	2.00" x 0.75" x 1.58" (50.8 x 19.1 x 40.0 mm)	2.00" x 1.50" x 2.00" (50.8 x 38.1 x 50.8 mm)	2.00" x 0.75" x 2.00" (50.8 x 19.1 x 50.8 mm)
Vacuum Compatibility	> 10^-6 Torr^a
Material	6061-T6 Aluminum
Packaging	Double Vacuum Bagged

Product Image (Click to Enlarge)

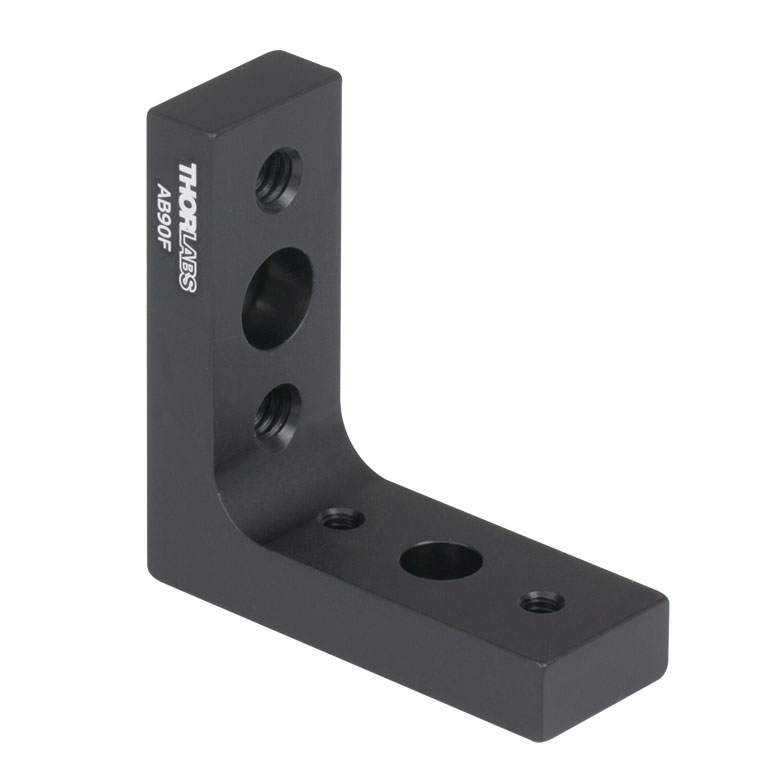

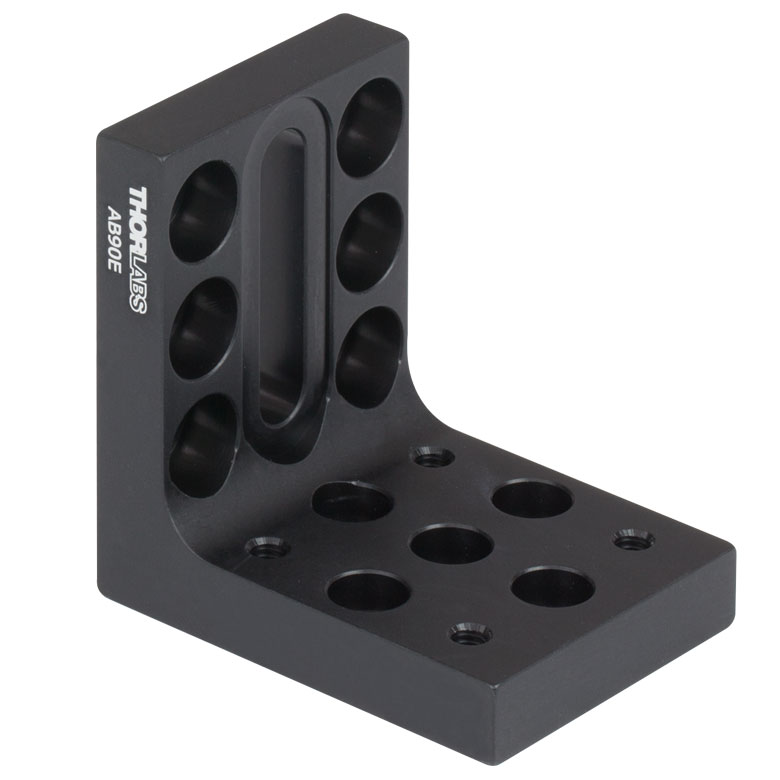

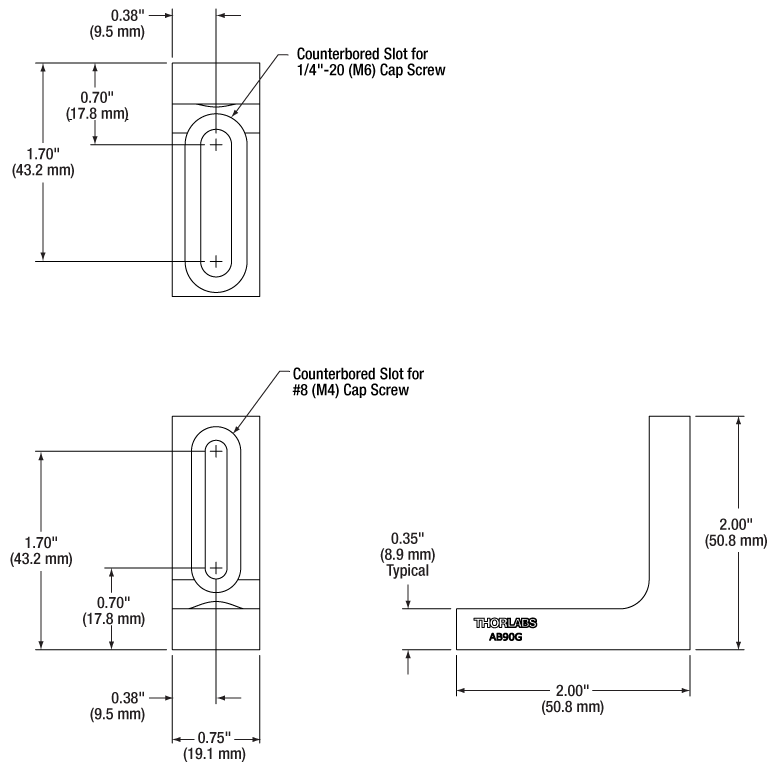

Item #	AB90D	AB90E(/M)	AB90F(/M)	AB90G
Counterbored Mounting Slots	One #8 (M4) Slot One 1/4" (M6) Slot	One 1/4" (M6) Slot	N/A	One #8 (M4) Slot One 1/4" (M6) Slot
Counterbored Mounting Holes	Six #8 (M4) Holes Six 1/4" (M6) Holes	Five #8 (M4) Holes Six 1/4" (M6) Holes	One #8 (M4) Hole One 1/4" (M6) Hole	N/A
Tapped Holes	N/A	Four 8-32 (M4) Holes	Two 8-32 (M4) Holes Two 1/4"-20 (M6) Holes	N/A

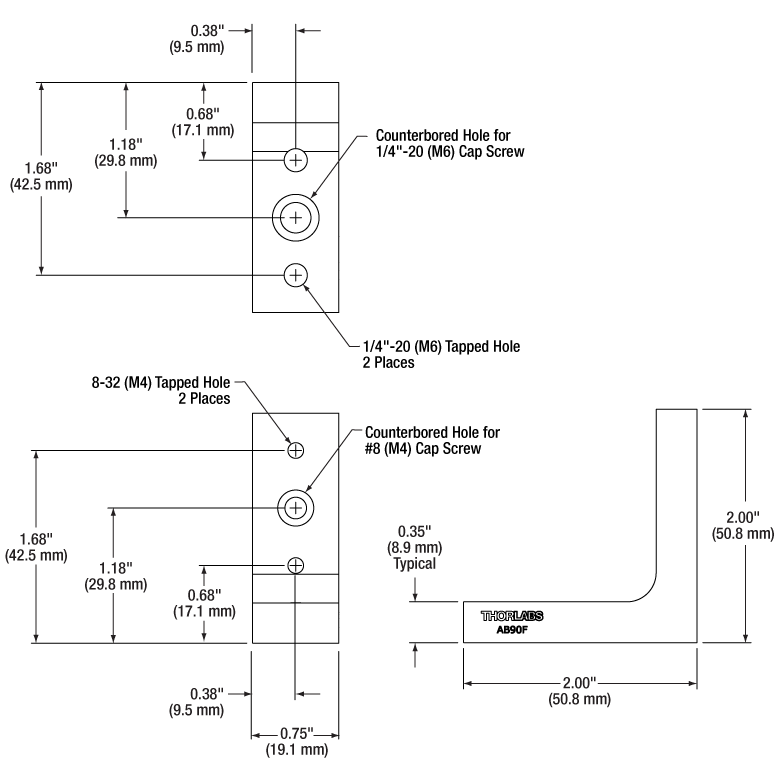

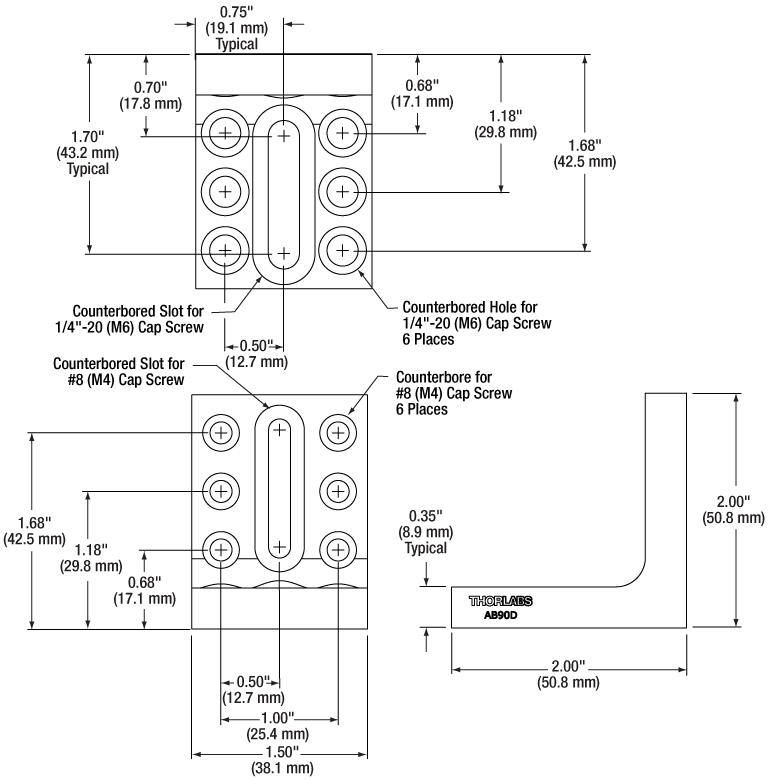

Dimensions (L x W x H) [Click for Mechanical Drawing]	2.00" x 1.50" x 2.00" (50.8 mm x 38.1 mm x 50.8 mm)	2.00" x 1.50" x 2.00" (50.8 mm x 38.1 mm x 50.8 mm)	2.00" x 0.75" x 2.00" (50.8 mm x 19.1 mm x 50.8 mm)	2.00" x 0.75" x 2.00" (50.8 mm x 19.1 mm x 50.8 mm)

型番	数量	Description
RS6	3	Ø1インチピラーポスト、1/4”-20タップ穴、長さ6インチ(インチ規格)

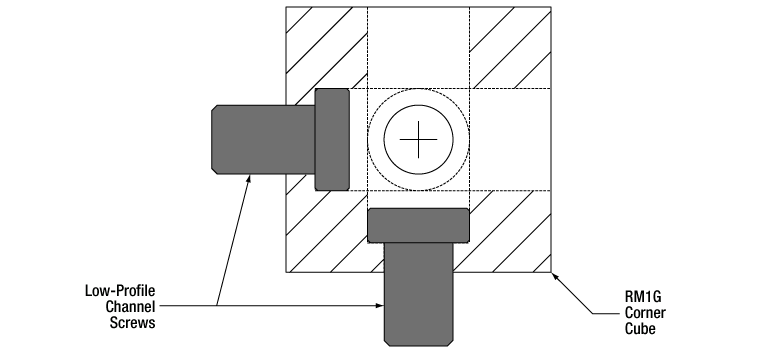

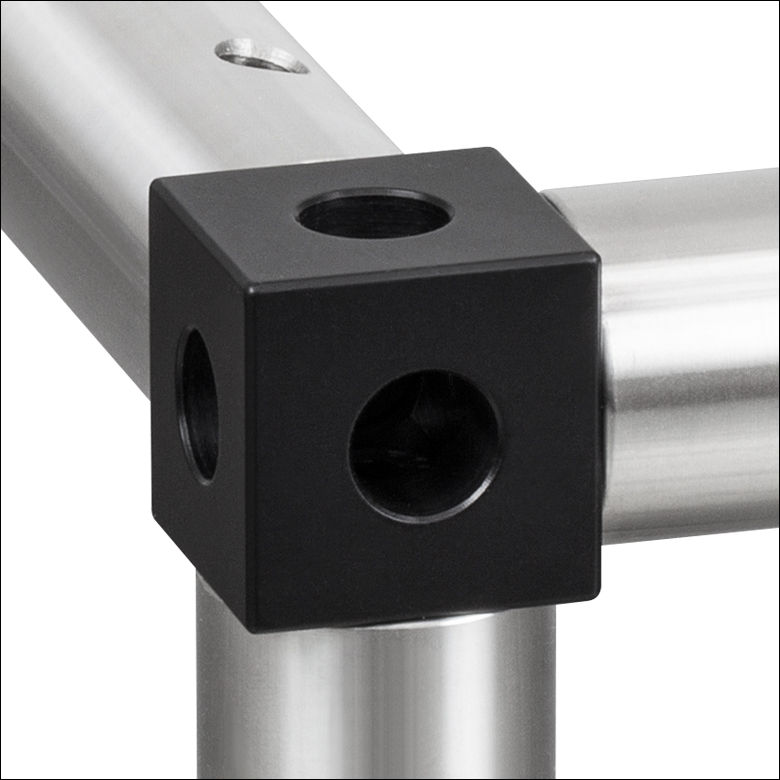

RM1G	1	25.4 mm(1インチ)コンストラクションキューブ、M6ザグリ穴3つ付き
SH25LP38	1	低頭チャネルネジ、1/4”-20、長さ3/8インチ、100個入り(インチ規格)

型番	数量	Description
RS150/M	3	Ø25 mmピラーポスト、M6タップ穴、長さ150 mm(ミリ規格)
RM1G	1	25.4 mm(1インチ)コンストラクションキューブ、M6ザグリ穴3つ付き
SH6M10LP	1	低頭チャネルネジ、M6 x 1.0、長さ10 mm、100個入り(ミリ規格)

型番	数量	Description
XE25L12	2	25 mmコンストラクションレール、長さ12インチ、1/4"-20タップ穴(インチ規格)
RM1G	1	25.4 mm(1インチ)コンストラクションキューブ、M6ザグリ穴3つ付き
SH25LP38	1	低頭チャネルネジ、1/4”-20、長さ3/8インチ、100個入り(インチ規格)
TB4	1	黒色ハードボード、610 mm x 610 mm x 4.76 mm(3枚入)

型番	数量	Description
XE25L300/M	2	25 mmコンストラクションレール、長さ300mm、M6タップ穴(ミリ規格)
RM1G	1	25.4 mm(1インチ)コンストラクションキューブ、M6ザグリ穴3つ付き
SH6M10LP	1	低頭チャネルネジ、M6 x 1.0、長さ10 mm、100個入り(ミリ規格)
TB4	1	黒色ハードボード、610 mm x 610 mm x 4.76 mm(3枚入)

型番	数量	Description

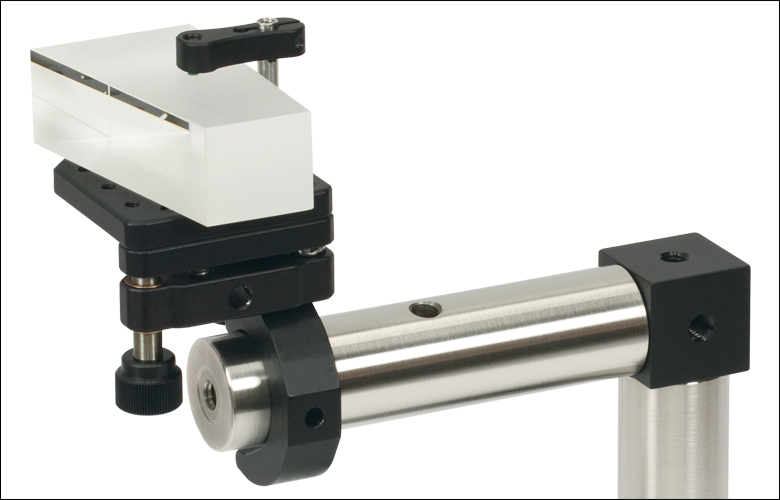

RM1F	1	1インチコンストラクションキューブ、1/4”-20タップ穴付き(インチ規格)
RS3	1	Ø1インチピラーポスト、1/4”-20タップ穴、長さ3インチ(インチ規格)
RS4	1	Ø1インチピラーポスト、1/4”-20タップ穴、長さ4インチ(インチ規格)
KM100B	1	キネマティックプラットフォームマウント、1.92 x 1.92インチ(インチ規格)
PM3	1	小型クランプアーム、調整機能付き、#6-32ネジ付きポスト(インチ規格)
RM1C	1	Ø1インチポスト用スリップオン式クランプ、#8-32タップ穴＆#8-32ネジ付きスタッド(インチ規格)

型番	数量	Description
RM1F/M	1	25 mmコンストラクションキューブ、 M6 x 1.0タップ穴付き (ミリ規格)
RS75/M	1	Ø25 mmピラーポスト、M6タップ穴、長さ75 mm(ミリ規格)
RS100/M	1	Ø25 mmピラーポスト、M6タップ穴、長さ100 mm(ミリ規格)
KM100B/M	1	キネマティックプラットフォームマウント、48.6 x 48.6 mm(ミリ規格)
PM3/M	1	小型クランプアーム、調整機能付き、M4 x 0.7ネジ付きポスト(ミリ規格)
RM1C/M	1	Ø25 mm～Ø25.4 mmポスト用スリップオン式クランプ、M4タップ穴＆M4ネジ付きスタッド(ミリ規格)

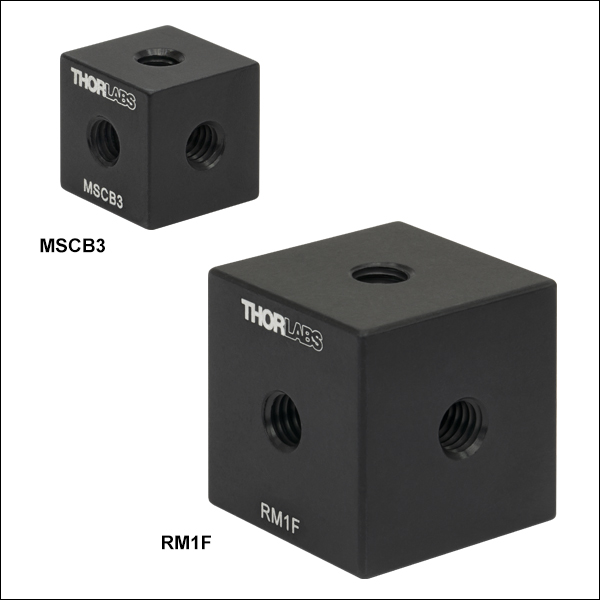

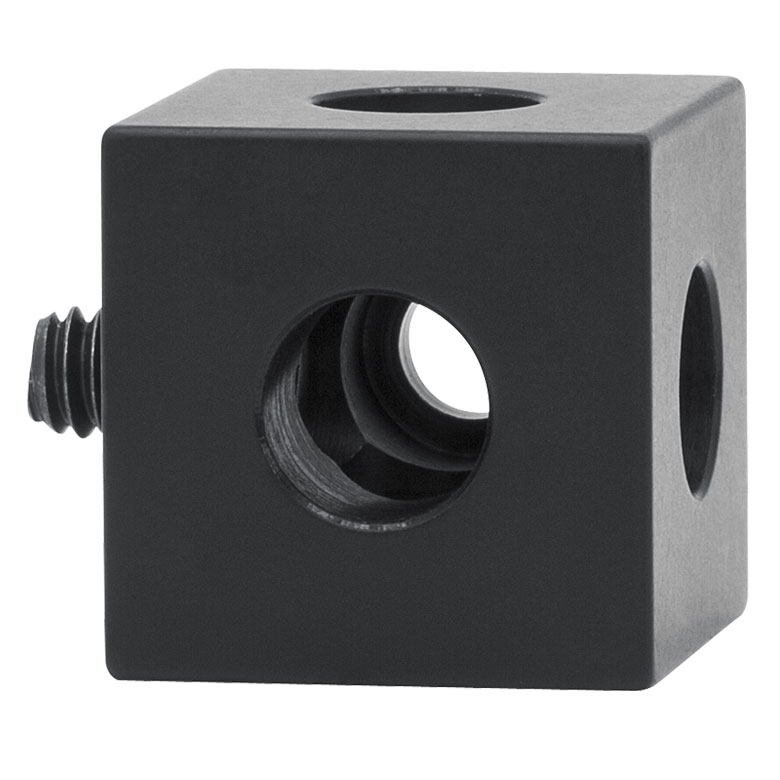

Item #	Size	Taps
MSCB3	1/2"	8-32
RM1FA	1"	8-32
RM1F	1"	1/4"-20
MSCB3/M	12.7 mm	M4 x 0.7
RM1FA/M	25.0 mm	M4 x 0.7
RM1F/M	25.0 mm	M6 x 1.0

Item #	Threading	Thread Length	Hex	Head Height	Quantity	Material

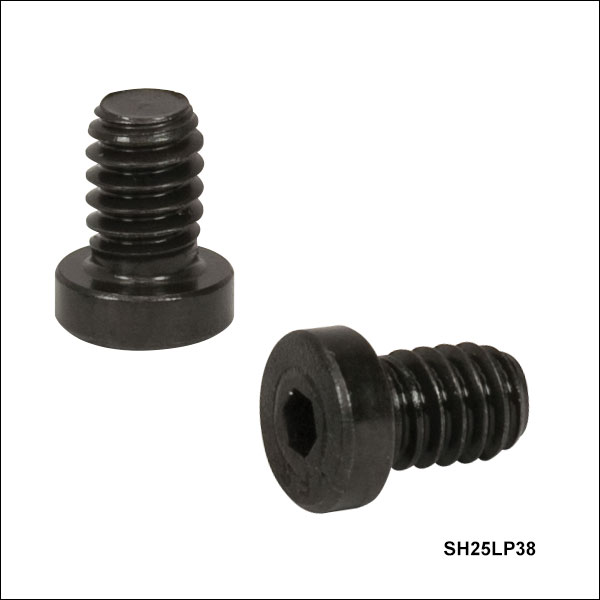

SH25LP38	1/4"-20	0.38" (9.7 mm)	1/8"	0.13" (3.2 mm)	100	Steel, Black Oxide Finish
SH25LP63	1/4"-20	0.63" (15.9 mm)	1/8"	0.13" (3.2 mm)	50
SH6M8LP	M6 x 1.0	8 mm (0.31")	4 mm	4 mm (0.16")	50
SH6M10LP		10 mm (0.39")			100
SH6M16LP		16 mm (0.63")			50

直角取付けアダプタ

Smart Pack Goals

直角ブラケット、M6キャップスクリュ用

真空対応直角ブラケット、M6キャップスクリュ対応

直角ブラケット、M4およびM6キャップスクリュ用

直角プレート

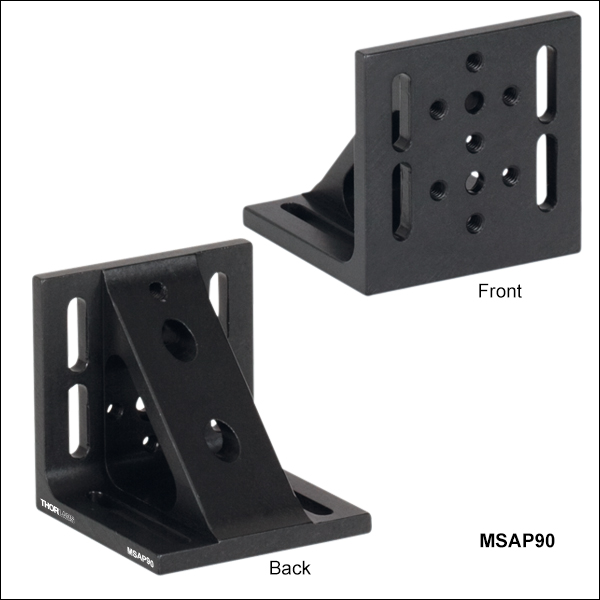

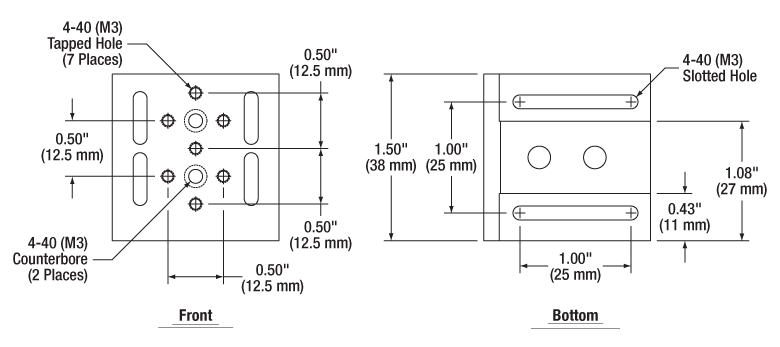

ミニシリーズ 直角プレート

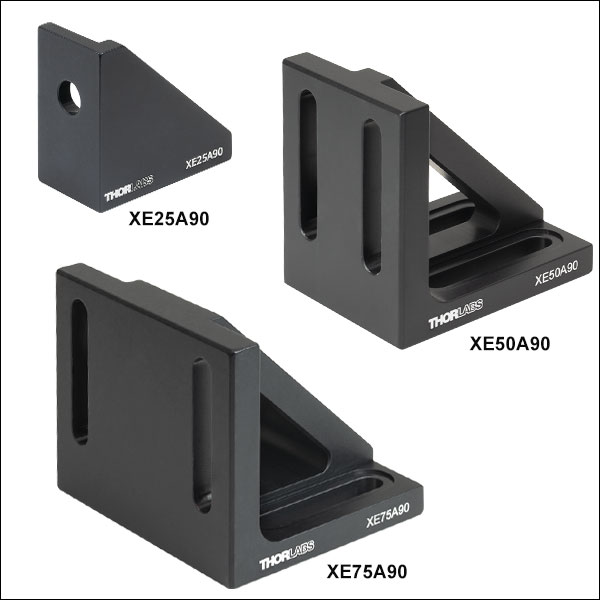

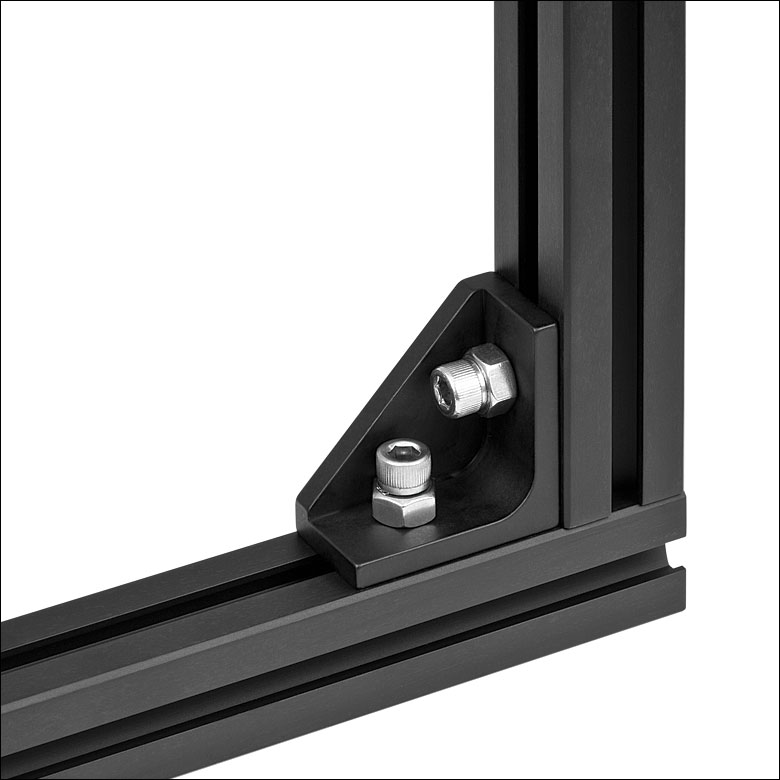

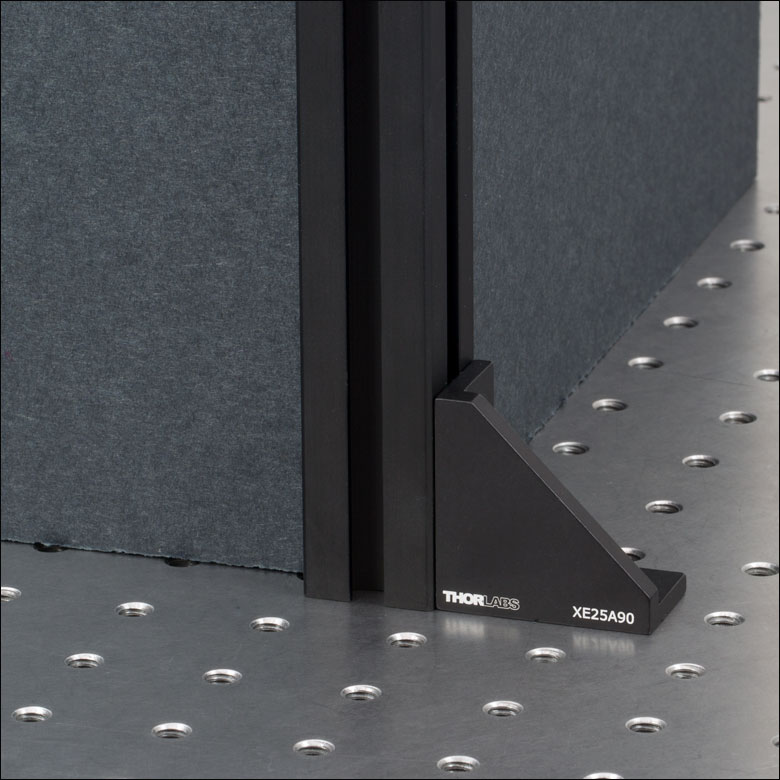

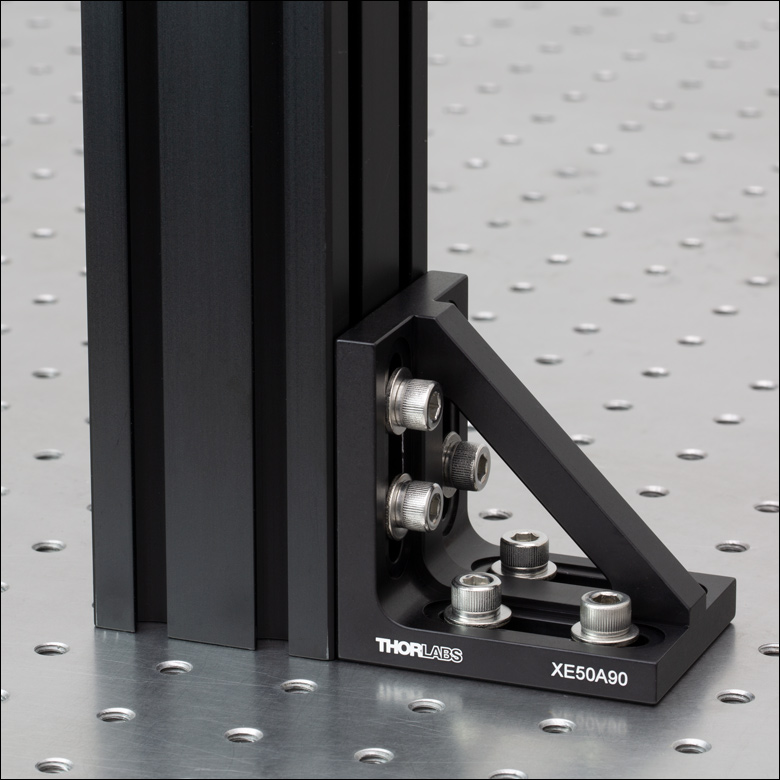

直角ブラケット、25 mm、50 mmおよび 75 mmレール用
