Ø38 mm(Ø1.5インチ)ポスト

Solid Stainless Steel Construction
Stackable Design Provides Flexibility for Rigid Structures

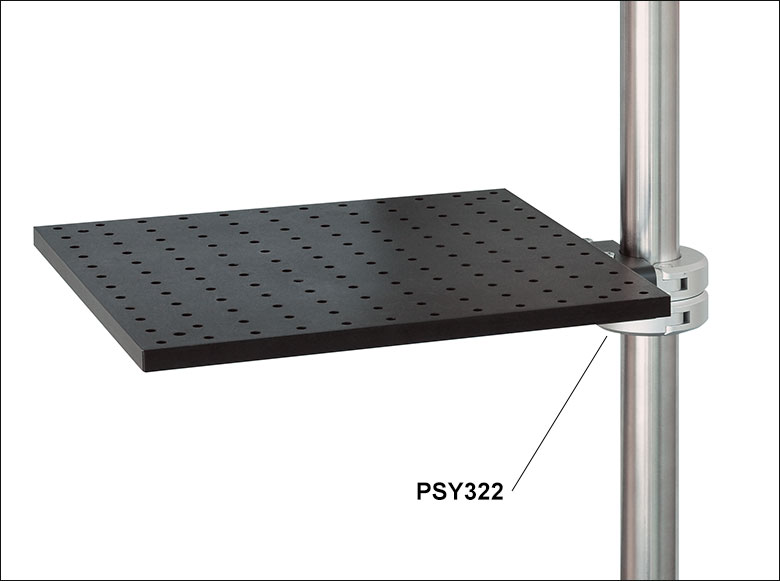

Wide Range of Accessories Available

1/4"-20 Tapped Holes On Both Ends

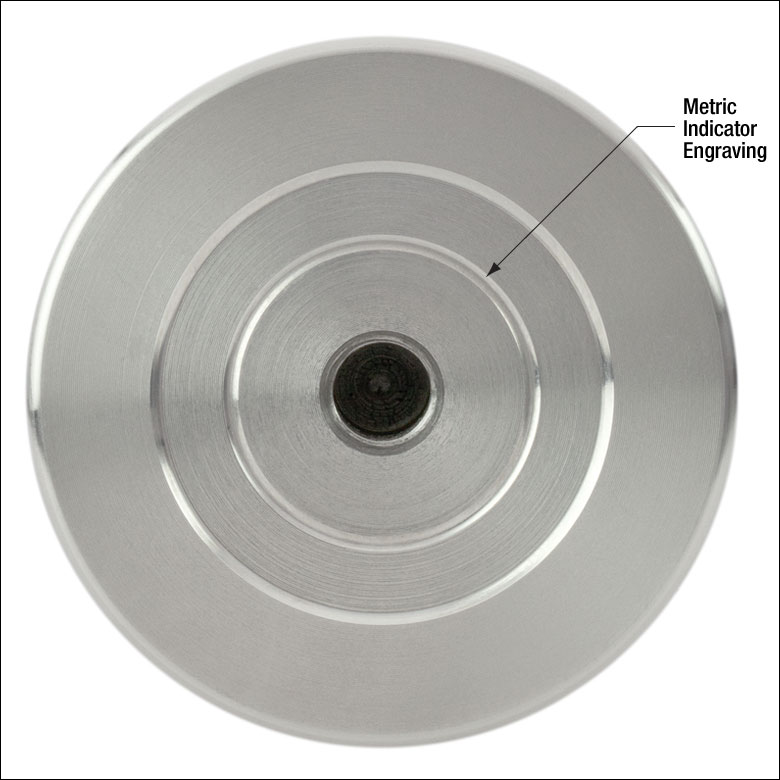

(M6 Taps on Metric Versions)

Ø1.5" Post Spacers

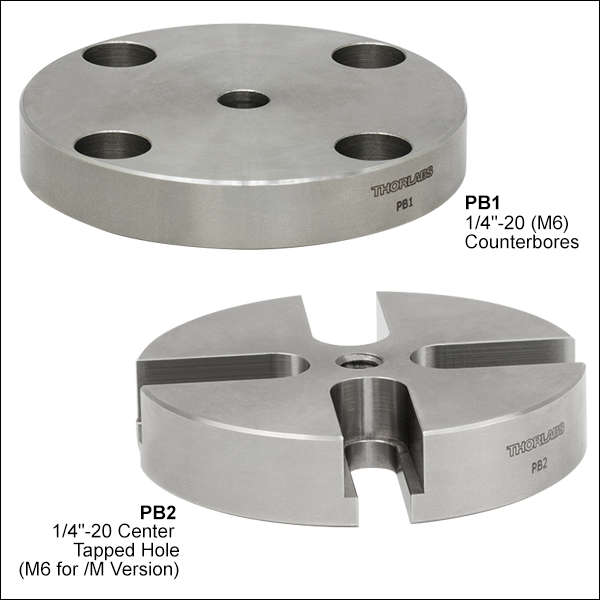

1/4" (M6) Counterbores
(4 Top, 1 Bottom)

1/4" (M6) Counterbored Slots
1/4"-20 Center Tap (M6 Tap in PB2/M)

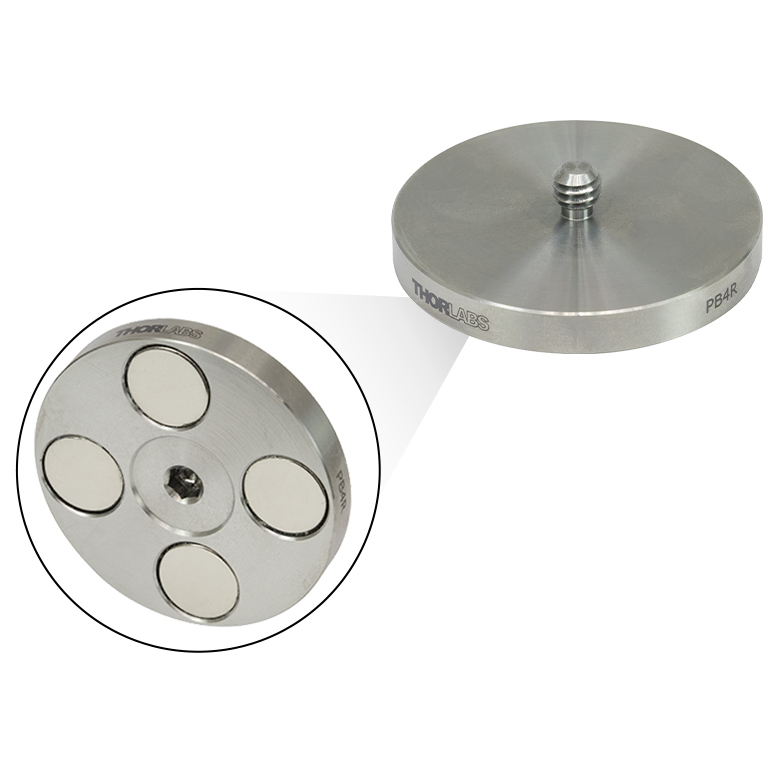

PB4

PB1

PB2

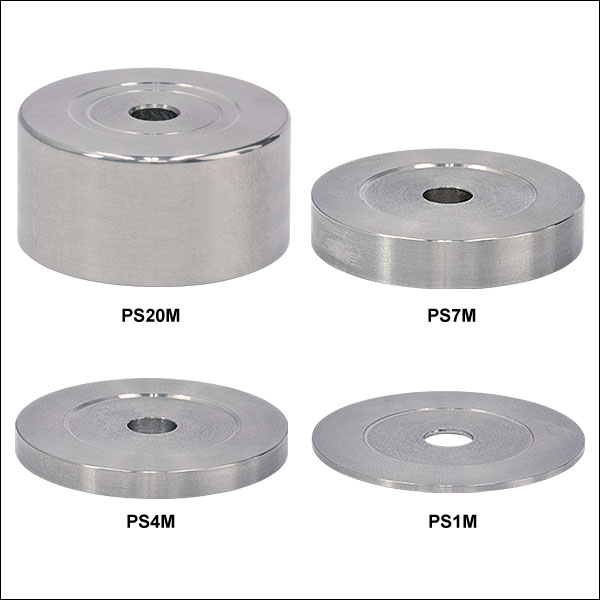

PS10M

PS7M

PS4M

PS1M

P14

P12

P10

P1.5

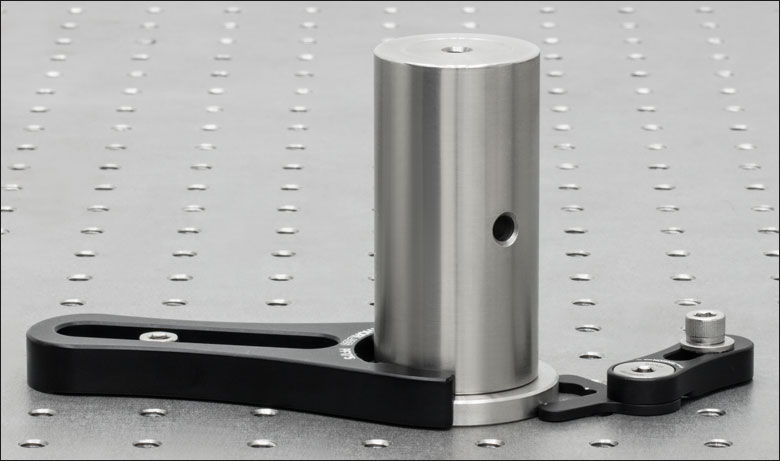

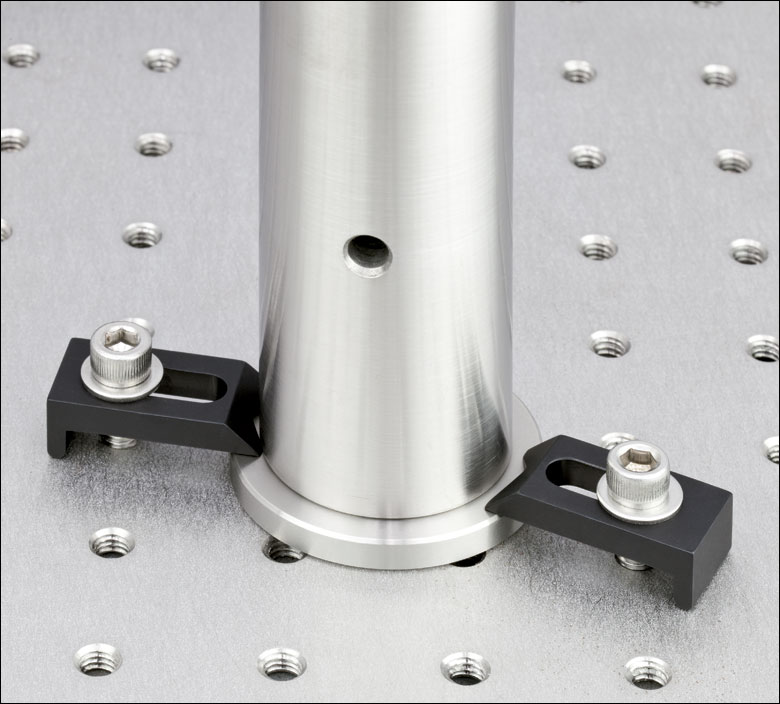

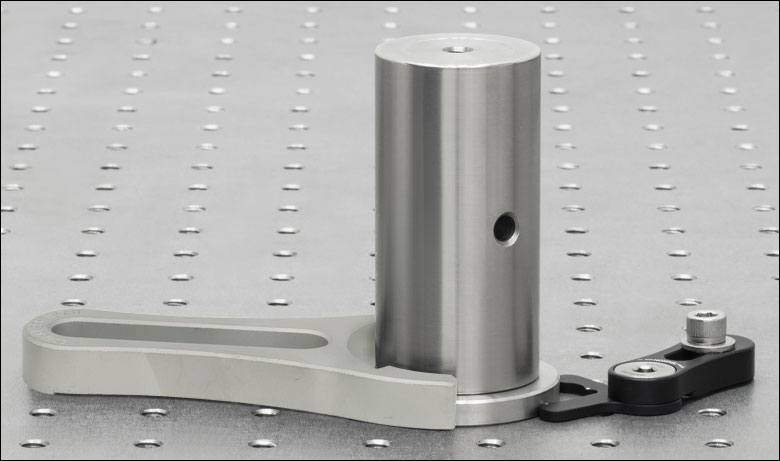

PF175B Clamping Fork Securing a Ø1.5" Post with a PB4 Base Adapter

Please Wait

概要
Feedback

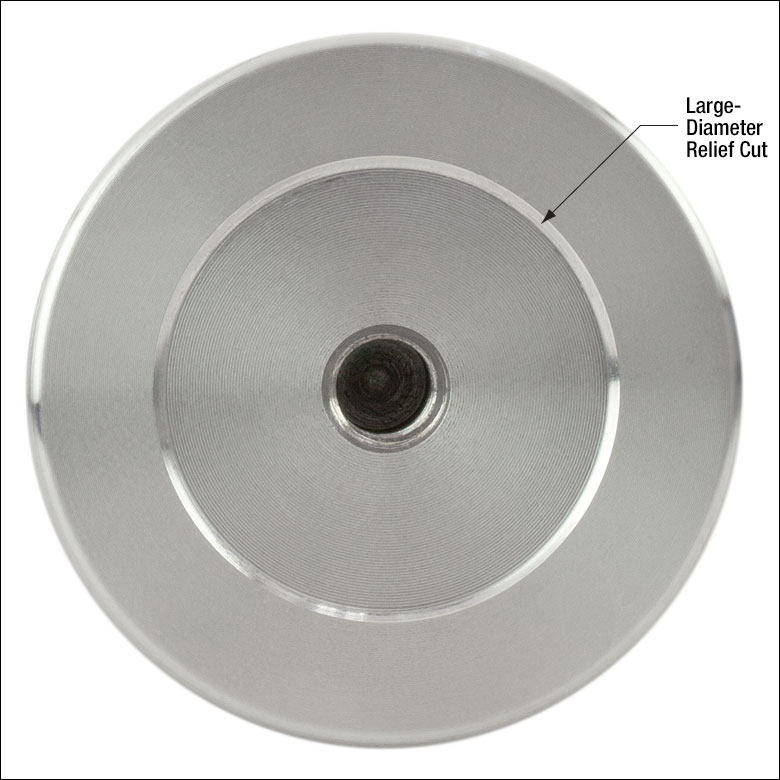

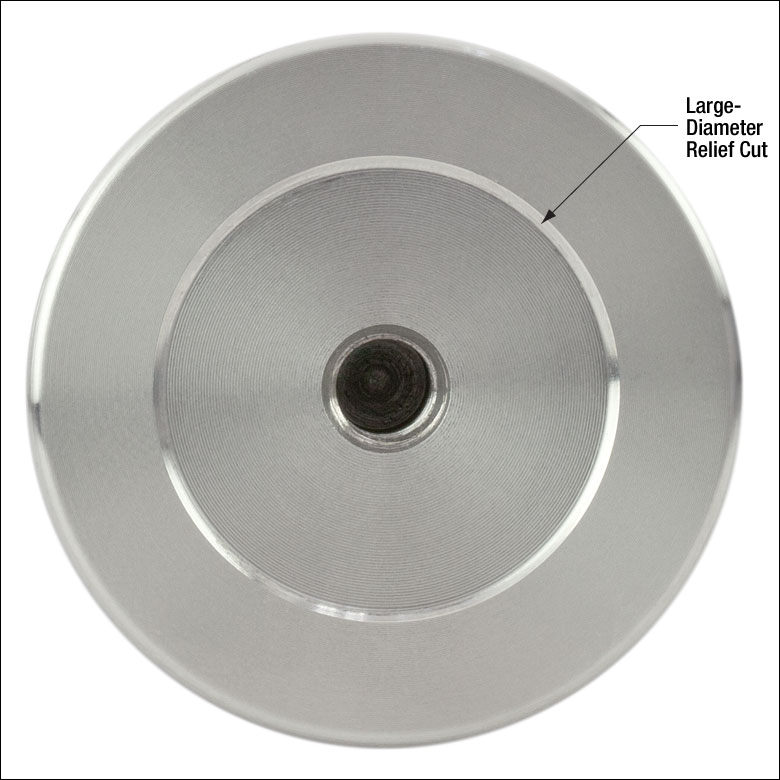

当社非磁性のSUS303ステンレススチール製Ø38 mm(Ø1.5インチ)ポストには、大型で強度のある立体構造を組み立てる際に必要とされる基本的な構成要素部品が豊富に揃っています。このページに詳細を記したポスト製品には、多数のアクセサリを固定できます。当社のポスト、ポストスペーサ、ポストベースはステンレススチール製で、端の接続部分は強度と剛性を得るための大径リリーフカットが施されています。

Pシリーズのポストとポストスペーサは積み重ね可能で、組み合わせて使用することによって高さを調整できます。Pシリーズのベースを使うと、光学テーブルにポストを自由な位置に取り付けることが可能です。ポストの端にあるM6タップ穴によってしっかりとポスト同士を締め付け固定できるので、長くて剛性のあるポストを作ることができます。また、タップ穴にネジ-位置決めピン変換アダプタ(下記参照)を使用すると、ポストを固定する前に、取り付け面のタップ穴の上に自由に回転させて位置合わせすることができます。
