Kr(クリプトン)イオンレーザーミラー

45º Angle of Incidence
R_avg > 99.7% from 520 nm to 647 nm

NB1-J11

Ø1" Kr-Ion Laser Mirror

NB07-J11

Ø19 mm Kr-Ion Laser Mirror

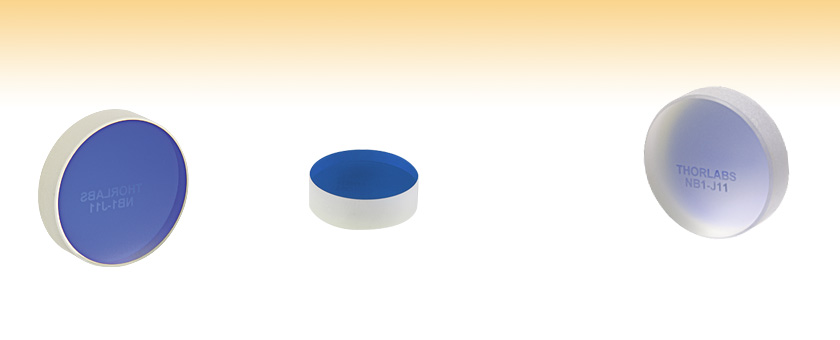

Back Side
Engraved with Item #

Please Wait

概要
Feedback

Item #	NB07-J11	NB1-J11
Wavelength Range	520 - 647 nm
Reflectance	R_avg ＞99.7%
Angle of Incidence	45°
Substrate Material	Fused Silica
Front Surface Flatness	λ/10
Diameter	Ø19 mm	Ø25.4 mm
Diameter Tolerance	+0.0 / -0.1 mm
Clear Aperture	＞80% of Diameter
Back Surface	Fine Ground^a
Thickness	6.0 ± 0.2 mm
Parallelism	≤3 arcmin
Surface Quality	10-5 Scratch-Dig

裏面はつや消し仕上げになっているため、ミラー前面で反射されない光を拡散します。

特長

入射角: 45°
20～647 nmのR_avg(平均反射率)＞99.7%

Kr(クリプトン)イオンレーザーラインミラーは、520～647 nmで高反射率を実現する特殊コーティングが施されています。ミラーは、大型高出力のKr(クリプトン)イオン連続発振レーザの出力ビームへのご使用に適しています。

当社のØ19 mmミラーは、特にレーザーシステム設計やその他OEM用途に向けたPolaris^®固定式マウントに合うよう設計されています。ミラーの直径はØ12.7 mm(Ø1/2インチ)光学素子よりも開口が大きく、かつマウントの設置面積はわずかØ25.4 mm(Ø1インチ)に留まっています。

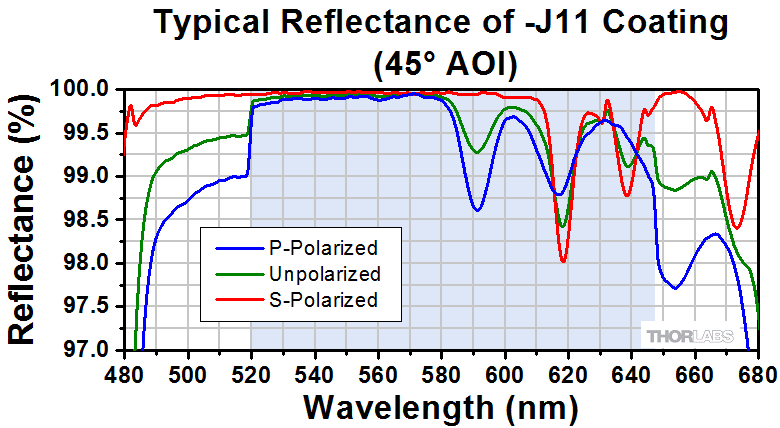

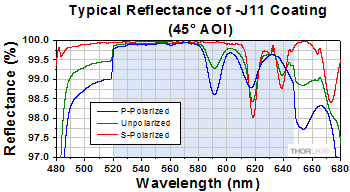

Click to Enlarge
200 nm～25 µmの生データはこちらからダウンロードできます。
