高反射PTFEシート

Omnidirectional, Diffusely Reflective PTFE Ideal for UV Sterilization
>93% Average Reflectance from 250 to 400 nm
Usable at Temperatures up to 260 °C
Hydrophobic and Chemically Inert

PMR10P1

33 cm x 33 cm Sheet with
Adhesive Backing

PMR10R4

34 cm x 21 m Sheet

Please Wait

概要
Feedback

Specifications
Item #		PMR10P1	PMR10R3	PMR10P2	PMR10R4
PTFE Dimensions	Thickness	0.75 mm
	Width	33 cm	33 cm	34 cm	34 cm
	Length	33 cm	21 ± 1.5 m	34 cm	21 ± 1.5 m
Adhesive Backing		3M 93020 Tape w/ 300LSE Adhesive, 0.20 mm Thick^a		None

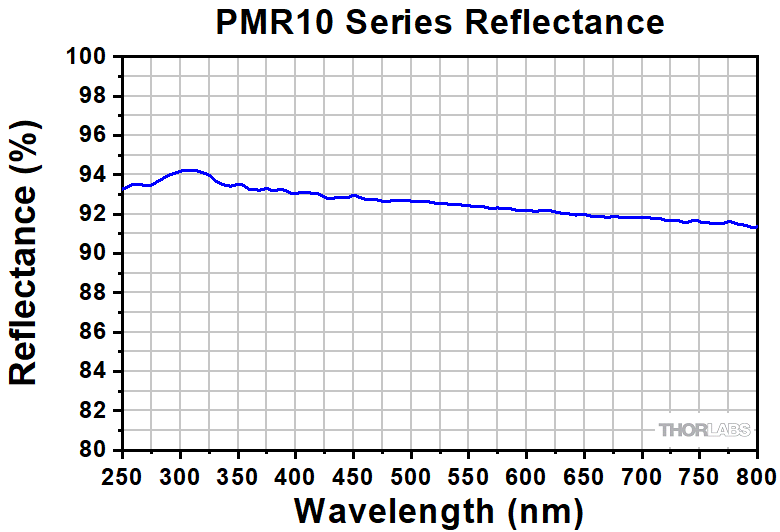

Average Reflectance (Click for Graph; Raw Data)		> 93% (250 - 400 nm) > 92% (400 - 800 nm)
Dielectric Constant		1.7
Operating Temperature		-40 to 260 °C
UL Rating		5VA V-0 (UL 94), f1 (UL 746C)

保護ライナーを取り外して測定

Click to Enlarge

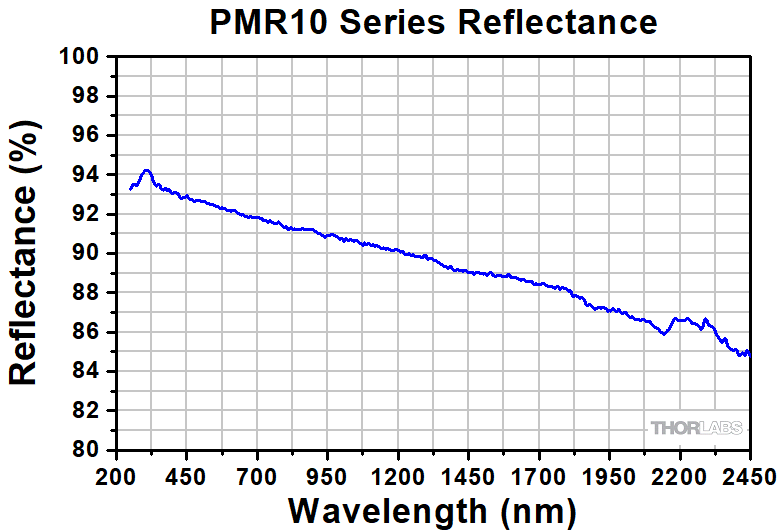

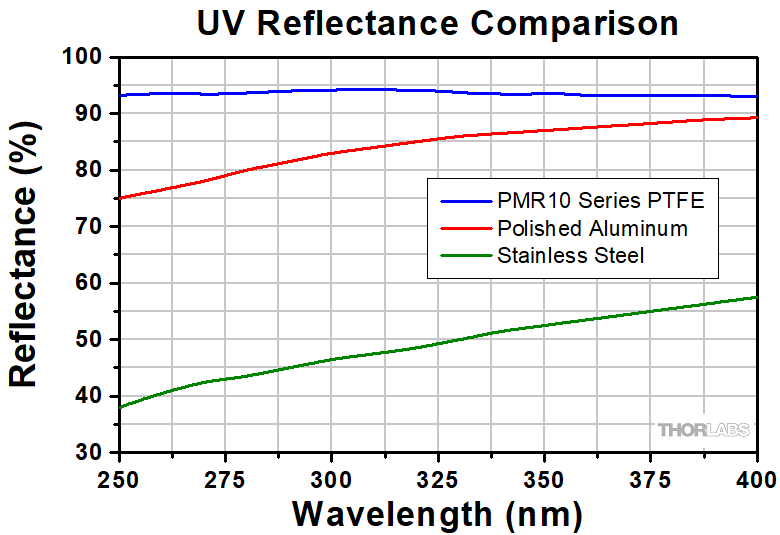

PMR10シリーズのPTFEシートと一般的な金属との反射率の比較

特長

全方向に高い引張強度を有する多孔質の焼結PTFE
ランバート反射に近い特性
R_avg > 93% (250～400 nm)
スカイブ(シェーブ)加工による正確な厚さ制御
疎水性(IP規格に準拠)
標準品と異なる長さのシートをご希望の場合は当社までお問い合わせ下さい。

ポリテトラフルオロエチレン(PTFE)シートは、UV光を高効率で均一に拡散反射するため、UV光照射や対象物の消毒などに適しています。250～400 nmで93%以上の平均反射率を有し、これは研磨されたアルミニウムやステンレススチールよりも優れています(右グラフ参照)。PTFEは化学的に不活性でUV耐性もあり、ポリエチレン、ポリカーボネート、ナイロンなどの一般的なポリマーには見られない特性があります。

焼結およびスカイブ加工
これらのシートは最初にPTFE粒子を焼結して作られますが、そこではまず粒子を熱と圧力で融合させ、凝集した多孔質固体を生成します。この技術により、気孔のサイズや容積などの材料特性を正確に制御できます。次に、この材料をスカイブ加工(バルクから薄層をカットする工程)して、0.75 mmの均一な厚さのシートを生成します。

モールド成形PTFEや延伸PTFE(ePTFE)との比較
焼結してスカイブ加工されたPTFEには、耐屈曲疲労性や全方向への拡散反射特性などのほか、加熱溶接や振動溶接ができるといった多くの利点があります。試験^†では、焼結後にスカイブ加工されたPTFEサンプルは、焼結後にモールド成形されたサンプルのメジアン孔径(約7〜27 µm)に比べて、より小さな一貫したメジアン孔径(約1〜7 µm)を有することも示されています。気孔構造が強固なため、組立て時の取り扱いを安全に行うことができ、エンクロージャの内側または外側に簡単に取り付けることができます。これは押出成形PTFEを加熱延伸して作られる延伸PTFE(ePTFE)とは対照的です。ePTFEはそれを構成するノードとフィブリル(細糸状構造)の強度が低いため壊れやすく、支持層が必要です。さらに、ePTFEメンブレンは温度や圧力にも敏感です。

† 試験はPorex Corporationで実施されています。詳細についてはホワイトペーパーUltraviolet Reflectance of Microporous PTFEをご覧ください。
