真空用グリース
- Vacuum-Compatible Grease to 10-9 Torr
- Vacuum Epoxy Seals Leaks Down to 10-9 Torr
- Excellent for Vacuum and Non-Vacuum Applications
SG10
Silicone Vacuum Grease
TS10
Vacuum Epoxy
GKZ8
Apiezon Grease
Please Wait
シリコーン製真空グリース
このシリコーン製グリースは研究室用の汎用潤滑剤で、炭化水素グリースよりも広い温度範囲(-40°C~260°C)にわたってお使いいただけます。このグリースはゴム製ガスケット、ガラスとゴムの接続、水処理装置のような真空用途と真空以外の用途の両方にお使いいただけます。
Apiezon(アピエゾン)グリース
高い真空度が必要となる用途向けに、当社では潤滑性を高めるためにPTFEを含み最適温度が10°C~30°CのApiezonグリースをご用意しています。このグリースは汎用および10-9 Torrまでの真空用途の両方にお使いいただけます。この製品は使いやすいスポイト(注入器)に入っており、当社のZ9、ZFSおよびZSTアクチュエータの親ネジを再潤滑するのに適しています。
Posted Comments: | |
David McMullin
 (posted 2024-01-22 12:17:21.07) Hello,
I am wondering if I can use either of your vacuum greases within a sealed optics tube assembly? Do I have to worry about migration or off-gassing contaminating lens surfaces?
Thanks very much,
Dave jdelia
 (posted 2024-02-22 01:38:33.0) Thank you for contacting Thorlabs. We have reached out to you directly to discuss your application. user
 (posted 2023-06-03 02:47:58.743) We have used TS10 in our UHV chamber. Can you tell us upto what temp. this epoxy will sustain if we bake our chamber? cdolbashian
 (posted 2023-06-12 08:21:50.0) Thank you for reaching out to us with this inquiry. The upper limit of the operating temperature of this epoxy is 120°C. The entire data sheet can be found with the rest of our supporting documentation by clicking the red "docs" icon to the left of each product number below. marlinne
 (posted 2017-09-27 23:01:41.65) I am looking to bond silicon rubber and titanium and use this in a high temperature (~300C), high vacuum (~1E-7 torr) environment. Would this product be recommended for this application? Thanks for your help. tfrisch
 (posted 2017-11-14 10:25:26.0) Hello, thank you for contacting Thorlabs. 353NDPK can handle 300 °C to 400 °C for brief periods. Furthermore, we do use this epoxy in some of our Polaris series mounts which can be used down to 10^-9 torr. I will reach out to you about the duration that you need to meet that higher temperature range. ckompell
 (posted 2016-08-30 15:32:43.41) Hello, I would like to know if this material has any water content. I am interested in using it to seal materials that are extremely reactive to H2O. Also does this material outgas O2? Thanks, Chris. tfrisch
 (posted 2016-09-01 01:27:28.0) Hello, thank you for contacting Thorlabs. I will reach out to you with our Material Safety Data Sheet and Spec Sheet for TS10. foued.amrani
 (posted 2016-07-08 09:35:48.26) Bonjour,
Je voulais savoir si votre colle TS10 ne dégaze pas sous vide ainsi pollué l’intérieur du milieu sous vide.
Merci par avance.
Bien cordialement. joseangel.garcia
 (posted 2015-09-23 11:42:42.59) Dear Srs
We would like to buy one item of your product TS10 vacuum epoxy. If you can give us an account we will transfer the cost including p&p to:
Departamento de Física Aplicada II
Universidad del Pais Vasco
Campus de Leioa
48940 Bizkaia, Spain
and afterwards you can send it to the above address.
Best regards
Jose A. García shallwig
 (posted 2015-09-24 02:07:27.0) This is a response from Stefan at Thorlabs. Thank you very much for your interest in our products. We will contact you directly and send you a quote for the TS10. slavov_d_g
 (posted 2015-08-17 08:42:28.753) Dear Sir/Madam,
I have a question. My glued fused silica component have to withstand high-vacuum (10^-7 to 10^-8 oC) working continuously at temperatures between 150 0C and 200 oC. Is it Thorseal adhesive (TS10) OK or I have to use 353NDPK?
Best regards
Dimitar Slavov
Institute of Electronics,
Bulgarian Academy of Sciences besembeson
 (posted 2015-09-29 05:22:04.0) Response from Bweh at Thorlabs USA: I would recommend the 353NDPK. When using this in high vacuum environments, I would advise you use the recommended cure schedule of 150 deg for one hour for best results. mvuotila
 (posted 2013-08-08 06:33:23.38) WE are looking for a Vacuum epoxy which can be used short period of times up to 280 °C / 560 °F (reflow of SMD parts).
Can TS10 take this heat?
Matti Vuotila
R&D Manager, Mirion Technologie (RADOS) Oy, Finland jlow
 (posted 2013-08-08 16:06:00.0) Response from Jeremy at Thorlabs: The flash point of the TS10 is quite a bit lower than your requirement and therefore not appropriate for your application. |
- Seals Leaks in Vacuum Equipment Down to 10-9 Torr
- Forms a Reliable, High Strength, Long-Term Bond with Metals, Ceramics, or Glass
- No Solvent Necessary to Evaporate
- At Room Temperature: Hardens in 3 to 4 Hours, Cures in 72 Hours
- Cures in 2 Hours at 60 °C, in 1 Hour at 82 °C, or in 20 to 30 Minutes at 121 °C
- Mixing Ratio (by Volume): 2.5 Parts Resin to 1 Part Hardener
- 82 g (2.9 oz) Base Resin, 36 g (1.3 oz) Hardener
Please note that epoxy resins are prone to solidification or crystallization. If this occurs, the product can easily be returned to a liquid state by immersing the tube in warm [approximately 100 °F (38 °C)] water for 30 minutes. Ensure all material is melted prior to use. Allow the resin component to return to room temperature prior to mixing with the hardener.
This epoxy resin is classified as a dangerous good in some countries. Depending on the delivery location, this item may need to be shipped separately from the rest of your order at an additional charge. Please contact our sales department if there are questions or concerns when placing an order for this item.

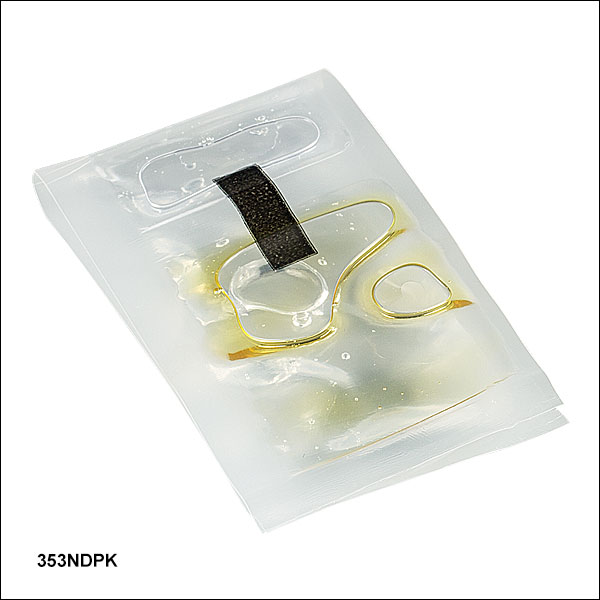

- Excellent Wicking for Fiber Optic Applications
- High Temperature Epoxy - Can Perform at Constant 250 °C
- Passes NASA Low Outgassing Standard ASTM E595 with Proper Cure
- Color Changes Upon Curing From Amber to Dark Red
- Pot Life ≤3 Hours
- Pre-Measured, 4 g Packs
EPO-TEK 353ND is known industry wide as a high temperature epoxy. This two part, 100% solid, heat curing epoxy can be used in applications requiring constant performance at temperatures up to 250 °C. It can handle 250 °C to 350 °C for brief periods. The epoxy is vacuum compatible and passes NASA low outgassing standard ASTM E595. Thorlabs offers 353ND epoxy in pre-measured, 4-gram packs that provide repeatable performance and eliminate the need for measuring.
Dangerous Goods
Please note that 353NDPK is classified as a dangerous good in some countries. Depending on the delivery location, this item may need to be shipped separately from the rest of your order (and possibly with a different carrier) at an additional charge. This 2-part epoxy is stocked within the USA and Germany. Please contact our sales department if there are questions or concerns when placing an order.
Shelf Life
353NDPK Epoxy has a shelf life of 365 days when stored at 23 °C. This time frame begins on the date the epoxy was packaged at the manufacturer. Upon receipt by the end user, Thorlabs guarantees that the remaining shelf life will be at least 3 months.
Click to Enlarge

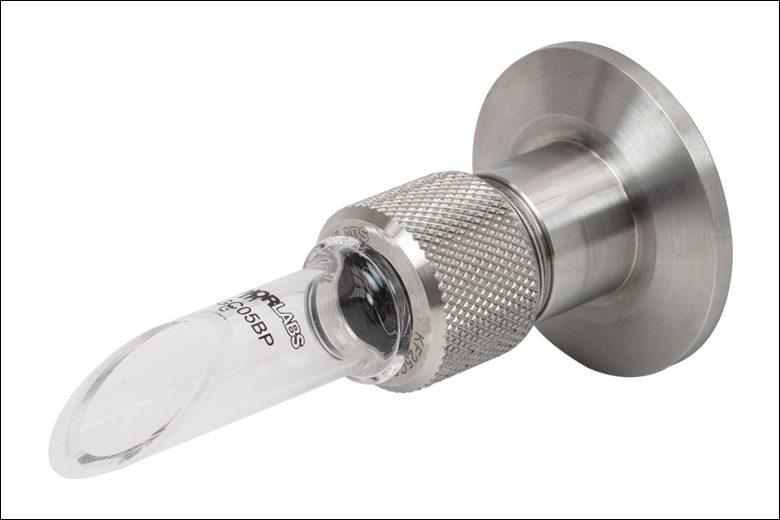

真空用グリースをフランジ-フレアレス管継手用アダプタKF25C050のOリングに塗布することで、このアダプタを用いて光学ポートを真空システムに組み込むことができるようになります。

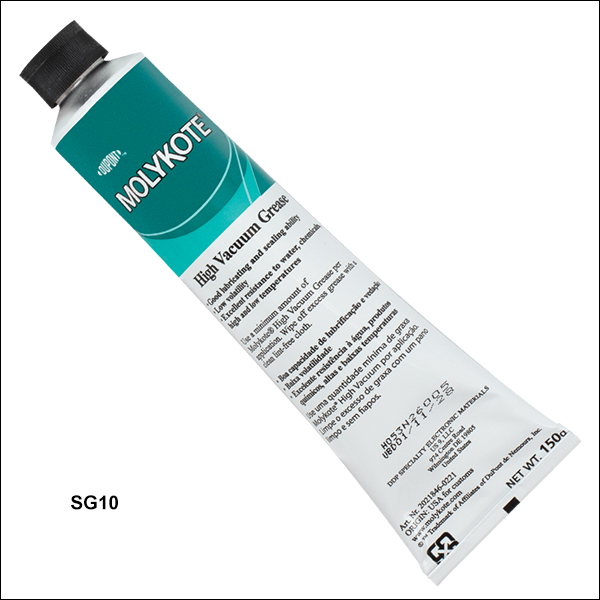

- 炭化水素グリースよりも高い温度範囲(-40 °C~260 °C)
- 推奨真空度 1x10-5 Torr~1x10-6 Torr
- 多くの化学薬品に対して耐性あり
- 150 g入り
このシリコーン製グリースは研究室用の汎用潤滑剤で、一般的に合成ゴムやシリコーンゴム製ガスケットの潤滑や、ガラスとゴムの接続に使われています。このグリースはフルオロシリコーン製のOリングやガスケットにはお使いいただけません。また、この潤滑剤は水を使った装置や一般的な実験装置、双眼鏡や顕微鏡のOリングのような真空以外の用途でも幅広くお使いいただけます。

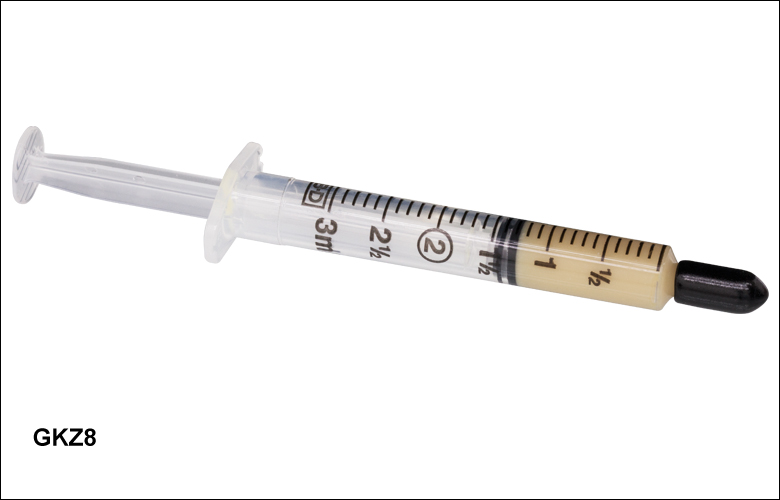

- Apiezon 100グリース1.5 cc注入器入り
- 10-9 Torrまでの真空に対応
- アクチュエータの寿命を延長
- すぐにお使いいただけます。
このアピエゾングリースは当社のZ9、ZFSおよびZSTアクチュエータの親ネジを再潤滑するのに適した製品で、優れた焼付き防止特性を持っています。このグリースには、潤滑力を高めるためにPTFEが含まれ、汎用および真空度10-9 Torrまでの真空用途にお使いいただけます。適切な動作温度範囲は10 °C~30 °Cです。グリースは使いやすい注入器に入っています。
注:アクチュエータZ9、ZFSおよびZSTの送りネジとエンドボールには、10,000サイクルごと、または動作中にきしみ音が聞こえたら潤滑油を差すことをお勧めします。
