熱伝導両面テープ

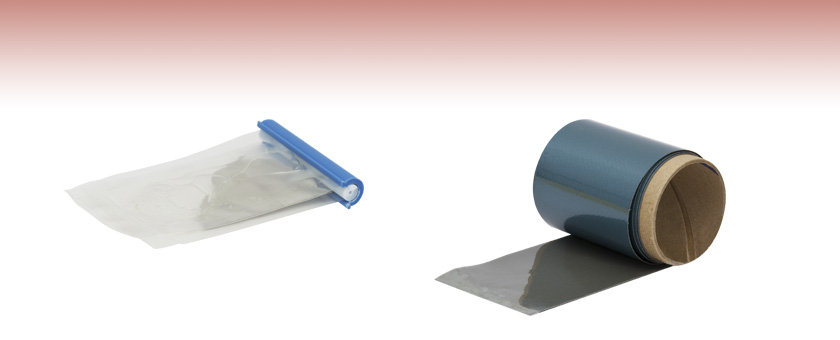

  • Conductive Silver Epoxy
  • Thermally Conductive Double-Sided Tape

EG58

Silver Epoxy 4.4 g

TCDT2

Related Items


Please Wait

当社では2種類のサイズの熱伝導両面テープを販売しています。また、接着剤調合キットも取り扱っております。



Posted Comments:
user  (posted 2022-07-19 12:50:53.33)
Dear Thorlabs, Hi, I am interested in your EG58 conductive adhesive. I want to attach a wire to the gold electrode with conductive adhesive. But I cannot understand how to use EG58 just by looking at the picture. Could you please explain further?
jdelia  (posted 2022-07-19 03:49:42.0)
Thank you for contacting Thorlabs. This type of information can be found in the supporting documents for the EG58, in this case the spec sheet.
agerakis  (posted 2016-08-25 20:46:57.95)
Is there any solvent that can be used to aid the removal of TCDT2? It has stuck on a copper piece and won't come off!
bdada  (posted 2012-04-24 19:17:00.0)
Response from Buki at Thorlabs to sebastien.avila: Thank you for participating in our feedback forum. As the 5810 is silver filled, it should have a correspondingly high thermal conductivity. However, this value has not been tested by the manufacturer. Due to the wide range of applications, temperatures, substrates, and environments in which this product can be used, we recommend first testing its fitness for use in your specific application. We would be happy to provide you with a sample for testing. We have contacted you to provide further assistance.
sebastien.avila  (posted 2012-04-23 12:03:47.0)
Hello, What is the thermal conductivity of the EG58 in W/mK?
bdada  (posted 2012-03-15 14:01:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. Unfortunately, we do not have the spectral absorption data. Please contact us at TechSupport@thorlabs.com if you want to discuss your application further to ensure this epoxy is suitable.
user  (posted 2012-03-13 14:11:50.0)
Is there spectral absorption data available for this product?

Conductive Epoxy

  • Ideal for Mounting Conductive Components that Cannot be Soldered
  • Low Resistance Epoxy Coating or Adhesive, 0.0007 Ohm-cm
  • Lap Shear: 1000 psi
  • Maximum Operating Temperature of 250 °F (121 °C)

Thorlabs offers Electrodag™ 5810 Conductive Epoxy for use in places where soldering is not possible. This two-component epoxy has good electrical and thermal conductivity, featuring a low volume resistance of 0.0007 Ohm-cm and a lap shear of 1000 psi. The silver-filled epoxy has a cure time of 24 hours at room temperature; the cure time can be accelerated to 2 hours at 149 °F (65 °C) or 1 hour at 212 °F (100 °C). The epoxy is packaged in two separate bags with a net weight of 4.4 grams.

The shelf life of EG58 Epoxy will vary depending on the date the epoxy was packaged at the manufacturer. For information on the shelf life of EG58 Epoxy, please contact Tech Support.

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
EG58 Support Documentation
EG58Electrodag 5810 Silver Epoxy 4.4g (日本では販売しておりません)
CALL
7-10 Days

熱伝導両面テープ

  • アクリル接着剤を使った熱伝導両面テープ
  • 厚さ0.229 mm
  • 2種類のサイズをご用意
    • TCDT1:幅25.4 mm x 長さ1219 mm
    • TCDT2:幅50.8 mm x 長さ610 mm
  • 熱硬化性接着剤やネジやクリップによる取付けの代替に適した製品
  • 種々の表面に対する高い接着力
  • 部品に損傷を与えることなく剥がすことも可能

この熱伝導両面粘着テープは、二ホウ化チタンを混ぜた感圧アクリル系粘着剤を延伸アルミニウムに塗布しており、優れた接着力を持ちます。 テープには適合性を最大限にし、空洞を最小限にするためのエンボスパターンが加工されており、熱的、機械的、環境的、化学的に優れた特性を持つ製品となっています。この熱伝導両面テープは、ヒートシンクやサーマルプレートをコンポーネントに取り付けるのに利用でき、クリップ、ネジやメカニカルファスナ、あるいはほかのサーマルコンパウンドを使用する必要がありません。必要がなくなれば、コンポーネントを傷めずに剥がすこともできます。

Item #TCDT1TCDT2
Construction
CarrierExpanded Al
ColorGrey
Thickness0.009" ± 0.001" (0.229 mm ± 0.03 mm)
Thermal
Thermal Impedance @ <1 psi="" td="">0.25 °C-in2/W (1.7 °C-cm2/W)
Thermal Conductivity1.40 W/m-K
Electrical
Voltage BreakdownNA
Volume Resistivity0.013 ohm-cm
Flammability Rating (E140244)Not Rated
Lap Shear Adhesion70 psi (0.483 MPa)
Item #TCDT1TCDT2
Mechanical
Die Shear
Adhesion
Aluminum135 psi (0.931 MPa) @ 25 °C
25 psi (0.172 MPa) @ 150 °C
Copper115 psi (0.793 MPa) @ 25 °C
35 psi (0.241 MPa) @ 150 °C
Aluminum Oxide125 psi (0.862 MPa) @ 25 °C
40 psi (0.276 MPa) @ 150 °C
Creep
Adhesion
25°C, 12 psi (0.083 MPa)> 50 days
150°C, 12 psi (0.083 MPa)> 50 days
Adhesive CTE, -40 to 150 °C400 ppm/°C
Dimensions1" x 48"
(25.4 mm x 1219 mm)
2" x 24"
(50.8 mm x 610 mm)
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
TCDT1 Support Documentation
TCDT1熱伝導両面テープ、25.4 mm x 1219 mm
¥4,550
Today
TCDT2 Support Documentation
TCDT2熱伝導両面テープ、50.8 mm x 610 mm
¥3,101
Today
