Products Homeステッピング＆DCサーボモーター用駆動ケーブル

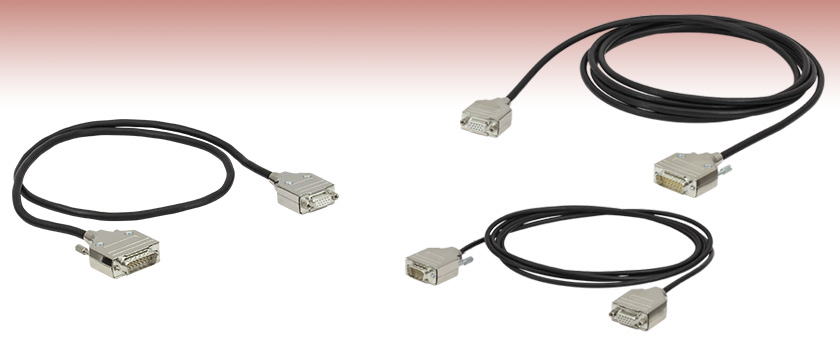

- 1 m or 3 m Long Cables for Use with Thorlabs' Stepper Motors
- 2.5 m Long Cable for Use with Thorlabs' DC Motors
PAA612
15-Pin Stepper Motor Cable, 1 m
PAA632
15-Pin DC Motor Cable, 2.5 m
PAA613
15-Pin Stepper Motor Cable, 3 m
Please Wait
| Electrical Cables Selection Guide | |
|---|---|
| BNC | SMA |
| SMB | SMC |
| SHV | MMCX |
| 6-Pin HIROSE | USB |
| Banana | Piezo |
| Stepper & DC Servo | Detector Power Cable |
| Premium Microwave Cables | |
DRV、ZSTおよびZFSシリーズのステッピングモーターアクチュエータと、Z9シリーズのDCサーボモーターアクチュエータには、コントローラへの接続用ケーブルが付属しています。当社では、エクステンション用としてご使用いただけるケーブルも別途ご用意しています。
ステッピングモータ用ケーブル
当社では様々なステッピングモーターアクチュエータとコントローラの接続にお使いいただけるケーブルをご用意しております。ステッピングモーターアクチュエータZST、ZFSおよびDRVシリーズ、ベンチトップ型コントローラBSCシリーズ、K-Cube®コントローラ KST201、およびラック型制御モジュールMST602との接続をサポートしています。ステッピングモータとコントローラの組み合わせに対して使用可能なケーブルは、下表をご覧ください。各ケーブルのピン配列は「ピン配列」タブに記載されています。なおケーブルのコネクタが同じであっても、ピン配列が適合しないモータとコントローラにはお使いいただけませんのでご注意ください。
DCモータ用ケーブル
PAA632(2.5 m)は、Z9シリーズのDCモーターアクチュエータ用ケーブルです。このケーブルはK-Cube DCサーボモーターコントローラKDC101との接続用に作られています。ケーブルのピン配列は「ピン配列」タブに記載されています。 15ピンコネクタを使っていますが、当社のステッピングモータには対応していません。
  |  |  | |
|---|---|---|---|
| BSC Benchtop Controller and MST602 Rack Controller | KST201 K-Cube Controller | KDC101 K-Cube Controllera | |
 | PAA612 (1 m) or PAA613 (3 m) | PAA614 (1 m)b | - |
| DRV Stepper Motor Actuators | |||
  | - | PAA614 (1 m) | - |
| ZST and ZFS Stepper Motor Actuators | |||
 | - | - | PAA632 (2.5 m) |
| Z9 DC Servo Motor Actuators |

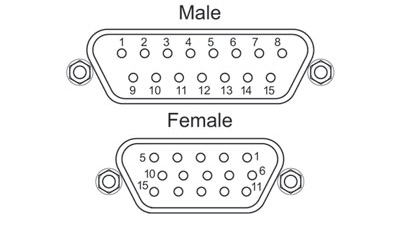

ステッピングモータ用ケーブルPAA612とPAA613
DA15 オス D型 - DE15 メス D型
| DA15 Male Pin | DE15 Female Pin | Description |
|---|---|---|
| 11 and 12 | 1 | Limit Switch Ground |
| 10 | 2 | Reverse Limit Switch |
| 9 | 3 | Forward Limit Switch |
| 7 | 4 | Motor Phase B - |
| 14 | 5 | Motor Phase B + |
| 8 | 6 | Motor Phase A - |
| 15 | 7 | Motor Phase A + |
| 6 | 9 | Reserved for Future Use |
| 5 | 13 | 5 V |

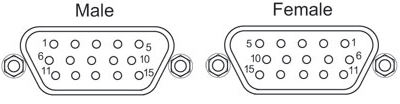

ステッピングモータ用ケーブルPAA632
DE15 オス D型 - DE15 メス D型
| DE15 Male Pin | DE15 Female Pin | Description |
|---|---|---|
| 1 | 1 | Ground |
| 2 | 2 | Forward Limit Switch |
| 3 | 3 | Reverse Limit Switch |
| 5 | 5 | Motor - |
| 7 | 7 | Motor + |
| 10 | 10 | 5 V Encoder Supply |
| 11 | 11 | Encoder Channel A |
| 13 | 13 | Encoder Channel B |
ステッピングモータ用ケーブルPAA614
DE15 オス D型 - DE15 メス D型
| DE15 Male Pin | DE15 Female Pin | Description |
|---|---|---|
| 1 | 1 | Ground |
| 2 | 2 | CCW Limit Switch |
| 3 | 3 | CW Limit Switch |
| 4 | 4 | Motor Phase B - |
| 5 | 5 | Motor Phase B + |
| 6 | 6 | Motor Phase A - |
| 7 | 7 | Motor Phase A + |
| 10 | 10 | +5 VDC |
| 15 | 15 | Ground |
| Posted Comments: | |
Joseph Tokarski
(posted 2024-10-01 16:25:46.327) I would like to get a copy of the Specification Sheet for the PAA632, if one exists, for my records and BOM.
Thank you. dnewnham
(posted 2024-10-07 10:51:41.0) Thank you for your inquiry I will reach out to you directly to discuss this with you. Kelly White
(posted 2024-07-23 11:57:58.45) I need PAA613 with a length of 10m. Can I purchase a VGA cable extension to get the length necessary? do'neill
(posted 2024-07-26 09:14:06.0) Thank you for reaching out. I will reach out to directly to discuss your application and the best way of achieving this. Jon Koon
(posted 2024-03-29 09:18:38.317) Greetings, What is the max length for a cable for the DC Servo motor controllers and motion stages?
We are using MTS25-Z8 and KDC101. Can we use multiple PAA632 cables? Our customer wants to go 15meters, so we would need 6 of the PAA632 cables? Is that possible or not recommended?
Thank you,
Jon - Radiant Vision Systems cstroud
(posted 2024-04-05 04:48:02.0) Thanks for reaching out. We wouldn't recommend chaining cables together as each connection causes loss and subsequently the likelihood of it working without errors is decreased. The maximum length that we are able to provide would be a custom cable with 20m length. I will reach out to you directly to discuss this further. user
(posted 2019-01-29 14:31:22.34) Why should the PAA614 not be used with the Z8 DC Servo Motor Actuators? What is the difference to the PAA632? Are they not both just DE15 Male to DE15 Female cabels with different lengths? rmiron
(posted 2019-04-08 12:47:17.0) Response from Radu at Thorlabs: While both cables have the same connectors, they are wired quite differently. One can see these differences in the pin diagram tab. PAA614 was designed to be used with our non-encoded stepper motor stages or actuators, while PAA632 was designed for encoded, brushed DC Servo stages or actuators. Consequently, PAA614 has four pins who play an active role in powering up a two-phase stepper motor, while PAA632 only has two pins dedicated to powering up a motor. aharon.b
(posted 2019-01-10 05:37:33.22) DA14 and DE15 are all regular connectors widely used.
For example DE15 is used also for VGA.
These connectors cost everywhere about 1 - 2 dollars.
Frequencies of operations are not very high either, so no need for specially high frequency cables.
Thus, wires are not that expensive either.
So why all the wire extension products PAA6xx cost above 50 dollars (some way above 50 $) ?? AManickavasagam
(posted 2019-01-14 11:29:14.0) Response from Arunthathi @ Thorlabs: Thanks for your feedback. I will contact you directly to provide further information regarding the price. andrew_yablon
(posted 2015-05-21 12:08:37.943) I have been waiting for a TST101 motor extension cable such as the PAA614 However, I am disappointed that the PAA614 extension cable is only 1 meter - why don't you have a longer version of the PAA614 such as the PAA632?
Thank you,
Andrew Yablon
andrew_yablon@interfiberanalysis.com mthrossell
(posted 2015-08-25 02:48:12.0) Thank you for contacting us. We can offer PAA614 as a special in lengths of 3 and 5 m. However, we do not recommend going over 5 m as the increase in resistance can cause some signal errors. cjohns
(posted 2007-08-02 11:36:43.0) The cables can be very difficult to find. Please refine the search so searches like "stepper motor cables" will return results. Also, why not put ALL motion control cables on the same page??? |
