Products Homeロングパス色付きガラスフィルター、マウント無し
- Ø25 mm Rounds, 2" x 2" Squares, or 6" x 6" Squares
- Economic Alternative to Thin-Film Interference Filters
- Selection Available in Kits

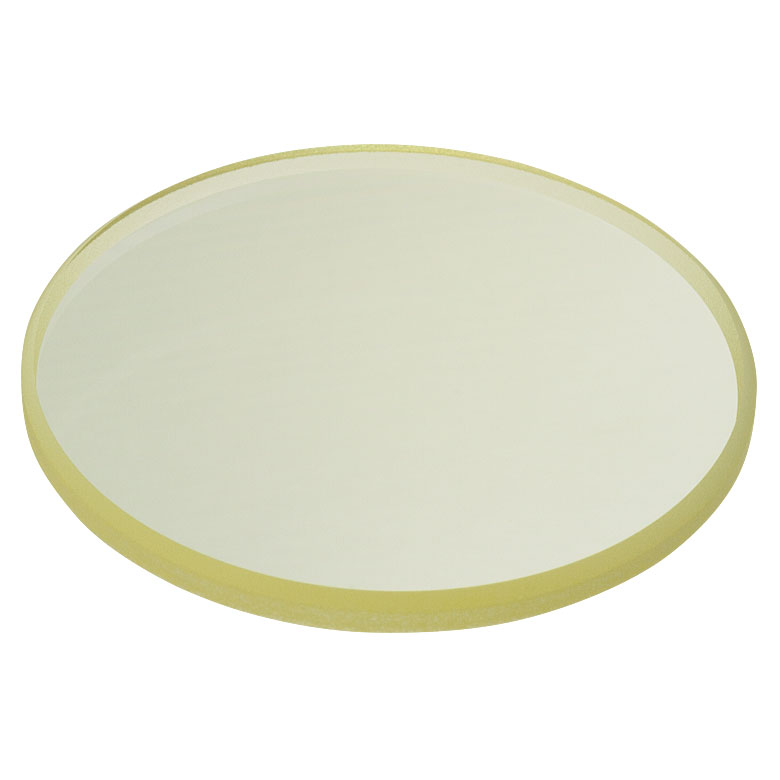

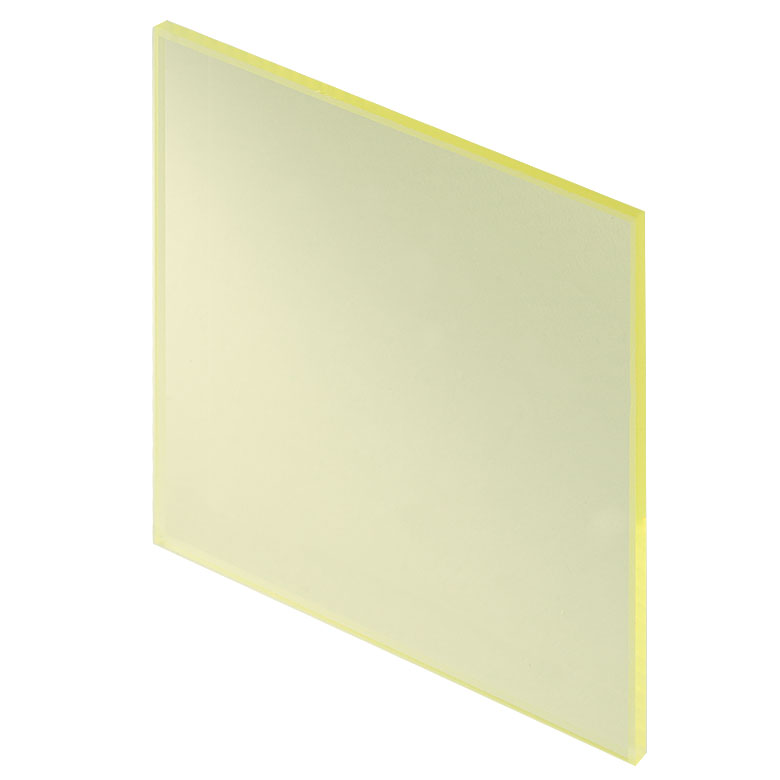

FGL550S
(2" x 2")

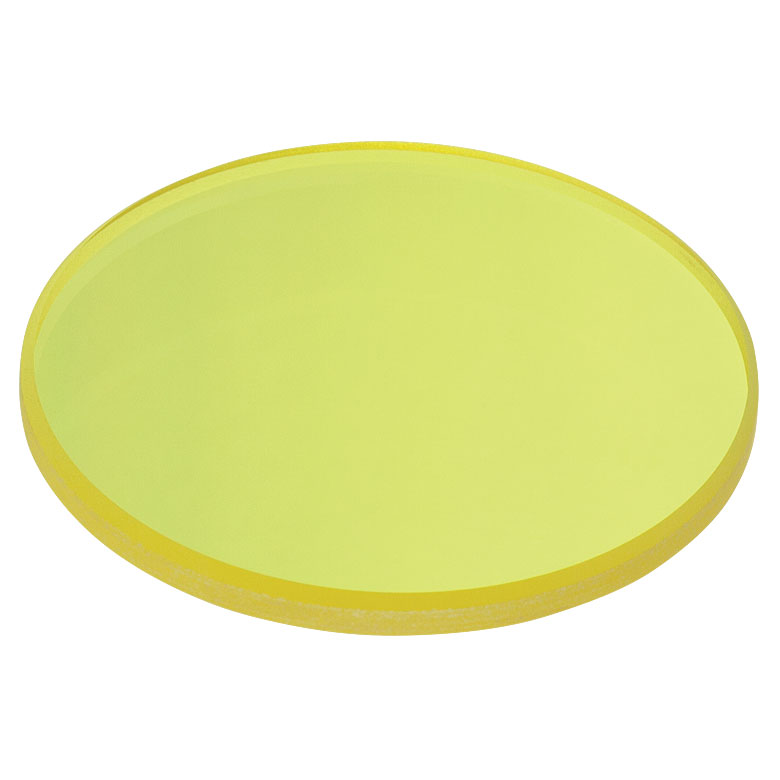

FGL435
FGB67
(Ø25 mm)

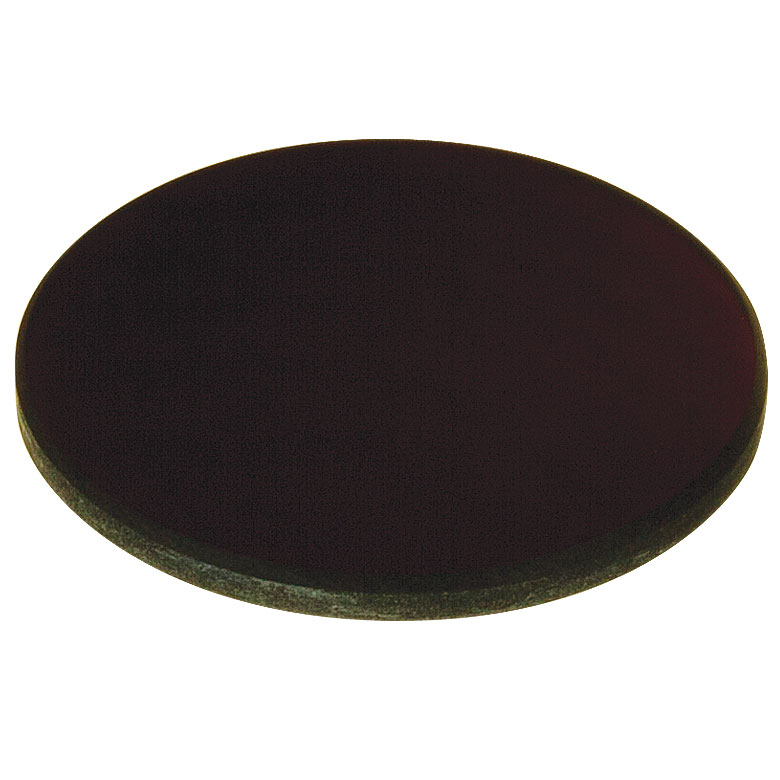

FGL610
FGK01
Please Wait
| General Specifications | |||
|---|---|---|---|
| Size | Ø25 mm | 2" x 2" | 6" x 6" |
| Thickness | 2 mm | 3 mm | |
| Surface Quality | 40-20 Scratch-Dig | ||
| Surface Flatness | < λ @ 632.8 nm | < λ @ 632.8 nm over 1" | |
| Tolerance | +0.0/-0.4 mm (Diameter) | +0.0/-0.4 mm (Length and Width of Square Filter) | |
| Wedge | < 3 arcmin | < 5 arcmin | |
| Clear Aperture | 80% of Diameter | 80% of Length and Width | |
| Material | Schott® Colored Glass | ||
特長
- ロングパス範囲：280～1000 nmのカットオン波長
- Ø25 mm円形、50.8 mm角正方形、152.4 mm角正方形
- ロングパスとバンドパスフィルタのキットもご用意

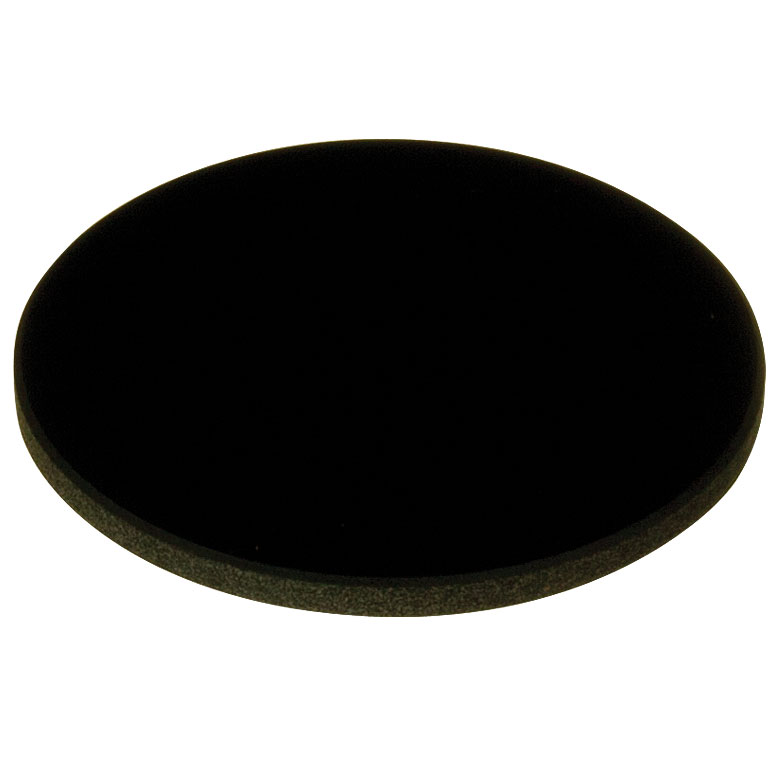

こちらのロングパス色付きガラスフィルタは、Schott®社製の各種ガラス製で、幅広い用途でお使いいただけます。フィルタは円形および正方形をご用意しています。Ø25 mm円形フィルタは当社の手動または電動フィルターホルダ、あるいはレンズチューブに取り付けることができます。Ø25 mmのフィルタはマウント付きでもご用意しています。 50.8 mm角の正方形フィルタのマウント用には、当社の固定式フィルターホルダからお選びください。152.4 mm角のフィルタには、 プレートホルダFP02のご使用をお勧めします。こちらに掲載されているロングパスフィルタの他に、バンドパス色付きガラスフィルタも各種ご用意しています。
当社のフィルタで使用されている色付きガラスのうちのいくつかは、特定の波長で蛍光性を持ちます。蛍光に敏感な用途には、当社の蛍光イメージングフィルタをご検討ください。狭帯域光源には誘電体エッジパスフィルタをお勧めします。
色付きガラスフィルターキット
当社ではもっともよくお使いいただいているバンドパスとロングパスを組み合わせたフィルターキットも2種類ご用意しています。 各製品の詳細につきましては、このページの下方をご覧ください。
保管ケース
個別にお買い求めいただいたフィルタをご使用にならない時は、当社の保管ケースに保管いただくのが安全かつ便利です。 マウント付きØ25 mm円形フィルタ用のボックス(KT01)とマウントなし50.8 mm角正方形フィルタ用のボックス(KT03)をご用意しています。
| Posted Comments: | |
Gurbir Kaur
(posted 2025-04-11 11:18:30.177) Would it be possible to get 6 inch square GG420 colored glass filter, 420nm longpass of 2 mm thickness? YLohia
(posted 2025-04-11 04:01:22.0) Thank you for contacting Thorlabs. Custom item quotes can be requested by clicking the red "Request Quote" button next to the above form. We will contact you directly regarding the possibility of this customization. Jeonghan Lee
(posted 2024-08-01 14:37:45.323) Can FGL570 be mounted in LMR1/M of your product? jdelia
(posted 2024-08-01 11:15:41.0) Thank you for contacting Thorlabs. Yes, you can mount the FGL750 in the LMR1/M and hold it in place using the SM1RR retaining ring that is included with the lens mount. Manuel Lebrón
(posted 2024-03-14 11:43:23.777) We've bought some of these filters at past. Would like to know the refractive index of it. jdelia
(posted 2024-03-14 01:12:47.0) Thank you for your inquiry regarding the FGL830 filter. This filter is made of Schott RG830 glass. This substrate at a 3 mm thickness has a refractive index of 1.560 at 587.6 nm, 1.550 at 852.1 nm, and 1.550 at 1.014 um. Elyn Xie
(posted 2024-01-12 13:36:35.997) Would it be possible to get the FGL455 or FGL435 in a 3-4mm thick 18mm diameter. Thank you jdelia
(posted 2024-01-17 08:51:55.0) Thank you for contacting Thorlabs. I have reached out to you directly to discuss the feasibility of this customized item request. billmylife90
(posted 2019-02-13 20:43:26.577) Is it pass all the IR wavelength band?
Wanna know about the total band from 800 nm ~ 5000 nm ... YLohia
(posted 2019-02-14 11:53:38.0) Hello, thank you for contacting Thorlabs. The transmission of light > 2700nm falls below 50%. I will reach out to you directly with this data. yoav
(posted 2018-02-07 13:54:17.49) Hello. How many you have in-stock? Thanks tfrisch
(posted 2018-02-09 03:49:08.0) Hello, thank you for contacting Thorlabs. I will have a Sales Representative reach out to you with information on the availability of these filters. If you are looking for higher quantities, we should be able to accommodate those needs as well. jasterb
(posted 2017-07-05 12:32:23.21) Would it be possible to get the FGL570 in a 3mm thick 10mm diameter form or alternatively in a 3mm thick 6 inch square? nbayconich
(posted 2017-07-11 11:12:38.0) Thank you for contacting Thorlabs. I will contact you directly about our custom capabilities. mbraithwaite
(posted 2017-02-21 15:50:40.613) I've tested and proofed the FGL9 filter for my application. In the short term can you quote me qty=10 FGL9 filters edged down to 0.375" diameter?
It's possible that I could need qty=1000 FGL9 filters with 0.375" diameter in 4Q17 and higher volumes later. I should know more about longer tern demand by June.
Thanks Michael Braithwaite tfrisch
(posted 2017-02-23 10:19:43.0) Hello, thank you for contacting Thorlabs. Our Tech Support Team will reach out to you about this quote. Carrie_Hsu
(posted 2016-02-19 12:58:02.013) Hi, I'm Hsu from Taiwan. What's the operating temperature of FGL400S? besembeson
(posted 2016-03-03 05:29:22.0) Response from Bweh at Thorlabs USA: You could typically use this in the -50 to 80 deg C temperature environments. jlow
(posted 2013-01-21 16:15:00.0) Response from Jeremy at Thorlabs: The long pass and bandpass filters can be used with Xenon lamp. The specs might differ slightly since the angle of incidence is not 0°. l.costantini
(posted 2013-01-11 16:23:22.247) Hi,
I'm Luca Costantini from Strategie s.r.l. and i should to know if the filter long pass and bandpass operates with xenon lamp tholste
(posted 2012-07-27 17:49:00.0) A response from Tor at Thorlabs to nateb: Thank you very much for contacting us. We also observe fluorescence at 532 nm for this filter - we will update this page with respect to these findings. In the meantime, I will be contacting you to discuss your application. nateb
(posted 2012-07-23 11:30:48.0) Using information from the Schott website and the information contained on the Thorlabs website I chose the FGL590 longpass filter. Unfortunately, I found that the filter fluoresced strongly under 532 nm light.
Using a 15-50 mW 532 DPSS laser I illuminated the backside of the filter and found that there is a visible orange glow emitting from the filter. I would expect an OD5 blocking at this wavelength (532 nm). This fluorescence effect should be listed. tcohen
(posted 2012-07-17 13:49:00.0) Response from Tim at Thorlabs: Thank you for contacting us! I will email you the spectral data. mzlin
(posted 2012-07-16 19:36:05.0) How do these compare to your edgepass filters in slope steepness? I had a difficult time figuring this out with only the graphs showing divisions 100 or 200 nm apart. Would it be possible to email me the spectra of the 715 and 721 longpass colored filters please? Thank you! tcohen
(posted 2012-06-28 14:44:00.0) Response from Tim at Thorlabs: Thank you for your feedback! We have introduced the new FGL570 filters with 25mm OD because of the popularity of the size. We also have a larger version of the CFH1, the CFH2, for 1” diameter filters. If you are interested in ½” filters to retrofit into your system, we should be able to quote this as a custom for you and I have contacted you to discuss this option. cbrideau
(posted 2012-06-27 18:52:41.0) Any chance of getting these in 1/2" round instead of 1"? I'm using the little 1/2" filter holders (CFH1) and I'd like to use these colored glass filters with them. technicalmarketing
(posted 2008-02-14 17:25:57.0) We have double checked and the graphs shown in V19 are incorrect. Please refer to the web for the most up-to-date graphs ghegenbart
(posted 2007-11-20 04:38:25.0) The graph for the BG40 glass in the "Graph" tab is different from the graph shown on the pdf copy of the catalog page in the "Drawings&Documents" tab. |
| Item # (Click for Photo) | Transmission Dataa | Cut-On Wavelength | Schott® Glass # |
|---|---|---|---|

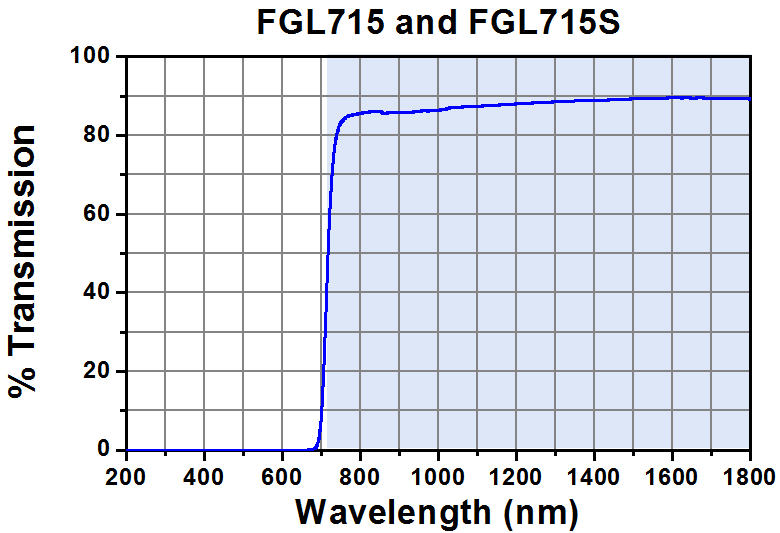

| FGL715b |  | 715 nm | RG715 |
| FGL9 | | 721 nmc | RG9 |

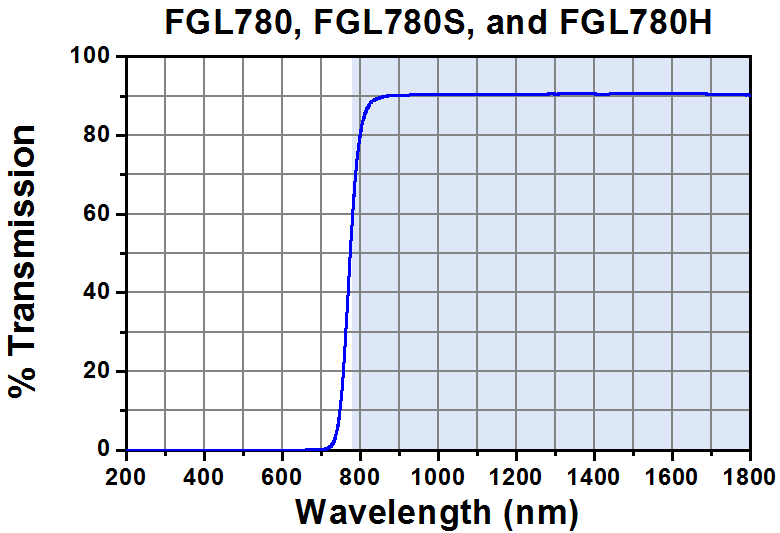

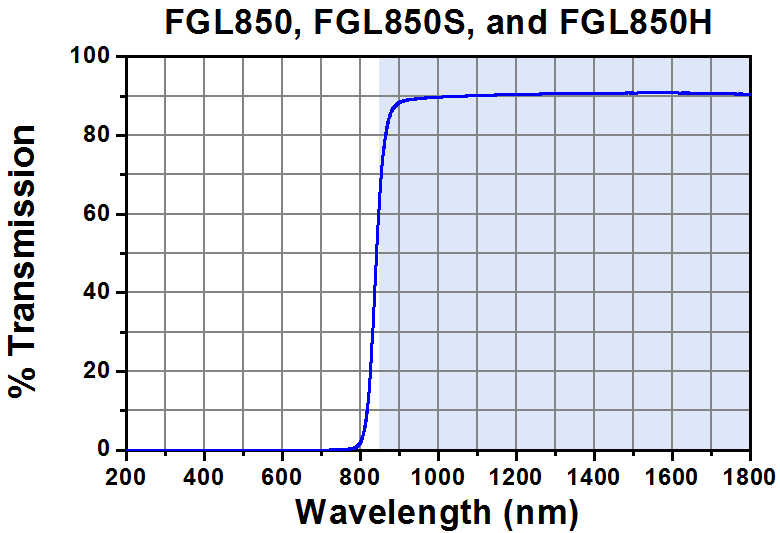

| FGL780b | | 780 nm | RG780 |
| FGL830b | | 830 nm | RG830 |
| FGL850b | | 850 nm | RG850 |

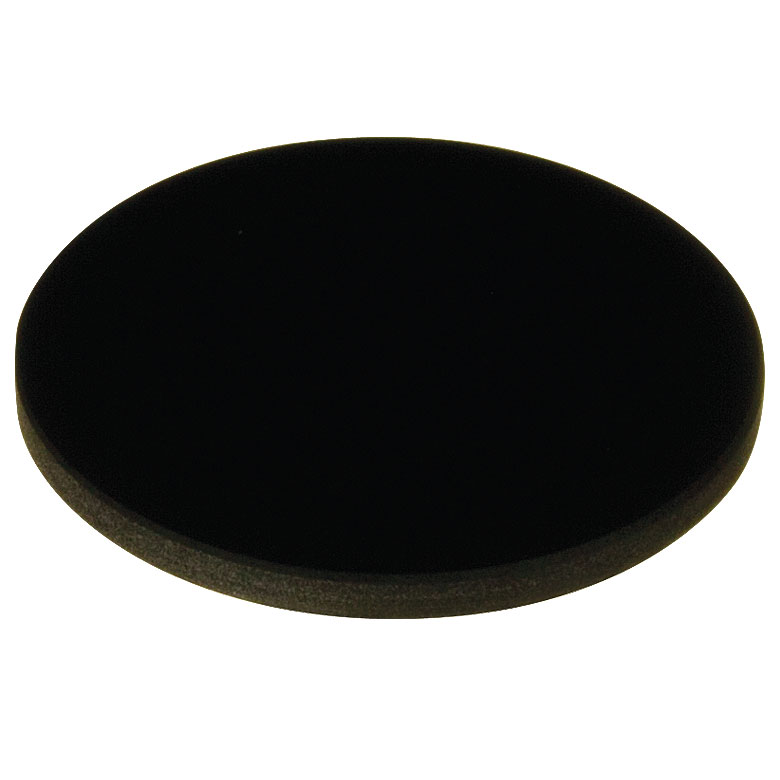

| FGL1000b | | 1000 nm | RG1000 |
- をクリックすると、プロット図やダウンロード可能なデータをご覧いただけます。
- こちらのフィルタはマウント付きでもご用意しています。
- こちらのロングパスフィルタの透過波長範囲は721 nm～1035 nmです。
- 当社の豊富なフィルターホルダに取付け可能
- 厚さ2 mmのSchott®製色付きガラス製
| Item # (Click for Photo) | Transmission Dataa | Cut-On Wavelength | Schott® Glass # |
|---|---|---|---|
| FGL715S | | 715 nm | RG715 |
| FGL780S | | 780 nm | RG780 |
| FGL830S | | 830 nm | RG830 |
| FGL850S | | 850 nm | RG850 |
| FGL1000S | | 1000 nm | RG1000 |
- をクリックすると、プロット図やダウンロード可能なデータをご覧いただけます。
| Item # (Click for Photo) | Transmission Data | Cut-On Wavelength | Schott® Glass # |
|---|---|---|---|

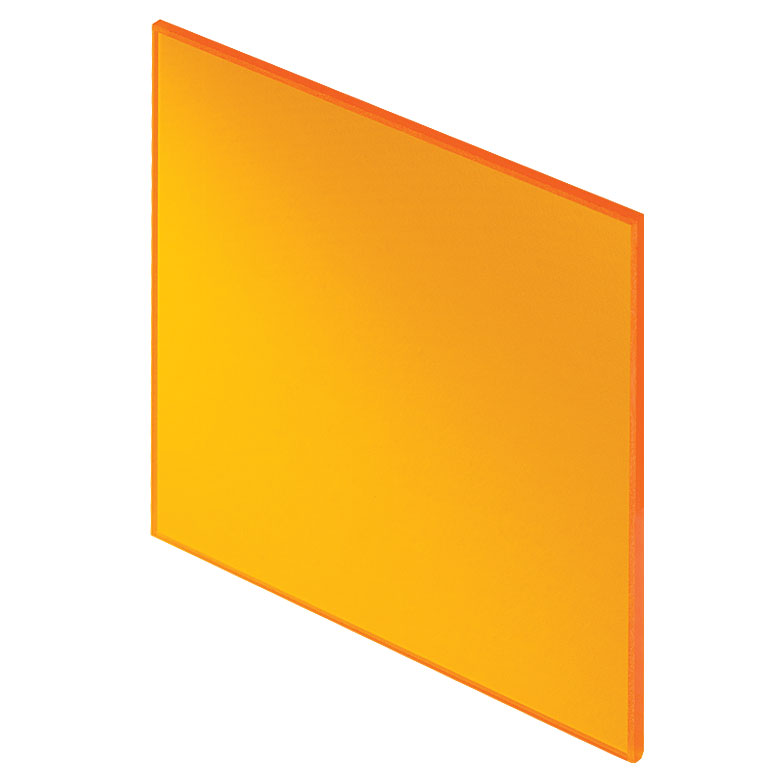

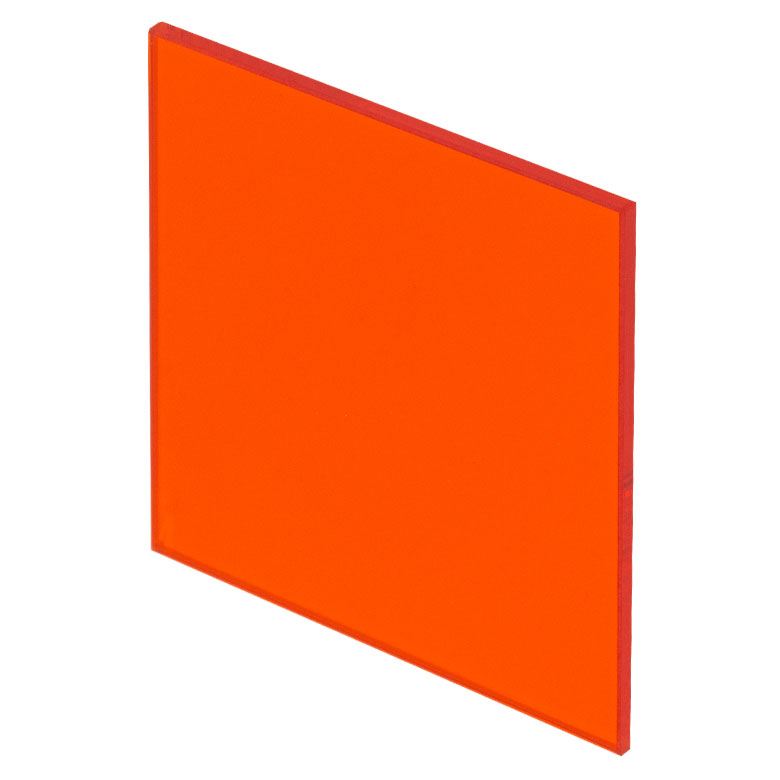

| FGL610H |  | 610 nm | RG610 |
| FGL780H | | 780 nm | RG780 |
| FGL850H | | 850 nm | RG850 |
- をクリックすると、プロット図やダウンロード可能なデータをご覧いただけます。
- 152.4 mm角の大きな表面積により大口径ビームに対応
- プレートホルダFP02を使用してブレッドボードやØ12 mm～Ø12.7 mm(Ø1/2インチ)ポストに取付け可能
- 厚さ3 mmのSchott®製ガラス製
ズーム

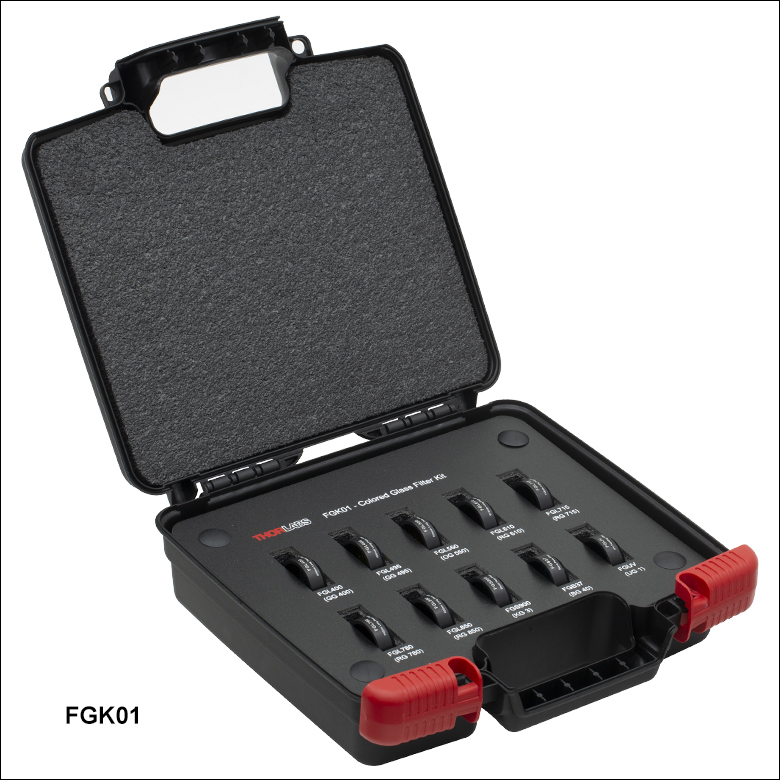

当社では、ニーズの高いロングパスおよびバンドパス色付きガラスフィルタを組み合わせたキットを2種類ご用意しています。色付きガラスフィルターキット FGK01には、Ø25 mmのバンドパスフィルタが3枚とロングパスフィルタが7枚(計10枚)入っています。Ø25 mmフィルタはレンズチューブSM1L03に あらかじめマウントされています。このレンズチューブには、型番とバンドパス範囲(バンドパスフィルタ用)またはカットオン波長(ロングパスフィルタ用) が刻印されています。保管ケースに格納されており、整理がしやすいようそれぞれの保管用溝にはラベルが付いています。また、色付きガラスフィルターキットFGK01Sには、マウント無しの50.8 mm角正方形色付きガラスフィルタ10枚(キットFGK01と同様)が含まれています。
| FGK01 Contents | FGK01S Contents | Bandpass Region or Cut-On Wavelength | Transmission Plot |
|---|---|---|---|

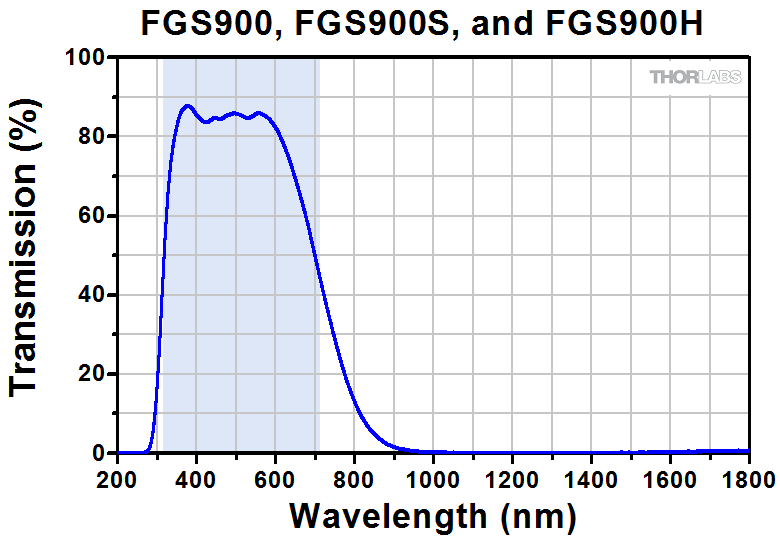

| FGS900M | FGS900S | 315 - 710 nm |  |

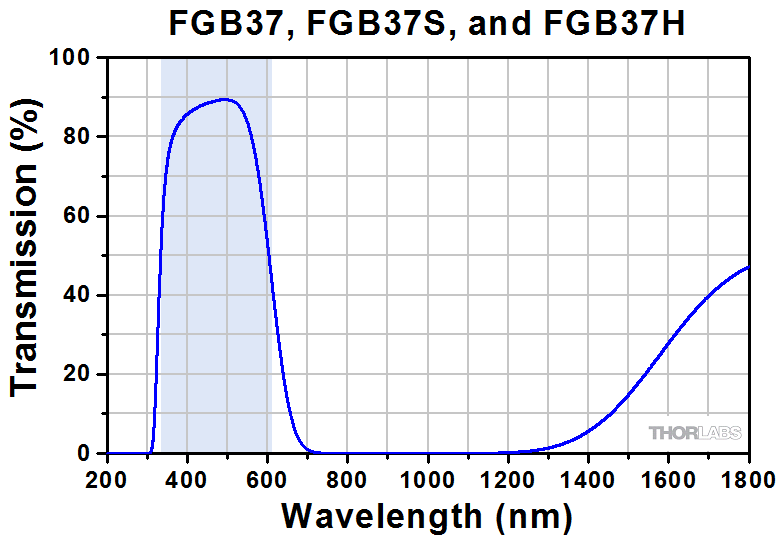

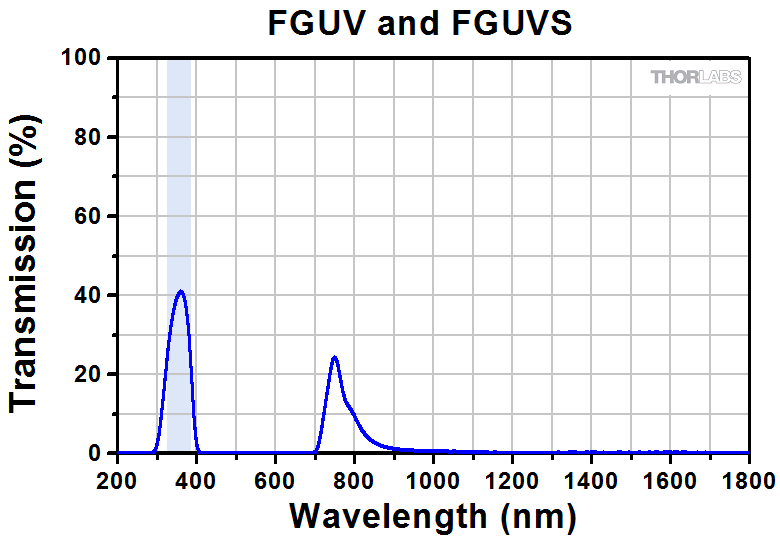

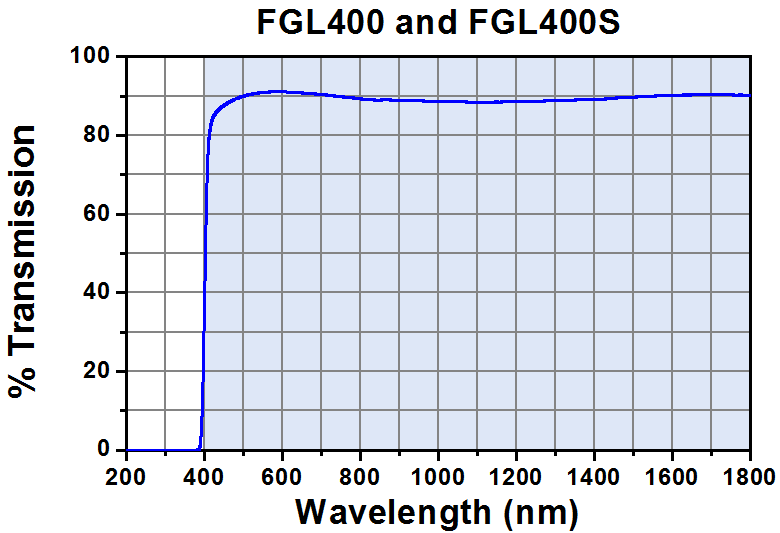

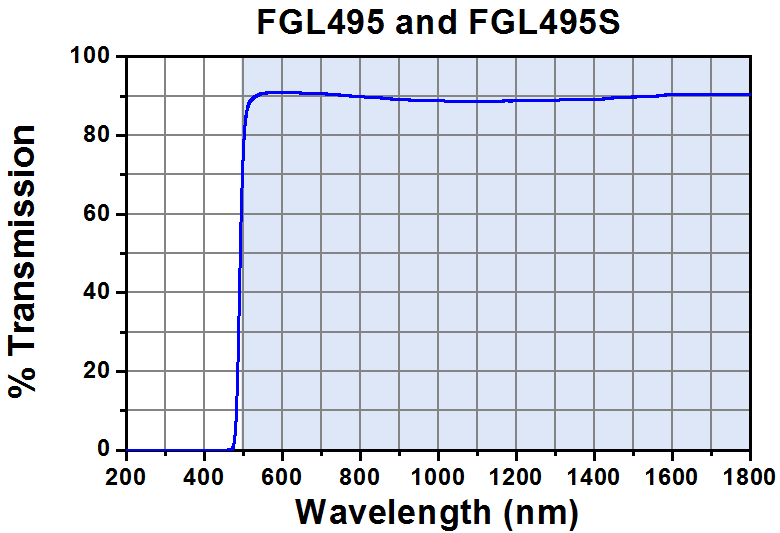

| FGB37M | FGB37S | 335 - 610 nm |  |
| FGUVM | FGUVS | 325 - 385 nm |  |
| FGL400M | FGL400S | 400 nm |  |
| FGL495M | FGL495S | 495 nm |  |

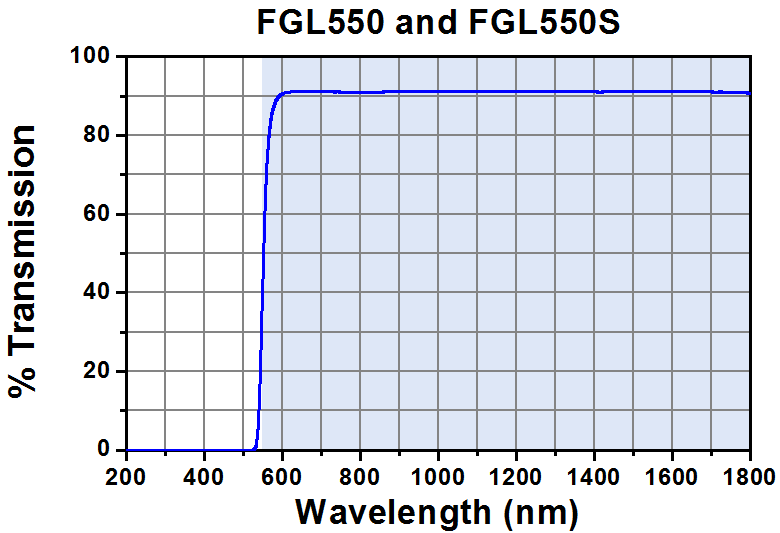

| FGL550M | FGL550S | 550 nm |  |

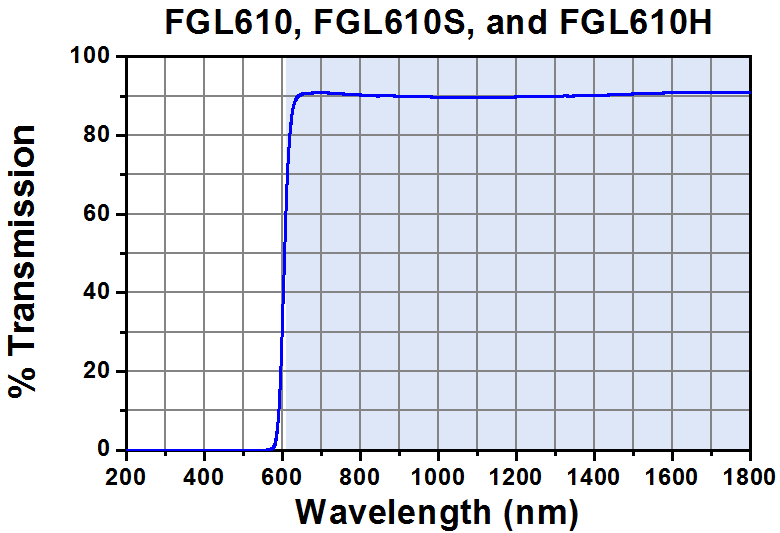

| FGL610M | FGL610S | 610 nm |  |
| FGL715M | FGL715S | 715 nm |  |
| FGL780M | FGL780S | 780 nm |  |
| FGL850M | FGL850S | 850 nm |  |
ズーム

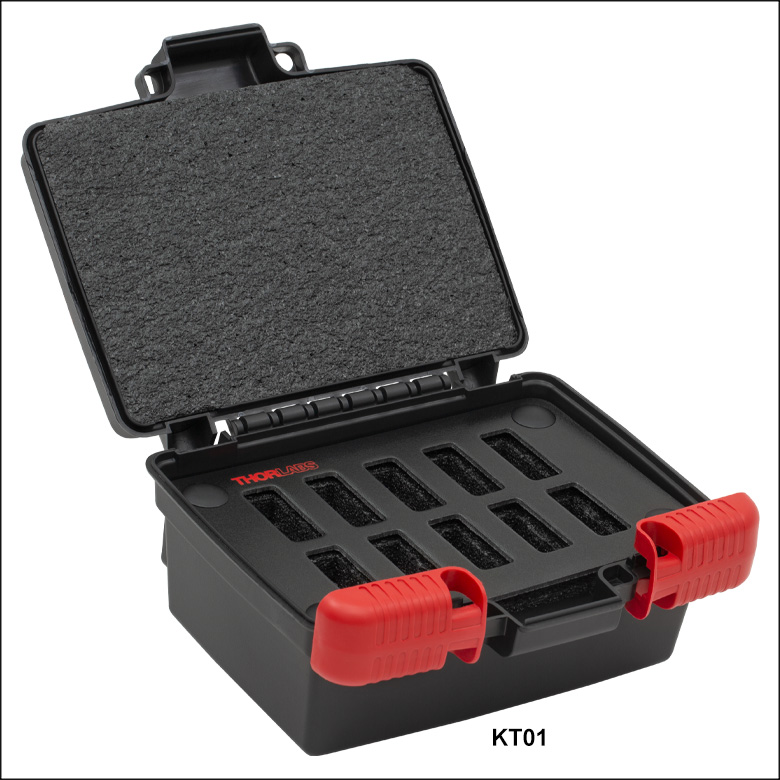

個別にフィルタをご購入いただき、使用しないフィルタを安全かつ便利に保管する場合は、当社の保管ケースKT01およびKT03をご検討ください。当社のフィルターキット用保管ケースと同じケースです。KT01はマウント付きØ25 mm円形フィルタを10枚まで、KT03はマウント無し50.8 mm角フィルタを10枚まで保管することができます。
Additional 色付きガラスフィルター
 ロングパス色付きガラスフィルタ |
