インライン型ファイバー偏光子


  • Passive, In-Line Fiber Polarizers
  • Six Center Wavelengths from 630 to 1550 nm
  • FC/PC or FC/APC Connectors

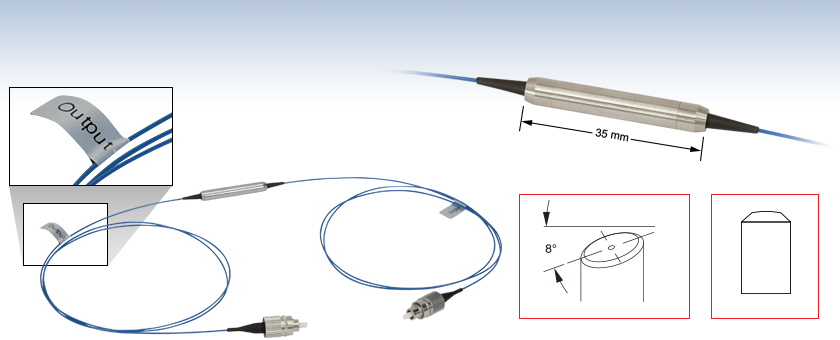

ILP780PM-FC

Small In-Line Package

FC/APC

FC/PC

Labeled
Output and
Input Ends

Related Items


Please Wait
Common Specificationsa
Maximum Power300 mW
Return Lossb≥45 dB
PackageØ5.5 mm x 35 mm
Jacket TypeØ900 μm Loose Furcation Tubing
Pigtail Length0.8 m +0.075 / -0.0 m on Each Side
Connector Key Size2.0 mm Narrow Key
Aligned to Slow Axis
Operating Temperature-5 to 70 °C
Storage Temperature-40 to 80 °C
  • 全ての仕様はコネクタが付いた状態でのものです。
  • 実際の反射減衰量はFC/PCコネクタ付きのモデルよりもFC/APCコネクタ付きモデルのほうが高くなりますが、これは角度付きフェルールが後方反射を最小限に抑えるためです。

特長

  • 小型で耐久性の高い筺体(Ø5.5 x 35 mm)
  • 波長:
    • 630 ± 10 nm
    • 780 ± 10 nm
    • 850 ± 10 nm
    • 980 ± 10 nm
    • 1064 ± 30 nm
    • 1310 ± 50 nm
    • 1550 ± 50 nm
  • FC/PCまたはFC/APCナローキー(2.0 mm)コネクタ
  • 2種類のファイバをご用意:
    • 偏波保持型(PM)
    • シングルモード(SM)ファイバ(1550 nm用のみ)

当社のインライン型ファイバ偏光子は直線偏光を透過し、それと直交する偏光は遮断します。この製品は、各偏光子の仕様によりますが、直交偏光の光を少なくとも23 dB以上減衰するため、高い消光比の偏光状態に変換する用途にご使用いただけます( 「仕様 」タブ参照)。この偏光子は、偏光信号の消光比を高める目的でもお使いいただけます。PMピグテールが付いたタイプは、出射偏光とコネクタのナローキー(2.0 mm)をファイバのスロー軸に合わせています。実際の反射減衰量はFC/PCコネクタ付きのモデルよりもFC/APCコネクタ付きモデルのほうが高くなりますが、これは角度付きフェルールが後方反射を最小限に抑えるためです。

インライン型ファイバ偏光子は、偏光状態の分析、偏光状態のモニタと制御、PMDのモニタや偏光消光比(PER)の改善にお使いいただけます。これらは、偏波保持ファイバ増幅器、ファイバーレーザ、高速通信システム、計測などの用途に適しています。また当社では、このファイバ偏光子とともに使用できるPMパッチケーブルPMピグテール付き半導体レーザおよびPMレーザ光源もご用意しています。

逆方向での使用
このインライン型ファイバ偏光子のピグテール付きの先端には、ご使用しやすいように「Input」または「Output」の印をつけています。この偏光子は逆方向でも使用できますが、その条件では挿入損失や消光比を含む全ての仕様値が、このページや「仕様 」タブ内で示された数値と異なる場合があります。

Fiber Polarization Control Selection Guide
Polarization ControllersLinear Polarizers
Paddle Fiber Polarization ControllersIn-Line Fiber Polarization ControllerFree-Space Fiber BenchPolarizing FiberIn-Line Fiber PolarizersPolarizing Fiber
Manual Paddle Fiber Polarization ControllersIn-Line Manual Fiber Polarization ControllerFree-Space FiberBenchFaraday MirrorsIn-Line Fiber PolarizersPolarizing Fiber

Posted Comments:
Amruthaa Sundararaj  (posted 2023-11-06 10:48:35.717)
Please provide an SM to PM version of these inline polarizers. Most of my applications involve using a fiber polarization controller and inline polarizers to go from SM to PM to control the optical power as well as polarization.
cdolbashian  (posted 2023-11-15 10:12:32.0)
Thank you for this suggestion! I have submitted this to our internal product development team so that it may be considered for a future release.
user  (posted 2022-09-28 15:30:28.103)
Hi, I can see that the central wavelength tolerance for this product is +-50 nm from 1550. Do you have any measurement/data to suggest I can extend the use of this all the way, for example, to 1650 nm? How will this impact the experiment? Alternatively, do you offer something similar that operates well all the way from 1500 nm to 1700 nm? Any comments/leads/suggestions would be highly appreciated. -BR Ashik
jgreschler  (posted 2022-10-19 04:17:49.0)
Thank you for reaching out to Thorlabs. The polarization extinction ratio (26 db min/ 28db typ) is only guaranteed for wavelengths within the range specified, operating outside that range will impact the effectiveness of the device.
akn akn  (posted 2022-08-23 13:56:03.023)
Kindly confirm the Numerical aperture i.e. NA of the PM fiber used in ILP1550PM-APC
jgreschler  (posted 2022-09-14 03:36:23.0)
Thank you for reaching out to Thorlabs. Additional specifications and data can be requested by contacting techsupport@thorlabs.com. I have reached out to you directly with further details.
Luis Herrera  (posted 2022-06-29 08:00:08.05)
Good afternoon. I have a doubt about the in-line polarizer: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=5922 In which polarization is the output of the in-line polarizer ?? I mean, a PBS (polarization beam splitter) saparates light in its components :Horizontal and Vertical, thus in the case of in-line polarizer, which component is in the output, the vertical or the horizontal ?? (note that the reference is that the key of the connector are aligned to the slow axis) Thank you very much. Luis
cdolbashian  (posted 2022-07-06 11:45:13.0)
Thank you for reaching out to us with this confusion. Noted on the overview page: "... the output polarization and 2.0 mm narrow key of the connector are aligned to the slow axis of the fiber."
Volkmar Schultze  (posted 2020-11-19 07:28:22.177)
I'm looking for an In-Line Fiber Optic Polarizers for 894nm wavelength (and with FC/(APC connector). Can you offer this? And to which conditions?
YLohia  (posted 2020-11-19 10:19:22.0)
Thank you for contacting Thorlabs. Quotes for custom items can be requested by clicking the red "Request Quote" button above or emailing your local Thorlabs Tech Support team (europe@thorlabs.com in your case). We will discuss the possibility of offering this directly.
Tong Wang  (posted 2020-10-12 22:56:17.8)
想请问一下该光纤起偏器的工作原理是什么?货期大概多长时间
YLohia  (posted 2020-10-13 09:40:26.0)
Thank you for contacting Thorlabs. An applications engineer from our team in China (techsupport-cn@thorlabs.com) will contact you directly.
Ali Altaher  (posted 2019-04-15 03:21:30.61)
Hi How much it cost if I need you to manufacture a 640 nm wavelength of operation, and what time it take? Also, I need to know what is the kind of polarization controlling that is happening here. Thank you
YLohia  (posted 2019-04-15 11:48:12.0)
Hello, thank you for contacting Thorlabs. Quotes for custom items can be requested by clicking the red "Request Quote" button above or emailing your local Thorlabs Tech Support team (techsupport.uk@thorlabs.com in your case). I will reach out to you directly to discuss the possibility of offering this.
x.a.attendu  (posted 2019-03-08 08:40:48.94)
Dear Sir/Madam, I was wondering if a 1310 nm, SM pigtailed FC/APC option would be available ? Thanks in advance
llamb  (posted 2019-03-13 08:23:20.0)
Thank you for contacting Thorlabs. For quote requests for custom items, you may reach out to your local Tech Support team (Europe@thorlabs.com in your case). Also, using a polarizer with single mode fiber will not maintain the output polarization, so we will reach out to you directly by email in this case to discuss your application further.
549654706  (posted 2019-01-15 17:24:38.147)
Do you have the in-line fiber polarizers whcih have the center wavelength of 2000nm ?
YLohia  (posted 2019-01-15 12:43:14.0)
Hello, thank you for contacting Thorlabs. Quotes for custom items can be requested by emailing your local Thorlabs Tech Support team (techsupport-cn@thorlabs.com in your case). I will reach out to you directly to discuss the possibility of offering this.
Andrew  (posted 2018-06-28 11:05:29.71)
Hi, According to Malus's Law, polarizer has to pass 0.5 or 3dB of input light. Your specification points less than 1 dB. Where is the hint? :-) Or it is necessary to add 3 dB to spec? Thanks!
YLohia  (posted 2018-07-03 10:30:04.0)
Hello, thank you for contacting Thorlabs. The spec you are referring to is the insertion loss of the unit, which includes fiber-to-fiber coupling, etc.
bsslv  (posted 2018-05-30 03:28:26.453)
Hi, My name is Sung, and just wanna ask about this device, ILP1550PM-FC. I already know PM means Polarization Maintaining, and what is the role of the part of 'Small in-Line package' ? AND Why this device is called likes 'polarizers' ? Is this makes some polarization? As I known by checking the spec sheet, I could not found about the information whether it makes TM or TE polarization. Is it right? Yes, That's all. Thx. Best regard,
YLohia  (posted 2018-05-31 11:26:23.0)
Hi Sung, the "small in-line package" refers to the fact that the polarization module is "in-line" with the fiber and is quite small (35 mm long with a 5 mm diameter). These units can polarize light by taking in unpolarized light and only passing through one linear state (aligned to the slow axis of the fiber). TE or TM polarization only have meaning in the context of a defined reference plane. The relevant information here is that the slow axis of the fiber is aligned to the connector key, so depending on the orientation of your output fiber key, you can get a linear polarization state at any arbitrary angle.
melanie  (posted 2018-01-30 15:21:48.993)
can you do these at 635 nm please as they are so very useful !
nbayconich  (posted 2018-03-27 10:00:34.0)
Thank you for contacting Thorlabs. We can provide a custom in line fiber polarizer for 635nm, I will contact you directly with more information about our custom capabilities.
o.puncken  (posted 2017-11-08 12:02:52.81)
Dear Sir or madam, we recently bought an in-line polarizer for 1550nm to build a linearly polarized Erbium ASE source: We pump an Er-doped non-pm fiber, to create some broad unpolarized fluorescence. We then spliced an ILP1550PM-AC to this setup and measured the PER with a combination of half waveplate and PBS, which was only 1:2. The fiber cores of the EDF and the polarizer match. An additional quarter waveplate fixes the bad PER, but in the end we need an all-fiber setup. Any ideas on this ? Best regards, Oliver Puncken Laser Zentrum Hannover e.V. Tel.: +49 511 2788 377
tfrisch  (posted 2018-01-16 04:23:36.0)
Hello, thank you for contacting Thorlabs. The most common reason for a poor extinction ratio would be a significant portion of the spectrum outside the operating band of the filter (1550nm ± 50nm). I will reach out to you to discuss the source you are using and your expected output spectrum from the fiber.
user  (posted 2017-01-31 17:36:56.1)
For the isolators with PM fiber patch-cords, which fiber axis is transmitted please? i.e. does it block the fast or the slow axis? Many thanks.
tcampbell  (posted 2017-02-02 12:34:37.0)
Response from Tim at Thorlabs: thank you for your question. The output polarization is aligned with the slow axis of the fiber, while the fast axis is blocked. The 2.0 mm narrow key of the connector is also aligned with the slow axis of the fiber, so the orientation of the connector will indicate the direction of output polarization.
emeyersc  (posted 2014-05-27 15:19:33.993)
I am interested in using the ILP1550SM to co-polarize a few different co-propagating laser fields, e.g. at 1400nm, 1550nm and 1600 nm. What happens if 1400nm light is sent through the polarizer? Does it polarize correctly but poorly, or does it transmit a different polarization than the wavelengths within spec?
myanakas  (posted 2014-06-11 10:10:46.0)
Response from Mike at Thorlabs: Thank you for your feedback. It is possible to polarize the fiber at that wavelength but we cannot guarantee the extinction ratio through the fiber. Also, the fiber may propagate a second mode so the signal may not be the best. If you mandrel wrap the fiber you can possibly eliminate that second mode.
Back to Top

インライン型ファイバ偏光子、630 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP630PM-FC630 nm±10 nm1.6 dB (Typ.) / ≤1.8 dB (Max) ≥22 dB (Min) / 24 dB (Typ.)PM630-HPFC/PC
ILP630PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP630PM-FC Support Documentation
ILP630PM-FCIn-Line Fiber Polarizer, 630 ± 10 nm, PM/PM Pigtail, FC/PC
¥69,696
7-10 Days
ILP630PM-APC Support Documentation
ILP630PM-APCIn-Line Fiber Polarizer, 630 ± 10 nm, PM/PM Pigtail, FC/APC
¥72,631
7-10 Days
Back to Top

インライン型ファイバ偏光子、780 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP780PM-FC780 nm±10 nm1.1 dB (Typ.) / ≤1.3 dB (Max)≥23 dB (Min) / 26 dB (Typ.)PM780-HPFC/PC
ILP780PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP780PM-FC Support Documentation
ILP780PM-FCIn-Line Fiber Polarizer, 780 ± 10 nm, PM/PM Pigtail, FC/PC
¥61,479
7-10 Days
ILP780PM-APC Support Documentation
ILP780PM-APCIn-Line Fiber Polarizer, 780 ± 10 nm, PM/PM Pigtail, FC/APC
¥64,853
Lead Time
Back to Top

インライン型ファイバ偏光子、850 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP850PM-FC850 nm±10 nm1.1 dB (Typ.) / ≤1.3 dB (Max)≥23 dB (Min) / 26 dB (Typ.)PM780-HPFC/PC
ILP850PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP850PM-FC Support Documentation
ILP850PM-FCIn-Line Fiber Polarizer, 850 ± 10 nm, PM/PM Pigtail, FC/PC
¥57,224
7-10 Days
ILP850PM-APC Support Documentation
ILP850PM-APCIn-Line Fiber Polarizer, 850 ± 10 nm, PM/PM Pigtail, FC/APC
¥60,451
7-10 Days
Back to Top

インライン型ファイバ偏光子、980 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP980PM-FC980 nm±10 nm1.0 dB (Typ.) / ≤1.2 dB (Max)≥23 dB (Min) / 26 dB (Typ.)Fujikura SM98-PS-U25DFC/PC
ILP980PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP980PM-FC Support Documentation
ILP980PM-FCIn-Line Fiber Polarizer, 980 ± 10 nm, PM/PM Pigtail, FC/PC
¥51,428
7-10 Days
ILP980PM-APC Support Documentation
ILP980PM-APCIn-Line Fiber Polarizer, 980 ± 10 nm, PM/PM Pigtail, FC/APC
¥54,845
7-10 Days
Back to Top

インライン型ファイバ偏光子、1064 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP1064PM-FC1064 nm±30 nm0.70 dB (Typ.) / ≤0.90 dB (Max)≥26 dB (Min) / 28 dB (Typ.)Fujikura SM98-PS-U25DFC/PC
ILP1064PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP1064PM-FC Support Documentation
ILP1064PM-FCIn-Line Fiber Polarizer, 1064 ± 30 nm, PM/PM Pigtail, FC/PC
¥55,822
7-10 Days
ILP1064PM-APC Support Documentation
ILP1064PM-APCIn-Line Fiber Polarizer, 1064 ± 30 nm, PM/PM Pigtail, FC/APC
¥59,400
7-10 Days
Back to Top

インライン型ファイバ偏光子、1310 nm

Item #aCenter WavelengthBandwidthInsertion LossbExtinction RatiobFiber TypeConnectors
ILP1310PM-FC1310 nm±50 nm0.60 dB (Typ.) / ≤0.80 dB (Max)≥26 dB (Min) / 28 dB (Typ.)Fujikura SM13-PS-U25DFC/PC
ILP1310PM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP1310PM-FC Support Documentation
ILP1310PM-FCIn-Line Fiber Polarizer, 1310 ± 50 nm, PM/PM Pigtail, FC/PC
¥52,404
7-10 Days
ILP1310PM-APC Support Documentation
ILP1310PM-APCIn-Line Fiber Polarizer, 1310 ± 50 nm, PM/PM Pigtail, FC/APC
¥55,822
Today
Back to Top

インライン型ファイバ偏光子、1550 nm

Item #aCenter
Wavelength
BandwidthInsertion LossbPolarization-
Dependent Loss
Extinction RatiobFiber TypeConnectors
ILP1550PM-FC1550 nm±50 nm0.60 dB (Typ.) / ≤0.80 dB (Max)N/A≥26 dB (Min) / 28 dB (Typ.)Fujikura SM15-PS-U25DFC/PC
ILP1550PM-APCFC/APC
ILP1550SM-FC1550 nm±50 nm0.60 dB (Typ.) / ≤0.80 dB (Max)≤28 dBN/ASMF-28e+FC/PC
ILP1550SM-APCFC/APC
  • 全ての仕様はコネクタが付いた状態で設定されています。
  • 23 °Cにおいて全帯域幅全体にわたる仕様値
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ILP1550PM-FC Support Documentation
ILP1550PM-FCIn-Line Fiber Polarizer, 1550 ± 50 nm, PM/PM Pigtail, FC/PC
¥52,404
Today
ILP1550PM-APC Support Documentation
ILP1550PM-APCIn-Line Fiber Polarizer, 1550 ± 50 nm, PM/PM Pigtail, FC/APC
¥55,822
Today
ILP1550SM-FC Support Documentation
ILP1550SM-FCIn-Line Fiber Polarizer, 1550 ± 50 nm, SM/SM Pigtail, FC/PC
¥38,408
Today
ILP1550SM-APC Support Documentation
ILP1550SM-APCIn-Line Fiber Polarizer, 1550 ± 50 nm, SM/SM Pigtail, FC/APC
¥41,988
7-10 Days
