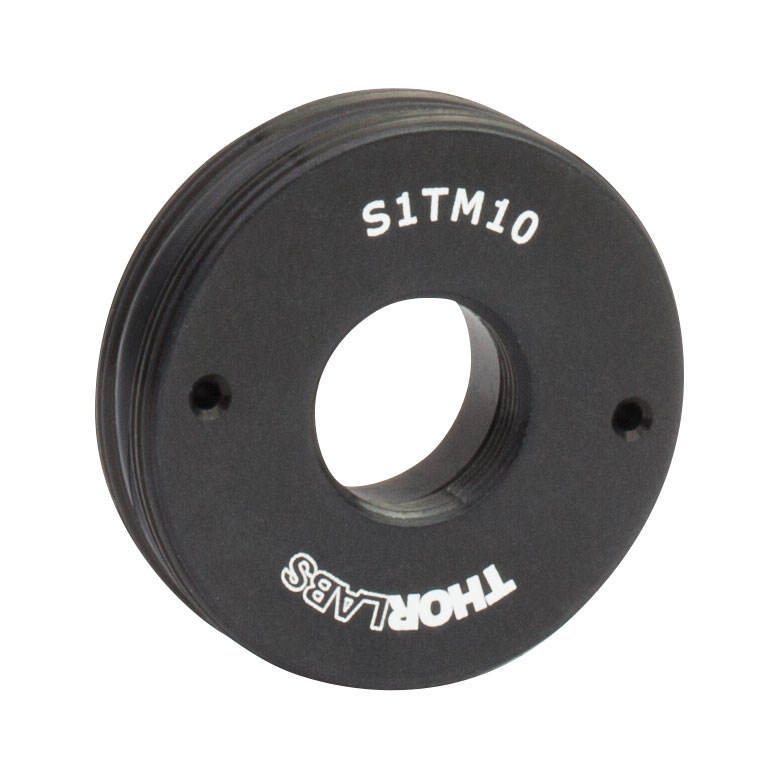

- M6, M8, M9, M10, and M12-Threaded Adapters for Mounted Aspheric Lenses

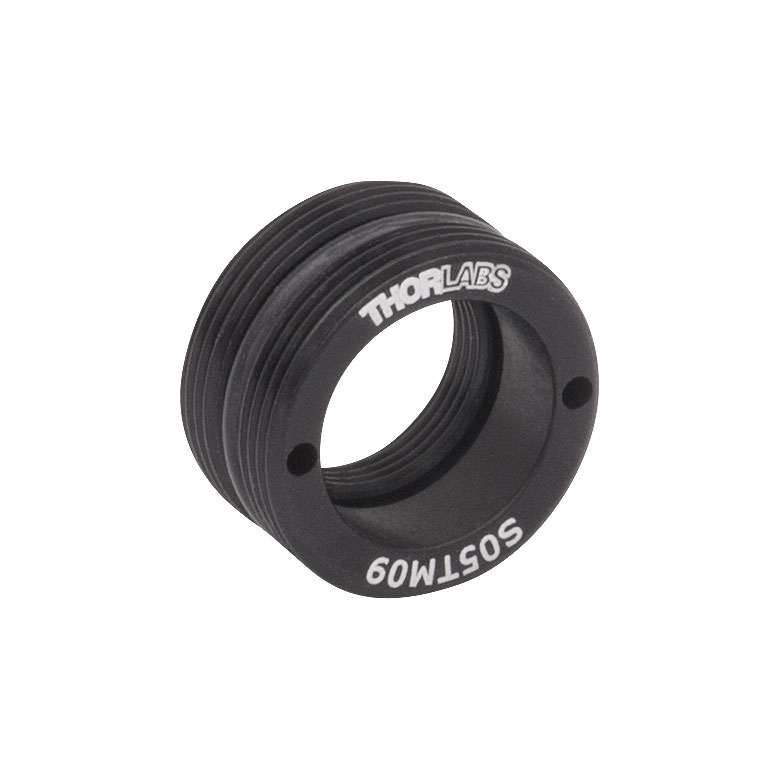

- Externally SM05-, RMS-, or SM1-Threaded Options

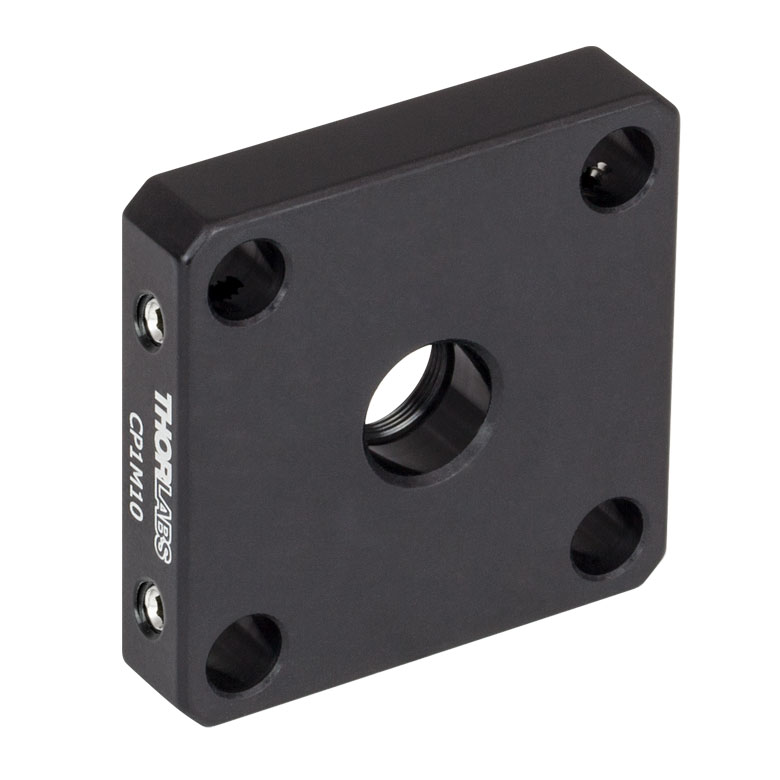

- 30 mm Cage Plate Mounts Also Available

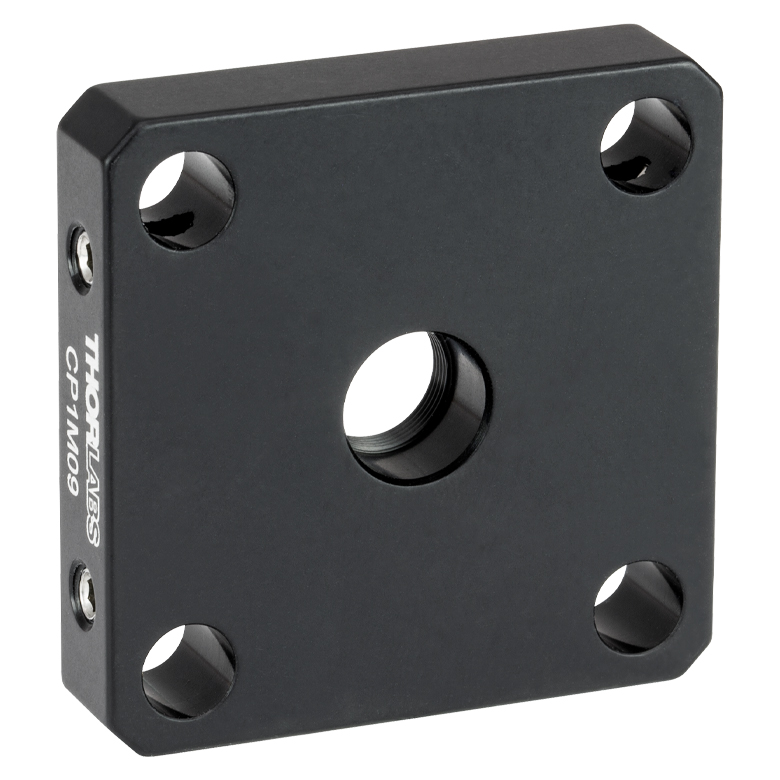

CP1M09
M9-Threaded 30 mm Cage Plate

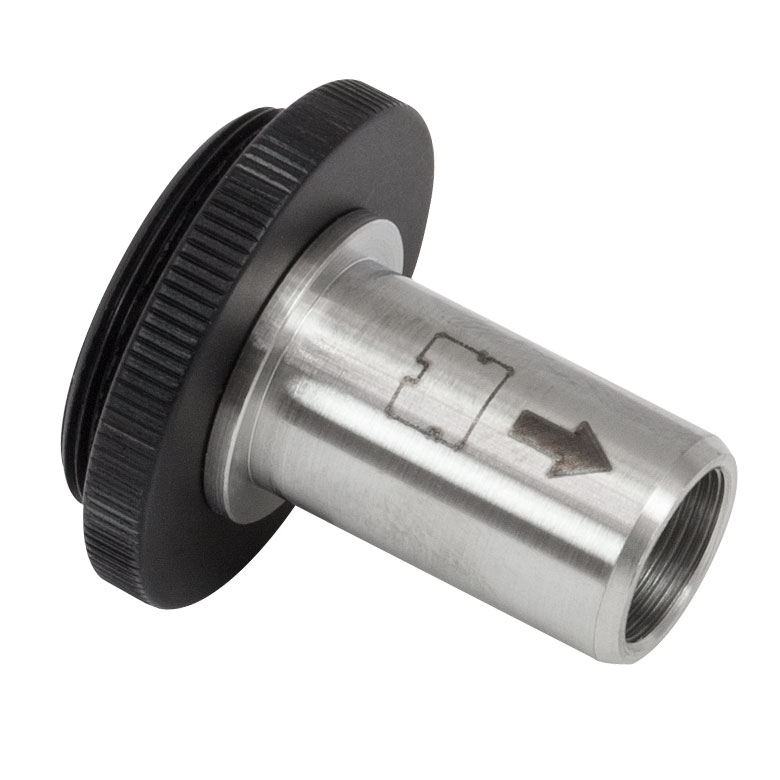

RMS09
M9 to RMS Adapter

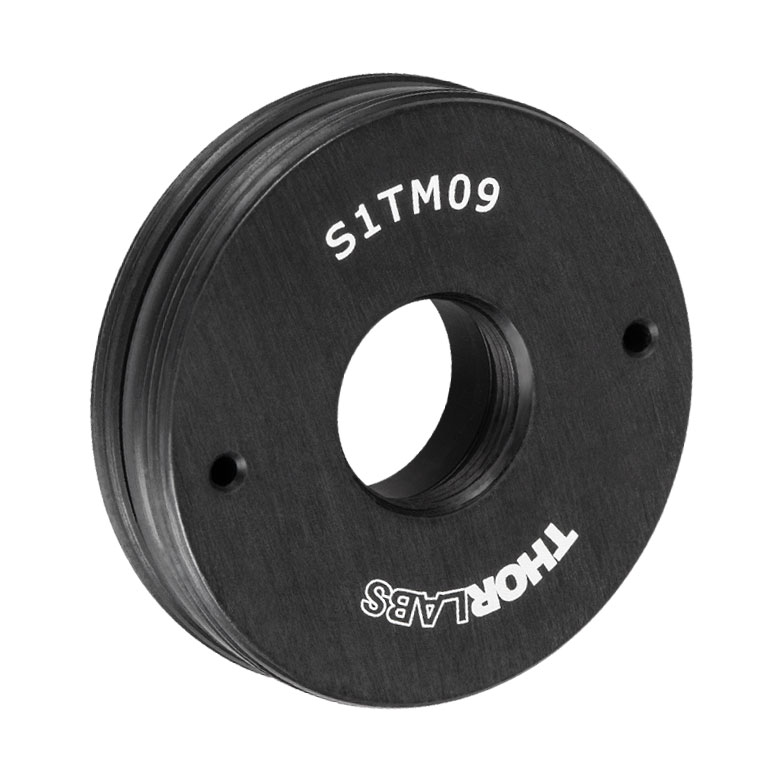

S1TM09
M9 to SM1 Adapter

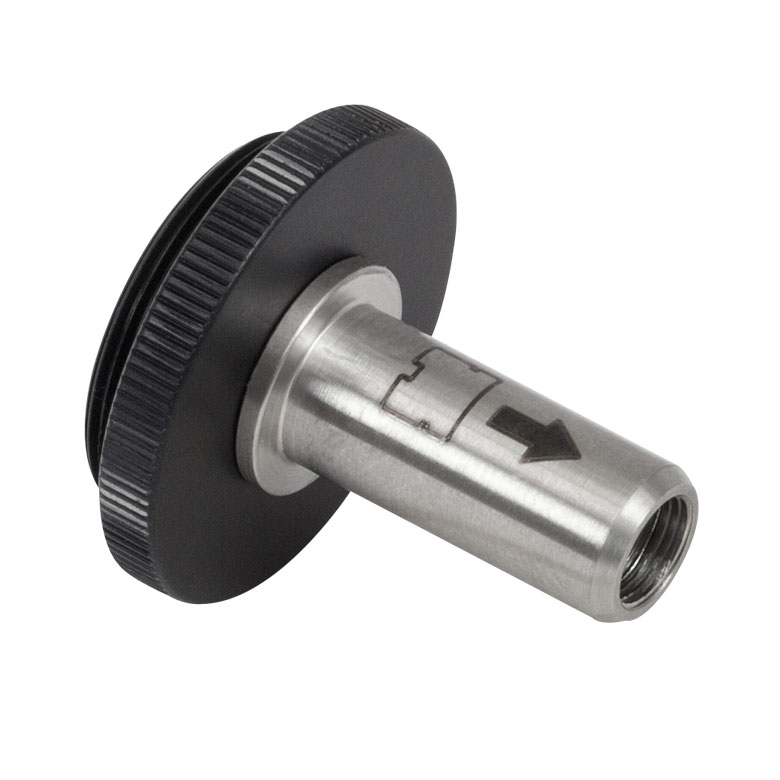

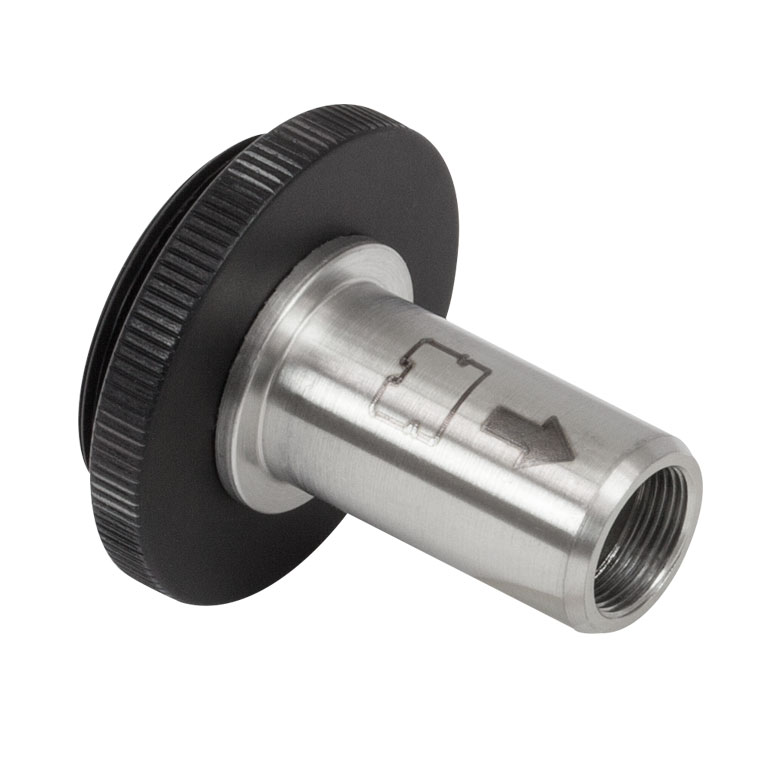

E12RMS
M12 to RMS Objective
Replacement Adapter
Aspheric Lens
Mounted in SM1 Adapter
Application Idea
Please Wait
Click for Details

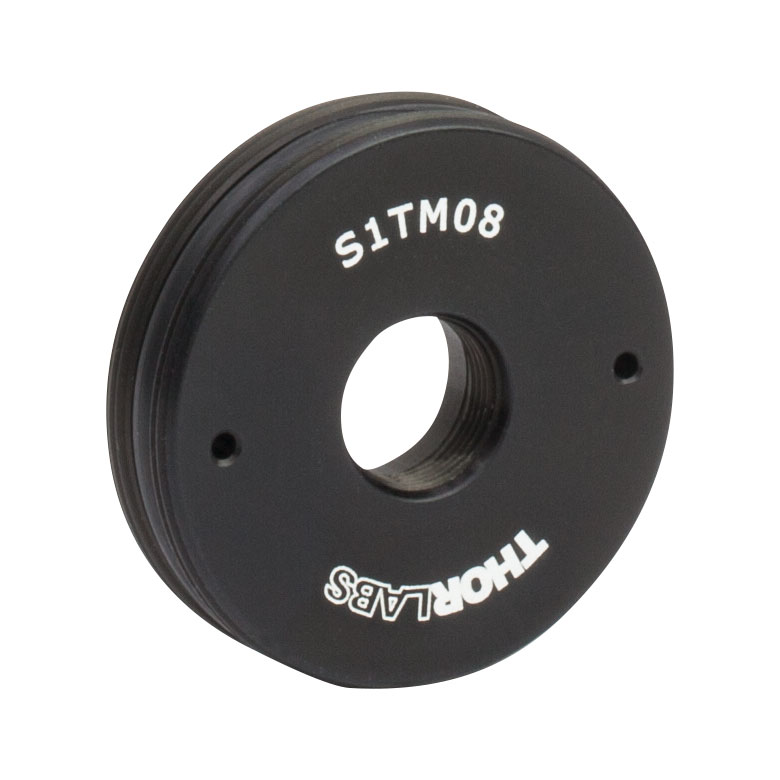

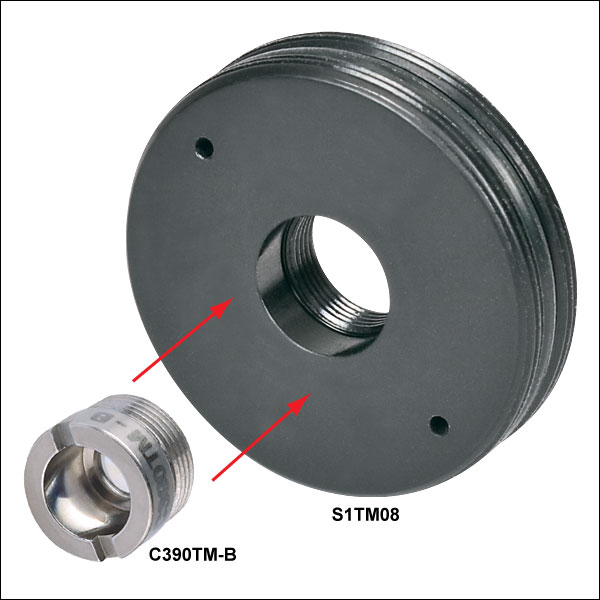

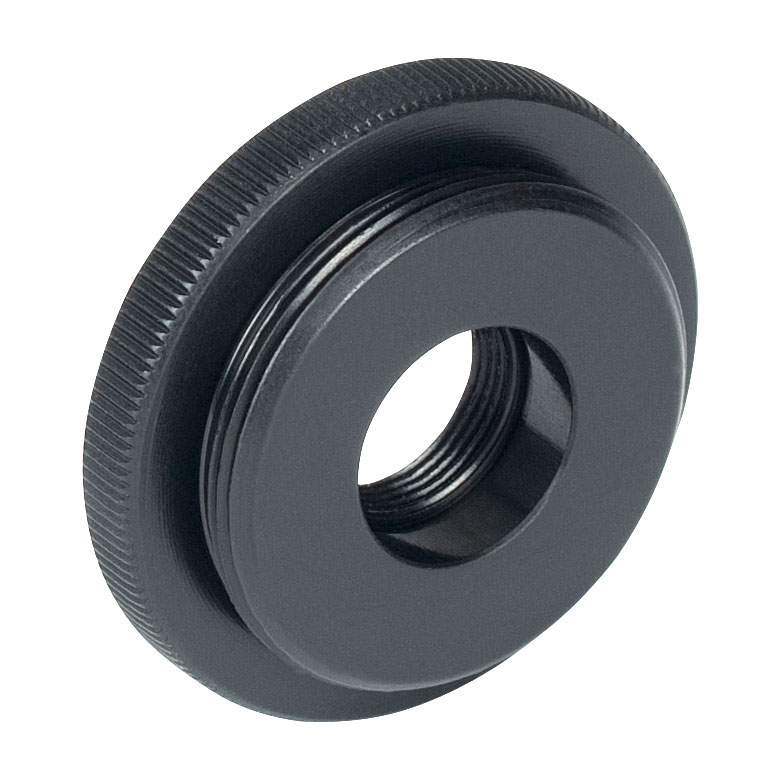

Figure 1.2 M8ネジ付き非球面レンズを取り付けるアダプタS1TM08
Click for Details

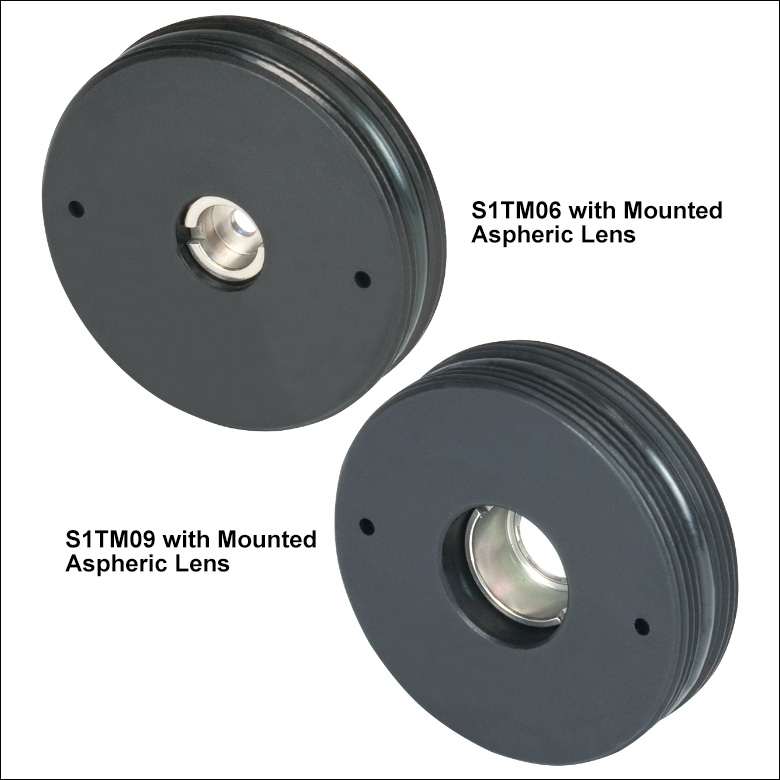

Figure 1.3 非球面レンズ取付け済みS1TM06とS1TM09
Video 1.1 この動画では、当社の非球面レンズRMS顕微鏡用対物レンズアダプタにレンズを挿入する際の方向をご確認いただけます。正しいレンズの方向は、アダプタにも刻印されています。
特長
- ネジ付き非球面レンズおよびアクロマティックレンズを保持するマウント
- SM05、SM1またはRMSネジ付きネジ変換アダプタ
- 30 mmケージプレート
- ゴム製Oリング付きSMネジ付きマウントによりマウントのずれを防止
- RMSアダプタを用いることで、非球面レンズを対物レンズと置き換え可能
当社の非球面レンズアダプタは、SM05およびSM1ネジ付きレンズチューブや 30 mmケージシステムアセンブリに、マウント付き非球面レンズやアクロマティックレンズを保持する設計となっています。このSMネジ付きレンズアダプタによって、LDM21やTEC付き半導体レーザーマウント内に簡単に非球面レンズを取り付けることが可能で、半導体レーザの出力のコリメートや集光に利用することができます。30 mmケージプレートを使用すると、コリメートや集光用にケージアセンブリにレンズを取り付けることができます。
また、RMSネジアダプタも幅広くご用意しています。このアダプタは、顕微鏡用対物レンズが使用しているRMSネジ規格を用いた光学系に非球面レンズを組み込む際にお使いいただけるので、非球面レンズの用途が広がります。アダプタExxRMSでは、Video 1.1にあるように、最初に非球面レンズをアダプタのRMSネジ側に挿入いただく必要があります。正しいレンズの方向は、アダプタにも刻印されています。
これらのレンズアダプタにマウント付き非球面レンズを取り付ける際は、当社のスパナレンチのご使用をお勧めしています。スパナレンチをお使いいただくと、レンズアダプタをレンズチューブにねじ込むのも簡単です。各非球面レンズおよびレンズアダプタに適したスパナレンチは、Tables G1.1, G2.1, G3.1, G4.1, and G5.1をご参照ください。
| Mounted Aspheric Lens Thread | M6 x 0.5 | M8 x 0.5 | M9 x 0.5 | M10 x 0.5 | M12 x 0.5 |
|---|---|---|---|---|---|
| Compatible Mounted Lensesa | A414TM C140TME C151TMD C392TME C430TME C710TME | C021TME C170TME C350TMD C390TME C440TME C660TME | A110TM, A220TM, A230TM A375TM, A390TM, A397TM C036TME, C037TME, C105TMD C110TME, C220TME, C230TME C260TMD, C280TME, C330TMD C340TMD, C560TME, C610TME C775TMD Ø5 mm, Ø6 mm, and Ø6.35 mm Mounted Achromatic Doublets | C028TME | A240TM C240TME Ø8 mm Mounted Achromatic Doublets |
| Posted Comments: | |
Moritz Adams
(posted 2024-02-14 13:12:07.01) The CAD files that are available for download contain only surface models and no volumetric bodies.
I've tried to import the Step file and the Solidworks file into Inventor. Both files only contain surface models. jdelia
(posted 2024-02-16 11:25:50.0) Thank you for contacting Thorlabs and for pointing this out for us. We have updated the files on the website. I have reached out to you directly to provide the corrected files. Brendan Shields
(posted 2022-07-14 15:46:37.353) I like using your SM1 threaded adapters for mounted aspherical lenses, along the lines of S1TM06. The rubber ring in the SM1 thread is perfect for doing coarse adjustments of the lens position by rotating the optic in a threaded housing. I would like to do the same with an RMS-threaded optic, but I haven't seen a part for that on your website. It would essentially be S1TM06, but with RMS internal threads. Does such a part exist, or would it be possible to develop one? jdelia
(posted 2022-07-18 01:16:01.0) Thank you for contacting Thorlabs. While we do offer some SM1-external to RMS-internal adapters (SM1A3 and SM1A3TS), we unfortunately do not carry an equivalent to the S1TM06 which would have a Buna O-ring to minimize adapter translation. I could certainly pass along your request to our engineers through our internal suggestion forum as an idea for a future product however. Apologies that we do not currently have something to offer. Marek Vlk
(posted 2022-03-30 13:42:04.24) Hi, I have some aspheres with M10 mount but there is no good solution for fixing M10 parts onto RMS mounts, while you have that for the other M sizes. Is it possible to get it for M10? jdelia
(posted 2022-03-30 12:20:35.0) Thank you for contacting Thorlabs. I have reached out to you directly to discuss solutions that could potentially work for your application. Jintao Fan
(posted 2020-11-26 18:57:20.673) 您好，麻烦问一下E12RMS可以用来实现SM05和M12X0.5螺纹的转接么？如果不能的话麻烦推荐一个可以实现二者转接的。 YLohia
(posted 2020-12-01 10:30:46.0) An applications engineer from our team in China (techsupport-cn@thorlabs.com) will reach out to you directly. user
(posted 2018-10-30 16:37:22.027) Can the adapter S1TM09 connect the 532 DPSS laser to the CVH100 mount? Thanks. YLohia
(posted 2018-10-30 05:13:03.0) Hello, you can use the S1TM09 for this purpose, however, please note that proper temperature control is very important for the DJ532 series laser diodes for linewidth, wavelength, and power stability. The diode is also susceptible to damage and reduced lifetime due to lack of active temperature control. For this reason, we strongly recommend the LDM56 mount with a temperature controller and the LDM56DJ adapter. oskar.armbruster
(posted 2016-06-15 12:08:03.703) The E12RMS is a great adapter and I think a version for mounting M12 lenses in a microscope with M27 x 0.75 would be a perfect addition! besembeson
(posted 2016-06-16 03:46:51.0) Response from Bweh at Thorlabs USA: Thanks for your suggestion which we are going to review. I will contact you if we can provide this as a special item for now. user
(posted 2015-06-30 17:20:53.92) It would be nice to have an adapter with external M12x05 threads and internal SM05 threads, e.g. to mount a lens tube on a USB camera (which uses M12 lenses). besembeson
(posted 2015-09-21 03:12:28.0) Response from Bweh at Thorlabs USA: This will seem like a nice addition to our thread adapters. Thanks for the feedback. jlow
(posted 2013-01-14 14:15:00.0) Response from Jeremy at Thorlabs: Unfortunately we do not have a spanner wrench specifically for the S05TMxx at the moment. We are currently looking into adding spanner wrenches for this whole series of adapters.
While not ideal, I have used the SPW801 with these adapters before and it seems to work pretty well for my experiments. The blades for the SPW801 would need to be turned 180° though. cbrideau
(posted 2013-01-11 16:54:52.0) Can we get something like the SPW909 but for the SM05 threaded adapters? I'd like a wrench that engages the pinholes on the S05TMXX adapters. jjurado
(posted 2011-08-08 14:58:00.0) Response from Javier at Thorlabs to barney.william: Thank you for your feedback. The reason for the tight fit when using the S1TM08 is to ensure that the lens is not easily misaligned once it has been adjusted to a particular distance with respect to the laser diode. For smoother motion, you can use a small amount of Apiezon M grease. Be sure not to get any grease on the optic or laser diode. I will contact you directly for further support. barney.william
(posted 2011-08-05 17:16:14.0) When using the S1TM08 with the TCLDM-9 to collimate a diode laser, the O-ring fit is so tight that I cannot get the adapter far enough into the hole to collimate the laser properly. In fact, I snapped the tips off my adjustable spanner while trying to do so. Would it help to use a lubricant, and is there one you recommend? apalmentieri
(posted 2010-03-26 15:46:36.0) A further response from Adam at Thorlabs to Eric: To add to my response below, we also offer the AD1T, which has a flat 1" outer diameter and a SM05 threaded internal diameter. This may be a little more suitable for your application. Adam
(posted 2010-03-26 15:42:51.0) A response from Adam at Thorlabs to Eric: I think this is a great idea and will propose this customer-inspired idea to our mechanical engineering team. Please note we do have a similar product without the threads. The part number is AD1 and it has a flat 1" diameter, with a 1/2" diameter hole designed for mounting 1/2" optics in 1" lens tubes/mounts. To hold the optic in place, we provide a set screw. eric.whittaker
(posted 2010-03-26 14:42:08.0) An adapter ring similar to the S1TM range but with SM05 internal thread and retaining rings for 1/2" optics would be useful. |
| Table G1.1 Specifications | |||||
|---|---|---|---|---|---|

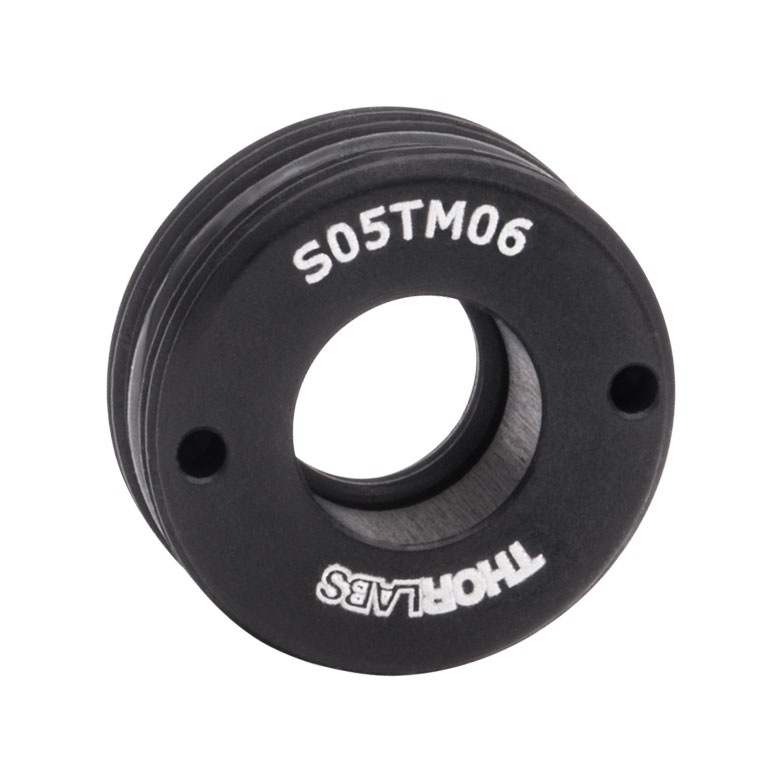

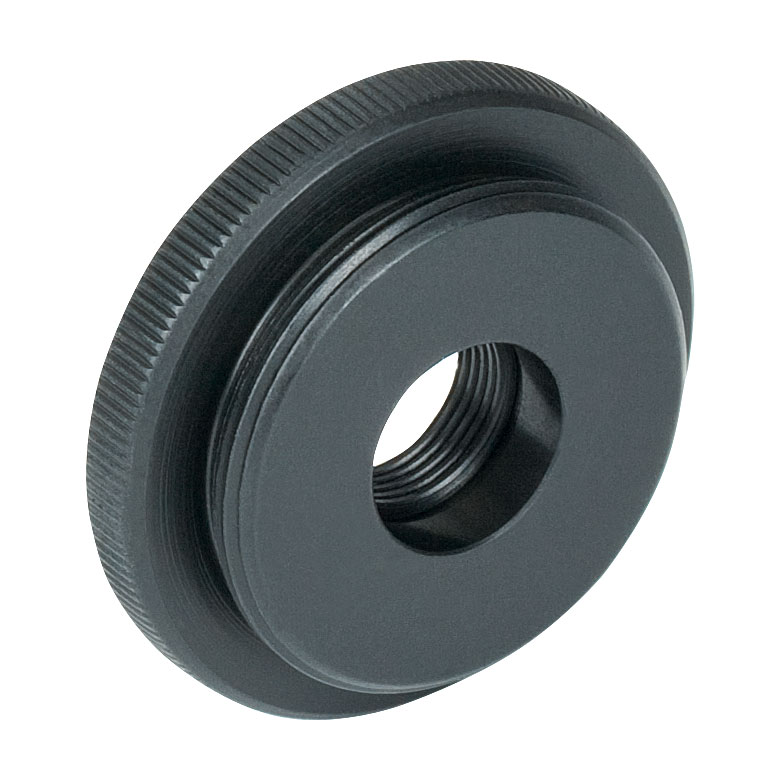

| Item # | S05TM06 | RMS06 | E06RMSa | S1TM06 | CP1M06(/M) |
| Photograph (Click to Enlarge) |  |  |  |  |  |
| Adapter Type | Thread-to-Thread Adapter | 30 mm Cage Plate | |||
| External Threading | SM05 (0.535"-40) | RMS (0.800"-36) | RMS (0.800"-36) | SM1 (1.035"-40) | N/A |
| Compatible Lenses | A414TM, C140TME, C140TMD, C151TMD, C392TME, C430TME, C710TME, C710TMD, N414TM | A414TM, C140TME, C140TMD, C151TMD, C392TME, C430TME, C710TMD, N414TM | A414TM, C140TME, C140TMD, C151TMD, C392TME, C430TME, C710TME, C710TMD, N414TM | ||
| Lens Spanner Wrench | SPW306 | ||||
| Adapter Spanner Wrench | SPW908 or SPW801 | N/Ab | N/Ab | SPW909 or SPW801 | N/A |
| Table G2.1 Specifications | |||||
|---|---|---|---|---|---|

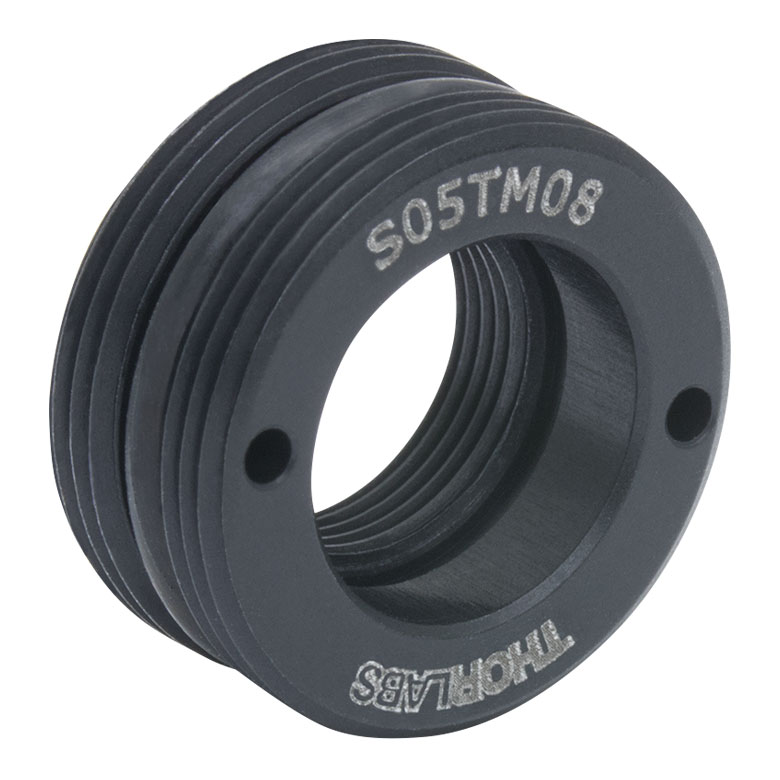

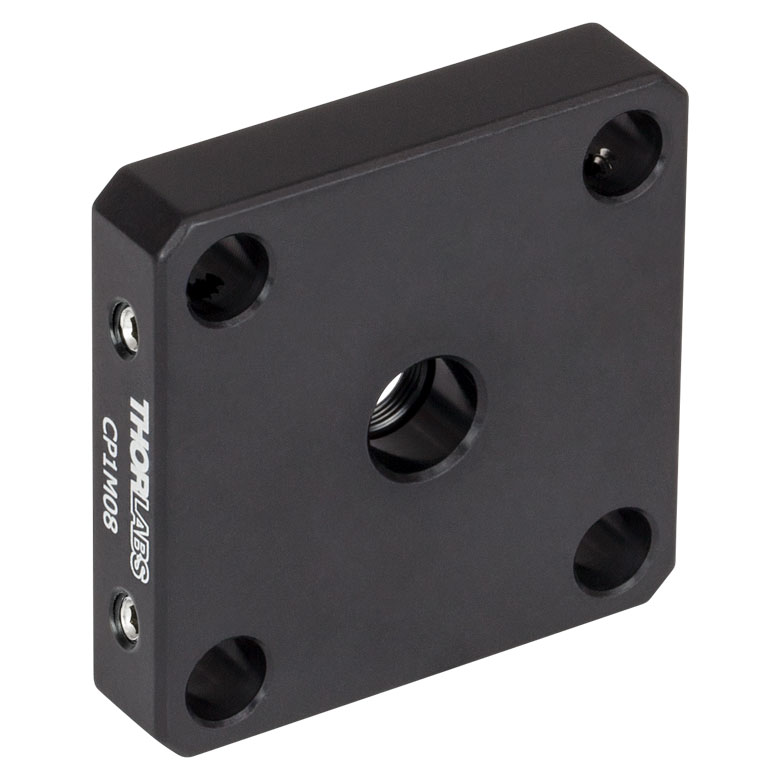

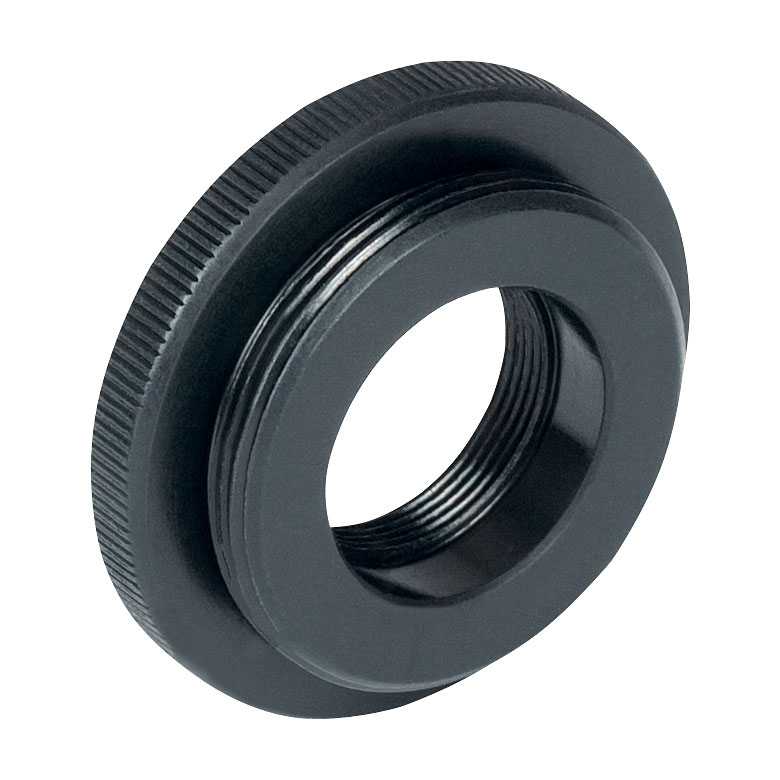

| Item # | S05TM08 | RMS08 | E08RMSa | S1TM08 | CP1M08(/M) |
