マイクロメーターヘッド、移動量25 mmおよび1インチ

1" (25 mm) Travel Range
0.001" (10 µm) of Travel per Division
Spherical Tip Minimizes Positioning Alignment Errors
Available With or Without 5/64" (2.0 mm) Hex on the End

150-801ME-H

5/64" Hex

The PT1 translation stage includes a 150-811ST micrometer, which does not feature a hex on the end.

Application Idea

Related Items

Micrometer Heads

Manual Translation Stages

Motorized Actuators

Balldrivers / Hex Keys

Barrel Adapters

Adjusters

Motorized Translation Stages

Please Wait

概要
Feedback

Item #	150-811ST	150-811ST-H	150-801ME	150-801ME-H
Travel Range	1.000"		25.00 mm
Graduation	0.001" per Division		10 µm per Division
Distance per Rev	0.025"		0.5 mm
Barrel Diameter	3/8" (9.5 mm)
Hex	N/A	5/64" (2.0 mm)	N/A	5/64" (2.0 mm)
Load Capacity	4 kg (Max)
Scale Surface	Hard-Chrome Plating

特長

標準のØ3/8インチ(Ø9.5 mm)取付けバレル
高確度のクロムメッキ仕上げスピンドル
刻み目付き調整ノブ
確度の高いアライメントのための10 µm目盛が刻印
2.0 mm(5/64インチ)六角溝付きの製品もご用意

マイクロメータ150-801MEおよび150-801ME-Hは移動量が25 mmで10 µm単位の目盛が刻印されています。また、150-811STおよび150-811ST-Hは移動量が1.0インチで0.001インチ単位の目盛が刻印されています。型番の末尾にHが付いている製品には2.0 mm(5/64インチ)の六角溝が付いているので、スペースに制限のある環境でもお使いいただけます。

スピンドル先端が球面で、接点が1つなのでアライメント誤差を最小に抑えます。当社の移動ステージPT1/Mには150-801ME、PT1には150-811STが組み込まれています。こちらのマイクロメータをその他の部品に組み込む場合の詳細については当社までお問い合わせください。

Click for Details

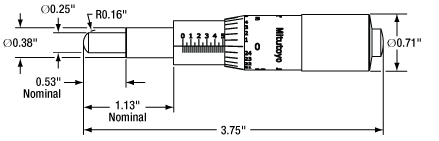

150-811ST

Click for Details

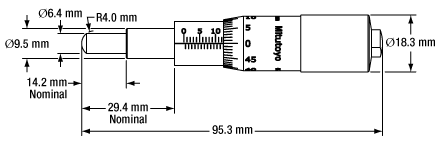

150-801ME
