OSA Raman Software for the Raman Spectroscopy Kit

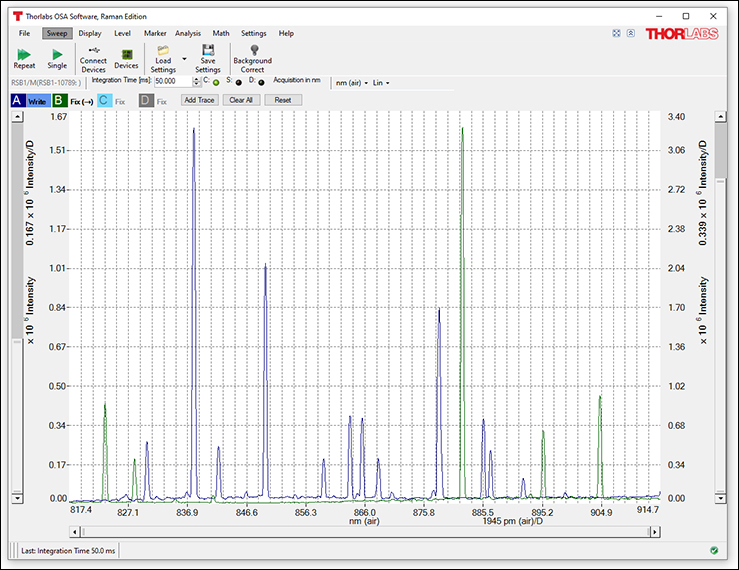

The software package for Thorlabs' Raman Spectroscopy Kit includes a graphical user interface (GUI) and instrument drivers. The software GUI allows the user to adjust critical parameters, including integration time, analog gain, black level, and the laser wavelength. Also included are built-in tools for data analysis, such as automated peak and valley tracking tools. Data can be saved in the OSA Raman software spectrum format (.spf2x) and exported into various file formats.

Note that the OSA Raman software can load but not export .spf2 file formats generated with other Thorlabs OSA software.

  1. Software: Software, Drivers, and Utility files for the Raman Spectroscopy Kit.
Software for Thorlabs' Raman Spectroscopy Kit
DescriptionSoftware Installation Package for the Raman Spectroscopy Kit
Filesize91.9 MB
System Requirements
  • Windows® 10 (64 Bit)
  • USB 3.0 Port
  • Graphics Card Resolution: 800 x 600 Pixels
  • Processor: Intel Pentium 4 or AMD 64 3000+
  • 2.0 GB RAM
  • Hard Drive Space (Min): 2.0 GB (64 Bit)
Additional Software.NET Framework version 4.5.2 or higher is required. An installer for .NET framework 4.7.2 is included with the installation package.
