実験用照明器具


  • Long-Lasting LED Lights
  • LED Light Strips for General Lab Lighting

TFA2 Attached to the Bottom of an Overhead Shelf Unit

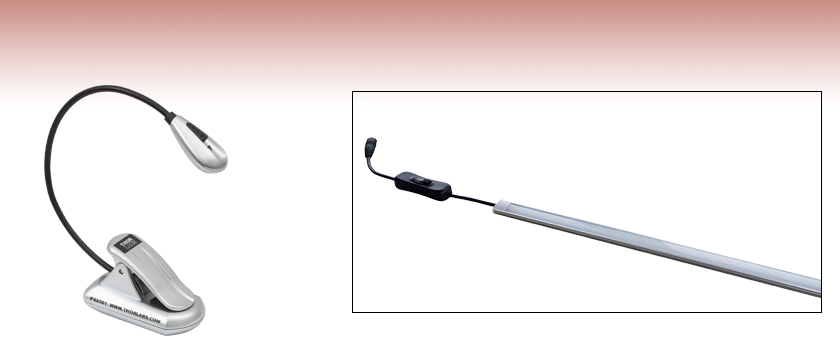

LED Light Strip

71.99" or 33.46" (1.83 m or 0.85 m)

Related Items


Please Wait

LEDストリップライトPSY240、PSY240E、TFA2は、当社のNexus®テーブルフレーム付きオーバーヘッドシェルフ光学テーブル用自立型シェルフなどに取り付けられます。PSY240とPSY240Eは長さ850 mm、TFA2は長さ1828.5 mmです。PSY240Eには4.3 mの延長ケーブルも付属します。LEDストリップライトは3個のバネクリップを用いて位置固定できます。


Posted Comments:
Mike Prominent  (posted 2024-07-16 08:36:37.853)
Could someone please tell me the temperature/color of these LED’s in Kelvin? Health and safety are trying to ruin my day. Many thanks.
spolineni  (posted 2024-07-23 11:07:54.0)
Thank you for your inquiry. While we do not have the exact color temperature for these LED strips, they are designed to provide general "white" illumination. Their spectral distribution is approximately 5000K; however, the LED spectrum does not strictly follow a blackbody distribution. I will personally reach out to you to discuss this further and provide more details.
Jeff Secor  (posted 2023-04-10 19:36:17.883)
You should make a connector for the flexible arm to standard optic mounts. Please send me free swag :)
do'neill  (posted 2023-04-12 05:06:45.0)
Response from Daniel at Thorlabs. Thank you for your feedback, I will pass your suggestion on to our internal engineering teams and I will reach out you directly to further discuss it.
Benjamin Rost  (posted 2020-09-08 01:29:56.15)
Hi folks, I really like the LED light strip for illumination inside of my ephys-setup. I'm working with optogenetic tools, which often require working under safe-light conditions. I bought a safelight for darkroom applications that can switch between red and white light, however, this causes a lot of noise (https://www.fotoimpex.de/shop/fotolabor/heiland-electronic-led-laborlicht-fuer-schwarzweiss-rot-und-weiss.html) So my "customer suggestion" would be, if you could design the LED light strip with both white and red LEDs for such applications? Best, Benjamin
cwright  (posted 2020-09-09 04:55:35.0)
Response from Charles at Thorlabs: Hello Benjamin and thank you for your feedback! A safelight for optogenetics work is an interesting idea and I will ensure it is presented on our internal engineering forums for consideration.
cbrideau  (posted 2014-04-23 20:34:46.77)
I would love to see shorter versions for fitting into smaller spaces, with 1/4-20 holes so they can be easily post mounted. A dimmer would also be handy, particularly one you could set to a specific light level, then toggle on and off (dimming function separate from on/off function). I use LEDs for spot lighting all over my lab and find them very useful due to their 'instant on' and low heat production.
pbui  (posted 2014-05-01 04:16:25.0)
Thank you for your feedback. We will keep your suggestions in mind and make improvements to our product offerings whenever possible.
bdada  (posted 2011-03-04 19:12:00.0)
Response from Buki: Thank you for your feedback. I am glad to hear that you have found the PSX501 lamp useful in your microscopy lab. Unfortunately, we are not able to modify the lamp as you suggested but we will bear your suggestion in mind as we continue to expand our selection of microscopy lab tools.
max.ulbrich  (posted 2011-03-03 18:49:32.0)
Hi Thorlabs team, I think the PSX501 is a really very convenient product. It is great for the microscope room where it has to be dark but I want my keybord to be illuminated. However, sometimes when I sit there doing experiments it is running for hours and hours. It would be great to have a switch between batteries and a plug from an external low voltage transformer. Then I could plug it in to save batteries if I keep it at the same spot for a while. Maybe you could think about redesigning it? Best, Max
hschoenwetter  (posted 2010-06-29 11:36:57.0)
Hi colleague, I am looking for a led spot light for product photography and saw our led mini light. Are there any specs: (daylight-)°K, lumen etc. available? Thank you, Hubert
Back to Top

LEDストリップライト

Item #PSY240PSY240ETFA2
Brightness1530 Lumens3600 Lumens
# of LEDs51120
Powera15.3 W36 W
Voltage12 VDC (Power Supply Included)
Dimensions850 mm x 17.4 mm x 8.2 mmb
(33.46" x 0.69" x 0.32")
1828.5 mm x 17.4 mm x 8.2 mm
(71.99" x 0.69" x 0.32")
  • LED1個あたりの電力消費量は0.3 Wです。
  • PSY240Eには4.3 mの延長ケーブルが付属します。
  • 長さ:850 mmまたは1828.5 mm
  • ON/OFFスイッチ付き
  • 頑丈なアルミニウム製のベースが反りを防止
  • 艶消し加工のプラスチックのカバーにより均一な光の広がりを実現
  • バネクリップ3個、M6ネジ3個、電源が付属
    • PSY240EにはTナットが3つと4.3 mの延長コードも付属

こちらのLEDストリップライトは850 mmと1828.5 mmの2種類の長さでご用意しております。3個のバネクリップで当社の光学テーブル用自立型シェルフNexusテーブルフレーム付きオーバーヘッドシェルフなどのラックや棚に簡単に取り付けられます。 このストリップライトは、当社以外の一般的な研究用実験ベンチ上で使用することも可能です。PSY240Eには長さ4.3 mの延長ケーブルが1本と3つのTナット(50 mmおよび75 mm光学コンストラクションレール用)、3つの長さ6 mm M6ネジが付属します。

(*国内販売品に付属するACアダプタは左上の写真とは形状が異なります)

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
PSY240 Support Documentation
PSY240LEDストリップライト、850 mm
¥24,890
In Stock Overseas
PSY240E Support Documentation
PSY240ELEDストリップライト、850 mm、4.3 mの延長ケーブル付き
¥31,301
In Stock Overseas
TFA2 Support Documentation
TFA2LEDストリップライト、1828.5 mm
¥38,290
In Stock Overseas
