Digital Indicator

1/2" (12.7 mm) Measurement Range
Measurements Made in Imperial or Metric Units
SPC Data Output

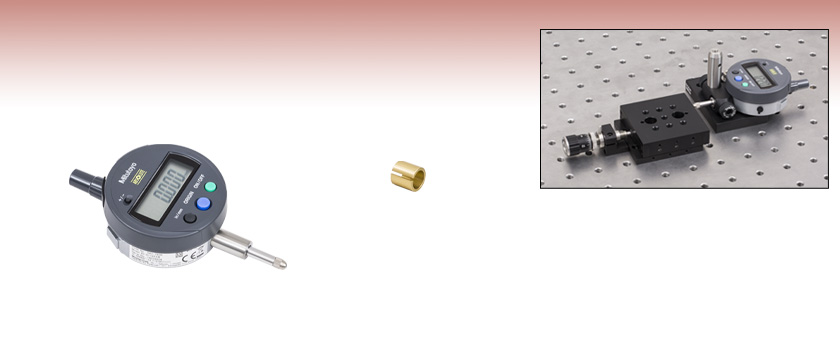

DGM05

1/2" (12.7 mm)
Digital Indicator
(Includes Barrel Adapter)

Ø3/8" to Ø1/2" Barrel Adapter

Application Idea

DGM05 Indicator being Used to Inspect the Translation Range of Thorlabs' MT1A 1/2" Translation Stage

Related Items

Magnetic Measuring Tape

XR25 Stage Position Encoder

Please Wait

Overview
Specifications
Feedback

Mounting Kit Options

Click to Enlarge

Click Links to Order this as a Kit:
View Imperial Product List

型番	数量	Description
Digital Indicator
DGM05	1	デジタルインジケータ、測定範囲12.7 mm
Mounting Hardware
BA2R	1	マグネットベース、2インチ x 3インチ x 3/8インチ(インチ規格)
RA90	1	直角ポストクランプ、Ø1/2インチポスト用、3/16”六角穴(インチ規格)
TR2	1	Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ2インチ(インチ規格)

View Metric Product List

型番	数量	Description
Digital Indicator
DGM05	1	デジタルインジケータ、測定範囲12.7 mm
Mounting Hardware
BA2R/M	1	マグネットベース、50 mm x 75 mm x 10 mm(ミリ規格)
TR50/M	1	Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ50 mm(ミリ規格)
RA90/M	1	直角ポストクランプ、Ø12.7 mmポスト用、5 mm六角穴(ミリ規格)

Click to Enlarge

Click Links to Order this as a Kit:
View Imperial Product List

型番	数量	Description
Digital Indicator
DGM05	1	デジタルインジケータ、測定範囲12.7 mm
Mounting Hardware
MB175	1	高耐荷重マグネットベース、ON/OFF切り替え可能、1/4"-20ネジ切りスタッド付き(インチ規格)
SWC	2	回転式ポストクランプ、360°連続調整可能、3/16”六角穴(インチ規格)
TR4	2	Ø1/2インチポスト、#8-32ネジ、1/4”-20タップ穴付き、長さ4インチ(インチ規格)

View Metric Product List

型番	数量	Description
Digital Indicator
DGM05	1	デジタルインジケータ、測定範囲12.7 mm
Mounting Hardware
MB175/M	1	高耐荷重マグネットベース、ON/OFF切り替え可能、M6ネジ切りスタッド付き(ミリ規格)
SWC/M	2	回転式ポストクランプ、360°連続調整可能、5 mm六角穴(ミリ規格)
TR100/M	2	Ø12.7 mmポスト、M4ネジ、M6タップ穴付き、長さ100 mm(ミリ規格)

Features

1/2" (12.7 mm) Measurement Range
Converts from Imperial to Metric with the Push of a Button
Ø3/8" Mounting Barrel (RBA1 Ø3/8" to Ø1/2" Barrel Adapter Included)
SPC Output for CPU Connection (SPC Cable Not Included)

The DGM05 Digital Indicator is an inspection tool commonly used to check the position of a stage or the flatness of a breadboard or optical table. It has a 1/2" (12.7 mm) measurement range with an easy-to-read LCD screen. In addition to this LCD screen, the front face includes buttons that switch between imperial and metric scales, reset the origin, switch the count direction with respect to the spindle, or power the unit on or off. Connection to a computer is possible via the top-located SPC output, however, the required SPC cable is not included.

Each unit has a Ø3/8" mounting barrel and includes an RBA1 Ø3/8" to Ø1/2" Barrel Adapter for increased mounting options. Two mounting options, ideal for measuring translations in horizontal or vertical orientations, are shown in Figures 1.1 and 1.2, respectively. These can be purchased by clicking on the View Imperial Product List or View Metric Product List links.

Table 2.1 Specifications
Measurement Range	1/2" (12.7 mm)
Resolution	1 µm (0.00005”)
Accuracy^a	<2 µm (0.0001")
Hysteresis^a	<2 µm (0.0001")
Repeatability^a	<2 µm (0.0001")
Mounting Barrel	Ø3/8" (9.5 mm)
Measuring Force	≤1.5 N
Battery Life	~18,000 Hours, Continuous Use
Contact Point	Carbide-Tipped

During Normal Operation at 20 °C, Excluding Quantizing Error
