このページでは光学接着剤と接着剤調合キットをご紹介しています。当社ではUV硬化光学素子用接着剤やさまざまな種類のテープもご用意しています。
Item # | F112 | F120 | F123 | 353NDPKa |
---|---|---|---|---|
Color, Cured | Dark Blue | Clear/Colorless (Part A) Clear/Yellow Tint (Part B) |
Reddish-Amberb | Dark Red |
Specific Gravity, Cured | 1.2 | 1.16 (Part A) 1.05 (Part B) |
1.2 | 1.20 (Part A) 1.02 (Part B) |
Index of Refraction | 1.51 | 1.5459 @ 589 nm | 1.56 | 1.5694 @ 589 nm |
Viscosity, cPs, Mixed | 1800 | N/A | 4000 | 3000 - 5000 |
Thixotropic Index | 1.0 | N/A | 1.0 | N/A |
Operating Temperature Range | -60 to 120 °C | Cont: -55 to 175 °C Inter: -55 to 275 °C |
-60 to 175 °C | Cont: -55 to 250 °C Inter: -55 to 350 °C |
Hardness, Shore D | 86 | 80 | 87 | 85 |
Mix Ratio, pbw, Resin/Hardener | 100/30 | 2/1 | 100/10 | 10:1 |
Glass Transition (Tg), Ultimate | 102 °C | 56 °C | 120 °C | ≥90 °C |
Water Absorption | 0.07% | N/A | 0.004% | N/A |
Coefficient of Expansion | 6.20 x 101 cm/cm/°C | N/A | >Tg: 2.03 x 102 ppm/°C <Tg: 6.31 x 101 ppm/°C |
>Tg: 54 x 10-6 in/in/°C <Tg: 206 x 10-6 in/in/°C |
Dielectric Strength | N/A | N/A | 400 V/mil | N/A |
Dielectric Constant | N/A | N/A | N/A | 3.17 (1 kHz @ 23 °C) |
Pot Life | 2 g, 30 min | <5 min | 4 hr | ≤3 hr |
Working Life | 2 g, 1 hr | N/A | N/A | N/A |
Cure Schedule | 24 hr @ 25 °C or 1 hr @ 65 °C or 15 min @ 90 °C |
30 min @ 23 °C (Minimum) |
5 min @ 100 °C or 2 min @ 120 °C or 1 min @ 150 °C |
30 min @ 80 °C 10 min @ 100 °C 5 min @ 120 °C 1 min @ 150 °C |
Item # | G14250 |
---|---|
Adhesive Tensile Lap Shear | 1.900 psi @ 0.005" Bondline |
Dielectric Strength | 490 V/mil |
Impact Resistance | 5.5 ft lb/in2 |
Service Temperature | Dry, -40 °F to 200 °F |
Working Time | 3-6 min (28 g @ 72 °F) |
Fixture Time @ 72 °F | 10 - 15 min |
Cure Schedule @ 72 °F | Full: 12 hr Functional: 45 min to 1 hr |
Posted Comments: | |
Hanlin Jiang
 (posted 2024-03-18 18:12:16.607) Do you have the student discount for purchasing the Acrylic Anaerobic Adhesive jdelia
 (posted 2024-03-21 11:40:30.0) Thank you for contacting Thorlabs. You can find the discounts we offer at the following link: https://www.thorlabs.com/discountpolicy.cfm cbrideau
 (posted 2015-03-04 15:15:16.69) I find the 5 min epoxy very useful, but I don't like the 2-in-one syringe design. I find that two separate smaller tubes makes it easier to mix the epoxy and hardener. Their different viscosities means the double plunger design extrudes them at different rates from the double syringe. A 'two separate small tubes' version of this product would be welcome. cdaly
 (posted 2015-03-05 04:07:26.0) Response From Chris at Thorlabs: Thank you for your feedback. I am afraid though, as we do not produce the epoxy or the dispenser ourselves, this is not a change we would be able to make to the product. max.schiller
 (posted 2014-08-27 12:28:59.873) Hi. Is TS10 suitable to fix and seal a protective glas window in an aliminium casing? The system will work in a maritime environment (salty, humid, -15 to +40 °C). Is there a better adhesive for this purpose? Regards, Max cdaly
 (posted 2014-08-27 03:11:43.0) Response from Chris at Thorlabs: That's pretty much the antithesis of the intended environment for the vacuum epoxy. If any of our epoxies were to be able to withstand the salt and humidity, it would likely be the 5-minute epoxy, G14250. There are epoxies which are specifically meant for this purpose though. Loctite's Fixmaster Underwater Repair Epoxy would be an example. user
 (posted 2013-02-12 17:20:06.783) One liquid is more viscous than the other hence it is hard to dispense equal amounts of both liquids with the attached syringe system. I had to disconnect the two syringes to get equal amounts of both. cdaly
 (posted 2013-02-15 13:18:00.0) Response from Chris at Thorlabs: The liquids themselves do have differing viscosity, so a small amount of one may pour out before the other when you initially push in the plunger. But this will balance out quickly as you push in the plunger. Both sides are identical, so movement of the plunger should dispense an equal volume. Laurie
 (posted 2010-11-05 09:39:55.0) A response from Laurie at Thorlabs to pspencer: Thank you for the kind comments that you left on our website concerning our recent upgrades. We continually strive to make changes that will enhance our customer’s buying decision and enable them to find the products they want quickly. It’s good hear that we are on the right track!
If you should ever find any areas of our website that could use work, I’d appreciate it if you passed those along as well so that we can make improvements. pspencer
 (posted 2010-11-05 09:08:42.0) I like the new web site changes. Very nice...
Best Regards,
Paul Spencer
R & D Technician |

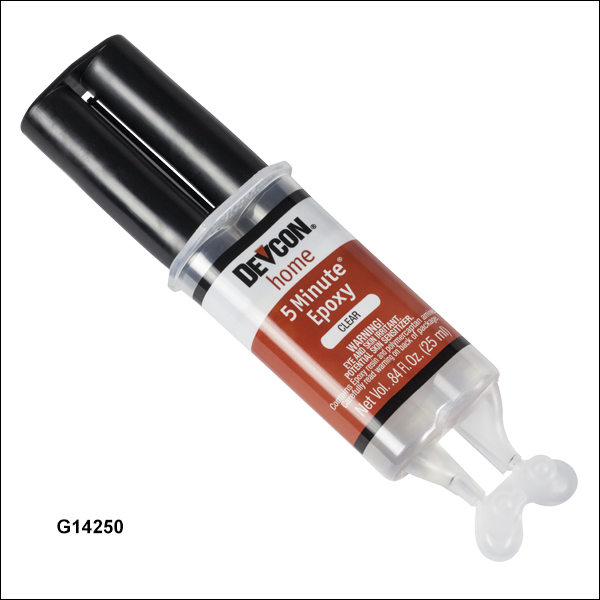

- General Purpose, 2-Part Epoxy
- Easy-to-Use Dispenser Ensures Proper Mixing Ratio
Please note that epoxy resins are prone to solidification or crystallization. If this occurs, the product can easily be returned to a liquid state by immersing the tube in warm [approximately 100 °F (38 °C)] water for 30 minutes. Ensure all material is melted prior to use. Allow the resin component to return to room temperature prior to mixing with the hardener.
- Acrylic Adhesive & Primer
- Superior Bonding of Metal, Glass, Ceramic, Nylon & Wood
- Fast Cure at Room Temperature (Sets in Seconds, Strong Bond in 1-2 Minutes)
- Easy to Use - No Measuring or Mixing
- Operating Temp: -54 °C to +150 °C

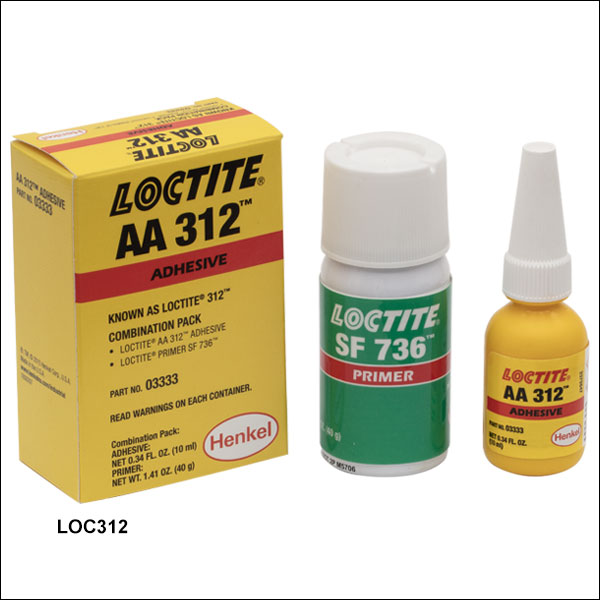

The LOCTITE®* AA 312 anaerobic adhesive kit contains a 10 ml bottle of adhesive and a 40 g aerosol can of primer. This adhesive provides exceptionally strong bonds between similar and dissimilar materials (metal, glass, ceramic, nylon, wood and some plastics) in minutes. Bonding steel to steel, the bond strength will be ~65% after 5 minutes and ~80% after 30 minutes, with a full cure typically occuring after 24 hours.
*LOCTITE is a registered trademark of the Henkel Corporation.
Shipping Regulations
Due to shipping regulations, LOC312 is only available to customers in North America with ground shipment from Newton, NJ.
Shelf Life
The shelf life of LOC312 will vary depending on the date the epoxy was packaged at the manufacturer. For information on the shelf life of LOC312, please contact Tech Support.
- Seals Leaks in Vacuum Equipment Down to 10-9 Torr
- Forms a Reliable, High Strength, Long-Term Bond with Metals, Ceramics, or Glass
- No Solvent Necessary to Evaporate
- At Room Temperature: Hardens in 3 to 4 Hours, Cures in 72 Hours
- Cures in 2 Hours at 60 °C, in 1 Hour at 82 °C, or in 20 to 30 Minutes at 121 °C
- Mixing Ratio (by Volume): 2.5 Parts Resin to 1 Part Hardener
- 82 g (2.9 oz) Base Resin, 36 g (1.3 oz) Hardener
Please note that epoxy resins are prone to solidification or crystallization. If this occurs, the product can easily be returned to a liquid state by immersing the tube in warm [approximately 100 °F (38 °C)] water for 30 minutes. Ensure all material is melted prior to use. Allow the resin component to return to room temperature prior to mixing with the hardener.
This epoxy resin is classified as a dangerous good in some countries. Depending on the delivery location, this item may need to be shipped separately from the rest of your order at an additional charge. Please contact our sales department if there are questions or concerns when placing an order for this item.
- Excellent Wicking for Fiber Optic Applications
- High Temperature Epoxy - Can Perform at Constant 250 °C
- Passes NASA Low Outgassing Standard ASTM E595 with Proper Cure
- Color Changes Upon Curing From Amber to Dark Red
- Pot Life ≤3 Hours
- Pre-Measured, 4 g Packs
EPO-TEK 353ND is known industry wide as a high temperature epoxy. This two part, 100% solid, heat curing epoxy can be used in applications requiring constant performance at temperatures up to 250 °C. It can handle 250 °C to 350 °C for brief periods. The epoxy is vacuum compatible and passes NASA low outgassing standard ASTM E595. Thorlabs offers 353ND epoxy in pre-measured, 4-gram packs that provide repeatable performance and eliminate the need for measuring.
Dangerous Goods
Please note that 353NDPK is classified as a dangerous good in some countries. Depending on the delivery location, this item may need to be shipped separately from the rest of your order (and possibly with a different carrier) at an additional charge. This 2-part epoxy is stocked within the USA and Germany. Please contact our sales department if there are questions or concerns when placing an order.
Shelf Life
353NDPK Epoxy has a shelf life of 365 days when stored at 23 °C. This time frame begins on the date the epoxy was packaged at the manufacturer. Upon receipt by the end user, Thorlabs guarantees that the remaining shelf life will be at least 3 months.
- Easy-to-Use 2 g BIPAX
- Sold in Packages of 10
- F112 and F120 Not Intended for Use with TECS Clad Fiber

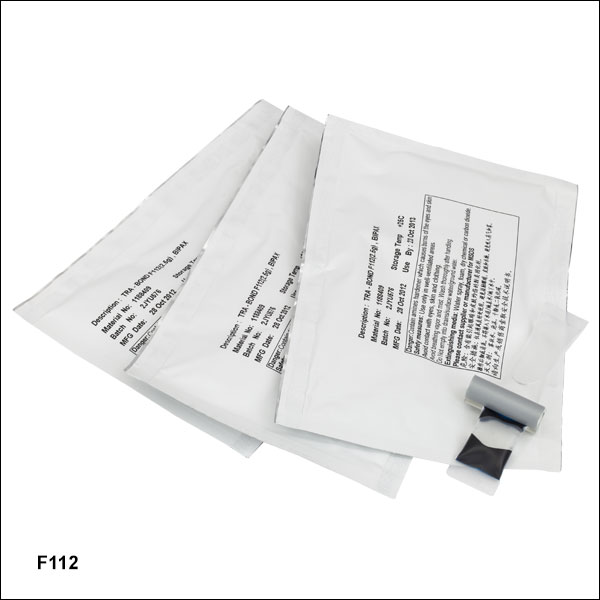

F112 Long Pot Life, Room Temperature Cure
The F112 epoxy is an ideal epoxy for making room temperature terminations. Each pack contains enough epoxy for 25 to 30 connectors. The long 30-minute pot life allows many connectors to be produced from one mix. See the Specs tab for details.
F120 Fast Room Temperature Cure
The F120 epoxy provides a combination of fast cures and low shrinkage for high performance fiber optic connections. At room temperature, the connectors are ready for polishing within 1 hour; however, fully matured bonds require 4 to 6 hours. With a pot life of only five minutes, a limited number of connections can be made using one pack. See the Specs tab for details.
F123 Color-Keyed, High-Temperature Cure
This epoxy has a unique three-step color change formulation: unmixed components are light yellow, the mixed color is green/blue, and after the required 100 °C high-temperature cure, the color is a deep reddish-amber. Each pack contains enough epoxy for 25 to 30 connectors. The long four-hour pot life allows many connectors to be produced from one mix. See the Specs tab for details.
Dangerous Goods
The F112, F120, and F123 epoxies are classified as dangerous goods in some countries. Depending on the delivery location, these items may need to be shipped separately from the rest of your order (and possibly with a different carrier) at an additional charge. Please contact our sales department if there are questions or concerns when placing an order for these items.
Shelf Life
When stored at 25 °C, the F112 and F123 Epoxy have a shelf life of 180 days while the F120 Epoxy has one of 365 days. This time frame begins on the date the epoxy was packaged at the manufacturer. Upon receipt by the end user, Thorlabs guarantees that the remaining shelf life will be at least 3 months.
Crystallization
The epoxy resins may crystallize. Prior to mixing, the crystallized material should be warmed between 40 and 60 °C until the crystals dissolve into the solution. Afterwards, cool the material back to room temperature and use as normal.
- 光学基板の接着に適しています。

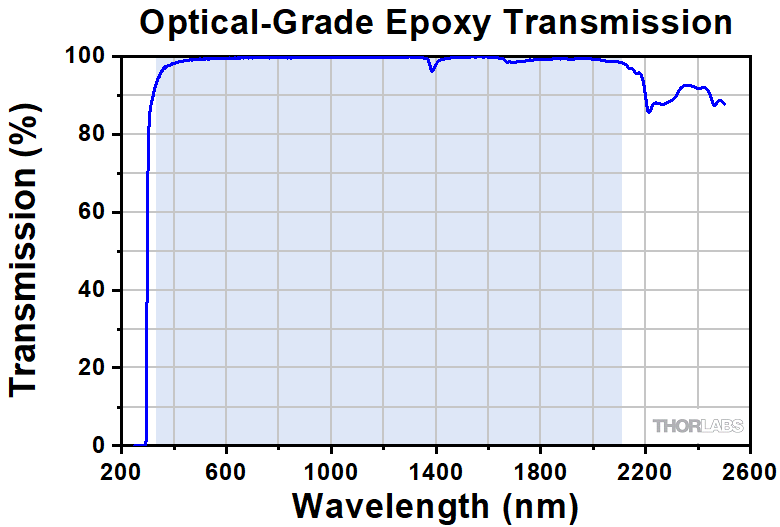

- 透過率>90 %の波長域は360 nm~2100 nm
- 屈折率: 1.66
- 連続使用温度:93 ℃
- 引張強度: 53.7 MPa
- 曲げ強さ: 102 MPa
- 低いアウトガス

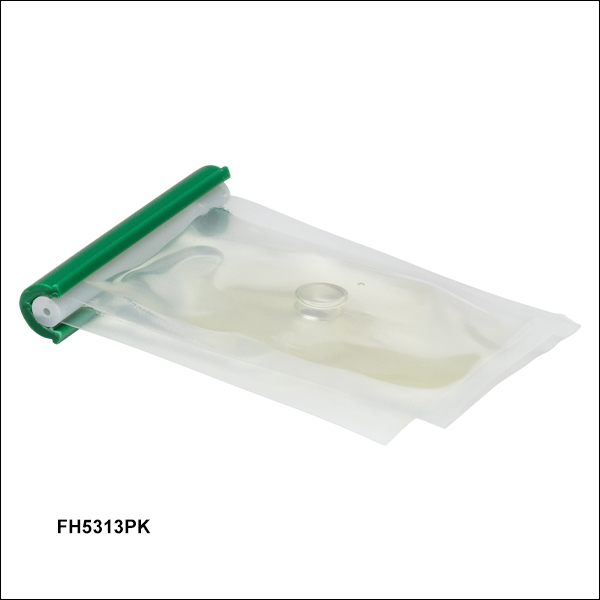

光学接着剤FH5313PKは、光学基板の接着、ポッティング、カプセル化などに適しています。360 nm~2100 nmにおいて透過率>90 %であり、また化学耐性や力学的強度、さらに熱安定性にも優れています。 アウトガスが少ないため、衛星搭載システムにもご使用いただけます。この2液式接着剤は室温では48時間で硬化しますが、50 °Cでは硬化時間を5時間に短縮できます。 接着剤は2つの別々の袋に収められており、正味重量は6 gです。
有効期限
接着剤FH5313PKを室温で保管した場合の有効期限は365日間です。12 °Cで保管したときの有効期限は12年になります。この期間の開始日は、製造元でパッケージングされた日です。当社では、お届け時に有効期限が最低でも3か月以上ある製品を発送しております。
