NDフィルター、マウント付き、ARコーティング付き: 350~700 nm
- Mounted Ø25 mm Round Filter
- Optical Densities Ranging from 0.1 to 6.0
- Ideal for Low-Power Applications (<1 W)

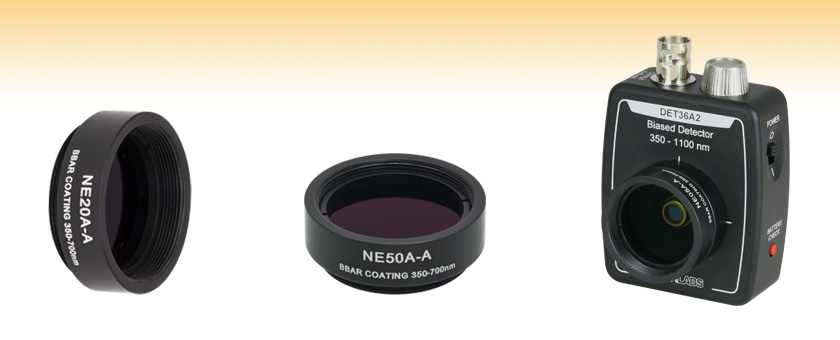

NE20A-A
NE50A-A
NE05A-A Mounted
in a DET36A2 Detector
Application Idea
Please Wait
Neutral Density Filter Selection Guide | |
---|---|
Absorptive | |
Uncoated (400 - 650 nm) | Mounted |
Unmounted | |
Uncoated (1000 - 2600 nm) | Mounted |
Unmounted | |
AR Coated (350 - 700 nm) | Mounted |
Unmounted | |
AR Coated (650 - 1050 nm) | Mounted |
Unmounted | |
AR Coated (1050 - 1700 nm) | Mounted |
Unmounted | |
Variable | |
Reflective | |
UV Fused Silica (200 - 1200 nm) | Mounted |
Unmounted | |
N-BK7 (350 - 1100 nm) | Mounted |
Unmounted | |
ZnSe (2 - 16 µm) | Mounted |
Unmounted | |
Wedged UVFS (200 - 1200 nm) | |
Wedged N-BK7 (350 - 1100 nm) | |
Wedged ZnSe (2 - 16 µm) | |
Variable | |
Neutral Density Filter Kits |
Click to Enlarge

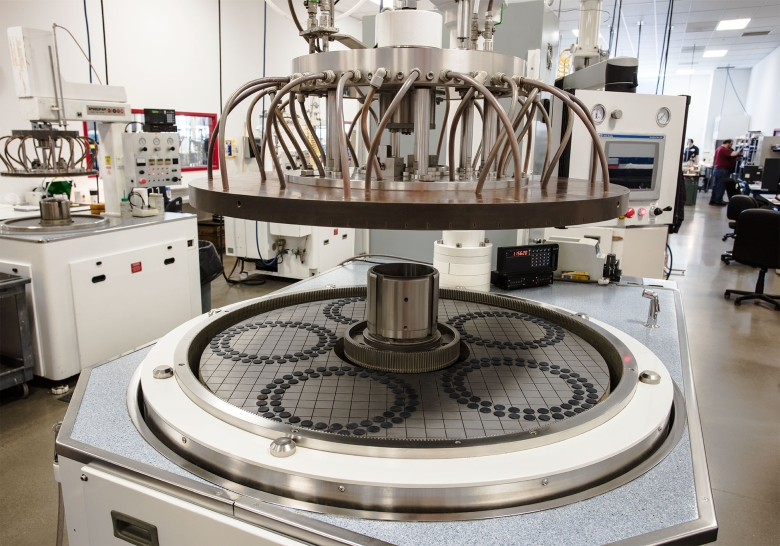

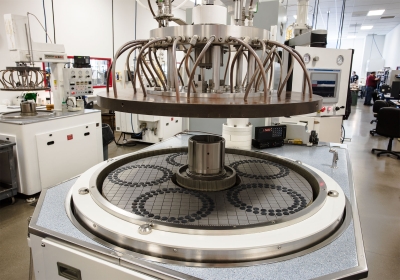

当社の光学製品製造施設内で研磨されているNDフィルタ
特長
- 可視光を減衰(350~700 nmスペクトル対応のARコーティング)
- 光学濃度は0.1~6.0
- マウント付きØ25 mm円形フィルタ
- ARコーティングにより、光学システムでの後方反射を低減
- 低出力の用途に適した製品(< 1 W)
- コーティング範囲と型番を刻印
当社は、両面に350~700 nmスペクトル対応の広帯域ARコーティングが施された、最も一般的なマウント付き吸収型NDフィルタをご提供しています。フィルタに施された高性能多層広帯域Aコーティングは、波長範囲350~700 nmで表面反射率が最小となるよう設計されているため、迷光が低減されます。 このコーティングは、光がフィルタ表面に垂直入射する際に、指定された波長域にわたって0.5%未満の平均反射率をご提供します。下の表にある青いアイコン() をクリックすることで、典型的なフィルタ透過率データを見ることができます。
これらのフィルタは、刻印付きØ25 mm~Ø25.4mm(Ø1インチ)レンズチューブSM1L03に取付けられています。このレンズチューブは、当社のケージシステムやレンズチューブのような様々な精密なオプトメカニクス部品で利用可能です。フィルタをマウントから外す必要がある場合には、フィルタをマウントに固定している固定リングを緩めてください。当社はこの固定リングに適したスパナレンチを取り揃えております。こちらのページのフィルタはマウント無しでもご用意しています。マウント付きフィルタに取付けられているフィルタのマウント無しモデルの型番は、下の赤いアイコン()内の図面に記載されています。すべてのNDフィルタのラインナップは右表からご覧いただけます。
反射型NDフィルタとは異なり、吸収型NDフィルタはSchott社製ガラス(詳細は「仕様」タブを参照)から加工されています。どのSchott社製ガラスも、平坦な吸収係数を持つスペクトル特性となっています。ガラスの厚さを変化させることで、4種類のSchott社製ガラスから全ての近赤外域吸収型NDフィルタが作られます。これらのARコーティング吸収型NDフィルタで得られる平均透過率の詳細については、下記の詳細情報をご参照ください。
光学濃度と透過率
光学濃度(OD)は光学フィルタによりもたらされる減衰率、つまり入射ビームの光パワーをどれだけ減少させるかを示しています。光学濃度(OD)は透過率Tの関数として次の方程式で表されます。
Tは0から1の間の値です。光学濃度の高いNDフィルタ(吸収型)を選択した場合、入射光の吸収率は高く、透過率は低くなります。透過率を高く、吸収率を低くするためには、低い光学濃度のNDフィルタが適切と言えます。例えば、光学濃度2のフィルタでは透過率が0.01であり、フィルタは入射ビームのパワーを1%まで減衰させるという結果になります。当社のNDフィルタの透過率のデータは、パーセント(%)で表示されています。
この製品は、レーザ用安全保護具としてはご利用いただけません。当社では、安全に実験を行っていただくために、迷光の照射を著しく低減できるビームブロックなど、安全保護具や遮光用製品をご用意しております。
青い網掛け部分は、ARコーティングの仕様波長範囲を示しています。
Optical Density (OD)a | OD Tolerancea | Substrate | Substrate Thicknessb |
---|---|---|---|
0.1 | ±0.01 | NG11 | 0.6 mm |
0.2 | ±0.01 | NG11 | 1.4 mm |
0.3 | ±0.015 | NG11 | 2.3 mm |
0.4 | ±0.02 | NG4 | 0.7 mm |
0.5 | ±0.025 | NG4 | 0.9 mm |
0.6 | ±0.03 | NG4 | 1.1 mm |
0.7 | ±0.04 | NG4 | 1.3 mm |
0.8 | ±0.05 | NG4 | 1.5 mm |
0.9 | ±0.05 | NG4 | 1.7 mm |
1.0 | ±0.05 | NG4 | 1.9 mm |
1.3 | ±0.065 | NG4 | 2.5 mm |
1.5 | ±0.08 | NG4 | 2.9 mm |
2.0 | ±0.1 | NG9 | 1.4 mm |
3.0 | ±0.15 | NG9 | 2.1 mm |
4.0 | ±0.2 | NG9 | 2.8 mm |
5.0 | ±0.25 | NG9 | 3.6 mm |
6.0 | ±0.3 | NG1 | 1.5 mm |
General Specifications | ||
---|---|---|
Diameter | 25.0 mm | |
Diameter Tolerance | +0.00 / -0.25 mm | |
Clear Aperture | > Ø20.0 mm | |
AR Coating Range | 350 - 700 nm | |
Reflectance (Average) | < 0.5% per Surfacea | |
Surface Quality | 60-40 Scratch-Dig | |
Transmitted Wavefront Error (TWE) | < λ/4 (@ 633 nm) |
青い網掛け部分は、ARコーティングの仕様波長範囲を示しています。光学濃度と透過率のデータはこちらからダウンロードいただけます。特定のフィルタの透過率と光学濃度は、下表の該当するフィルタの をクリックしてご覧ください。
Posted Comments: | |
Richard Anderson
 (posted 2022-03-16 09:29:03.94) I have a NE03A-A that I would like to use in a high-temperature environment. Could you please inform me of what is the maximum direct-contact temperature that model of filter can be subjected to without damage? cdolbashian
 (posted 2022-03-25 11:40:49.0) Thank you for reaching out to us with this inquiry Richard. As it is listed on the "Specs" tab of the product page above, this is SCHOTT NG11 glass. We mount this filter within an anodized aluminum housing. In terms of critical temperatures, we have the following information to provide. The aluminum has a melting point >582°C, the glass transition temperature of the SCHOTT NG11 is 481°C, and we have observed our anodization will begin to strip from the aluminum between 100-135°C. I have contacted you directly to discuss your application further. Ju Fe
 (posted 2020-10-12 10:50:58.603) Hello Thorlabs,
In the excel files, a message says "Slight variations in performance data will occur from lot to lot".
Could you estimate the uncertainty on the transmission curves ?
Best Regards,
Julien asundararaj
 (posted 2020-10-26 04:16:00.0) Thank you for contacting Thorlabs. The variation in the performance is a result of the tolerance on the thickness of the ND filter as well as the the variation in the AR coating. The tolerance in the thickness is ±0.2 mm and the variation n the AR coating is less than 1% and is detailed in this link - ttps://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=5840&tabname=AR%20coating Hailong He
 (posted 2020-05-07 10:22:37.33) Hi,
I am interested in the ND filter at wavelenght of 532 nm. I would like to ask the damage threshold of them. I am using a pulse laser (2 ns) with maximum peak power of 200KW. Is this power in the safe range of the density filters?
Thanks,
Hailong YLohia
 (posted 2020-05-08 08:39:05.0) Hello Hailong, thank you for contacting Thorlabs. These filters are designed for < 1 W CW applications. Unfortunately, we do not expect these filters to perform well for your 2 ns, 1 kHz, 200 kW peak power pulses at 532 nm. Instead, we recommend looking into our uncoated absorptive ND filters on this page : https://www.thorlabs.us/newgrouppage9.cfm?objectgroup_id=266. Ali Ojaghloo
 (posted 2020-04-28 00:39:38.007) dear services,
I have some of your company product such as ND filter, Photodiode, lenses and etc.
unfortunately in user manual and your website information about these damage threshold not anything.
please give me some inform about it to calculate max power that we can use?
I have NEIR 40A-c, NE 40A-A,
i have about ten models of photodiode of your products such DET10A/M which you don't mentioned about asundararaj
 (posted 2020-05-04 05:08:57.0) Thank you for contacting Thorlabs. While we do not have an official spec for the damage threshold for the NE40A-A and the NEIR40A-C, I have contacted you directly to see if these would suit your application.
As for the DET10A/M, while we typically do not spec a damage threshold for our detectors, the power is limited by the max reverse current on the photodiode - 5 mA. The Max optical power can be found from the responsivity at your wavelength using the following equation,
Maximum Optical Power (in W) = Maximum PhotoCurrent (in A) * Responsivity (in A/W) user
 (posted 2020-04-26 21:05:31.333) Is there an LIDT for the ND filters? YLohia
 (posted 2020-04-27 10:50:16.0) Thank you for contacting Thorlabs. These filters are designed for applications with < 1 W power. I have reached out to you directly to offer suggestions based on your specific requirements. Aeckford
 (posted 2014-09-25 15:39:56.333) Why dont these have a slight angle on them to improve performance in stacked usage? besembeson
 (posted 2014-10-09 02:13:21.0) Response from Bweh at Thorlabs. I believe you are concerned about interference effects due to reflections from multiple parallel surfaces in your application? We are designing new wedged reflective ND filters to eliminate such effects. If your need is immediate, we can apply a reflective ND coating (with appropriate OD) on a wedged window as a special. jlow
 (posted 2012-12-11 16:32:00.0) Response from Jeremy at Thorlabs: Thank you for pointing this error out to us. We will rescan this and put the correct version up on the website. rschoeneck
 (posted 2012-12-07 11:10:58.287) The transmission graph and raw data listed for the NE05A-A OD 0.5 ND filter show values that match an OD 0.3 filter. Probably the wrong element was used to generate the OD 0.5 transmission curve. |
