Products Homeブレッドボード用ハンドル
- Easily Lift Breadboards Out of ScienceDesks and Frames
- Safely Carry Breadboards up to 250 kg (550 lbs)
- Suitable For Imperial and Metric Work Surfaces
Please Wait

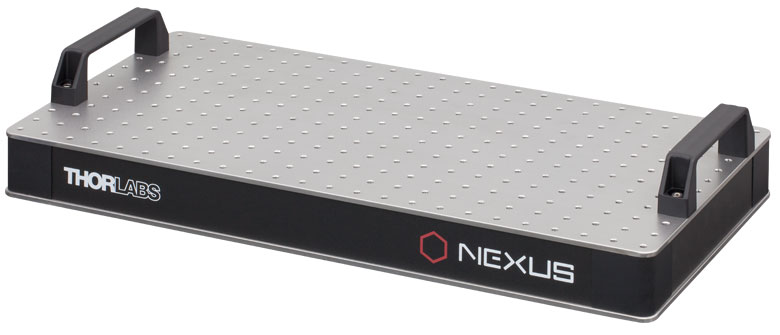

ブレッドボード用ハンドルBBH1によって、ブレッドボードの持ち運びが簡単にできます。ガラスファイバで補強されたポリマ製ハンドルは、適切に取り付ければ250 kg の重量を安全に運ぶことが可能です。各ハンドルには2つの取付け用の溝があり、M6および1/4"-20キャップスクリュ(別売り)を用いてネジ穴に固定可能で、ミリおよびインチの両規格に対応しています。Figure 1.1はNexus®ブレッドボードに取付けられたブレッドボード用ハンドルです。大型のブレッドボードには各隅に1つずつハンドルを取り付けることをお勧めします。
| Posted Comments: | |
Maike Lachmann
(posted 2025-01-13 08:21:21.27) What is the load that these handles can carry?
Are alternative available? Maybe made of metal?
Best regards
Maike Lachmann tschofield
(posted 2025-01-13 09:22:46.0) Thank you for reaching out. When used as a pair, these handles are rated to carry 250 kg. Unfortunately, we do not stock this product in different materials as a catalogue option. I will contact you directly to discuss your application further. user
(posted 2022-01-24 15:30:33.13) You do not list the hole to hole spacing for these handles. DJayasuriya
(posted 2022-01-26 08:13:15.0) Thank you for your inquiry. The hole spacing is 5.98''. Wonder if you have seen the CAD PDF for this : https://www.thorlabs.com/drawings/9f9f6068ad490d4f-D6D16510-0026-8C27-1931B6657F78281F/BBH1-AutoCADPDF.pdf user
(posted 2019-08-08 10:23:10.113) Do you have a step model with only one handle. Right now it comes through with 2 handles as an inseparable import object? Need asap AManickavasagam
(posted 2019-08-13 04:19:25.0) Response from Arunthathi at Thorlabs: Thanks for your query. I have contacted you directly with the step file for one handle. |
