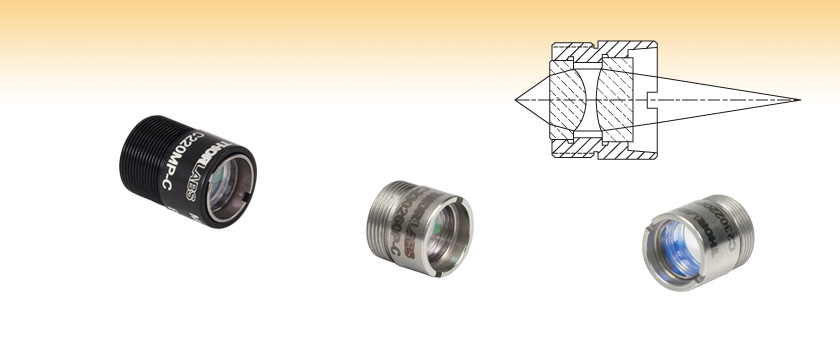

非球面レンズペア


  • Near Aberration-Free One-to-One Imaging
  • Direct Laser Diode to Fiber Coupling
  • 600 - 1050 nm or 1050 - 1700 nm AR Coating

C220MP-C

Matched Aspheric Pair, 0.25 NA, AR Coated: 1050 - 1700 nm

C230260P-C

Aspheric Pair, 0.55 / 0.16 NA, AR Coated: 1050 - 1700 nm

C230220P-B

Aspheric Pair, 0.55 / 0.25 NA, AR Coated: 600 - 1050 nm
Related Items


Please Wait

特長

  • 回折限界性能が得られる成型ガラス非球面レンズ
  • 球面収差を生じさせずに光を集光またはコリメート
  • 予めアライメントされたレンズを刻印付き金属筐体に取付け済み
  • 600~1050 nmまたは1050~1700 nmの反射防止(AR)コーティング

非球面レンズは、透過波面に球面収差を生じさせることなく、光を集光またはコリメートするように設計されています。単色光源からの光を集光またはコリメートしたとき、球面レンズでは球面収差によって回折限界性能が得られないことがよくあります。

当社の非球面レンズペアは、予めアライメントされた2枚の非球面レンズが金属筐体内に取り付けられています。同一非球面レンズペアは2枚の同じ非球面レンズで構成されており、回折限界に近い性能を有する1対1のイメージング用として適しています。また、半導体レーザからの出力光をファイバに直接結合するのに適した、開口数(NA)の異なる2枚のレンズで構成されたファイバ結合用非球面レンズペアもご用意しています。これらのレンズには600~1050 nmまたは1050~1700 nmのARコーティングが施されています。

非球面レンズペアは予め金属筐体に取り付けられており、筐体には識別しやすいように型番が刻印されています。また、容易に取付けられるように、筐体にはM11 x 0.5またはM9 x 0.5の外ネジが付いています。当社のコンポーネントを用いて非球面レンズをオプトメカニクスアセンブリに組込む方法については、下記の各製品紹介をご覧ください。

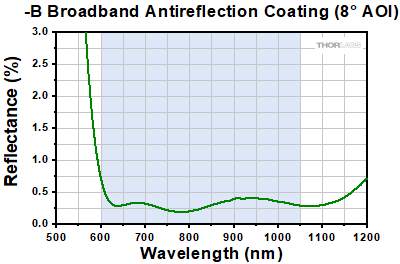

B AR Coating
Click to Enlarge

Click Here for Raw Data
青い網掛け領域は、最良の性能が得られる仕様波長範囲650~1050 nmを示しています。
C AR Coating
Click to Enlarge

Click Here for Raw Data
青い網掛け領域は、最適な性能が得られる仕様波長範囲1050~1700 nmを示しています。

Posted Comments:
randy.sabatini  (posted 2018-08-15 19:05:39.613)
Are there any hopes of getting an aspheric lens pair with A AR coating (i.e. visible antireflection)?
YLohia  (posted 2018-08-16 08:35:39.0)
Yes, it is possible for us to offer these with the A coating by requesting a custom quote from techsupport@thorlabs.com. I will reach out to you directly with more information.
liz74  (posted 2018-08-10 18:12:59.227)
Hello, I would like to use this "Laser to High NA Fiber Coupling Pair" to couple 720nm and 1310nm lasers from diode facet into fibre, SM fibre would be the best. But when I check the C230220P-B product information, it says the design wavelength is 780nm. What dose the design wavelength mean, could I use this product to couple 720nm or 700nm laser from diode into a fibre. Looking forward to your reply.
YLohia  (posted 2018-09-17 09:47:43.0)
Hello, thank you for contacting Thorlabs. The design wavelength of 780nm means that at 780nm you would get the optimum performance from the lens. Since the lens is made from a single material, the design is optimized for a specific wavelength. The performance at any other wavelength will be different from what is called out as the performance at the design wavelength. For fiber coupling applications, the lenses offer good performance well beyond their specific design wavelength. The lenses are coated to minimize the back reflections in the coating range specified. For specific performance it is always best to use the Zemax data to model in the specific application. That being said, this lens is specified for use in the 650 - 1050nm wavelength range, which is fine for 720nm but less than ideal for 1310nm. The primary issue here would be loss due to the AR coating, which does not cover 1310nm. There will also be a noticeable focal length shift so the spot sizes of the two wavelengths will not be equal. For such applications, we typically recommend using mirrors due to their broadband operating range.
simon.poland  (posted 2018-05-01 15:58:33.947)
Can you provide matched aspheric pairs with the A-coating (400-700nm)?
nbayconich  (posted 2018-05-01 02:51:20.0)
Thank you for your feedback. Yes we can provide a -A coated version of the C110MP lens pairs. I will contact you directly with more information about our custom capabilities.
lea.caddick  (posted 2016-02-15 05:38:58.43)
C230220P-C Hello. Could you please confirm RoHS compliance for this item with hopefully a C of C? Thank you. Lea.
besembeson  (posted 2016-03-03 12:21:42.0)
Response from Bweh at Thorlabs USA: Yes it is. The document can be found here: http://www.thorlabs.com/RoHS_cert.cfm?rohs=A%20(compliant%202011/65/EU)&pn=C230220P-C
avle  (posted 2013-05-14 03:28:56.587)
can you make a custom matched pair using two 2330-C lenses? please quote
tcohen  (posted 2013-05-15 12:50:00.0)
Response from Tim at Thorlabs: Thank you for your inquiry. I will contact you directly to discuss your requirements.

同一非球面レンズペア

Item #C110MP-BC220MP-BC220MP-C
Numerical Aperture0.400.25
AR Coating600 - 1050 nm1050 - 1700 nm
Distance to Focal Point
from Housing Front
1.800 mm6.096 mm
Housing Thread External M11 x 0.5
Reference Drawing
  • 球面収差がほぼない1対1のイメージング用ドロップイン式レンズペア
  • 開口数(NA):0.40または0.25
  • ARコーティング付き:600~1050 nmまたは1050~1700 nm

同一非球面レンズペアを使用すると、ほぼ収差のない1対1のイメージングが可能になります。このレンズペアは2枚の同じ非球面レンズで構成されており、それらは予めアライメントされてM11 x 0.5外ネジの付いた金属筐体に取り付けられています。同一レンズペアには、NAが0.40と0.25、ARコーティングが600~1050 nmと1050~1700 nmの製品がございます。

同一非球面レンズペアを取り付けるとき、アダプタRMS11Pを使用すると、M11 x 0.5外ネジを標準的なRMSネジに変換できます。このRMSネジの付いたアセンブリは、フレクシャーステージマウントHCS031やキネマティックマウントKM100Rに直接取り付けられます。さらに、RMSネジの付いたアセンブリは、アダプタSM1A3を用いてSM1ネジ付きレンズチューブに取り付けることも可能です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
C110MP-B Support Documentation
C110MP-BMounted Matched Pair, f = 6.24 mm, NA = 0.40, ARC: 600 - 1050 nm
¥34,946
7-10 Days
C220MP-B Support Documentation
C220MP-BMounted Matched Pair, f = 11.0 mm, NA = 0.25, ARC: 600 - 1050 nm
¥34,946
7-10 Days
C220MP-C Support Documentation
C220MP-CMounted Matched Pair, f = 11.0 mm, NA = 0.25, ARC: 1050 - 1700 nm
¥34,946
7-10 Days

ファイバ結合用非球面レンズペア

Item #C230220P-BC230220P-CC230260P-BC230260P-C
Numerical ApertureLaser Side0.55
Fiber Side0.250.16
AR Coating600 - 1050 nm1050 - 1700 nm600 - 1050 nm1050 - 1700 nm
Distance to
Focal Point

from Housing Front
Laser Side2.900 mm
Fiber Side5.766 mm10.510 mm
Housing Thread External M9 x 0.5

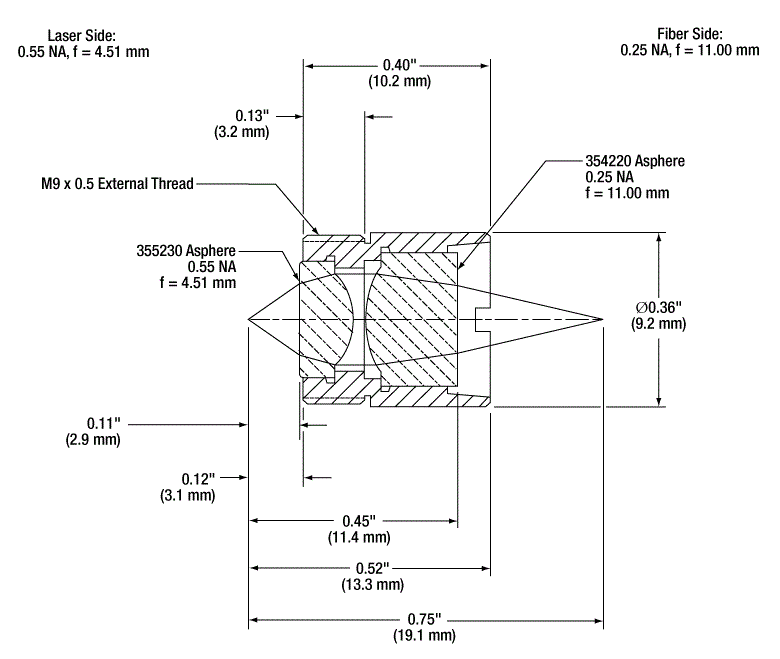

Reference Drawing
  • 半導体レーザの出力光を直接ファイバに結合可能
  • ファイバのNA:0.25または0.16
  • ARコーティング付き:600~1050 nmまたは1050~1700 nm

ファイバ結合用非球面レンズペアは、半導体レーザの出力光をファイバに容易かつ高効率で結合できる製品です。このレンズペアは、予めアライメントされた2枚の非球面レンズで構成されています。レーザ側に向いた1枚目のレンズのNAは0.55で、半導体レーザからの発散光の集光用として使用されます。ファイバ側に向いた2枚目のレンズのNAは0.25または0.16で、それぞれマルチモードファイバまたはシングルモードファイバとの結合用に適しています。焦点距離の短い高NAのレンズと、焦点距離の長い低NAのレンズを組み合わせることで、エミッタのNAは焦点距離の比に応じて小さくなります。同時に、エミッタのサイズはこの比に逆比例して拡大します。レンズペアには600~1050 nmまたは1050~1700 nmのARコーティングが施されています。

このレンズペアを収納している金属筐体には、半導体レーザに面する側にM9 x 0.5外ネジが付いています。当社ではM9 x 0.5ネジをSM1ネジに変換するアダプタS1TM09をご用意しており、これを用いるとレンズペアを容易にSM1ネジ付きレンズチューブに組み込むことができます。また、アダプタRMS09を用いてM09 x 0.5外ネジを標準的なRMSネジに変換すると、非球面レンズペアをその他のオプトメカニクスアセンブリに組込むことも可能です。 RMSネジの付いたアセンブリは、例えば当社のフレクシャーステージマウントHCS013やキネマティックマウントKM100Rなどに取り付けられます。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
C230220P-B Support Documentation
C230220P-BMounted Aspheric Lens Pair, 0.55 NA / 0.25 NA, ARC: 600 - 1050 nm
¥34,013
Lead Time
C230220P-C Support Documentation
C230220P-CMounted Aspheric Lens Pair, 0.55 NA / 0.25 NA, ARC: 1050 - 1700 nm
¥34,013
Lead Time
C230260P-B Support Documentation
C230260P-BMounted Aspheric Lens Pair, 0.55 NA / 0.16 NA, ARC: 600 - 1050 nm
¥32,144
7-10 Days
C230260P-C Support Documentation
C230260P-CMounted Aspheric Lens Pair, 0.55 NA / 0.16 NA, ARC: 1050 - 1700 nm
¥32,144
7-10 Days
