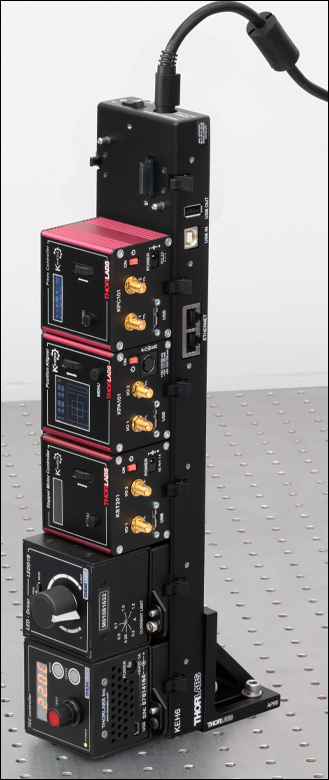

Figure 1.1 TK-Cubeモジュールが取り付けられたUSBコントローラーハブKCH601
特長
- K-Cube®およびT-Cube™用電源(1台用)
- 最大2台のK-CubeおよびT-Cube用電源
- 最大3台または6台までのK-CubeやT-Cubeへの電源供給と通信が可能なUSBコントローラーハブ
- T-CubeをUSBコントローラーハブに取り付ける際はアダプタープレートを使用
USBコントローラーハブ以外の電源は、すべてのK-CubeならびにT-Cubeには対応しませんのでご注意ください。電源をお選びになる際には、ご使用になるK-CubeならびにT-Cubeに必要な電圧と電流が供給可能であることをご確認ください。正しい電源の選び方については下記をご参照ください。
| Posted Comments: | |
ursula gibson
(posted 2024-10-25 12:30:26.19) documentation for TPS002 - ±15 V/5 V Power Supply Unit with Mini-DIN Connectors for up to Two K- or T-Cubes doesn't say what voltages are on what terminals, which might allow a person to use the adapter for other instruments. Is that info available somewhere?
thanks-
ursula spolineni
(posted 2024-11-06 04:52:43.0) Thank you for reaching out! I will contact you directly to assist further with your inquiry. Joseph Tokarski
(posted 2024-10-01 16:23:11.693) I am looking for the Specification Sheet for the KP201 for my records and BOM.
I appreciate any assistance you can provide. dnewnham
(posted 2024-10-07 10:51:44.0) Thank you for your inquiry I will reach out to you directly to discuss this with you. Wolfgang Kilian
(posted 2024-10-01 10:21:09.177) Is there any information available on the currents the power supply can deliver on the various output voltages? And can you provide the pinout of the Mini-DIN connector? spolineni
(posted 2024-10-07 06:15:44.0) Thank you for your inquiry. I will reach out to you personally with the details on the power supply and the Mini-DIN connector pinout. Joey Tan
(posted 2022-06-27 18:06:06.997) We lost the Mini-DIN Connectors for TPS002, how can I get it in China? Thanks. Yunwei Sheng
(posted 2021-04-13 08:37:09.307) Hello,
We bought the KPRM1E/M including the rotation stage and the motor driver.
Now we cannot find the power supply and the USB cable of the KDC101 motor controller.
I suppose we should buy a KPS101 as the power supply, but which one should I buy as the USB cable?
Thank you.
Yunwei cwright
(posted 2021-04-14 11:18:29.0) Response from Charles at Thorlabs: Hello and thank you for your query. Unfortunately the exact cables we send out (the locking USB 3.0 type) are not available on our site but we can provide a replacement. I will reach out to you about this. It may be helpful to know that it is actually possible to use these with any micro-USB 2.0 cable with no ill-effects. user
(posted 2019-04-15 17:17:26.69) P/S has no output (0V) after about 1 year in operation. Is it more likely to fail if it's plugged in all the time? rmiron
(posted 2019-04-16 10:46:34.0) Response from Radu at Thorlabs: We are sorry to hear that your power supply had such a short lifetime. We aim to only sell high-quality power supplies with our devices, but failures can still occur. There are multiple mechanisms by which a supply can fail. Keeping them continuously plugged into the mains, even if the device is switched off or disconnected, can make some of these failure mechanisms more likely. This is due to an increased exposure to input voltage fluctuations and surge currents. Even with anti-surge protection circuitry in place, this still makes the internal ceramic capacitors more likely to crack and the semiconductor-based elements (diodes & switches) more likely to get damaged. With that being said, your supply is still under warranty. Therefore, I recommend that you contact your local technical support team and ask for a replacement. neuhaus
(posted 2013-09-11 16:34:18.31) Dear Sir or Madame,
please specify the inner diameter of the connector (for TDC001) (inner: 1.3 or 1.45 mm; outer: 3.5mm).
Thank you with best regards,
Jörg Neuhaus jlow
(posted 2013-09-11 13:28:00.0) Response from Jeremy at Thorlabs: The barrel size is 1.3mm. mthiel
(posted 2007-12-20 09:08:25.0) I did not see that the
TPS002 power supply that we ordered is not compatible with our T-cubes
for LEDD1 (actually this is not very logical because you sell TPS001 and
TPS008 compatible, but not TPS002, this should be made clearer on your
website because there is a denomination"T-cube" for all the T-cubes
TDC001, TST001, LEDD1, TSC001 etc, although they are very different...) |
ズーム| Input Specifications | |
|---|---|
| Item # | Mains Voltage Requirements |
| KPS201 | 100 - 240 V, 1 A Max, 47 - 63 Hz |
| TPS002 | 90 - 264 V, 0.8 A Max, 47 - 63 Hz |

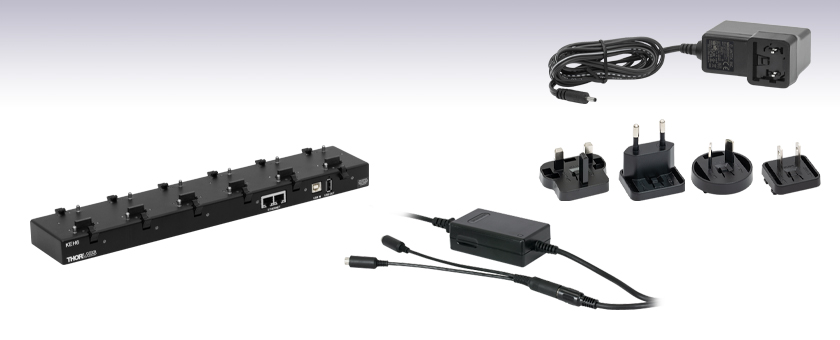

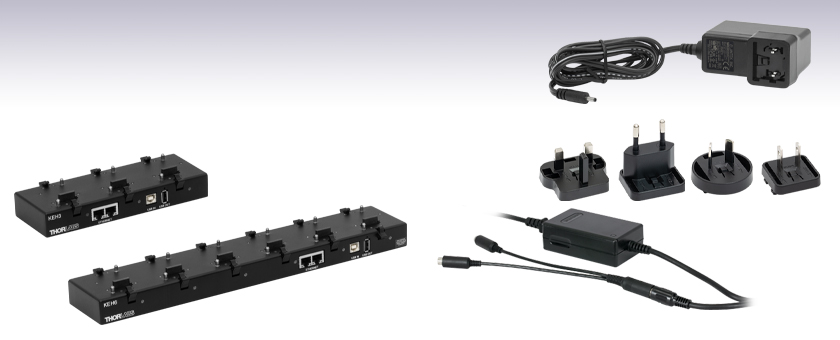

- 1台のK-Cube®およびT-Cube用電源
- KPS201:K-Cube、T-Cube用、3.5 mmジャック付き
- 最大2台までのK-CubeまたはT-Cube用電源
- TPS002:K-CubeまたはT-Cube用、MINI-DIN入力端子付き
KPS201は、1台のK-CubeやT-Cubeに電源を供給し、TPS002は2台までのK-CubeやT-Cubeに電源を供給します。詳細は、リストや上の対応表をご参照ください。TPS002でKNA-VISまたはKNA-IRに電源供給する場合は、電流リミット値を超えないよう1台に対してのみご使用ください。
モーションコントロール用のソフトウェアを用いて制御をおこなう場合は、T-CubeやK-CubeとPCをUSBケーブルで個別に接続する必要があります。電源ユニットには、日本国内向けのアダプタープラグが付属します。
ズーム
Click to Enlarge

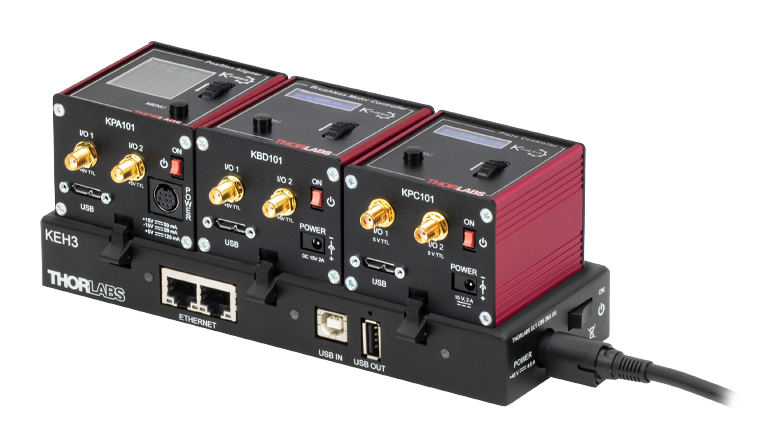

Figure 578A K-CubeおよびT-Cubeモジュールを取り付けたUSBコントローラーハブKCH301
| Input Specifications | |
|---|---|
| Item # | Mains Voltage Requirements |
| KCH301 KCH601 | 80 - 264 V, 1.8 A Max, 47 - 63 Hz |

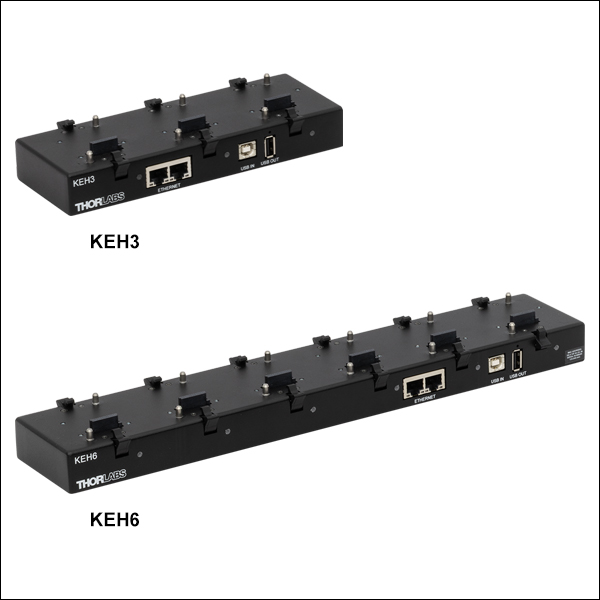

- 最大3台または6台までのK-Cube®あるいはT-Cubeを取り付け可能なUSBコントローラーハブ
