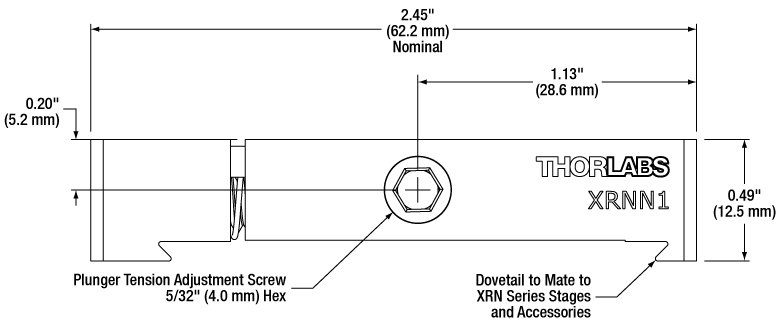

クイック接続型(アリ溝付き)部品用ポジショナークランプ、幅50.7 mmアリ溝付きレール・ステージ用

Build Multi-Axis Configurations

Click for Details
Figure 107B  Z-axis assembly kits allow stages to be mounted in vertical orientations.

Quick-Connect Dovetails

Click to Enlarge
Figure 107A  The XR and XRN stages feature female dovetails on the bottom of the stage that mate with the male dovetails on another. The left female dovetail is on a retractable clamping arm, allowing stages to be dropped into place.

XR & XRN Dovetail Stages and Accessories

Our XR series manual stages feature quick-connect dovetails that allow for the construction of multi-axis systems without the need for additional hardware. The common dovetail feature with a single locking clamp makes it quick and simple to swap parts in and out while preserving excellent orthogonality.

Our selection of products with a quick-connect dovetail includes:

• Linear Translation Stages:
  • Stackable 1-Axis Stages
  • Pre-Assembled 2- and 3-Axis Configurations
  • 25 mm Motorized Actuator Options: Piezo Inertia, Stepper, or DC Servo
• Rotational Stages:
  • 360° Flat Rotation
  • Tip/Tilt Goniometers
• Adapters:
  • Z-Axis Assembly Kits
  • Parallel and Perpendicular Mounting between 2" and 3" Dovetails
• Rail Accessories:
  • Stationary Mounting Platforms
  • Rail Component Positioners
• Base Plates and Rails

Most items are available in compact (2" dovetail) and full-size (3" dovetail) varieties. Adapters are available to interface between the two sizes. See tables 107F and 107G for all available options.

Linear Translation Stages

Thorlabs' Quick-Connect Linear Translation Stages feature 2 inch or 3 inch dovetails for which the female dovetail on the bottom of one stage mates to the male dovetail on another as shown in Figure 107A. Many of these stages have micrometers that can be switched between end-mounted and side-mounted configurations (see Figures 107C and 107D). We also offer vertical translation stages that feature graduated scales to indicate the amount of translation. In Figure 107E, the base plate of a vertical stage is removed to expose the mounting boss which enables additional mounting configurations. The stages featuring 25 mm of travel can also be paired with motors. For specific information on our Quick-Connect Linear Translation stages please see Table 107F.

Click to Enlarge
Figure 107C  Stages are available with either a side- or end-mounted micrometer. The stage can be converted from one configuration to the other using our Micrometer Conversion Kits and a standard set of hex keys or balldrivers.


Click for Details
Figure 107D  Stages with micrometers can have them mounted on either side. The side-mounted micrometer can be swapped with the locking plate to create a left- or right-handed stage.

Click to Enlarge
Figure 107E  The base plate on our vertical stages can be removed to access a mounting boss on the bottom of the stage. This allows the stage to be mounted on a base plate for a smaller footprint or a rotation adapter for coarse angular positioning.

Table 107F Linear Translation Stages
Product Pages	Compact 25 mm Stages (Modular Motorized Also Available)	Compact 9 mm Vertical Stage	Full-Size 25 mm Stages (Modular Motorized Also Available)	Full-Size 50 mm Stages	14 mm Vertical Stage
Click Photo to Enlarge
Motion	X, Y, Z, XY, XZ, YZ, XYZ	Z (Vertical)	X, Y, Z, XY, XZ, YZ, XYZ	X, Y, Z, XY, XZ, YZ, XYZ	Z (Vertical)
Travel	25 mm	9 mm	25 mm	50 mm	14 mm
Resolution	500 µm per Revolution	0.25 mm per Revolution	500 µm per Revolution		0.25 mm per Revolution
Quick-Connect Dovetail	2" Dovetail		3" Dovetail
Additional Details

Rotation and Goniometric Stages

Thorlabs' Quick-Connect Rotation Stages provide 360° of continuous manual rotation and are offered with 2" or 3" dovetails. Our Goniometric stages provide ±8° of precise rotation about a fixed point in space and come with 2" dovetails. More information on Thorlabs' Quick-Connect Rotation stages and the XRNG Series Goniometers can be found in Table 107G.

Table 107G Rotation and Goniometric Stages
Product Pages	Compact Rotation Stage	Compact Goniometric Stages	Full-Size Rotation Stage
Click Photo to Enlarge
Motion	Coarse: 360° Rotation, Fine: ± 5°	±8° Tip/Tilt About Fixed Point Above Stage	Coarse: 360° Rotation, Fine: ± 5°
Quick-Connect Dovetail	2" Dovetail		3" Dovetail
Additional Details

Resolution	Coarse: 1°, Fine: 8.33 mrad/rev (0.477°/rev)	Knob: 0.9°/rev (0.015 rad/rev) Vernier Scale: 10 arcmin (0.167°)	Coarse: 1°, Fine: 5.78 mrad/rev (0.331°/rev)
Mounting Holes	Imperial Metric	1/4"-20 (M6), 7 Places 8-32 (M4), 2 Places (Click for Details)	Imperial Metric
Load Capacity	Overall: 30 lbs (13.6 kg) Fine Adjustment: 10 lbs (4.54 kg)	Individual Stages: 3.5 lbs (1.59 kg) Stacked XRNG-K1: 2.8 lbs (1.25 kg)	Overall: 50 lbs (22.7 kg) Fine Adjustment: 15 lbs (6.80 kg)



Quick-Connect Dovetail Accessories

Thorlabs also offers adapter kits, mounting platforms, positioners, and base plates for our Quick-Connect Dovetail Stages.

Stage Adapters
Z-Axis Assembly Kits
	Compact Z-Axis Assembly Kits, 2" Dovetails	Full-Size Z-Axis Assembly Kits, 3" Dovetails
Parallel Mounting Adapters
	Parallel Mounting Adapter, Male 2" Dovetail to Female 3" Dovetail	Parallel Mounting Adapter, Male 3" Dovetail to Female 3" Dovetail
Perpendicular Mounting Adapter
	Perpendicular Mounting Adapter Male 2" Dovetail to Female 3" Dovetail

Dovetail Accessories
Mounting Platforms
	2" Mounting Platforms	3" Mounting Platforms
Rail Positioners
	2" Rail Positioners	3" Rail Positioners

Dovetail Bases
Base Plates
	2" Dovetail Base Plate	3" Dovetail Base Plate with Rotational Adjustment
Rails / Extended Bases
	2" Dovetail Rails	3" Dovetail Rails
