ケージアセンブリー&レンズチューブキット


  • Kit Contains 75 Pieces
  • Stackable, Heavy-Duty Welded Steel Cabinet Frame
  • Cabinet Frame can be Wall Mounted or Stacked
  • Equipped with Easy-to-Read Labels

ESK07B

9 Drawers, 75 Pieces

Kit Components

See Contents Tab for Descriptions of Each Item

Related Items


Please Wait

特長

  • ミリ規格対応のキットをご用意
  • ラベル付き引き出しに収納済
  • フレーム寸法: 435.0 mm x 282.3 mm x 281.3 mm(17.13 x 11.11 x 11.08インチ)
  • 引き出し寸法: 276.5 mm x 139.7 mm x 79.9 mm(10.89 x 5.50 x 3.15インチ)
  • 必要な製品の場所が分かりやすいラベル付き
  • 個別に購入するよりもお得な価格
Back Side of ESK Kit
Click to Enlarge

ケースの背面に壁掛け用スロット穴

このケージアセンブリ&レンズチューブエッセンシャルキットは、キットESK07A/Mと併せてお使いいただくととても便利です。このエッセンシャルキットにより、ケージアセンブリシステムの幅が広がります。キットには追加の Ø25.4 mm(Ø1インチ)部品と Ø50 mm~Ø50.8 mm(Ø2インチ)レンズチューブが付いています。また、柔軟に対応できるようにX、Y、Z 移動マウントとケージターレットマウントも付属しています。キットESK07B/Mの内容については、「製品構成」のタブをクリックしてください。すべてのESKシリーズキットには、製品のアイコンが付いたラベルが貼られているので、必要な製品を素早く見つけることができます。

取付けオプション

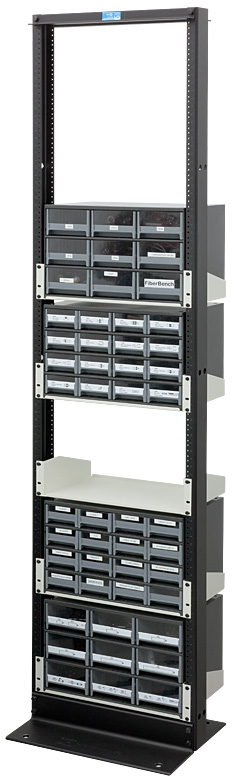

キットは取り出しやすいようにテーブル上に置くことができますが、標準的な19インチラックRK3884に取り付け、ラックシェルフRK4101またはRK4102の上に置くこともできます。右の写真では、異なるESKキットを19インチランクに取り付けています。このキットに使用されているキャビネットはケースの背面に壁取り付け用のスロット穴が付いており(左の写真参照)、また安定して積み重ねられるよう上部にはくぼみ、下部には4本の脚がついています。注:このキットの重量は約10 kgです。取り付ける前に壁や壁取付け部の耐荷重をご確認ください。

Item # in ESK07B
(Imperial)
Item # in ESK07B/M
(Metric)
DescriptionImageQuantity

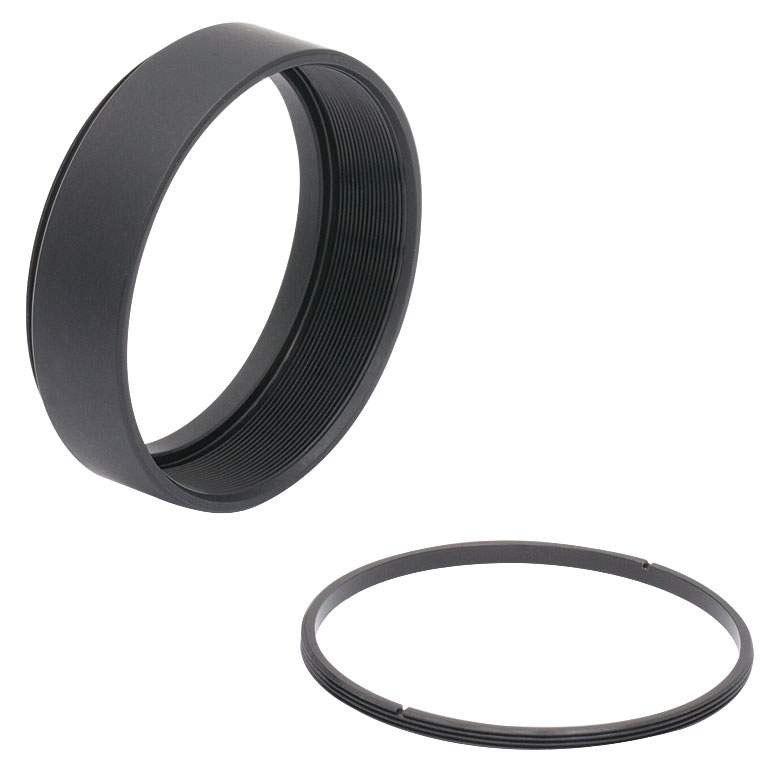

SM2L05SM2 (2.035"-40) Lens Tube, 1/2" (12.7 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 1/2" Bore Depth
Click to Enlarge
5
SM2L10SM2 (2.035"-40) Lens Tube, 1" (25.4 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 1" Bore Depth
Click to Enlarge
5
SM2L20SM2 (2.035"-40) Lens Tube, 2" (50.8 mm) Bore Depth,
One SM2RR Included
SM2 Lens Tube, 2" Bore Depth
Click to Enlarge
5

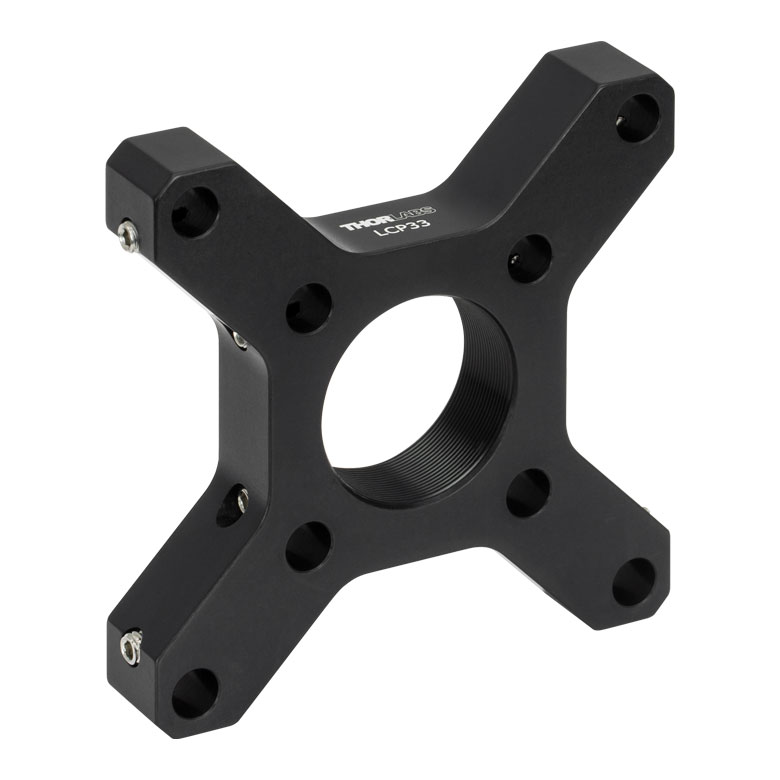

LCP33LCP33/M30 mm to 60 mm Cage Plate Adapter30 mm to 60 mm Cage Plate Adapter
Click to Enlarge
3

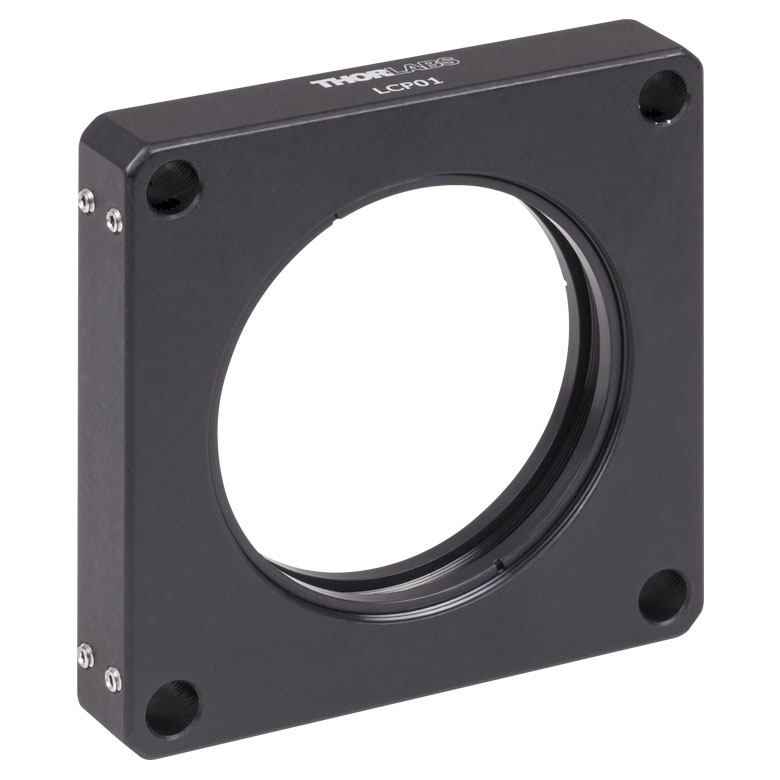

LCP01aLCP01/MbSM2 Cage Plate, 60 mm, 2.035"-40 Threaded Aperture, 1/2" ThickSM2 Cage Plate, 60 mm, 1/2" Thick
Click to Enlarge
3
SM1ZASM1 Series Z TranslatorSM1 Series Z Translator
Click to Enlarge
2
ST1XY-AST1XY-A/MXY Translator with 100 TPI AdjustersXY Translator with 100 TPI Adjusters
Click to Enlarge
2
AD11FAdapter for Ø11 mm modules, F220, F230, F260 collimators
to SM1 thread
Adapter for Ø11 mm modules, F220, F230, F260 collimators to SM1 thread
Click to Enlarge
2
C1ARod Cross Coupler, One Top and Bottom Pair IncludedRod Cross Coupler
Click to Enlarge
4
C2ASet of 4 Swivel CouplersSet of 4 Swivel Couplers
Click to Enlarge
4
C3ARod End Swivel Connector (Set of Four)Rod End Swivel Connector
Click to Enlarge
4
CRM1TCRM1T/MCage Rotation Mount for 1" Optics, Manual AdjustmentCage Rotation Mount for 1" Optics, Manual Adjustment
Click to Enlarge
2
CXY1A30 mm Cage Assembly, XY Translating Lens Mount for Ø1" Optics30 mm Cage Assembly, XY Translating Lens Mount
Click to Enlarge
2
SM2RRRetaining Ring, SM2 (2.035"-40) Threaded x 0.10" (2.5 mm) ThickRetaining Ring, SM2 Threaded x 0.10"  Thick
Click to Enlarge
10

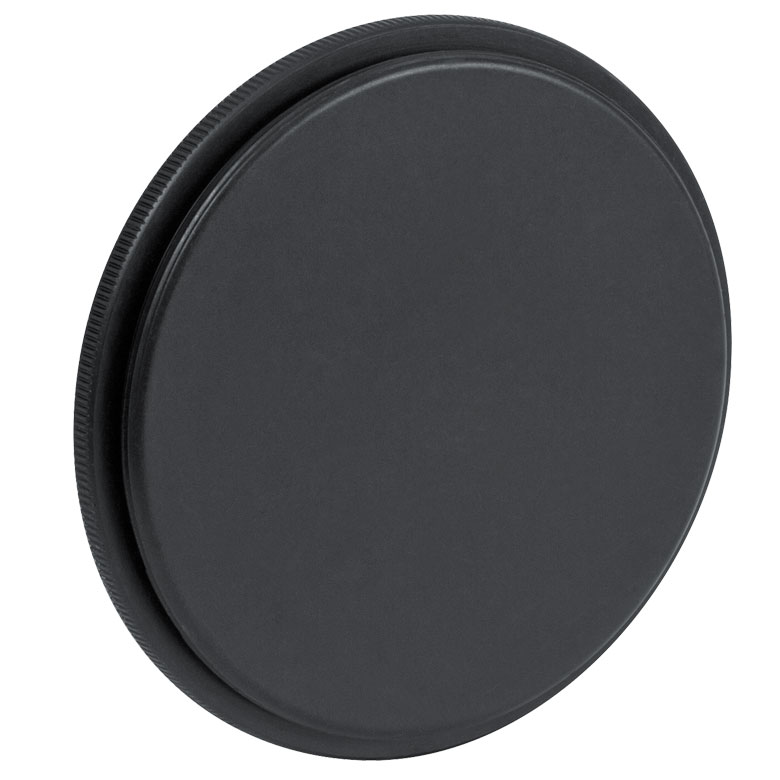

SM2CP1SM2 (2.035"-40) Series End Cap, Internal ThreadSM2 Series End Cap, Internal Thread
Click to Enlarge
2
SM2CP2SM2 (2.035"-40) Series End Cap, External ThreadSM2 Series End Cap, External Thread
Click to Enlarge
2
KC45D1Cage Assembly Turret Mount For Ø1" OpticsCage Assembly Turret Mount For Ø1" Optics
Click to Enlarge
2
SM1FCFC Fiber AdapterFC Fiber Adapter
Click to Enlarge
3
S1TM09SM1 to M9 Aspheric Lens Cell AdapterSM1 to M9 Aspheric Lens Cell Adapter
Click to Enlarge
3
S1LDM9SM1-Threaded Mount for Ø9 mm Laser DiodesSM1 Series 9 mm Laser Mount
Click to Enlarge
2
S1LM56SM1-Threaded Mount for Ø5.6 mm Laser DiodesSM1 Series 9 mm Laser Mount
Click to Enlarge
2
SM1CP1End Cap Internal Threads, SM1 (1.035"-40) SeriesEnd Cap Internal Threads, SM1 Series
Click to Enlarge
3
SM1CP2End Cap External Threads, SM1 (1.035"-40) SeriesEnd Cap External Threads, SM1 Series
Click to Enlarge
3
ST99-Drawer Cabinet9 Drawer Stackable Cabinet
Click to Enlarge
1
  • こちらは旧製品で、単体ではご購入いただけません。交換が必要な場合には、ケージプレートLCP34がご使用いただけます。
  • こちらは旧製品で、単体ではご購入いただけません。交換が必要な場合には、ケージプレートLCP34/Mがご使用いただけます。

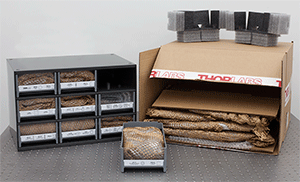

ESK07B SmartPack Packaging
Click to Enlarge

ESK07B Packaging

Smart Pack

Item # % Weight
Reduction
CO2-Equivalent
Reductiona
ESK07B 83.10% 23.78 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
