- Corrects Dispersion Caused by Optical Elements
- Low AOI Allows Multiple Reflections Between Mirrors
- R > 99% for Either 650 - 1050 nm or 700 - 1000 nm

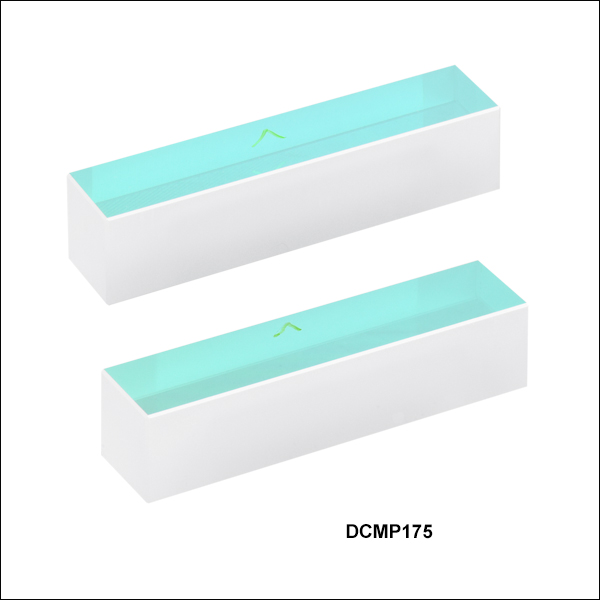

DCMP175
53.0 mm x 12.0 mm, Designed for Multiphoton Microscopy
UMC10-15FS
Ø1", Compensates for
1.5 mm of Fused Silica
UMC05-15FS
Ø1/2", Compensates for
1.5 mm of Fused Silica
Related Items
Please Wait
Click to Enlarge
2つのミラーマウントPOLARIS-C1Gにそれぞれ分散補償ミラーUMC10-15FSを取り付けたセットアップの光路(例)。ミラーの＞99.5%の反射率と、10°の小さな入射角が多重反射をサポートしています。
特長
- 分散補償用に設計されたチャープミラー
- UMCx-15FS:1回の反射で溶融石英の1.5 mmの群遅延(GD)を補償
- DCMP175:多光子顕微鏡における長い光路長での大きな群遅延を補償
- 高い反射率と小さな入射角で多重反射が可能(右の図をご覧ください)
- 溶融石英基板
当社の分散補償ミラーは、超短パルスが光学系を伝搬するときに発生するパルスの広がりを補正します。当社では、分散制御ツール(例：前置補償)として、2種類のチャープミラーをご用意しております。1つは円形ミラーで、これは超短パルスレーザ用光学素子としてもっとも一般的な溶融石英基板を透過する際に生じる分散を補償します。 もう1つは多光子顕微鏡に使用される長い光路長と光学基板用に設計された長方形ミラーです。
フェムト秒レーザーパルスは多くの異なる波長から構成されているため、パルスがガラスのような誘電体を透過するときにそのパルス幅(時間的な強度プロファイル)が広がります。この広がりの原因は、光が透過する光学素子が持つ屈折率の波長依存性にあります。典型的なガラスでは短波長の方が長波長よりも屈折率が大きいため、短波長の伝搬は遅くなります。こちらのミラーは、長波長の方が短波長よりも大きい群遅延を生じ、短波長が長波長に「追いつく」ように設計されています。
ミラーの表面は、イオンビームスパッタ(IBS)を使用してコーティングされています。この再現性と制御性の高い手法により、高い損傷閾値と耐久性のある薄膜コーティングが実現しています。
超短パルス光学系用の光学素子のラインナップについては、「超短パルス用光学素子」のタブをご覧ください。
| Specifications | |||
|---|---|---|---|
| Item # | UMC05-15FS | UMC10-15FS | DCMP175 |
| Wavelength Range | 650 - 1050 nm | 700 - 1000 nm | |
| Reflectance over Wavelength Rangea | Rabs > 99.5% over Wavelength Range | Ravg > 99% over Wavelength Range | |
| Group Delay Dispersion (GDD) per Reflection | -54 fs2 at 800 nm | -175 fs2 at 800 nm | |
| Size | Ø1/2" | Ø1" | 53.0 mm x 12.0 mm (2.09" x 0.47") |
| Diameter Tolerance | +0.00 / -0.10 mm | N/A | |
| Thickness | 6.35 mm (0.25") | 9.5 mm (0.37") | 12.0 mm (2.09") |
| Thickness Tolerance | ±0.10 mm | ±0.20 mm | - |
| Clear Aperture | > 80% of Diameter | At Least 8 mm x 50 mm | |
| Angle of Incidence (AOI) | 10° | 8° | |
| Surface Flatnessb | λ/4 at 632.8 nm Over Clear Aperture | λ/10 Over Any Ø8 mm in the Clear Aperture | |
| Surface Quality | 15-5 Scratch-Dig | 10-5 Scratch-Dig | |
| Back Surface | Polished | - | |
| Laser-Induced Damage Threshold | 0.07 J/cm2 (800 nm, 43.2 fs FWHM, S-Pol, 10 000 Pulses)c | 0.10 J/cm2 (800 nm, 100 fs) | |
| Substrate | Fused Silica | ||
| Parallelism | ≤3 arcmin | - | |

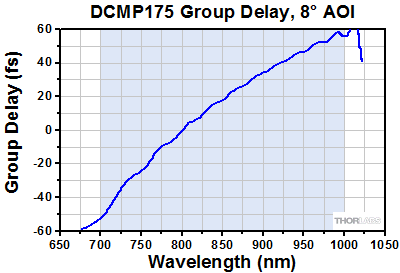

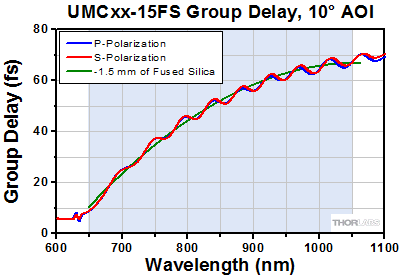

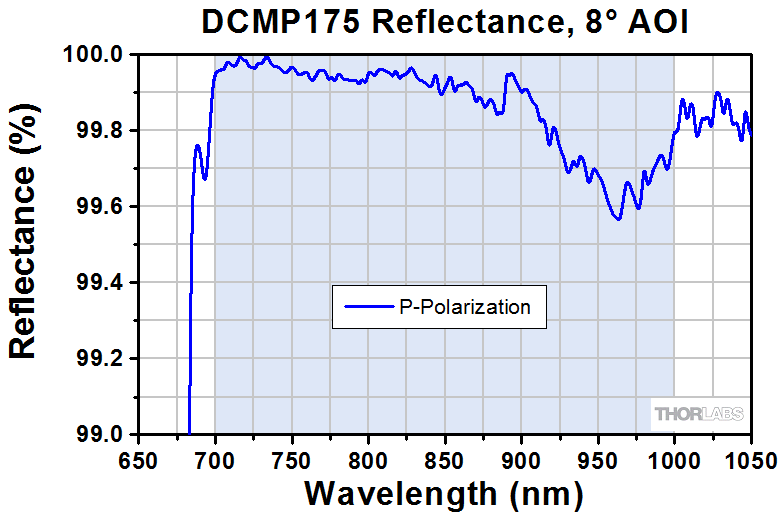

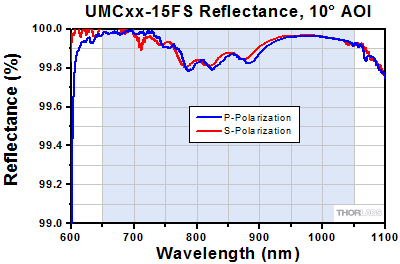

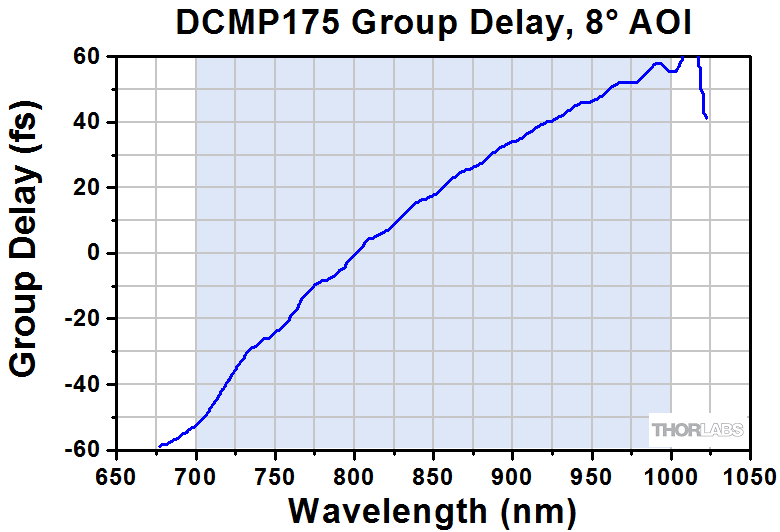

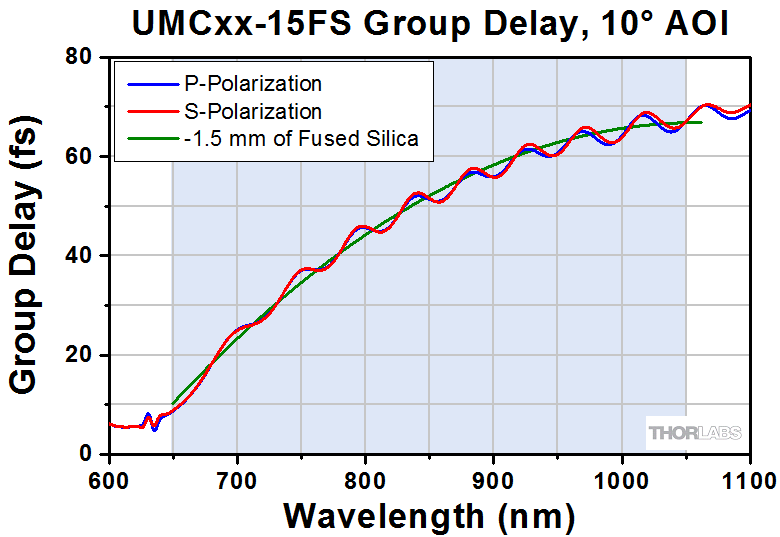

下のプロット図は、こちらのミラーの反射率と群遅延(GD)の理論計算値で、設計性能を示しています。実際の性能は「仕様」タブ内の仕様の範囲内でロット毎にバラつきがあります。青い網掛け部分はミラーの仕様の波長範囲を示しています。
Click to Enlarge

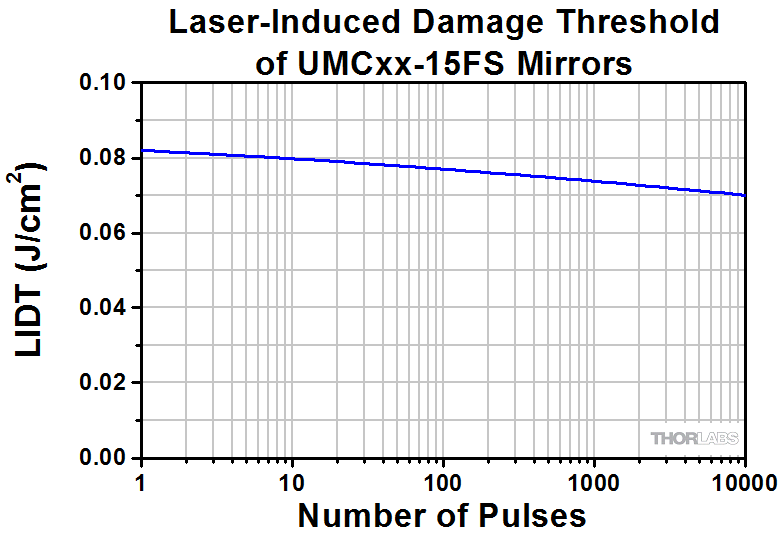

超短パルスレーザ用光学素子のレーザ損傷閾値(LIDT)の値は、所定のパルス数で、視覚的に確認できる損傷を与える(パルスあたりの)流束量で定義されています。ここでのLIDT値は、800 nmにおける43.2 fsのFWHMパルス(S偏光)で測定されました。LIDTの値は、超短パルス領域では保証されておりません。このデータは、お客様に向けた目安として掲載しています。
