顕微鏡用除振装置(卓上除振盤)

Portable, Passive Isolation System
Compatible with Leica, Olympus, Nikon, and Zeiss Microscopes
Provides Large Working Area and Three-Point Stability

PTT600600

Breadboard can be Purchased Separately

PTT900600 IsoPlate

Breadboard Available Separately
Microscope Not Included

Related Items

Honeycomb Breadboards

ScienceDesks

Optical Table Accessories

Microscopy Tools

Confocal Systems

Imaging Systems Overview

Vibration Isolation Accessories

Please Wait

概要
グラフ
Feedback

Specifications
Load Capacity, Including Breadboard	45 - 180 kg (100 - 400 lbs)
Resonant Frequency^a	3.5 Hz
Transmissibility at Resonance^a	24 dB
Transmissibility at 10 Hz	-16 dB (0.15 Transmissibility Ratio)
Transmissibility Curve
Air Pressure Required (Max)	60 psi (415 kPa)
Inflation Method	Foot Pump
Air Connection	Schrader Valve

卓上型除振盤の最大荷重で測定

特長

卓上パッシブ除振盤
主要メーカの顕微鏡に対応した設計
2つのサイズ:
- 600 mm x 600 mm
- 900 mm x 600 mm
耐荷重(ブレッドボード含む): 45～180 kg

当社の卓上型除振盤は、中感度の除振を必要とする顕微鏡測定に適したパッシブ除振型除振盤です。軽量のサポートベースの四隅に空気除振装置が付いた構造となっております。ブレッドボードは別売りで、M6タップ穴配列、もしくは穴なしの作業面などをご用意しております。この2つの部品で構成される設計によって、顕微鏡とテーブルや床面の間に簡単に取り付けることができます。また、総重量が180 kg未満であれば、どのようなブレッドボードと顕微鏡の組合せにもご使用いただけます。

卓上型除振盤のサポートプレートには4つのゴム製パッドが付いていて、その下にはそれぞれ空気の入ったクッションがあります。その中の2つのクッションは同一のエアタンクを共有し、残りの2つのクッションにはそれぞれ独立したエアタンクが付いています。この配置が安定してシステムを支える3点支持を提供しています。周波数1 Hz～50 Hzの伝達率のプロット図は「グラフ」タブをご覧ください。

エアサスペンションは卓上型除振盤の前面パネルにある3つのシュレーダーバルブで制御され、空気は標準の足踏み式ポンプで供給できます。

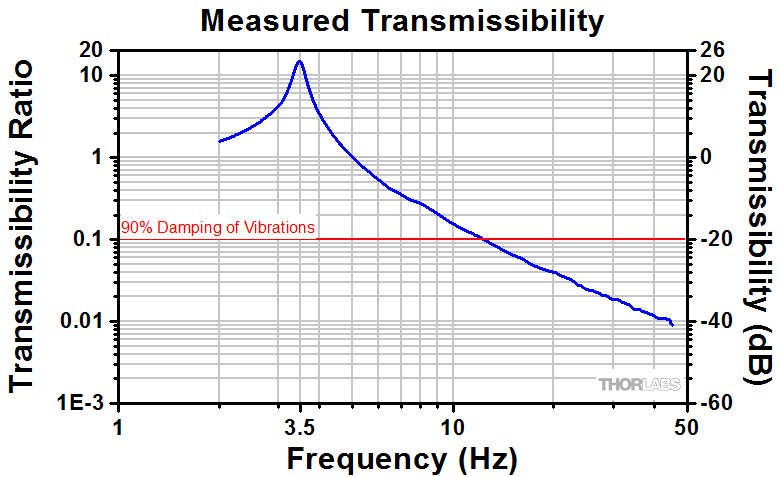

伝達率のグラフ(測定値)

Transmissibility curve for passive isolation
このグラフは、周波数1 Hz～50 Hzの振動伝達率の測定値を示しています。

Posted Comments:

Trang An Nguyen (posted 2020-10-08 06:45:19.55)

We are a trading company from Vietnam. Kindly send us the quotation for 1 pc of model PTT600600 on the basis of CIP Hanoi, Vietnam. email address: trangansale@gmail.com

YLohia (posted 2020-10-08 03:02:28.0)

Thank you for contacting Thorlabs. Quotes for stock items can be requested by emailing our Sales Team at sales@thorlabs.com. We will contact you directly.

Trang An Nguyen (posted 2020-10-08 06:38:36.637)

Pls send me quotation for model PTT600600 on the basis of CIP Noi Bai, Vietnam. thanks.

YLohia (posted 2020-10-08 03:02:28.0)

Thank you for contacting Thorlabs. Quotes for stock items can be requested by emailing our Sales Team at sales@thorlabs.com. We will contact you directly.

user (posted 2020-08-05 22:27:38.557)

I recently purchased PTT600600. However, I was not satisfied with its performance. I tried to inject using a manipulator but the tip of glass capillary is shaking too much. Although it may be partially due to the manipulator, this antvibration platfrom seems to be not sensitive to adjust a subtle vibration. In addition, there is no air pressure gauge so I am really not so sure whether I put enough or too much air into it. Although the foot pump has an air pressure gauge, it is also hard to accurately measure the air pressure, since the adapter of foot pump doesn't really fit tightly in this platform. In the end, I gave up on using this.

DJayasuriya (posted 2020-08-12 08:37:51.0)

Thank you for your feedback. Performance issues with the IsoPlate system can be attributed to a number of factors. As this is a bench top solution, vibrations from the surface that the IsoPlate can be translated to mounted equipment. The type of bench or table used to mount the IsoPlate should be carefully considered as a stable base will greatly improve performance. The IsoPlate System isolates vibrations most effectively as the load approaches the weight capacity of the unit. It is possible that loading extra weight onto the unit will improve performance. If issues persist please do not hesitate to reach out to our tech support team.

user (posted 2019-12-16 09:56:42.24)

Can I put a breadboard which is larger than the IsoPlate on the IsoPlate? e.g. a 600 x 1200 mm breadboard on the 600 x 900 IsoPlate.

cwright (posted 2019-12-20 05:36:55.0)

Response from Charles at Thorlabs: Hello, this should not be a problem. Even a 60 mm Nexus breadboard this size would still be within the load capacity and this will not affect the isolation.

user (posted 2019-09-11 22:21:21.25)

Dear Sir/Madam, We want to purchase PTT600600 - IsoPlate System, 600 mm x 600 mm x 90 mm Would you be so kind to send us quotation for this item? Sincerely Dr. Albina Musin Ariel University Ariel 40700, Israel albinam@ariel.ac.il Tel. +972-3-9066217 Fax +972-3-9066234

YLohia (posted 2019-09-11 10:56:52.0)

Hello, our sales team will reach out to you directly.

Michael Roderick (posted 2019-09-05 14:17:11.85)

What temperature swings can this handle, we want to put it into an environmental chamber so it will dampen the vibrations the chamber creates? Thank you Mike

rmiron (posted 2019-09-09 11:20:52.0)

Response from Radu at Thorlabs: Hello Mike. The recommended environmental temperature range for this system is -10 to 60 deg C. For very short time scales, it can be pushed to more extreme temperatures: -20 to 80 deg C. With that being said, significant thermal fluctuations will lead to significant fluctuations in height. If you are only looking to eliminate high-frequency noise, the system should still be suitable as thermal drift would probably be quasi-static in comparison. However, if thermal drift would be problematic, then we can't recommend this system.
