万力


  • Two Different Vises Offered
  • Jaws Available in Nylon or Steel

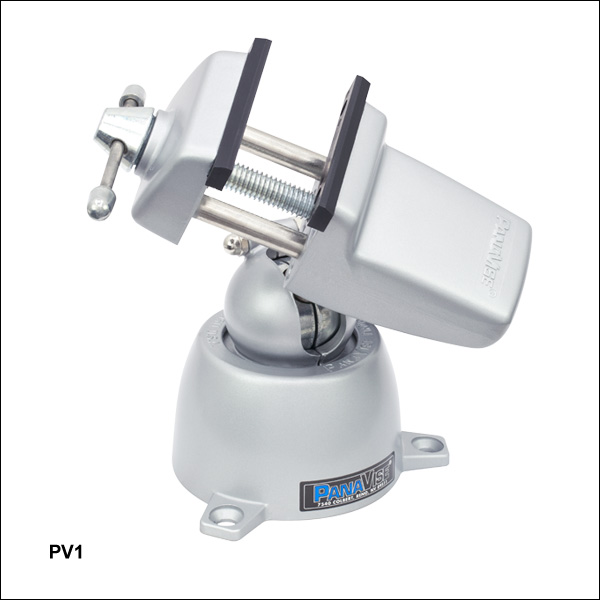

PV1

Split-Ball Joint Allows for 90° Tilt and 360° Turn and Rotation

TMV2

Flat Bottom and Sides Allow for Vertical or Horizontal Orientations

Related Items


Please Wait

こちらの万力は、木工や金属加工の設計に便利な製品です。Pana社製の万力は、スプリットボールジョイントによって広い汎用性があり、作業面にボルト締めする設計になっています。Toolmaker社製の万力は、研磨済み工具鋼から作られているので丈夫で信頼性が高く、底面や側面が平坦なのであらゆる平坦な作業面に水平または垂直に設置することができます。各万力の仕様の詳細については下記をご参照ください。

TMV2 SmartPack Packaging
Click to Enlarge

TMV2 Packaging
Smart Pack

Smart Pack

  • Reduce Weight of Packaging
  • Increase Usage of Recyclable Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at minimizing waste while providing adequate protection for our products. By eliminating any unnecessary packaging, implementing design changes, and utilizing eco-friendly materials, this initiative seeks to reduce the environmental impact of our product packaging.

The updated TMV2 packaging primarily consists of recycled paper and cardboard and weighs 12.60% less than the original packaging. This weight change results in a 0.97 kg reduction in travel-based CO2 emissions per year, based on typical product sales.

As we move through our product line, we will indicate re-engineered, eco-friendly packaging with our Smart Pack logo, which can be seen above.


Posted Comments:
user  (posted 2016-07-27 15:11:52.137)
Could you please confirm the weight of the toolmaker vise? It is currently stated as "Weight (Mass): >5 lbs (11 kg)". Is it 5lbs, or 5kg?
jlow  (posted 2012-08-03 18:09:00.0)
Response from Jeremy at Thorlabs: I will get in contact with you directly regarding the replacement jaws.
cbrideau  (posted 2012-08-02 16:48:13.0)
Any chance of getting replacement fingers for the Pana Vise through you guys?
Back to Top

Pana社製万力

  • 電気を絶縁して傷を付けないナイロン製口金
  • スプリットボールジョイントに取付けた万力の口金: 90°ティルト、360°回転、360°旋回
  • 口金の公称寸法: 幅63.5 mm x 高さ12.7 mm、最大開口57.2 mm
  • 高さ: 158.8 mm
  • 重さ(質量): 1.22 Kg

このPana社製万力 PV1の直径109.5 mmのボルトサークル上には、3か所に6.35 mm皿頭ネジ用の取付け穴があり、これを用いることで作業面に固定が可能です。万力の口金はナイロン製なので不要な損傷を低減します。この口金はスプリットボールジョイントにスライドして挿入するポストに取り付けられています。こうした構造によって、万力の口金をポスト上で360°回転できるだけではなく、ボール部分を利用して360°の旋回と90°のチルトが可能なので、用途に合わせたさまざまな構成が可能です。また、この3種類の動きはいずれも1つのロック用ノブで固定することができるので、容易に方向調整をしながら、適切な角度で対象物を保持し、作業することが可能です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
PV1 Support Documentation
PV1Pana社製万力、最大開口57.2 mm
¥13,142
Today
Back to Top

Toolmaker社製万力

  • 鋳造研磨済み工具鋼から機械加工
  • 口金のV溝で丸い物体を保持
  • 口金の公称寸法:幅63.5 mm × 高さ38.1 mm、最大開口63.5 mm
  • ベース部分と側面が平坦
  • 万力ネジを含めた最短の長さ:189 mm
  • 重さ(質量): 2.77 kg

Toolmaker社製の万力TMV2は、機械工作の現場での使用に適した製品です。 この工具鋼製の万力の底面と側面は平らであるので、3つの全ての面を平面につけて作業できます。この万力は、小さな部品を保持しながら、取付け穴を加工するときに、ドリルで穴開けしたり、ネジ切り加工をする際に便利です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
TMV2 Support Documentation
TMV2Toolmaker社製万力、厚さ63.5mm内
¥11,311
7-10 Days
