ファイバー研磨用備品


  • Polishing Pucks for 5 Different Connector or Ferrule Types
  • Diamond, Aluminum Oxide, Silicon Carbide, and Calcined Alumina Lapping Film
  • Glass Polishing Plate and Rubber Polishing Pad

D50-F

Ferrule
Polishing Puck



D50-FC/APC

Polishing Disk

D50-FC

Polishing Disk

NRS913A

Rubber Polishing Pad for Polishing Sheets

0.02 µm Final Polish

For Ceramic Ferrules

1 µm
  3 µm
    6 µm
     30 µm

Polishing/Lapping Sheets

Related Items


Please Wait

当社では、ファイバ素線にコネクタ付けするために必要なセラミックまたはステンレススチール製フェルール用ファイバ研磨フィルム、ファイバ研磨用ディスク、研磨用プレートやコネクタ付けキットをご用意をしています。 またファイバ研磨用の手引書もご提供しており、コネクタの研磨やファイバの接着とクリーブについての説明が記載されています。 カラー版の手引書をご購入いただくことも可能ですが、こちらから無料でダウンロードいただくこともできます。

D50-SMAの校正

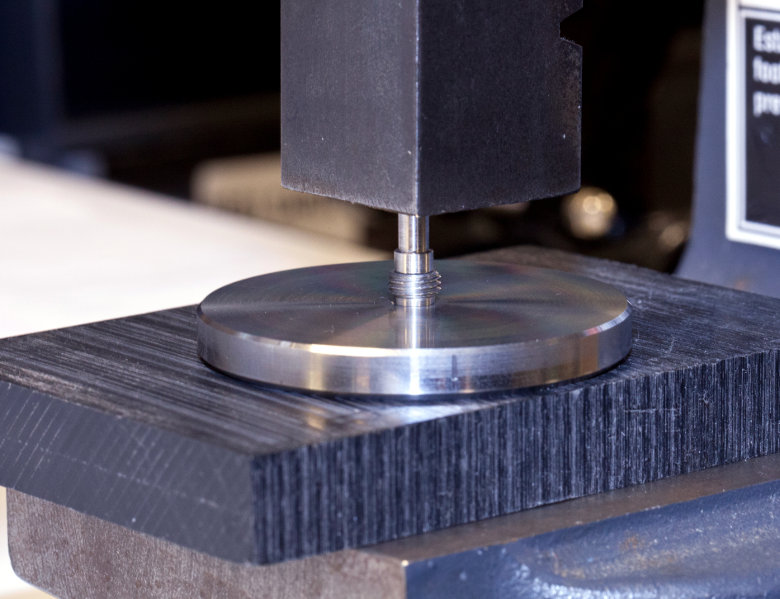

D50-SMAには校正ピンD50-Aが付属しています。 校正ピンを使用するには、アーバープレスと、基準となる平面が必要です。 アーバープレスを使用して、校正ピンをディスクの中心穴に押し込みます。 校正ピンの末端がパックの底面と同じ高さになるまで、平らなディスクへ研磨パックのネジ部を押します。これによりファイバがSMAフェルールの正しい高さに研磨されます。


Posted Comments:
allan bereczki  (posted 2023-12-11 07:50:30.803)
Hello, Is it posssible to use D50-SMA to polish a 600 µm free standing SMA 906 fiber?
ksosnowski  (posted 2023-12-18 10:52:30.0)
Hello Allan, thanks for reaching out to us! With an air-gapped SMA ferrule like our high power SMA cables, using these polishing pucks could introduce cracking due to the ferrule geometry. Unfortunately the polishing process from our high power cable series is proprietary. I have reached out directly to discuss this application further.
艾 传韡  (posted 2023-11-08 17:59:32.153)
想咨询一下,光纤抛光纸可以用来打磨镜片吗?想用这个去除镀银反射棱镜上的镀层,不知道现不现实
cdolbashian  (posted 2023-11-16 02:50:12.0)
Thank you for reaching out to us with your inquiry. I have contacted you directly to inquire about your application. Perhaps there is another solution instead of sanding off the protective layer on the mirror coating.
Mohan Wang  (posted 2023-06-13 09:50:58.147)
Hi, I have been using D50-F extensively to polish our customized fiber, which is extremely helpful, especially as our fibers come in different diameters. Because we are also using a mechanical splice, I am wondering if there could be a 7 degree angled D50-F version. We are definitely happy to buy one if such design would be available. Best wishes, Mohan
cdolbashian  (posted 2023-06-21 10:50:59.0)
Thank you for reaching out to us with this inquiry! There may be some difficulty in making a well-toleranced 7° polishing puck as a custom item for you. I have reached out to you directly to ask a bit more about your application, and how we can assist with it.
Rene Reimann  (posted 2022-12-07 15:53:49.83)
Hello, the manual is quite good, however, there seems to be an error on p. 22, where the 6 µm polishing step is described. In the current description it is unclear when the 6 µm polishing step is finished. The manual states "Inspect the end face with the fiber scope (FS201) until it looks like Figure 24." Unfortunately Figure 24 does not show an image of a fiber end face under a fiber scope. It would be nice to either add the right picture and change the text slightly (the current Figure 24 is correctly referred in a different context) or to describe in the text when the 6 µm polishing step is finished.
jgreschler  (posted 2022-12-07 03:37:15.0)
Thank you for pointing this out! Our technical marketing team has been made aware of this and will make changes to the manual pending review.
peter frank  (posted 2022-07-12 15:34:10.217)
do polyurethane pads need to be conditioned before polishing the substrate?
jgreschler  (posted 2022-07-22 04:10:13.0)
Thank you for reaching out to Thorlabs. All the instructions required to add a connector and polish a fiber can be found in our FN96A manual, which is available for download as a PDF from our website. I have reached out to you directly to provide a copy.
Qiang Bian  (posted 2021-07-28 12:46:56.64)
Is it possible to use diamond sheets to polish the endface of sapphire fiber?
YLohia  (posted 2021-08-05 01:22:59.0)
Thank you for contacting Thorlabs. Unfortunately, we have not attempted to use these diamond sheets to polish sapphire fibers so we cannot guarantee the performance level, but we would expect these to be useful for such applications.
w.r.browne  (posted 2018-04-15 11:13:45.993)
I bought the polishing kits but the puks are too narrow for any of the fibres i have from thorlabs- seems a bit of a cheat and the manual is not clear either as to which pucks i actually need for the steel sma and FC terminated fibres some proper advice would be appreciated
YLohia  (posted 2018-04-18 01:52:09.0)
Hello, thank you for contacting Thorlabs. From our discussion, it looks like you ordered the TUK05 kit, which is meant for ceramic ferrules and comes with pucks for FC/PC and FC/APC connectors. The fiber you have (M68L01) requires the D50-SMA puck, which is not included in that kit. We have updated certain specs regarding tolerances and connector compatibility to be more clear on the website.
pdeslandes  (posted 2016-05-23 12:12:28.54)
Hello, I would like to know the tolerance of the angle on the D50-FC/APC. The product polishes ferrules with an angle of 8° and i owuld like to know the tolerance on that angle (the drawing doesn't state any tolerance). have a nice day regards Dr. Pierre DESLANDES, CTO, Moria Lase
besembeson  (posted 2016-05-25 11:40:24.0)
Response from Bweh at Thorlabs USA: We are currently reviewing our internal drawing for this part and I will communicate this to you via email.
g.h.p.ebberink  (posted 2016-03-08 14:10:20.36)
Using this manual I have created many SM patch cords and longer cables. Now I was asked to create a PM cable. Is there a "trick" to align the panda fiber to the key of a FC/APC connector?
besembeson  (posted 2016-03-10 02:14:14.0)
Response from Bweh at Thorlabs USA: We provide the components that you can do it yourself if you know a process that will meet your application requirements but unfortunately we don't disclose our method to achieve the specifications for our PM fibers as the setup is complex and proprietary.
user  (posted 2015-06-01 17:51:42.393)
Hello, We have bought a fiber polishing set to polish damaged (already conectorized, polraziation maintaining) fibers. However, we find that the fiber tip does not stick out from the polishing disc and thus cannot be polished. How can one use this polishing set to polish damaged fiber tips? Kind regards
besembeson  (posted 2015-08-28 12:13:19.0)
Response from Bweh at Thorlabs USA: We have the part number TUK05 that is typically used for such applications. The manual is found here: http://www.thorlabs.us/thorcat/TTN/TUK05-Manual.pdf. You can contact us at techsupport@thorlabs.com to discuss this further since we don't have your contact information.
bdada  (posted 2012-02-14 13:44:00.0)
Response from Buki at Thorlabs to avle: Thank you for participating in our feedback forum. We do not currently have a Solidworks model for our polishing discs but I will look into this further and contact you shortly with more information on when we can provide one.
avle  (posted 2012-02-14 02:08:48.0)
do you have a solidworks cad model for this? thanks!
lmorgus  (posted 2011-09-26 15:51:00.0)
Response from Laurie at Thorlabs to the anonymous poster: Thank you for your suggestion to add some linkage to our fiber inspection tools, most notably the SMA gauge. We have added a related items link at the top of the page in response to your suggestion. We hope this helps to make it easier to find other products you may be interested in purchasing when shopping for fiber polishing supplies.
user  (posted 2011-09-26 12:25:54.0)
Please add the SMA gauge to this page.
bdada  (posted 2011-08-24 14:07:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. There is a calibration pin included with the D50-SMA. Please use an Arbor Press to press the pin down to the bottom of the puck and make sure there is room for the pin to extend the bottom of the puck. Then flip the puck on a solid surface and press the pin down. You can then remove the pin. We will add this information to our website. Please contact TechSupport@thorlabs.com if you have additional questions.
bs  (posted 2011-08-24 15:59:10.0)
How can I recalibrate the D50-SMA?
Tyler  (posted 2008-10-03 08:40:31.0)
A response from Thorlabs to vincent.gosling: After some discussion with the engineers in the fiber business unit we are sending you a new polishing disc just incase the one you have doesnt meet specifications. Some burnt connectors can be repaired by polishing with a diamond polish, however, if the damage is too severe, it may be necessary to replace the connector. Thorlabs provides reconnectorization services, simply contact our technical support department for a quotation. Thank you for contacting us and if the new disk doesn’t solve your problem, please let us know.
vincent.gosling  (posted 2008-10-01 06:10:24.0)
My company recently purchased a polishing kit to repair a "burnt" fc/apc. Unfortunately the fibre doesnt sit proud of the polishing disc and therefore doesnt polish. Could you tell me whether there is another technique to repair fibres or , (as I expect) to confirm if it is beyond repair (without replacing the connector). Any information would be greatly appreciated. Many thanks Vince Gosling
Back to Top

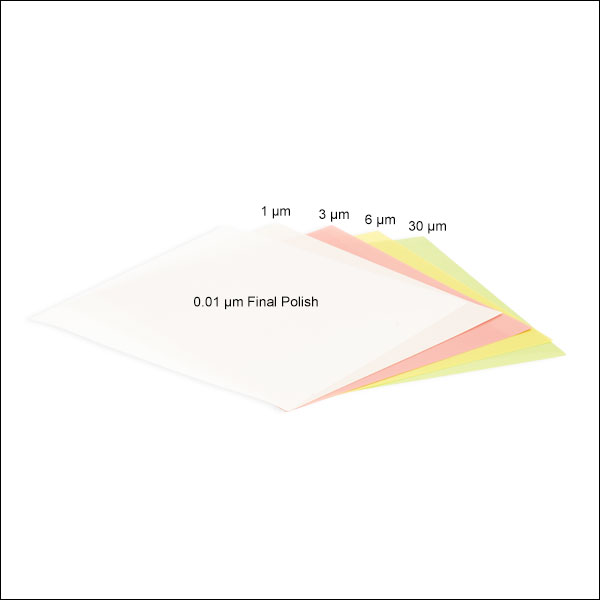

ファイバ研磨用フィルム、セラミック製フェルール用

当社では、ファイバをセラミック製フェルールに接着した後に、コネクタを研磨するための研磨シートをご用意しています。 研磨シートでは、細かい粒子がシート基材に接着されています。 コネクタを研磨シート上で動かすことで、余分な材料が取り除かれてファイバ端面が研磨されます。 通常、研磨工程では、様々なグレードの研磨シートが使用されます。 研磨工程が進むごとに、小さな粒子の研磨シートを使用することになります。

当社のダイヤモンドシートの場合、細かいダイヤモンドの粒子がポリエステル基材に樹脂で接着されています。 当社では、5段階の研磨処理を推奨しており、最初の4段階では粒子の大きさの異なるダイヤモンドシート(30、6、3および1 µm)を使用し、5段階めでは粒子径が0.02 µmの研磨仕上げ用シートの使用をお勧めしています。 作業を行うには、シート上に蒸留水を垂らして、適切な研磨用ディスク(下記参照)を使用し、シート上に数字の8の字を描くようにして磨いてください。

研磨仕上げ用シート(LFCF)を使用すれば、スラリが不要となり、ファイバ研磨工程の最後にお使いいただくために設計されています。 このシートでは、ポリエステルフィルム上に精密グレードの二酸化ケイ素がコーティングされています。 これらのシートを用いることで、傷を最小限に抑えた優れた表面仕上げが可能となり、研磨中に光ファイバがバインダによって汚れることがありません。

これらのシートは、セラミックやジルコニアのフェルールを研磨するときに、炭化ケイ素を使用した場合のようにコネクタを削り過ぎることがないので、酸化アルミニウム、炭化ケイ素または仮焼アルミナ製シートと比べて高価でありますが、用途に適した製品として推奨しています。 削り過ぎは、フェルール素材よりもファイバ素材の方が速く削れることによって生じ、ファイバの真上に隙間ができてしまいます。 別のコネクタと接続するときに、本来はガラス-ガラスの接触となるところが、削り過ぎによって生じた空気のすきまによって、ガラス-エア-ガラスの各界面で望ましくない過剰損失が起こります。

下記でご紹介している酸化アルミニウム/炭化ケイ素シートに対して、これらのシートの1枚あたりのコストは高くなりますが、下記の製品では1度使用したシートを再利用できないのに対し、これらの製品では1枚のシートが20回まで使用できます。 このように本製品はコストパフォーマンスに優れた製品となっています。 これらの152 mm x 152 mmサイズのシートは、当社のガラス研磨用プレートおよびゴム製パッドと一緒にお使いください(下記参照)。

注: ダイヤモンドシートと研磨仕上げ用シートは1パック5枚入で販売しています。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
LFCF Support Documentation
LFCF152 mm x 152 mm研磨仕上げ用シート、粒子径0.02 µm(5枚入)
¥5,984
Today
LF1D Support Documentation
LF1D152 mm x 152 mmダイヤモンド研磨シート、粒子径1 µm(5枚入)
¥5,984
Today
LF3D Support Documentation
LF3D152 mm x 152 mmダイヤモンド研磨シート、粒子径3 µm(5枚入)
¥5,984
Today
LF6D Support Documentation
LF6D152 mm x 152 mmダイヤモンド研磨シート、粒子径6 µm(5枚入)
¥5,984
Today
LF30D Support Documentation
LF30D 152 mm x 152 mmダイヤモンド研磨シート、粒子径30 µm(5枚入)
¥5,984
Today
Back to Top

ファイバ研磨用フィルム、ステンレス製フェルール用

当社では、ファイバをフェルールに接着後のコネクタ研磨の際に使用する酸化アルミニウム、炭化ケイ素、ならびに仮焼アルミナ製の研磨用シートをご用意しております。 研磨用シートは、光学コネクタ用に加工された紙やすりのような製品です。微小なアルミニウム、炭化ケイ素、仮焼アルミナ粒子が感圧性ではない接着剤で樹脂ポリエステル製のフィルムに貼り付けられています。当社では、シートを使用する際4段階の研磨処理を推奨しており、粒子の大きさによって異なる4種のシート(粒径が5 µmの炭化ケイ素粒子、 1および3 µmの酸化アルミニウム粒子、および粒径0.3 µmの仮焼アルミ素粒子)をご用意しております。

通常、コネクタ研磨に1度お使いいただいたシート部分を、再度研磨に使用することはできません。また、特にセラミックフェルールやジルコニアフェルールを研磨する際は、削りすぎにご注意ください。削りすぎは、ファイバ素材のほうがフェルールよりも早く削られる際に起こりますが、その結果、ファイバ上部に隙間ができてしまいます。コネクタが他のコネクタと突き当って結合している状態にある場合、削りすぎによってできた隙間によって、ガラス面同士の接合部分に空気が入ってしまい、過剰損失につながります。

シートの大きさは229 mm×279 mmです。当社のガラス研磨用プレートおよびゴムマットと一緒にお使いください(下記参照)。

注意:すべてのステンレス製フェルール研磨用シートは10枚入りで販売しています。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
LF03P Support Documentation
LF03P229 mm x 279 mm板焼アルミナ研磨シート、粒子径0.3 µm(10枚入)
¥2,293
Today
LF1P Support Documentation
LF1P229 mm x 279 mm酸化アルミニウム研磨シート、粒子径1 µm(10枚入)
¥2,293
Today
LF3P Support Documentation
LF3P229 mm x 279 mm酸化アルミニウム研磨シート、粒子径3 µm(10枚入)
¥2,293
Today
LF5P Support Documentation
LF5P229 mm x 279 mm炭化ケイ素研磨シート、粒子径5 µm(10枚入)
¥2,293
Today
Back to Top

コネクタ付きファイバ研磨用ディスク

ファイバ用の研磨ディスクを使用すると、コネクタをしっかりと支えて適切な角度を維持した状態で、機械を用いずに簡単にファイバが研磨できます。 この研磨ディスクを使うと、コネクタを研磨フィルムに対して保持することが簡単になり、均一な研磨状態になります。 当社では6つの異なるコネクタータイプに対応した研磨ディスクをご用意しています。 なおこれらの製品はそれぞれのコネクタータイプ専用で、指定と異なるコネクタータイプでは使えないので、その点はご注意ください。

FC/PCおよびSC/PCコネクタ研磨用ディスク
この研磨用ディスクは、平坦なコネクタと球面加工が施されたコネクタの両方にお使いいただけます。EC標準のØ2.499 ± 0.0005 mm PC型フェルールに対応します。

FC/APCコネクタ研磨用ディスク
この研磨用ディスクは、コネクターキーを研磨角度に対して適切な方向に保ちながら、フェルールを8°で研磨するように設計されています。EC標準のØ2.499 ± 0.0005 mm PC型フェルールに対応します。

SMAコネクタ研磨用ディスク
この研磨用ディスクは、SMA905とSMA906のコネクタにお使いいただけます。 ディスクは研磨後にフェルールの長さが適正になるように出荷時に調整されています。 研磨用ディスクD50‑SMAは、付属の校正ピンD50-Aを使って再校正することができます。 再校正の手順については、「D50-SMAの校正」タブ内をご参照ください。この研磨用ディスクはIEC標準のØ3.17 +0.002/-0.004 mm SMA905コネクタのフェルールに対応します。

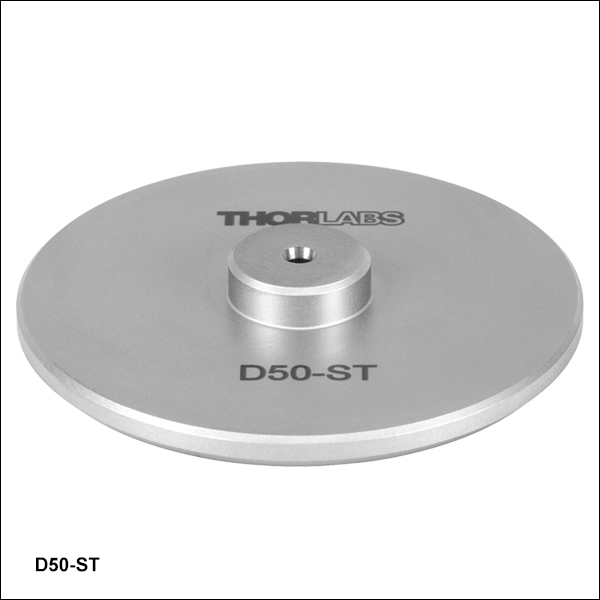

ST®*/PCまたはLC®/PCコネクタ研磨用ディスク
このコネクタ研磨用ディスクは、ST/PC(D50-ST)またはLC/PC(D50-LC)コネクタ用に設計されています。 この研磨用ディスクは、平坦なコネクタと球面加工が施されたコネクタの両方にお使いいただけます。研磨用ディスクD50-LCはØ1.249 ± 0.0005 mm LC型フェルールに対応し、研磨用ディスクD50-STはIEC標準のØ2.499 ± 0.0005 mm PC型フェルールに対応します。

*ST®はLucent Technologies社の登録商標です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
D50-FC Support Documentation
D50-FCFC/PC および SC/PCコネクタ研磨用ディスク
¥10,823
Today
D50-FC/APC Support Documentation
D50-FC/APCFC/APCコネクタ研磨用ディスク
¥17,088
Today
D50-SMA Support Documentation
D50-SMASMA コネクタ研磨用ディスク、校正用ピン付属
¥10,823
Today
D50-A Support Documentation
D50-AD50-SMA用 SMA 校正用ピン
¥3,320
Lead Time
D50-LC Support Documentation
D50-LCLC®/PCコネクタ研磨用ディスク
¥13,996
Today
D50-ST Support Documentation
D50-STST®/PCコネクタ研磨用ディスク
¥13,996
Today
Back to Top

フェルール研磨用ディスク

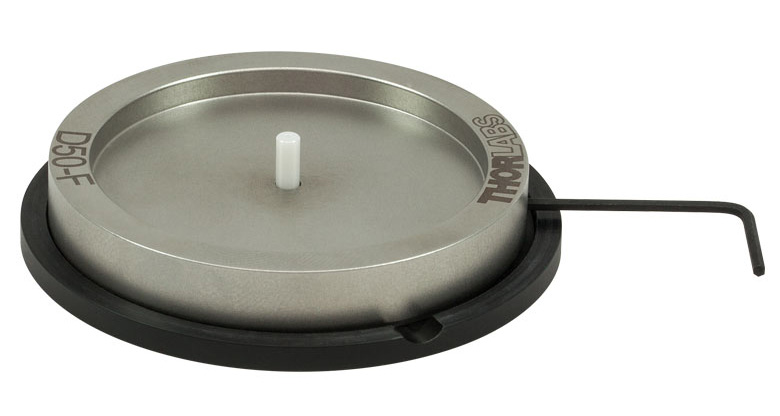

D50-F with jig, ferrule, and hex key
Click to Enlarge
研磨用ディスクD50-Fが治具にセットされフェルールが固定されている様子

このフェルール研磨用ディスクを用いるとフェルールを簡単に安定した状態で均一に研磨できます。 各ディスクには、フェルール深度を設定する治具、そしてフェルールをディスクに固定する際に使用する止めネジ(セットスクリュ)が付属します。 このディスクを使うには、ディスクを治具の上に置き、フェルールを所定の位置に挿入し、付属の0.050インチ六角レンチで止めネジを締めつけます(右図参照)。 このディスクを利用すると、フェルールを研磨表面に対し垂直に保持できるだけではなく、作業者は、研磨時にフェルールではなく、ディスクを持って作業ができます。 研磨作業中は、適切な深さを維持するために、ディスクを再び治具にセットすることが必要となる場合があります。 これは単純なデバイスですが、フェルール研磨時にファイバが損傷・破壊するリスクを低減してくれる実用的な治具です。

研磨用ディスクD50-FはFC/PCとSC/PC フェルール用で、D50-LはLC/PC フェルール用です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
D50-F Support Documentation
D50-FFC/PCおよびSC/PCフェルール研磨用ディスク
¥14,037
Today
D50-L Support Documentation
D50-LLC/PCフェルール研磨用ディスク
¥14,037
Today
Back to Top

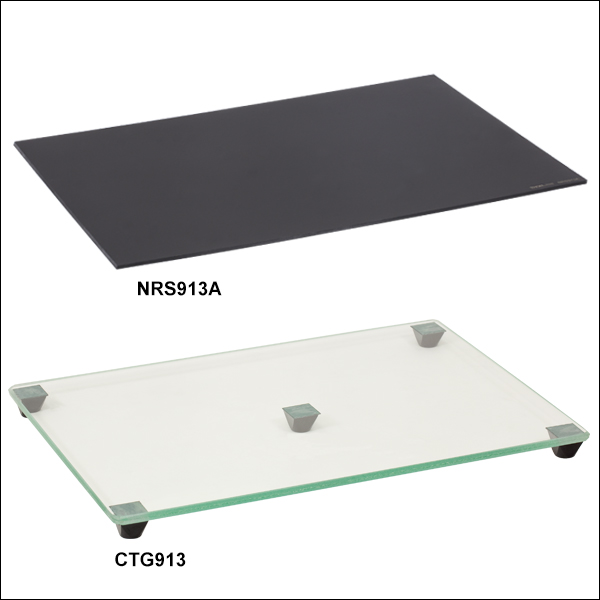

研磨用プレートおよび研磨用パッド

Rubber Pad on Glass Plate
Click to Enlarge

ガラス研磨用プレート上の研磨用パッド

ガラス研磨用プレート
光学ファイバーコネクタの研磨には、平らで硬い作業面が必要です。 このガラスプレートは安全ガラス製で端と角は面取りされています。 ゴム製の脚部が付いているので、作業面を傷つけずまたプレートが滑り落ちません。 この脚部は4つの角と中央の計5ヶ所に付いており、これによりガラスの上面は12.7 mm高くなります。

研磨用パッド
PC型の曲線の付いたコネクタを研磨する際に使用するゴム製の研磨用パッド(50デュロメータ)です。 右の写真のように、当社のガラスプレートと合わせて使用することで、研磨中のコネクタ先端の形状維持に役立ちます。 パッドのサイズは222.3 mm x 330.2 mmで、圧縮しない状態で厚さ3.1 mmです。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
CTG913 Support Documentation
CTG913研磨用ガラスプレート、241.3 mm x 342.9 mm
¥5,981
Today
NRS913A Support Documentation
NRS913A研磨用パッド、PC型ファイバ用、222.3 mm x 330.2 mm、50デュロメータ
¥3,483
Today
Back to Top

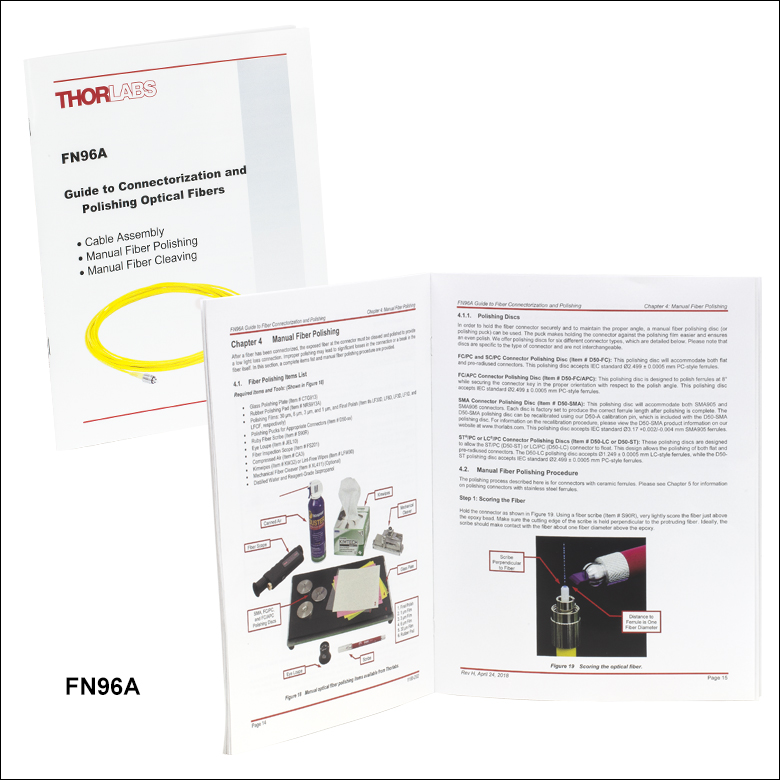

ファイバ研磨の手引書

光ファイバのコネクタ付けと研磨

ファイバ研磨とコネクタ付の手引書FN96Aでは、ファイバのクリーブ、ケーブルやコネクタのアセンブリ、コネクタの研磨の方法などをわかりやすく手順ごとに説明しています。こちらのカラー版の手引書を購入いただくことも可能ですが、こちらからPDF版も無料でダウンロード可能です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
FN96A Support Documentation
FN96A手引書「光ファイバのコネクタ付けと研磨」
¥1,189
7-10 Days
Back to Top

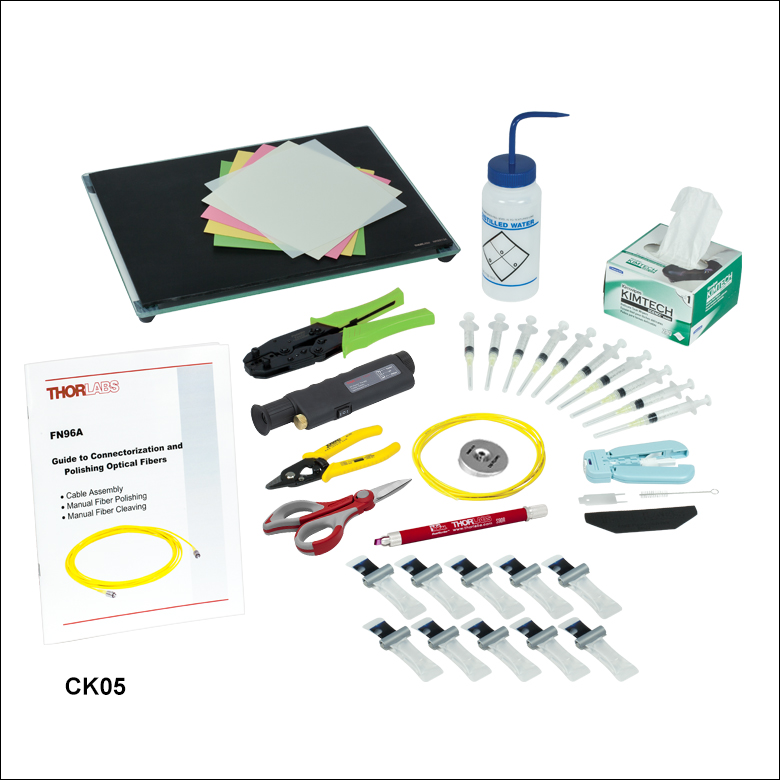

光ファイバ終端処理キット

  • 光ファイバにコネクタ付けする工具および部品入り(ファイバやコネクタは付属しておりません)
  • FC/PC、FC/APC、SMAコネクタ用キット

光ファイバ終端処理/コネクタ付けキットには、ファイバにコネクタ付けする際の部品が入っています。シングルモードまたはマルチモードコネクタ光ファイバは別途ご購入が必要です。CK01はSMAコネクタ付け用、CK03はFC/PCコネクタ付け用、CK05はFC/APCコネクタ付け用のキットとなります。CK03とCK05には、PC(球面加工済)研磨用のゴム製研磨パッド(50デュロメータ)が入っています。

クリーブしたファイバ屑、エポキシ樹脂、ならびに注射器等の適切な処理には、当社のファイバ廃棄箱(FTDU、別売り)をお勧めします。

これらのキットに含まれるエポキシ剤F112は日本では販売しておりません。ご要望により、エポキシ剤F112を除いたキットを提供いたします。詳細は当社までお問合せください。

Connectorization Kit Components
Item #DescriptionQty.Item #DescriptionQty.
FN96AStep-by-Step Instructions1MS403-1010 Epoxy Syringes1
CT042Crimp Toola1FT030Furcation Tubing (2 m)1
CTG913Glass Polishing Plate1F112エポキシ剤はキットに含まれません。10
FS201200X Fiber Scope1T06S13Fiber Stripper
(Cladding/Coating: 125 µm / 250 µm)
1
BFG1Bare Fiber Gripper1FTS4Three-Holed Furcation Tubing Stripper1
S90RRuby Fiber Scribe1KW32Kim Wipes (280 Sheet Box)1
-Wash Bottleb1T186Kevlar Cutting Shears1
CK01 Only
LF03P0.3 µm Grit Polishing Film10 SheetsLF3P3 µm Grit Polishing Film10 Sheets
LF1P1 µm Grit Polishing Film10 SheetsLF5P5 µm Grit Polishing Film10 Sheets
D50-SMASMA Polishing Puck1---
CK03 and CK05
LFCF0.02 µm Final Lapping Film5 SheetsLF6D6 µm Grit Lapping Film5 Sheets
LF1D1 µm Grit Lapping Film5 SheetsLF30D30 µm Grit Lapping Film5 Sheets
LF3D3 µm Grit Lapping Film5 SheetsNRS913ARubber Polishing Pad1
CK03 OnlyCK05 Only
D50-FCFC/PC Polishing Puck1D50-FC/APCFC/APC Polishing Puck1
  • ハンドルの色は写真と異なる場合があります。
  • 洗浄ボトルは溶剤用ボトルキット B2939の中の1本と同じです。
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
CK01 Support Documentation
CK01SMA Termination / Connectorization Tool Kit - 日本では販売しておりません - 特注キット(F112除く)にてご提供可能です。詳細は当社へお問合せください。
Request
Lead Time
CK03 Support Documentation
CK03FC/PC Termination / Connectorization Tool Kit - 日本では販売しておりません - 特注キット(F112除く)にてご提供可能です。詳細は当社へお問合せください。
Request
Lead Time
CK05 Support Documentation
CK05FC/APC Termination / Connectorization Tool Kit - 日本では販売しておりません - 特注キット(F112除く)にてご提供可能です。詳細は当社へお問合せください。
Request
Lead Time
Back to Top

コネクタ補修用研磨キット

Touch-Up Polishing Kit Components
Item #DescriptionQty.Item #DescriptionQty.
-Step-by-Step Instructions1FCC-7020Fiber Cleaning Tape1
D50-FCFC/PC Polishing Puck1LF1D1 µm Grit Lapping Film5 Sheets
D50-FC/APCFC/APC Polishing Puck1LFCFFinal Lapping Film5 Sheets
-30 mL Dropper Bottle
for Distilled Water
1-Polishing Pada1
-30 mL Dropper Bottle
for Isopropanol
1-Carrying Caseb1
  • 研磨パッドはNRS913Aの半分のサイズで、22.2 cm x 16.5 cmになります。
  • 携帯用ケースには、ファイバ検査スコープFS201またはFS200(旧製品)、研磨パック(ディスク)2個分、そしてスポイトボトル1本分のスペースが余分にあります。また研磨フィルムを余分に入れるスペースもあります。
TUK05 Case Removable Foam
Click to Enlarge

TUK05の携帯用ケースには、マジックテープのタブで固定されている緩衝材が付いています。
FS200 Fiber Optic Inspection Scope
Click to Enlarge

キットTUK05と共にファイバ検査スコープFS201をご使用になることをお勧めします。
  • 傷が付いたファイバーコネクタ端面の補修用
  • セラミックフェルール付きFC/PCならびにFC/APCコネクタに対応
  • 付属の研磨フィルムで約20個のコネクタ端面を補修可能

ファイバーコネクタの端面は光学品質の表面で、性能を維持するために汚れや傷は取り除かなければなりません。 端面をクリーニングしても効果がない場合、当社の補修用研磨キットTUK05を用いて傷を研磨することによりコネクタの端面を補修することが可能です。

このキットには研磨用の部品と補修ガイドが含まれ、すべてが便利な携帯用ケースに納められています。 キットの部品はFC/PCならびにFC/APCセラミックフェルールコネクタに対応し、およそ20個分の端面を補修する量の研磨フィルムが入っています。

コネクタは通常、新しいコネクタに取り替えるまで10回ほど研磨して繰り返し使用することが可能です。 摩耗や損傷のあるコネクタの交換については、当社にお問い合わせください。

キットのオプション部品
このキットを使用するには、ファイバ検査スコープFS201を共に使用することをお勧めします。 異なる種類のコネクタを補修する場合には、追加の研磨パック(ディスク)を別途お買い求めいただけます。 当社の酸化アルミニウム研磨シートは、ステンレススチール製のフェルールコネクタ用です。またダイヤモンドの研磨シートは、粒子が粗めなので深い傷の修理に使用することができます(詳細についてはマニュアルをご参照ください)。

携帯用ケースには、顕微鏡FS201、研磨パック(ディスク)2個分、そしてスポイトボトル1本分のスペースが余分に付いています。また研磨フィルムを余分に入れるスペースもあります。検査スコープには電源とFC/PC、FC/APC、ST®*/PC、SC/PC、SMA905ならびにSMA90コネクタに対応するファイバーアダプタが付属します。ファイバ検査スコープFS201についてはこちらからご覧いただけます。ケースには取り外し可能な緩衝材(左の写真参照)が付いており、再利用する部品や他の部品の収納に便利です。

*ST®はLucent Technologies社の登録商標です。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
TUK05 Support Documentation
TUK05コネクタ補修用キット、FC/PC & FC/APCセラミックフェルールコネクタ用
¥47,033
Today
FS201 Support Documentation
FS201ファイバ検査スコープ、アダプタFS200-FCおよびFS201-SMA付き
¥33,601
Today
