高速電圧バッファ、SMA貫通型


  • Drive a 50 Ω Load with a High-Impedance Source
  • ±5 V Input with 1:1 Voltage Gain
  • 200 V/µs Slew Rate
  • SMA Input/Output Connectors

50LD

Input SMA
20 kΩ Impedance
(for Hi-Z Input)

Output SMA
50 Ω Impedance

View Showing Input Panel

View Showing Output Panel

Related Items


Please Wait
Electrical Buffer
Click to Enlarge

50LDの入力側パネル、出力側パネル

特長

  • 入力インピーダンス:20 kΩ、出力インピーダンス:50 Ω
  • 200 V/µsまでの高速アナログまたはデジタル信号を駆動
  • 帯域幅:20 MHz、入出力コネクタ:SMA
  • 最大入力電圧:±5 V、電圧利得は1:1
  • ユニットへの電源供給:USB Mini Bコネクタから(ケーブル付属)
  • コンパクトなインライン型筐体

高速電圧バッファは、1:1の電圧利得を維持しながら、高インピーダンス源で低インピーダンス負荷を駆動できるように電流を増幅します。バッファの入力インピーダンスは20 kΩ、出力インピーダンスは50 Ωです。4チャンネルレーザ光源などのレーザ光源を、NI社製データ取得カードのPCIe-6321やPCIe-6363のような高インピーダンスコントローラで変調するのに便利です。

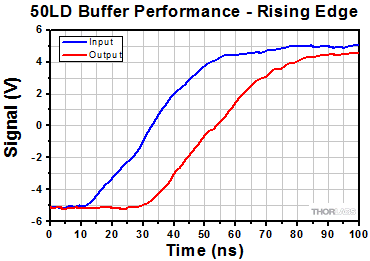

バッファのスルーレートは200 V/µsで、入力波形の歪みを最小限に抑えながら高速のアナログまたはデジタル信号を駆動することができます(下の性能プロット図をご覧ください)。入力電圧は±5 Vまで対応し、電源供給には側面のUSB mini Bコネクタを使用します。USB Mini B-A(オス)ケーブルが1本デバイスに付属します。

バッファ50LDはインライン型のデバイスで、箱には2つのメス型SMAコネクタが付いており、2本のSMAケーブルを接続すれば簡単に使用できます。箱が63.8 mm x 31.8 mm x 25.4 mmと大きいため、バッファを負荷側の装置や制御用のデバイスに直接取り付けることはお勧めしておりません。上の写真でご覧いただけるように、箱には型番、入力電圧範囲、入出力インピーダンス、電圧利得、およびスルーレートが刻印されています。

入力信号の発生には出力インピーダンスが20 kΩの波形生成器を使用し、その測定には入力インピーダンスが20 MΩの5 GHzオシロスコープを使用しました。出力波形の測定には前述の波形生成器と電圧バッファ50LD、および入力インピーダンスが50 Ωの5 GHzオシロスコープを使用しました。

Posted Comments:
MJ Mir  (posted 2023-03-09 09:54:46.407)
How much is the input bias current? Thanks.
jgreschler  (posted 2023-03-10 01:51:41.0)
Thank you for reaching out to Thorlabs. Additional specs and data can be requested by contacting techsupport@thorlabs.com. I have reached out to you directly to discuss this application.
James Cooper  (posted 2023-02-24 14:39:24.367)
Are the input and outputs DC coupled or AC coupled? Thanks
ksosnowski  (posted 2023-03-02 12:01:03.0)
Thanks for reaching out to Thorlabs. The 50LD input is DC coupled up to 20MHz of analog bandwidth.
Mikael Malmström  (posted 2021-12-02 15:46:02.987)
What hoppens If the device gets no 5V power supply? Could I use a 5V on/off signal to turn the output on/off
YLohia  (posted 2021-12-23 12:16:11.0)
Since this device is essentially a Op amp with an amplification of 1, it will only work when the voltage is appropriately supplied. However, we would not encourage you to use the power supply to turn on or off the signal. The device is intended to pass high speed signals, rather than be turned on/off rapidly to pass/not pass the signal.
Alexander Sludds  (posted 2021-11-02 09:36:00.06)
Please give output/input voltage noise of this device on the page.
cdolbashian  (posted 2021-11-08 04:57:28.0)
Thank you for reaching out to us at Thorlabs with this feedback! We don't have this data readily available, but I have informed the appropriate dev team of your desire to have this information visible.
Ollie Ogunlade  (posted 2021-05-27 10:51:45.48)
Hi, do you have the data on the noise specification (maybe as noise referred to input) for the buffer? I would be grateful if you could send it to me, so I can determine if it is suitable for my application.
cdolbashian  (posted 2021-06-14 05:07:24.0)
Thank you for reaching out to us here at Thorlabs. While we do not have this data right now, we intend to characterize this parameter in the future. Thank you for your feedback!
melanie Holmes  (posted 2020-06-09 11:12:05.043)
If we drove this with a 10 V power supply would the input range increase to +/- 10 V ? (Or would it just damage the device(
YLohia  (posted 2020-06-09 02:44:50.0)
Thank you for contacting Thorlabs. We specify a maximum input voltage of +/- 5 V. Going over this spec risks damage to the device.
Back to Top

高速電圧バッファ

Specifications
Performance
Source Impedance20 kΩ
Load Impedance50 Ω
Maximum Input Voltage±5 V
Maximum Output Current300 mA
Slew Ratea200 V/µs
Voltage Gain1:1
Bandwidth20 MHz
General
Input/Output ConnectorsFemale SMA
Device Input PowerUSB (5 V, 500 mA)
Operating Temperature5 to 35 °C
  • スルーレートは10%および90%のカットオフで定義されています。
+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
50LD Support Documentation
50LD高速電圧バッファ、SMA貫通型、入力抵抗20 kΩ、出力抵抗50 Ω
¥39,936
Today
Back to Top

取付け用クランプ


Click to Enlarge

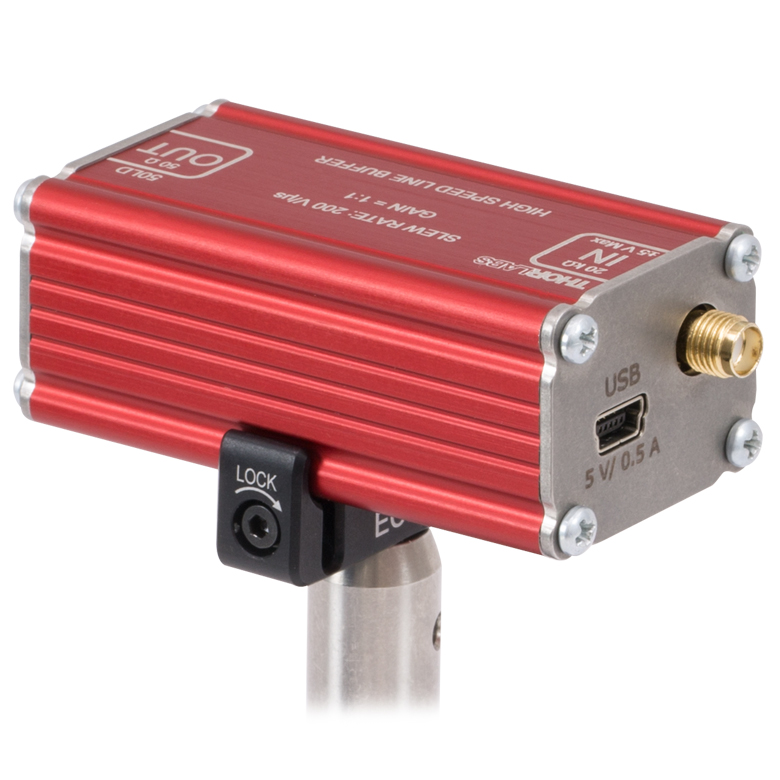

ECM125を使用してØ12.7 mmポストに取り付けられた50LD

アルミニウム製クランプ、ポスト取付け可能
こちらのアルマイト加工されたアルミニウム製クランプは、上記の電圧バッファ50LDを固定するのにご使用いただけます。ECM100は幅25.4 mmの面に、ECM125は幅31.8 mmの面に取り付けます。クランプはバッファ筐体の側面にスナップオン式で取り付けられ、側面の2 mm六角固定ネジでフレクシャーロックを締め付けます。

すべてのクランプには底部にM4ザグリ穴が付いています。このザグリ穴でクランプをØ12 mmまたはØ12.7 mm(Ø1/2インチ)ポストや、M4タップ穴のある表面に取り付けることができます。バッファの筐体をクランプに取り付ける前に、クランプのザグリ穴にポストなどに取り付けておく必要があります。筐体をクランプに固定してしまうとザグリ穴に届かなくなるためです。

プラスチック製クランプ、2個の筐体の接続用
クランプEPS125は、上記の電圧バッファ50LDの幅31.8 mmの面に取り付けられます。2つの電圧バッファを1つのクランプに取り付けることで、セットアップをコンパクトにすることができます。

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
ECM100 Support Documentation
ECM100アルミニウム製サイドクランプ、幅25.4 mmの小型デバイス筐体用
¥2,669
Today
ECM125 Support Documentation
ECM125アルミニウム製サイドクランプ、カスタムデバイス用小型筐体、幅31.8 mm用
¥2,751
Today
EPS125 Support Documentation
EPS125プラスチック製クランプ、上下取付け可能、幅31.8 mm用、2個セット
¥959
7-10 Days
