顕微鏡対物レンズ用ネジアダプター


  • Integrate Objectives with Industry-Standard Threads into Nosepieces with M32 x 0.75 or SM2 Threads
  • Options Compatible with Thorlabs’ Bergamo® and Cerna® Microscope Systems

M32RMSS

External M32 x 0.75 Threads
and Internal RMS Threads

M32M34S

External M32 x 0.75 Threads
and Internal M34 x 1.0 Threads

CSN100

M32M25S

N40X-PF

M32M25S Adapter Connecting a Nikon Objective to a Cerna Nosepiece

M2M40S

External SM2 Threads and Internal M40 x 0.706 Threads

Related Items


Please Wait
Item #Internal ThreadsExternal Threads
M32RMSSRMS (0.800"-36)M32 x 0.75
M32M25SM25 x 0.75a
M32SM1SSM1 (1.035"-40)
M32M26SM26 x 0.706
M32M27SM27 x 0.75
M32M271SM27 x 1.0
M32M32SM32 x 0.75
M32M34SM34 x 1.0b
M32M40SM40 x 0.706
M2M32SM32 x 0.75SM2 (2.035"-40)
M2M34SM34 x 1.0b
M2M40SM40 x 0.706
  • こちらのネジは一般にNikon製およびLeica製対物レンズに使用されています。
  • こちらのネジは一般にZeiss製およびNikon製対物レンズに使用されています。

特長

  • Bergamo®およびCerna®顕微鏡に対応するM32 x 0.75外ネジ付きアダプタ
  • Cerna取付けアームCSA2100に対応するSM2外ネジ付きアダプタ
  • 内ネジはOlympus製、Nikon製、Zeiss製、Leica製対物レンズに対応
  • フランジが付いているので顕微鏡対物ホルダにねじ込む際の締め過ぎを防止
  • 真ちゅう製

こちらの真ちゅう製顕微鏡アダプタを使用すると、外ネジ付き顕微鏡対物レンズをM32 x 0.75ネジまたはSM2内ネジ付き対物ホルダに直接取り付けることができます。こちらのアダプタには、対物ホルダにアダプタや対物レンズをねじ込む際の締め過ぎを防ぐフランジが付いているので、対物レンズを適切な位置に保持し、筐体内部の光学素子が損傷するのを防ぎます。また、真ちゅうはアルミニウムよりも固いのでネジの応力は低減されます。アダプタM32M32Sは、多くのM32 x 0.75ネジ付き対物レンズ用レボルバ(対物ホルダ)の内ネジ部分が窪みの奥に切られていることから作られました。TL10X-2Pのような直径の大きい対物レンズの場合、そのような対物ホルダに適切に嵌合させるにはより小さな直径のマウントが必要になります。 各アダプタにはスパナレンチ用の穴があり、調整機能付きスパナレンチSPW801を使用することができます。

ネジアダプタの種類豊富なラインナップは、ネジ付きアダプタのセレクションガイドをご参照ください。

Item #Typical ApplicationExternal ThreadsInternal Threads
M32RMSSinfoIntegrate RMS Objective with M32 x 0.75 MountM32 x 0.75RMS (0.800"-36)
M32M25SinfoIntegrate M25 x 0.75 Objective with M32 x 0.75 MountM32 x 0.75M25 x 0.75
M32SM1SinfoIntegrate SM1 Lens Tube with M32 x 0.75 MountM32 x 0.75SM1 (1.035"-40)
M32M26SinfoIntegrate M26 x 0.706 Objective with M32 x 0.75 MountM32 x 0.75M26 x 0.706

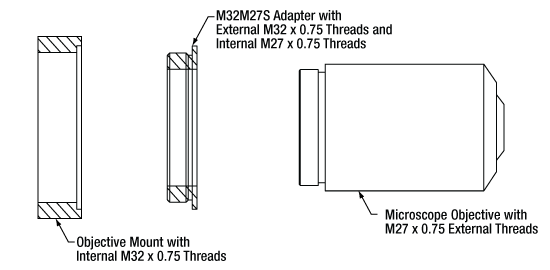

M32M27SinfoIntegrate M27 x 0.75 Objective with M32 x 0.75 MountM32 x 0.75M27 x 0.75
M32M271SinfoIntegrate M27 x 1.0 Objective with M32 x 0.75 MountM32 x 0.75M27 x 1.0

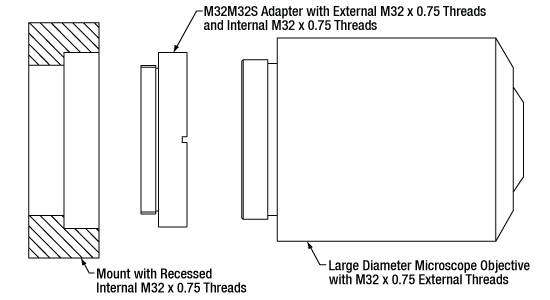

M32M32SinfoIntegrate Large Diameter M32 x 0.75 Objective with Recessed M32 x 0.75 MountM32 x 0.75M32 x 0.75
M32M34SinfoIntegrate M34 x 1.0 Objective with M32 x 0.75 MountM32 x 0.75M34 x 1.0

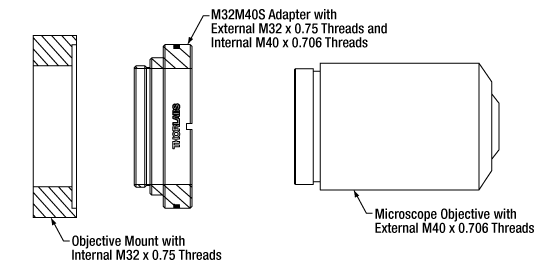

M32M40SinfoIntegrate M40 x 0.706 Objective with M32 x 0.75 MountM32 x 0.75M40 x 0.706
M2M32SinfoIntegrate M32 x 0.75 Objective with SM2 MountSM2 (2.035"-40)M32 x 0.75
M2M34SinfoIntegrate M34 x 1.0 Objective with SM2 MountSM2 (2.035"-40)M34 x 1.0
M2M40SinfoIntegrate M40 x 0.706 Objective with SM2 MountSM2 (2.035"-40)M40 x 0.706

当社のネジ規格表

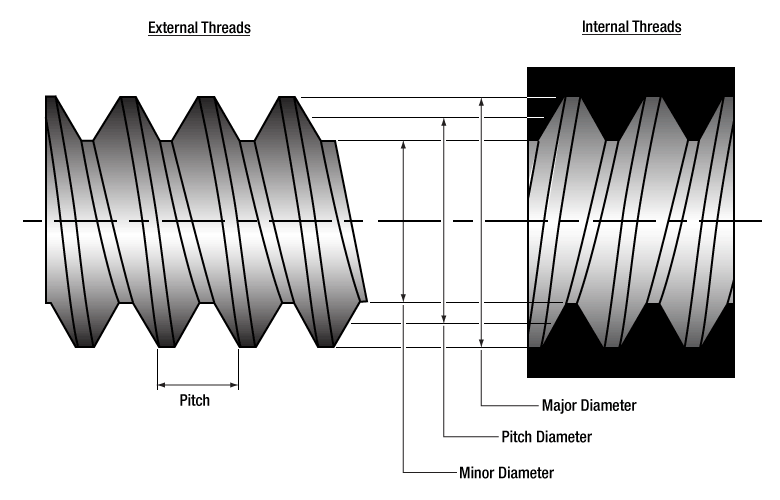

下記は当社のアダプタに使用しているネジの規格表です。用途に適した結合部品の機械加工にご参照ください。なお、他社製品は公差が下記ネジと異なる場合がありますのでご注意ください。こちらに掲載されていないネジの規格については当社までお問い合わせください。

RMS Threading
External Thread, 0.800"-36.0, UNS-2AInternal Thread, 0.800"-36.0, UNS-2B
Max Major Diameter0.7989"Min Major Diameter0.8000"
Min Major Diameter0.7934"Min Pitch Diameter0.7820"
Max Pitch Diameter0.7809"Max Pitch Diameter0.7866"
Min Pitch Diameter0.7774"Min Minor Diameter (and 83.3% of thread)0.770"
Max Minor Diameter0.7688"Max Minor Diameter (and 64.9% of thread)0.777"
M25 x 0.75 Threading
External ThreadInternal Thread
Max Major Diameter24.977 mmMin Major Diameter25.000 mm
Min Major Diameter24.837 mmMin Pitch Diameter24.513 mm
Max Pitch Diameter24.49 mmMax Pitch Diameter24.659 mm
Min Pitch Diameter24.379 mmMin Minor Diameter (and 83.3% of thread)24.188 mm
Max Minor Diameter24.165 mmMax Minor Diameter (and 64.9% of thread)24.378 mm
SM1 Threading
External Thread, 1.035"-40.0, UNS-2AInternal Thread, 1.035"-40.0, UNS-2B
Max Major Diameter1.0339"Min Major Diameter1.0350"
Min Major Diameter1.0288"Min Pitch Diameter1.0188"
Max Pitch Diameter1.0177"Max Pitch Diameter1.0234"
Min Pitch Diameter1.0142"Min Minor Diameter (and 83.3% of thread)1.008"
Max Minor Diameter1.0068"Max Minor Diameter (and 64.9% of thread)1.014"
M26 x 0.706 Threading
External ThreadInternal Thread
Max Major Diameter25.977 mmMin Major Diameter26.0 mm
Min Major Diameter25.838 mmMin Pitch Diameter25.541 mm
Max Pitch Diameter25.519 mmMax Pitch Diameter25.685 mm
Min Pitch Diameter25.41 mmMin Minor Diameter (and 83.3% of thread)25.236 mm
Max Minor Diameter25.213 mmMax Minor Diameter (and 64.9% of thread)25.417 mm
M27 x 0.75 Threading
External ThreadInternal Thread
Max Major Diameter26.977 mmMin Major Diameter27.000 mm
Min Major Diameter26.837 mmMin Pitch Diameter26.513 mm
Max Pitch Diameter26.49 mmMax Pitch Diameter26.660 mm
Min Pitch Diameter26.378 mmMin Minor Diameter (and 83.3% of thread)26.188 mm
Max Minor Diameter26.165 mmMax Minor Diameter (and 64.9% of thread)26.378 mm
M27 x 1.0 Threading
External ThreadInternal Thread
Max Major Diameter26.95 mmMin Major Diameter27.0 mm
Min Major Diameter26.58 mmMin Pitch Diameter26.35 mm
Max Pitch Diameter25.0 mmMax Pitch Diameter26.52 mm
Min Pitch Diameter24.8 mmMin Minor Diameter (and 83.3% of thread)25.917 mm
Max Minor Diameter23.704 mmMax Minor Diameter (and 64.9% of thread)26.153 mm
M32 x 0.75 Threading
External ThreadInternal Thread
Max Major Diameter31.977 mmMin Major Diameter32.000 mm
Min Major Diameter31.837 mmMin Pitch Diameter31.513 mm
Max Pitch Diameter31.49 mmMax Pitch Diameter31.663 mm
Min Pitch Diameter31.376 mmMin Minor Diameter (and 83.3% of thread)31.188 mm
Max Minor Diameter31.165 mmMax Minor Diameter (and 64.9% of thread)31.378 mm
M34 x 1.0 Threading
External ThreadInternal Thread
Max Major Diameter33.974 mmMin Major Diameter34.000 mm
Min Major Diameter33.794 mmMin Pitch Diameter33.350 mm
Max Pitch Diameter33.324 mmMax Pitch Diameter33.520 mm
Min Pitch Diameter33.199 mmMin Minor Diameter (and 83.3% of thread)32.917 mm
Max Minor Diameter32.891 mmMax Minor Diameter (and 64.9% of thread)33.153 mm
M40 x 0.706 Threading
External ThreadInternal Thread
Max Major Diameter39.969 mmMin Major Diameter40.000 mm
Min Major Diameter39.830 mmMin Pitch Diameter39.542 mm
Max Pitch Diameter39.511 mmMax Pitch Diameter39.670 mm
Min Pitch Diameter39.414 mmMin Minor Diameter (and 83.3% of thread)39.236 mm
Max Minor Diameter39.206 mmMax Minor Diameter (and 64.9% of thread)39.405 mm
SM2 Threading
External Thread, 2.035"-40.0, UNS-2AInternal Thread, 2.035"-40.0, UNS-2B
Max Major Diameter2.0338"Min Major Diameter2.0350"
Min Major Diameter2.0287"Min Pitch Diameter2.0188"
Max Pitch Diameter2.0176"Max Pitch Diameter2.0239"
Min Pitch Diameter2.0137"Min Minor Diameter (and 83.3% of thread)2.008"
Max Minor Diameter2.0067"Max Minor Diameter (and 64.9% of thread)2.014"

Posted Comments:
SANDEEP MISHRA  (posted 2021-08-03 16:02:35.0)
I want to use Olympus W20.32x0.706 (RMS) Objective to Nikon Microscope. Nikon objective have M25x0.75 thread. Please suggest the adapter for the same. Thanks
YLohia  (posted 2021-08-05 01:22:09.0)
Hello, thank you for contacting Thorlabs. Unfortunately, we currently do not offer an internal RMS to external M25 x 0.75 thread adapter. We will consider looking into offering such an item in the future.
Andres Medina  (posted 2020-09-15 17:54:32.807)
Hello. I'm looking for an adapter of 0.75 inch diameter to 1.0 inch diameter. The idea is to use Nikon objectives in a Zeiss microscope. Can you help me to decide which option is better? Thanks, Best regards, Andres Medina
YLohia  (posted 2020-09-18 02:28:21.0)
Hello Andres, thank you for contacting Thorlabs. Based on our direct discussion, in order to convert the M25 x 0.75 threads of the objective to the RMS threads of the microscope, you will need the RMSA2 adapter.
Tobias Noebauer  (posted 2020-08-31 21:00:44.693)
We keep having issues with this adapter getting stuck in a microscope objective thread. I think this is because of the two d=0.06in holes that go through the flange ring (the face with the markings). These holes have sharp edges on the opposite side of the flange ring, which get pressed against the microscope housing when the adapter is fastened. These sharp edges create extra friction that can get the adapter stuck quite firmly. Not even the spanner wrench tool can help in these situations, we have to use WD-40 and some special pliers. I would suggest not to drill these holes all the way through the flange ring but leave them blind. Thank you!
YLohia  (posted 2020-09-01 04:30:15.0)
Hello Tobias, thank you for your feedback. We're always looking for ways to improve our products, so any thoughts on such matters are always appreciated. I have posted your suggestions on our internal engineering forum for further consideration.

アダプタ、M32 x 0.75外ネジ&業界標準ネジ規格内ネジ

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
M32RMSS Support Documentation
M32RMSSCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&RMS内ネジ
¥2,759
Today
M32M25S Support Documentation
M32M25SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M25 x 0.75内ネジ
¥2,759
Today
M32SM1S Support Documentation
M32SM1SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&SM1内ネジ
¥2,759
Today
M32M26S Support Documentation
M32M26SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M26 x 0.706内ネジ
¥2,759
Today
M32M27S Support Documentation
M32M27SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M27 x 0.75内ネジ
¥2,759
5-8 Days
M32M271S Support Documentation
M32M271S真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M27 x 1.0内ネジ
¥2,759
5-8 Days
M32M32S Support Documentation
M32M32S真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M32 x 0.75内ネジ
¥5,850
5-8 Days
M32M34S Support Documentation
M32M34SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M34 x 1.0内ネジ
¥5,240
5-8 Days
M32M40S Support Documentation
M32M40SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、M32 x 0.75外ネジ&M40 x 0.706内ネジ
¥5,517
5-8 Days

アダプタ、SM2外ネジ&業界標準ネジ規格内ネジ

+1 数量 資料 型番 - ユニバーサル規格 定価(税抜) 出荷予定日
M2M32S Support Documentation
M2M32SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、SM2外ネジ&M32 x 0.75内ネジ
¥6,897
5-8 Days
M2M34S Support Documentation
M2M34SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、SM2外ネジ&M34 x 1.0 内ネジ
¥6,897
5-8 Days
M2M40S Support Documentation
M2M40SCustomer Inspired! 真ちゅう製顕微鏡アダプタ、SM2外ネジ&M40 x 0.706 内ネジ
¥6,897
5-8 Days
