Lens Specifications
Design Wavelength780 nmMagnificationInfinite
Numerical Aperture0.40Window Thickness0.28 mm
Clear Aperture5.00 mmLaser Window Material / IndexN-BK7/1.517

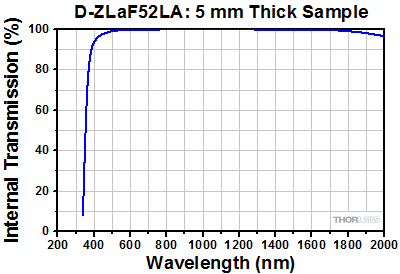

Effective Focal Length6.24 mmGlassD-ZLaF52LA
Working Distance2.69 mmSurface Quality40-20 Scratch-Dig(Entire Bulk Material)

355110-BAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)
C110TMD-BAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)

Vd number40.73
CTE (10-6 / °C)6.9
Thermo optic coefficient (10-6 / °C) (Δn/ΔT)6.5

Surface
R(mm)
k
A2
A4
A6
A8
A10
Side 1
PLANO
-
-
-
-
-
-
Side 2
4.948365
-1.116618
-
6.004451E-4
1.364160E-06
-6.907517E-8
-
Side 1 and Side 2 are labeled as ASP1 and ASP2, respectively, on the drawings shown on the Specifications tab.
zSAG as a Function of YA44th Order Aspheric Coefficient
RRadius of CurvatureA66th Order Aspheric Coefficient
kConic ConstantA88th Order Aspheric Coefficient
A22nd Order Aspheric CoefficientAnnth Order Aspheric Coefficient
